SCM Nova F 520 - Xylent 20" Jointer

$ 13,775

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • In stock as of 5.6.24

The Nova F 520 X is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence and breakthrough XYLENT technology. This technology gives an exacting finish while reducing ambient noise decibel output significantly.

All SCM Jointers use aged cast iron tables that are machine polished to the highest tolerances. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use. The longer tables ensure board straightness. The table is over 108” to make sure that the workpiece will be straight every time.

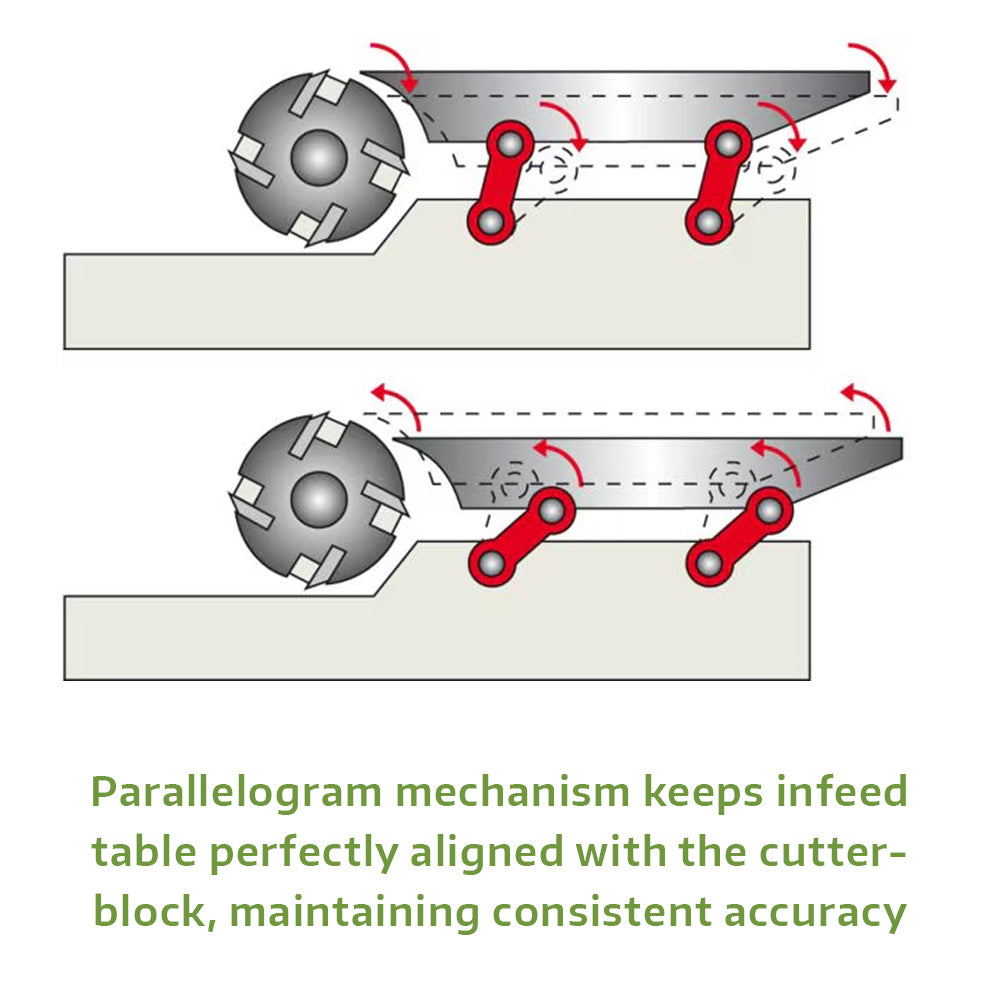

All SCM Jointers incorporate a parallelogram movement of the infeed and outfeed tables. This system has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. This radius pivot ensures that the table chip breaker remains in the correct position from the head. Some manufacturers use a wedge type movement which allows the table and chip breaker to move away from the head as it is adjusted for more removal. This will allow splintering and poor quality finish.

The Nova F 520 X comes with a 20” Xylent cutterhead block with 3 series of knives designed to significantly reduce to decibel levels during operation. Totaling 84 plates of 15 x 15 x 2.5 mm. These knives are 4 self-locking and self-centering screw knives. With each cutterhead you will also receive1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench). Additionally, you will receive two inserts for the dynamometric key.

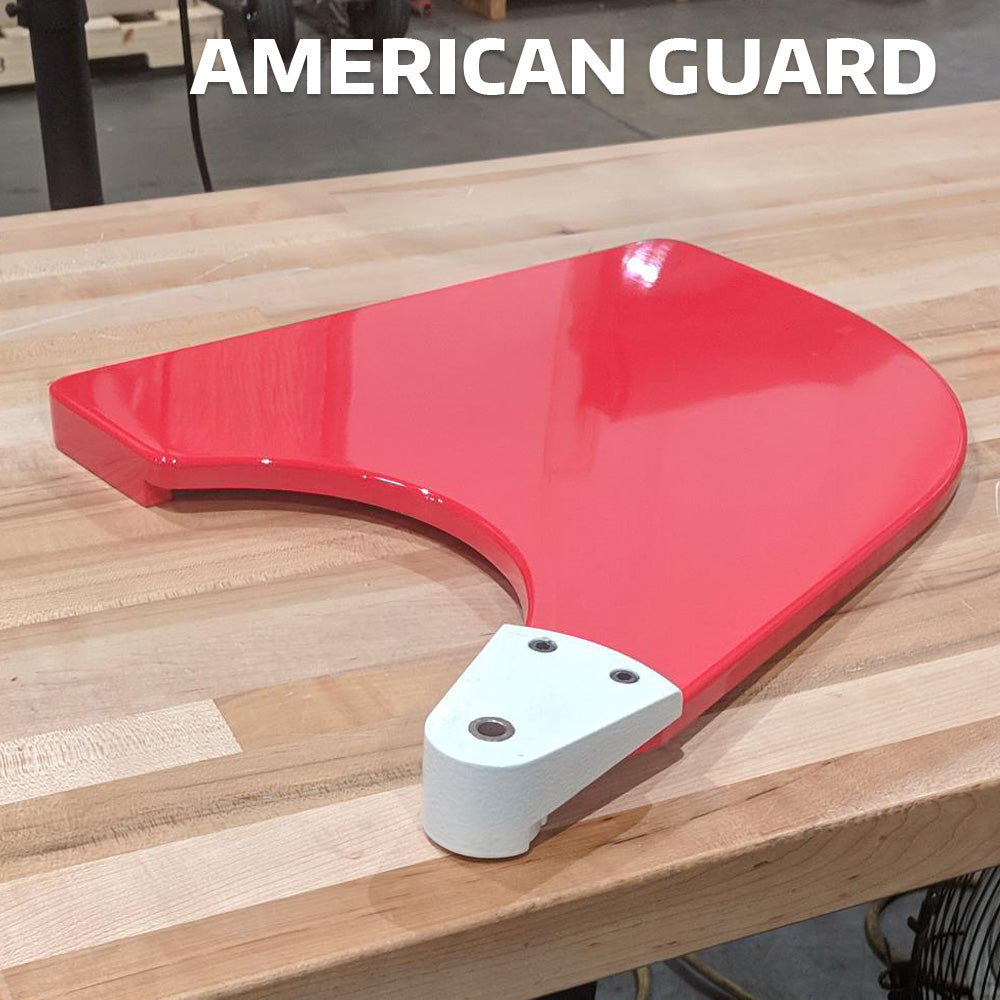

The standard guard offered on SCM Jointers is a spring-type guard which always covers the unused portion of the knife. Other European style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

  • XYLENT Technology Silent Cutterhead with 84 knives
  • Magnetic starter with overload protection
  • Heavy anodized aluminum jointer fence Spring type
  • “American” cutter head guard
  • 108 1/4 Inch long table length with ribbed cast tables Parallelogram movement of tables
  • Dust hood

Motor Horsepower: 8hp
Total Table Length: 108-1/4” (2,750 mm)
Infeed Table Length: 61” (1,550 mm)
Outfeed Table Length: 47-1/4” (1,200 mm)
Table Width: 20-1/2” (520 mm)
Working Capacity: 108 1/4” x 20 1/2” (2,750 mm x 520 mm)
Max. Depth of Cut: 5/16” (8 mm)
Cutter Head Diameter: 4-3/4” (120 mm)
RPM: 5000
No. of Knives: 84 + 10
Knife Dimensions: 15 x 15 x 2.5mm
Fence Size: 47-1/4" x 7-1/2" (1,200 mm x 190 mm)
Fence Tilt (Degrees): 0° – 45°
Dust Hood Diameter: 120 mm

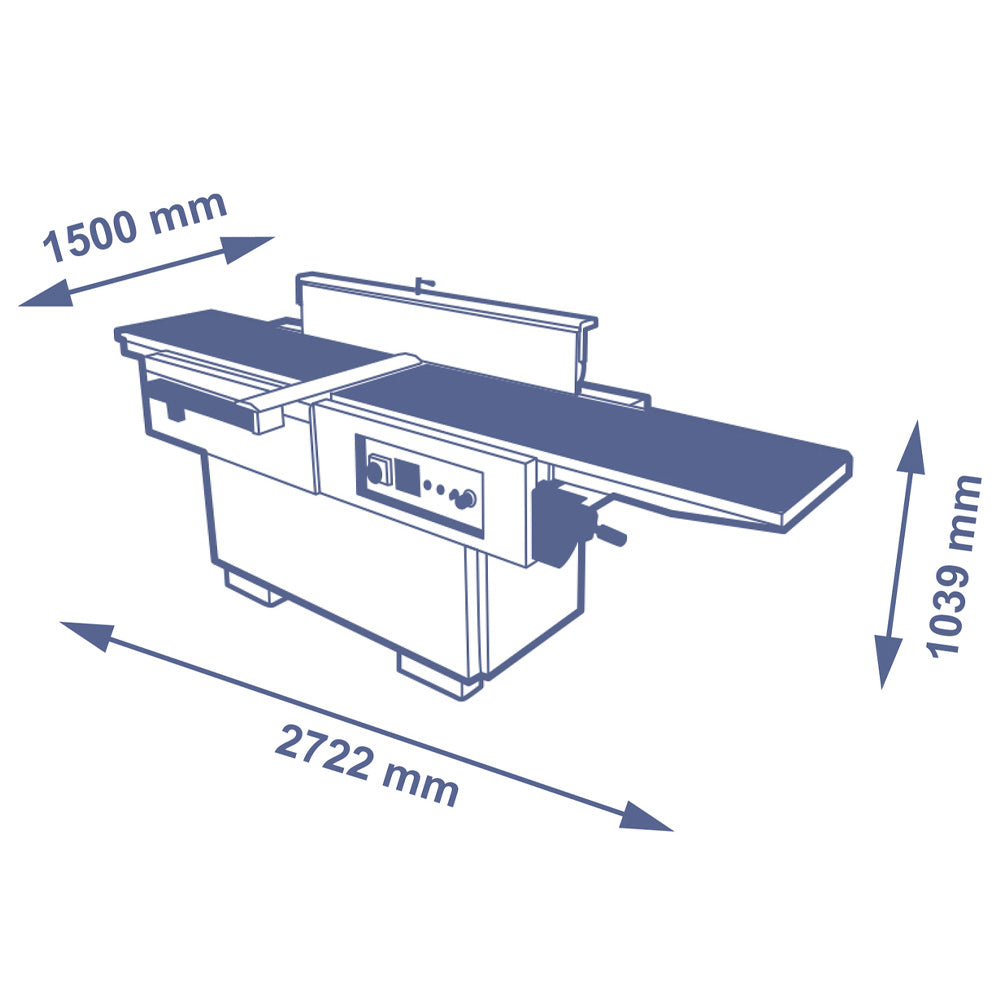

Overall Dimensions: 119" x 56"
Shipping Weight: 2,250 lbs.
Net Weight: 1,875 lbs.
Electrical Requirements: 230V 3 PH
Dust Extraction: 980 cfm


    Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

    SKU: Nova F 520X
