SCM Nova F 520 - Tersa 20" Jointer
Call for your best price!
Call for your best price!
Have questions? Give us a call at 260-637-0054.
The Nova F 520 T is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, a tilting fence and a quick change Tersa cutterhead.
All SCM Jointers use aged cast iron tables that are machine polished to the highest tolerances. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use. The longer tables ensure board straightness. The table is over 108” to make sure that the workpiece will be straight every time.

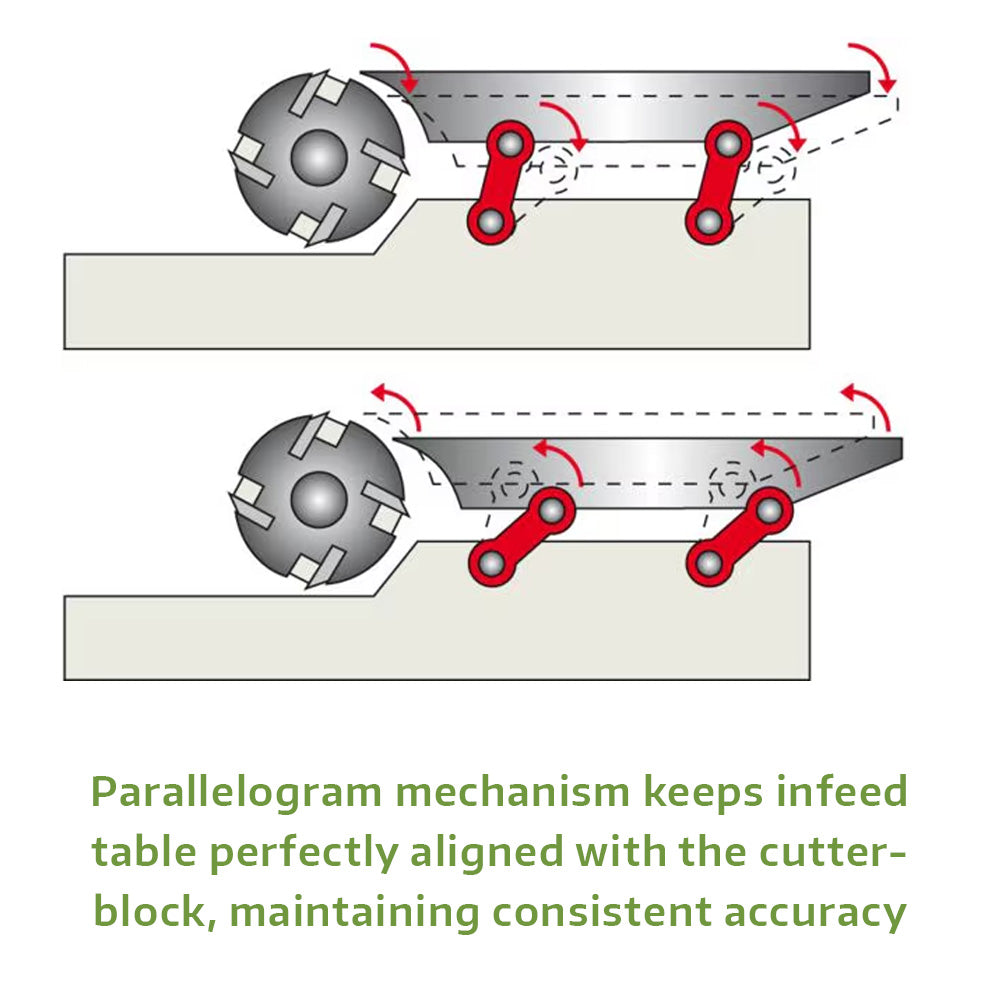

All SCM Jointers incorporate a parallelogram movement of the infeed and outfeed tables. This system has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. This radius pivot ensures that the table chip breaker remains in the correct position from the head. Some manufacturers use a wedge type movement which allows the table and chip breaker to move away from the head as it is adjusted for more removal. This will allow splintering and poor quality finish.
SCM jointers include the quick change knife heads by "Tersa." This cutterhead eliminates the necessity of gauging the knives each time to ensure proper setting position. The Tersa knives automatically reference into position when the head is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are two-sided, they can be flipped over, reinserted, and used again.

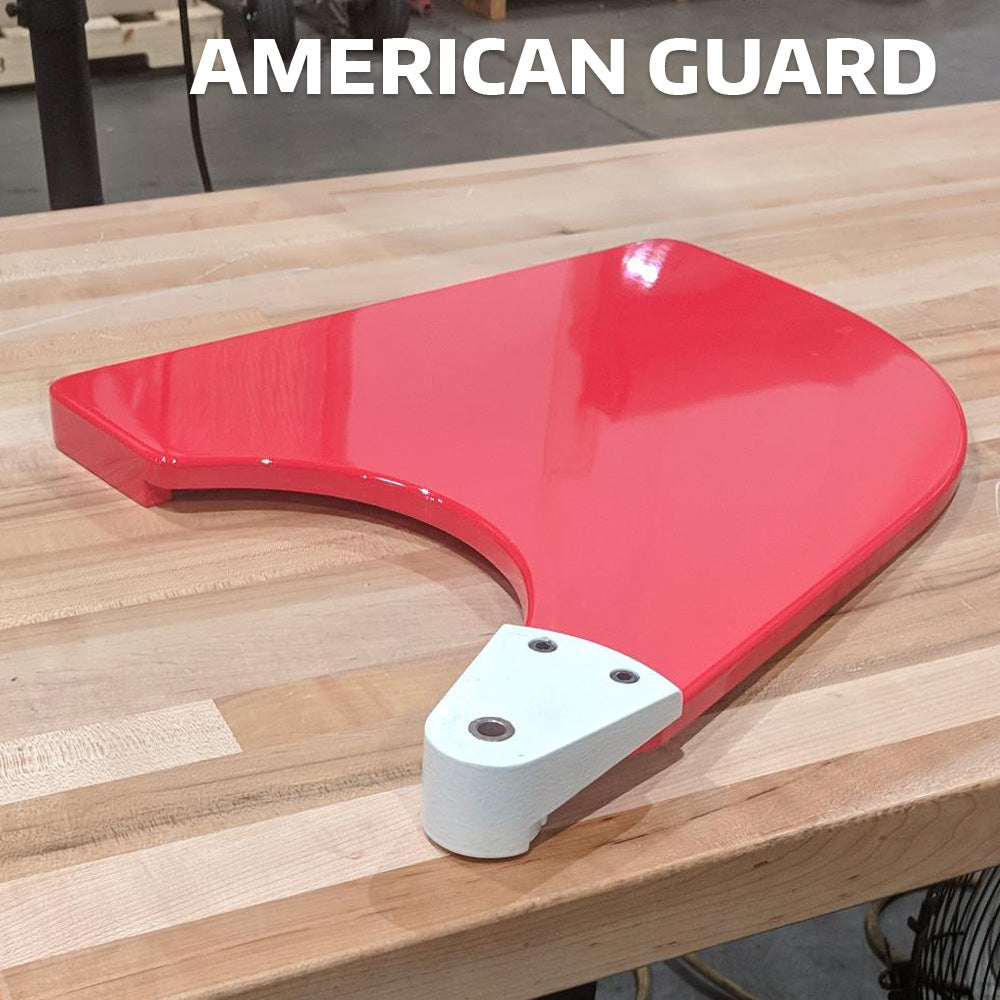

The standard guard offered on SCM Jointers is a spring-type guard which always covers the unused portion of the knife. Other European style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.
[TABS]
Motor horsepower: 8hp (3-phase)
Total table length: 108-1/4" (2,750 mm)
Infeed table length: 61" (1,550 mm)
Outfeed table length: 47-1/4" (1,200 mm)
Table width: 20-1/2" (520 mm)
Working height: 33" (845 mm)
Working capacity: 108-1/4" x 20-1/2" (2,750 mm x 520 mm)
Max. depth of cut: 5/16" (8 mm)
Cutter head dia.: 4-3/4" (120 mm)
RPM: 5,000
No. of knives: 4
Knife dimensions: 520 mm x 35 mm x 3mm
Fence size: 47-1/4" x 7-1/2" (1,200 mm x 190 mm)
Fence tilt: 0°-45°
Dust hood dia.: 4.7" (120 mm)
Noise level (dB): 75 db

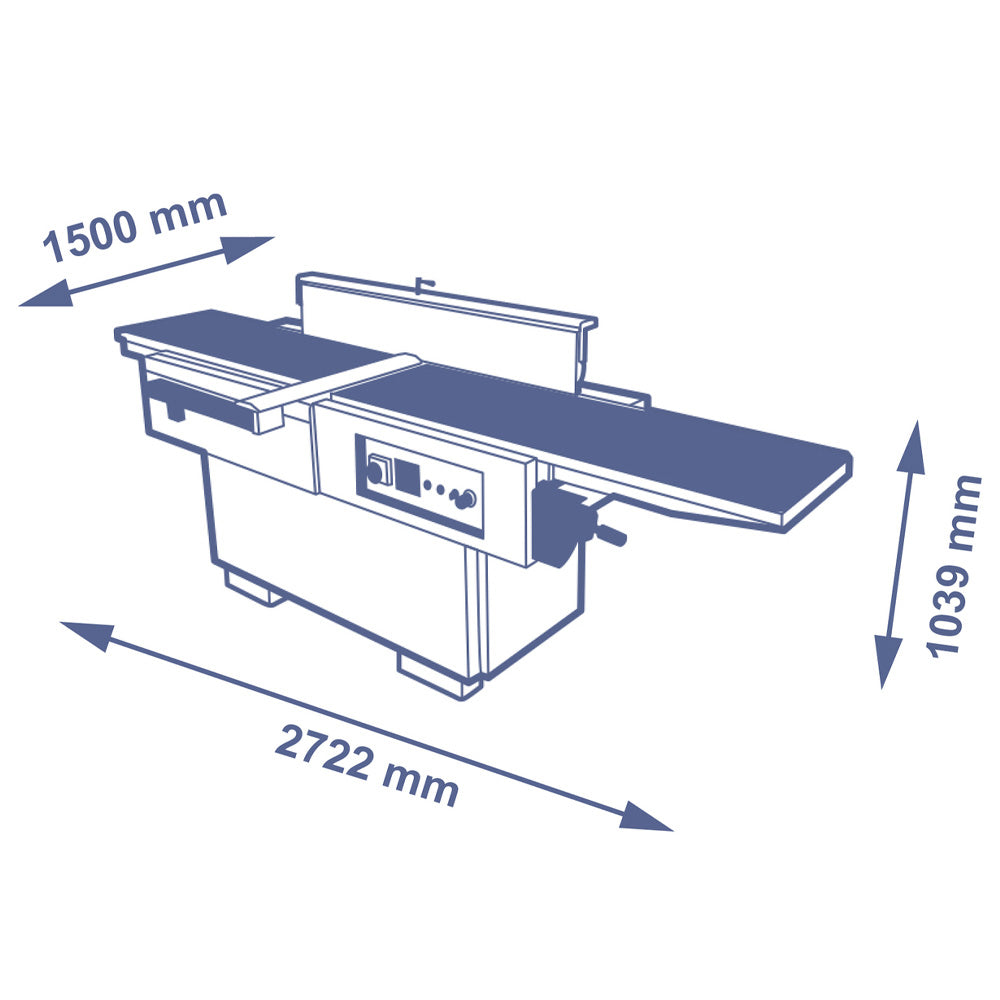

Overall dimensions: 119" x 56"
Shipping weight: 2,250 lbs. (1,020 kg)
Net weight: 1,875 lbs. (850 kg)
Electrical requirements: 230v
Dust extraction: 980 cfm
