SCM Class S 630 - Xylent 24" Planer

Price
$ 23,575

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Low stock as of 1.9.24 - Please call before ordering

The Class S 630 X is a heavy duty, 24” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers and breakthrough XYLENT technology. This technology gives an exacting finish while reducing ambient noise decibel output significantly.

Monoblock technology is used in the design and fabrication of this base. The solid, welded base undergoes a treatment called normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point.

All SCM planers use four jack screws with acme style threads and dust covers for maximum table support. In addition to providing a stable lifting system which eliminates sniping, the acme threads greatly increase the longevity of what is normally the most common wear item on planers. Through a patented design, there is a special bushing between the drive chain, and sprocket which doesn’t allow any pressure from the chain to reach the jack screw, thus pushing the machine’s longevity to the extreme. It is equipped with a powered raise and lower system with an LED readout for accurate positioning.

Used when planing raw, uneven lumber, the work table support rollers allow irregular material to be planed that would not feed on a standard table. When the material has been planned flat on one side, the rollers can be lowered to allow a clean pass on the other side.

The SCM feed system includes a powered sectional steel infeed roller and powered rubber outfeed rollers. This combination helps ensure feeding of parts with variations up to 6mm in thickness. Anti-kickback fingers and a sectional chip breaker are also part of the feed section and provide both safety and a quality finish.

This amazing SCM Group Jointer now comes with the most innovative solution for soundless planing in the world. The 24” cutterhead version comes with a spiral knife cutterblock with 3 series of knives. Totaling 105 plates of 15 x 15 x 2.5 mm. These are four self-locking and self centering screw knives. With each cutterhead you will also receive 1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench). Additionally, you will receive two inserts for the dynamometric key.

Features
  • Spiral, shear cut, XYLENT helical insert cutterhead
  • Electric powered movement feed table raise and lower (2 speed)
  • Steel, sectioned infeed
  • Two rubber outfeed rollers
  • Variable feed system
  • Powered bearing-assisted feed rollers
  • Digital LED readout of working thickness
  • Magnetic starter with overload protection
  • Table lifting by four high precision jack screws
  • Adjustable bed rollers in feed table
  • Course and fine thickness adjustment
  • Total of 10 additional knives
  • Dust hood
Specs

Motor Horsepower: 12hp
Working Width: 24-3/4” (630 mm)
Working Height: 1/8” – 11-3/4” (3-300 mm)
Max. Depth of Cut: 5/16” (8 mm)
Minimum Length of Stock: 10-1/4” (260 mm)
Cutter Head Diameter: 4-3/4” (120 mm)
RPM: 4,500 RPM
No. of knives: 105
Knife Dimensions: 15 mm x 15 mm x 2.5 mm
Table Size: 24.75” x 39.4” (630 mm x 1,000 mm)
Feed Speeds (Variable): 4 - 20 m/min (13 - 65 FPM)
Infeed Roller: Steel sectional, power driven
Outfeed Roller (x 2): Rubber, power driven
Dust Hood Diameter: 150 mm
Noise Level (dB): 70

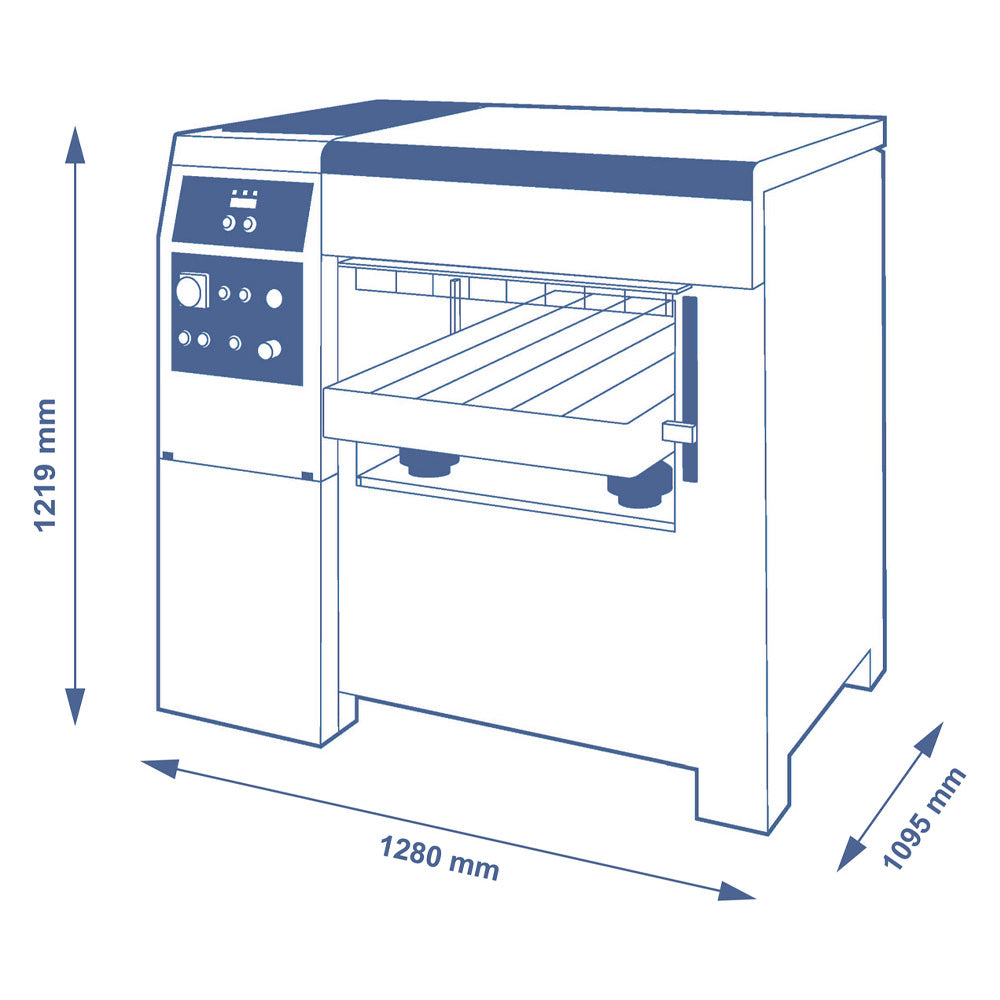

Overall Dimensions (L,W,H): 51" x 40" x 45”
Shipping Weight: 2,710 lbs.
Net Weight: 2,550 lbs.
Electrical Requirements: 230V
Dust Extraction: 980 CFM
