SCM Nova F 410 - Xylent 16" Jointer

Price
$ 12,075

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available October 2024

The Nova F 410 X is a heavy duty, long bed 16” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence, and a quick change Xylent cutterhead. This technology gives an exacting finish while reducing ambient noise decibel output significantly.

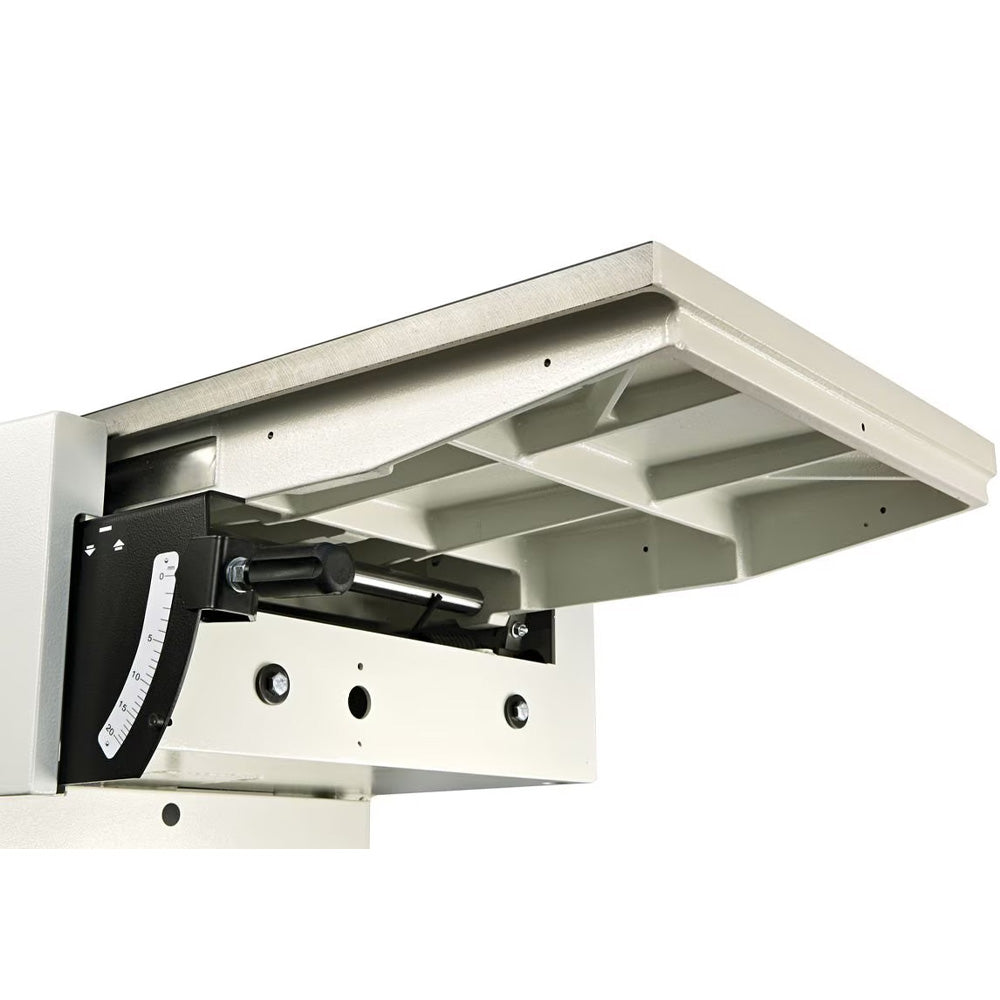

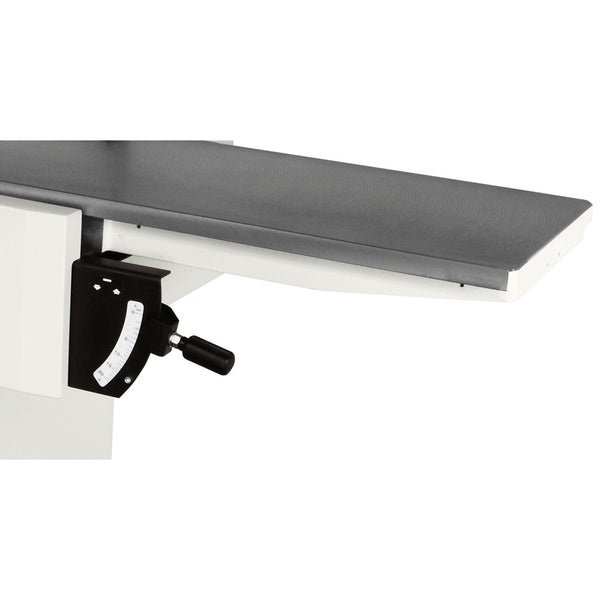

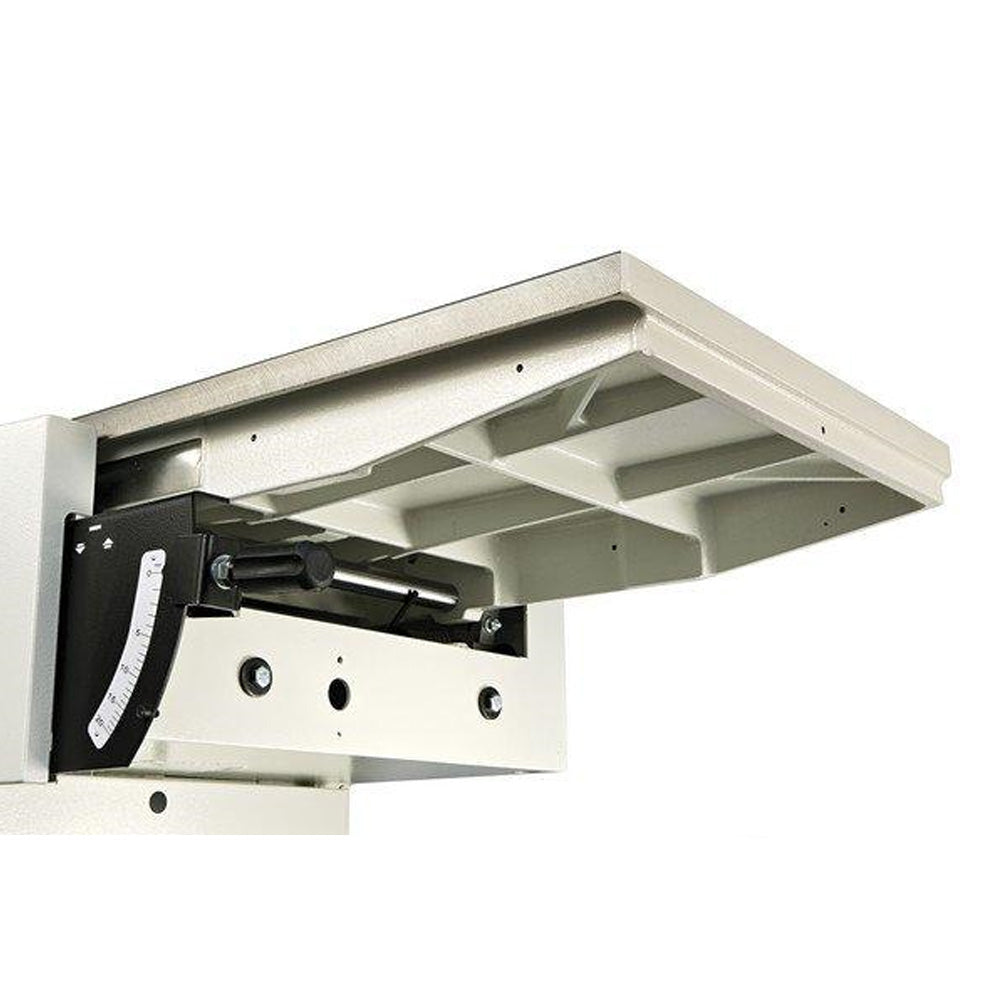

All SCM Jointers use aged cast iron tables that are machine polished to the highest tolerances. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use. The longer tables ensure board straightness. SCM tables are over 102” to make sure that the workpiece will be straight every time.

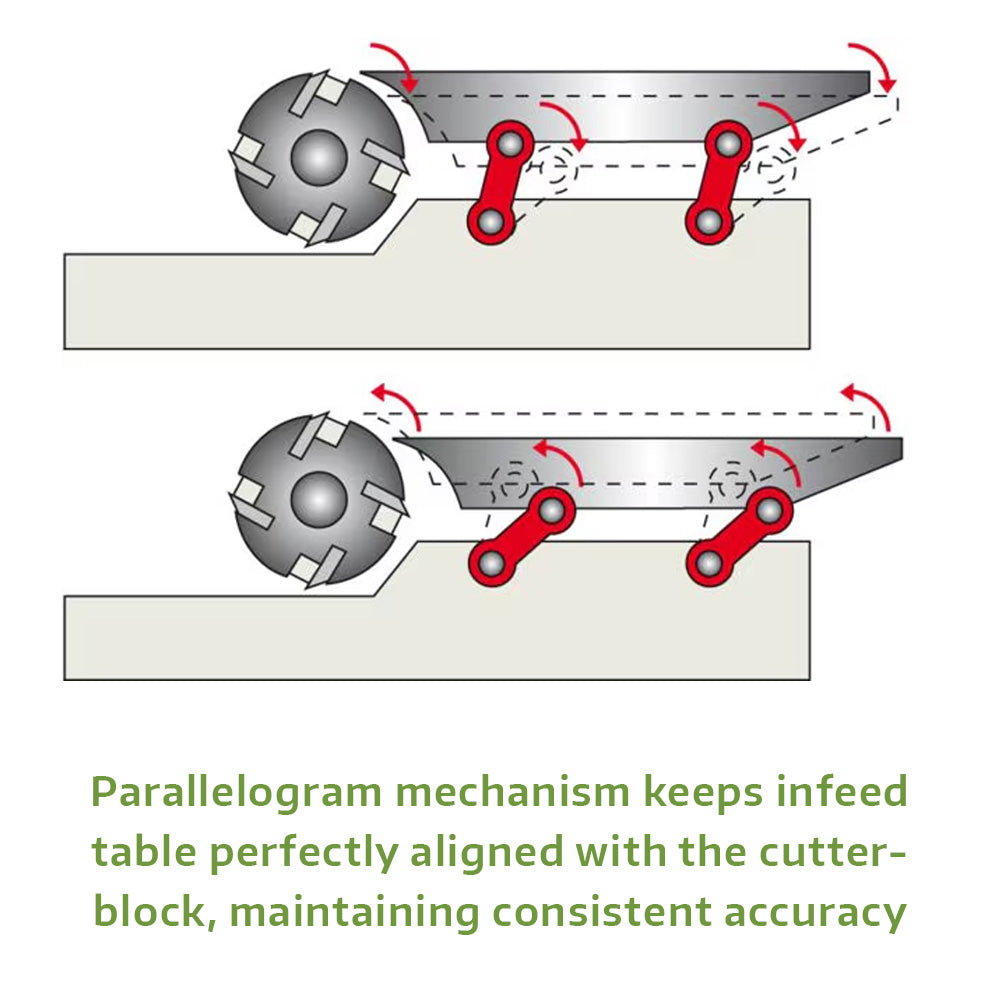

All SCM Jointers also incorporate a parallelogram movement of the infeed and outfeed tables. This system has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. This radius pivot ensures that the table chip breaker remains in the correct position from the head. Some manufacturers use a wedge type movement which allows the table and chip breaker to move away from the head as it is adjusted for more removal. This will allow splintering and poor-quality finish.

The Xylent cutterhead is the most innovative solution for soundless planing in the world. The 16” cutterhead version comes with a spiral knife cutterblock with 3 series of knives, totaling 68 plates of 15 x 15 x 2.5 mm. These knives are 4 self-locking and self centering screw knives. With each cutterhead you will also receive 1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench). Additionally, you will receive two inserts for the dynamometric key.

Features
  • XYLENT Technology Silent Cutterhead with 66 knives
  • Magnetic starter with overload protection
  • Heavy anodized aluminum jointer fence

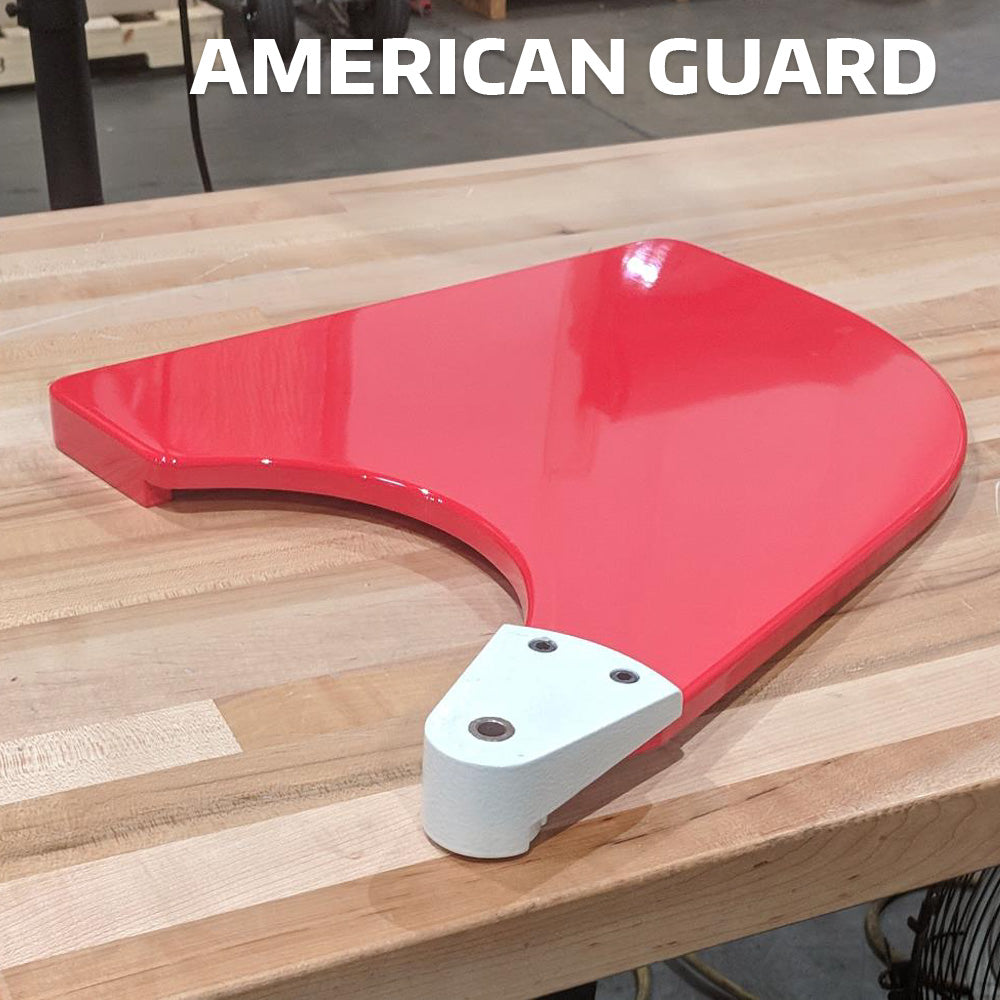

  • Spring type “American” cutter head guard
  • 102 3/8 Inch long table length with ribbed cast tables
  • Parallelogram movement of tables
  • Dust hood
Specs

Motor Horsepower: 8hp
Total Table Length: 102 3/8” (2,600 mm)
Infeed Table Length: 57” (1,450 mm)
Outfeed Table Length: 45-1/2” (1,160 mm)
Table Width: 16-1/8” (410 mm)
Working Capacity: 102-3/8” x 16-1/8” (2,600 mm x 410mm)
Max. Depth of Cut: 5/16” (8 mm)
Cutter Head Diameter: 4 34/” (120 mm)
RPM: 5,000
No. of Knives: 66 + 10
Knife Dimensions: 15 x 15 x 2.5 mm
Fence Size: 47 1/4" x 7 1/2" (1,200 mm x 190 mm)
Fence Tilt (degrees): 0° – 45°
Dust Hood Diameter: 120 mm

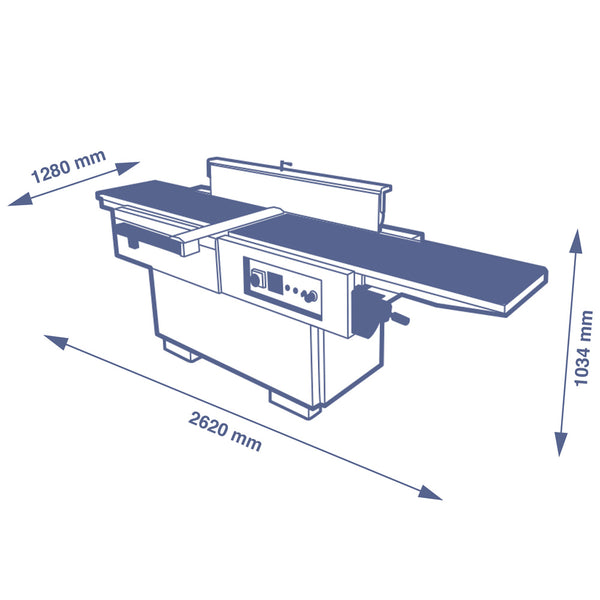

Overall Dimensions: 105” x 44”
Shipping Weight: 2,140 lbs.
Net Weight: 1,851 lbs.
Electrical Requirements: 230v 3PH
Dust Extraction: 980 cfm

    *Shipping

    Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

    SKU: Nova F 410X
