SCM Nova F 410 - Tersa 16" Jointer

Price
$ 11,475

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Low stock as of 6.20.24 - Please call before ordering

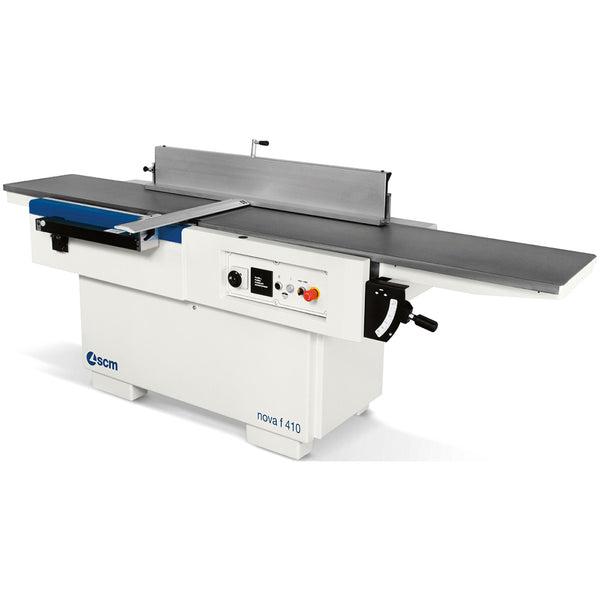

The Nova F 410 T is a heavy duty, long bed 16” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence, and a quick change Tersa cutterhead.

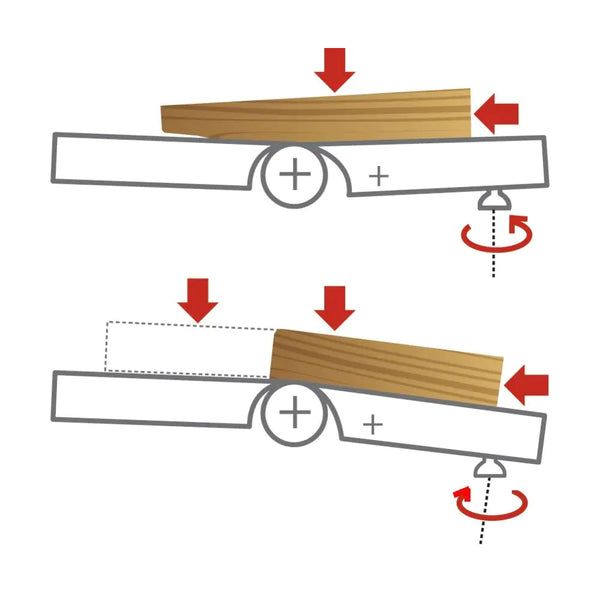

All SCM Jointers use aged cast iron tables that are machine polished to the highest tolerances. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use. The longer tables ensure board straightness. SCM tables are over 102” to make sure that the workpiece will be straight every time.

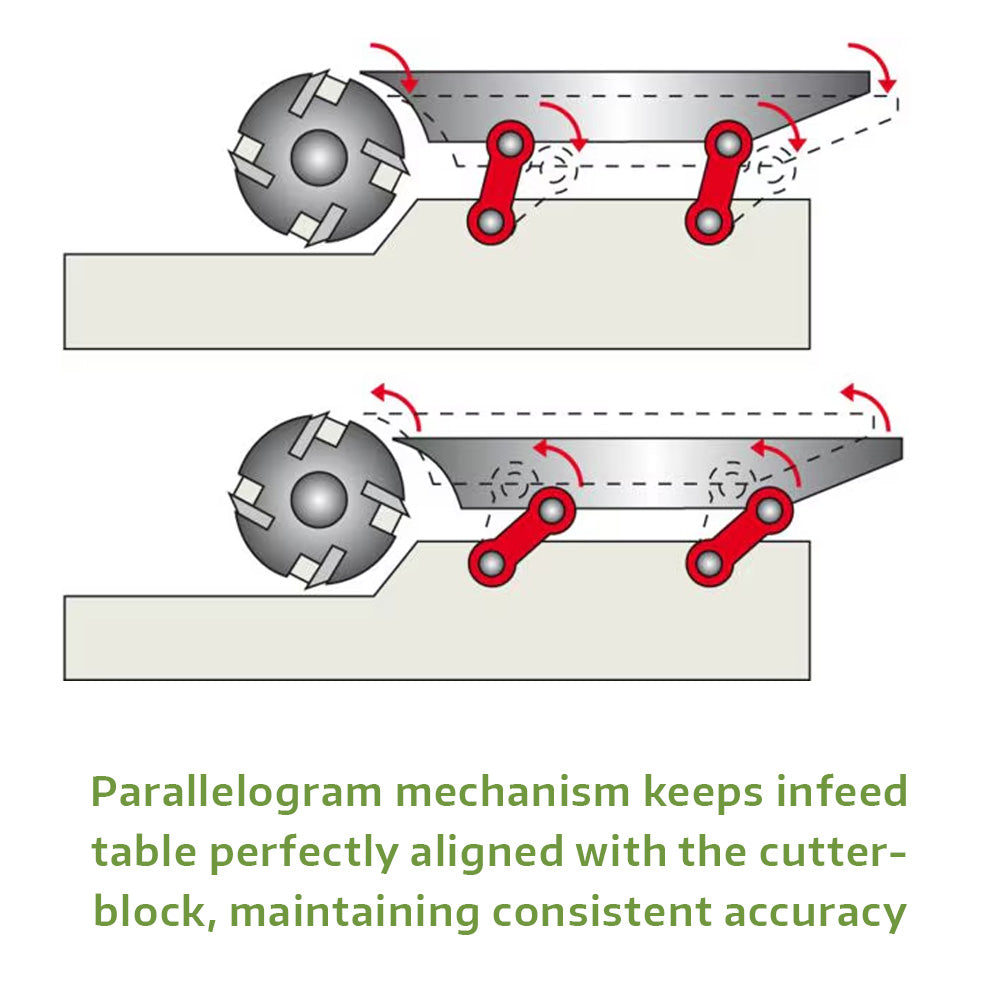

All SCM Jointers incorporate a parallelogram movement of the infeed and outfeed tables. This system has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. This radius pivot ensures that the table chip breaker remains in the correct position from the head. Some manufacturers use a wedge type movement which allows the table and chip breaker to move away from the head as it is adjusted for more removal. This will allow splintering and poor-quality finish.

SCM Jointers include the quick-change knife heads by "Tersa." This cutterhead eliminates the necessity of gauging the knives each time to ensure proper setting position. The Tersa knives automatically reference into position when the head is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are two-sided, they can be flipped over, reinserted, and used again.

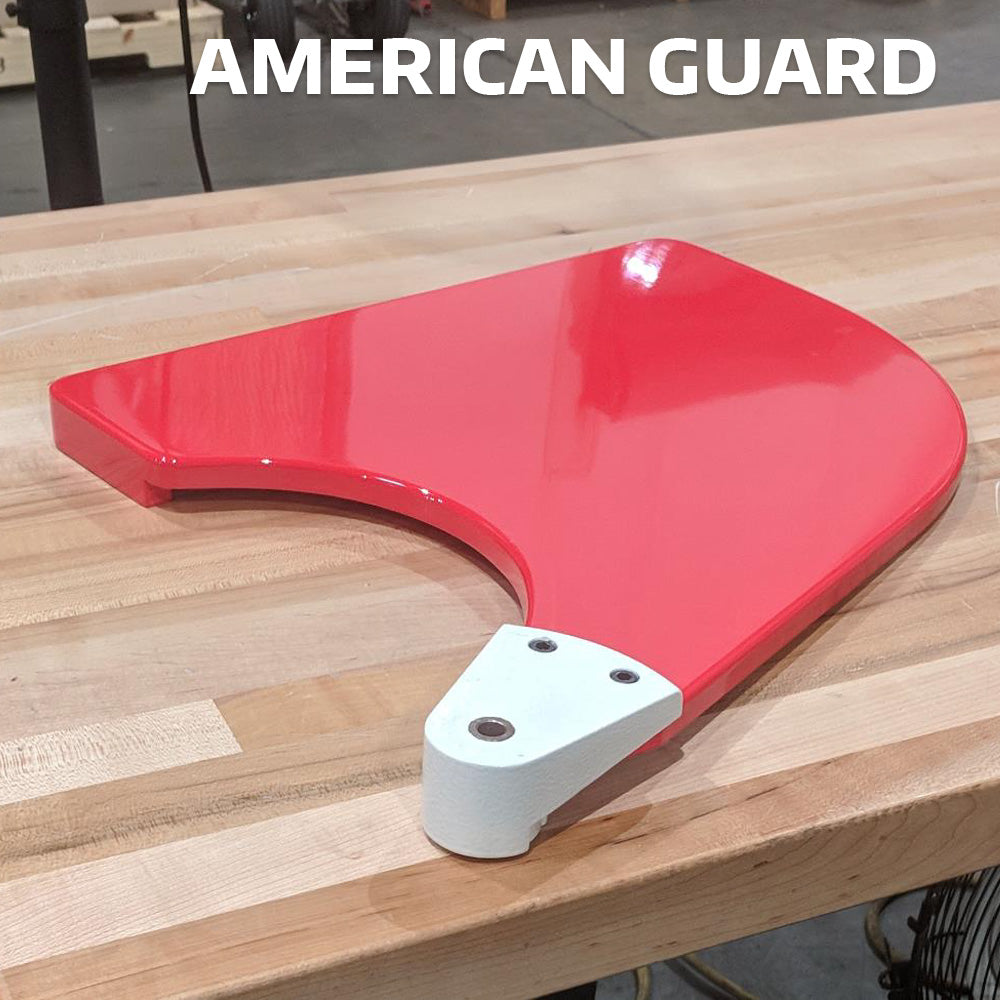

Shown here, the standard guard offered on SCM Jointers is a spring type guard which always covers the unused portion of the knife. Other European style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

Need replacement knives? Find them here.

Features
  • "Tersa" 4 knife insert head with quick change knives
  • Magnetic starter with overload protection
  • Heavy anodized aluminum jointer fence
  • Spring type cutter head guard
  • 102-3/8" long table length with ribbed cast tables
  • Parallelogram movement of tables
  • Tool set
  • Dust hood
Specs

Motor HP: 8hp, 3-phase
Total Table Length: 102-3/8"
Infeed Table Length: 57"
Outfeed Table Length: 45 1/2"
Table Width: 16-1/8"
Working Capacity: 102 3/8" x 16 1/8"
Max. Depth of Cut: 5/16"
Cutterhead Diameter: 4-3/4"
RPM: 5,000
No. of Knives: 4
Knife Dimensions: 16-1/8" x 1.25" x 1/8"
Fence Size: 47-1/4" x 7 1/2"
Fence Tilt: 0-45°
Dust Hood Diameter: 5"
Noise Level (dB): 75

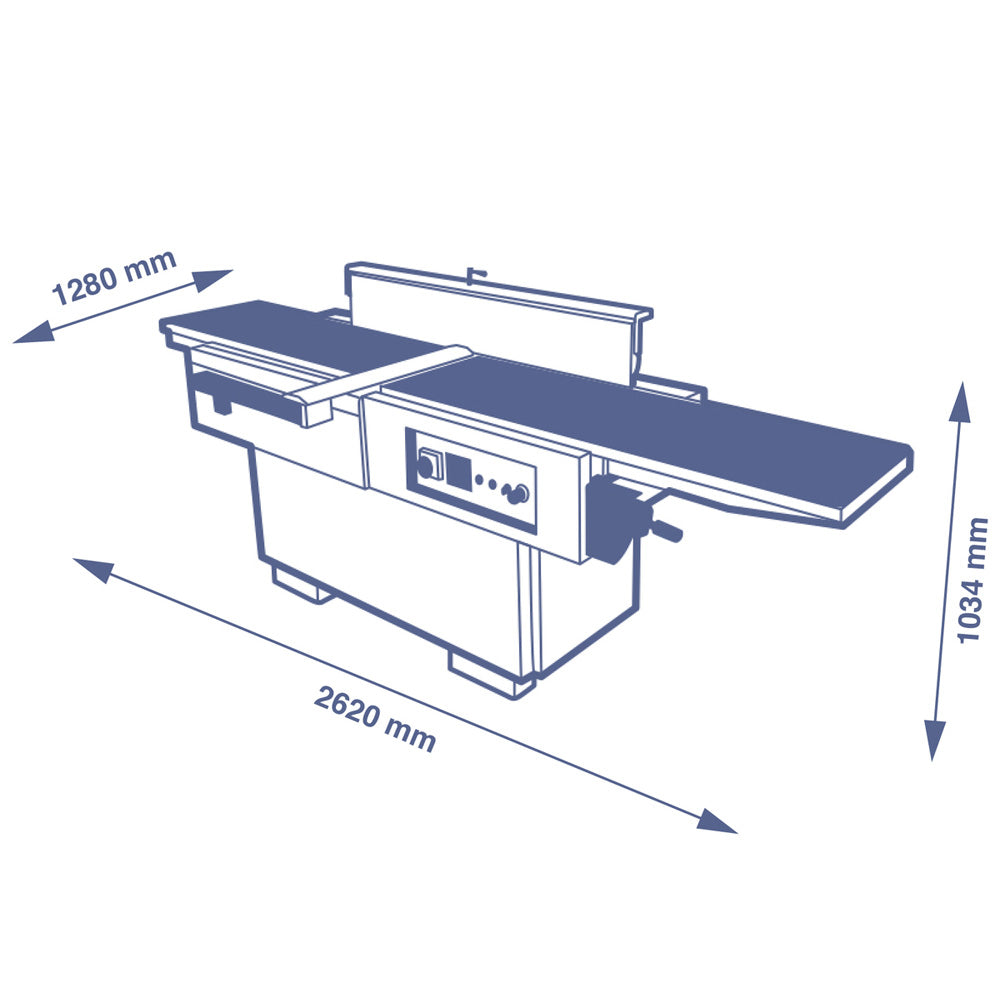

Overall Dimensions: 105" x 44"
Shipping Weight: 2,140 lbs.
Net Weight: 1,851 lbs.
Electrical Requirements: 21 amps @ 230v
Dust Extraction: 980 CFM
