Lamello Tenso P-10 (with preload clip) P-System Connectors

For use with Zeta P2 Handheld Joiners or CNC Router with P-System tooling.

• Works just like Tenso P-14, but has a smaller installation depth and can be used in thinner materials
• Self-clamping, two-part connector used in combination with glue
• High clamping force allows for perfect joints without the need for clamps
• Completely invisible joint for an aesthetic, uniform look
• Projects can be assembled piece by piece instead of gluing everything at the same time, clamping, and then waiting for glue to dry
• For miter and bevel connections
• Use with preload clips for precise alignment and more adjustability


The Tenso P-10 is a unique gluing aid, which eliminates the need for clamps or presses. Developed for miters (45°) from a material thickness of 15mm or butt joints (90°) from a panel thickness of 12mm, the Tenso P-10 is ideal for glued furniture, components, small shelving units, door frames, trim, false edges, cubbies, plate racks, etc.

Using the preload clips prior to gluing makes aligning and engaging the two halves of the Tenso Connector very easy. These clips considerably reduce the required amount of force when connecting the workpieces, and also give you more adjustability before gluing and securing the joint permanently. This is especially useful for applications like face frame installation on cabinet boxes or for clamping miters.

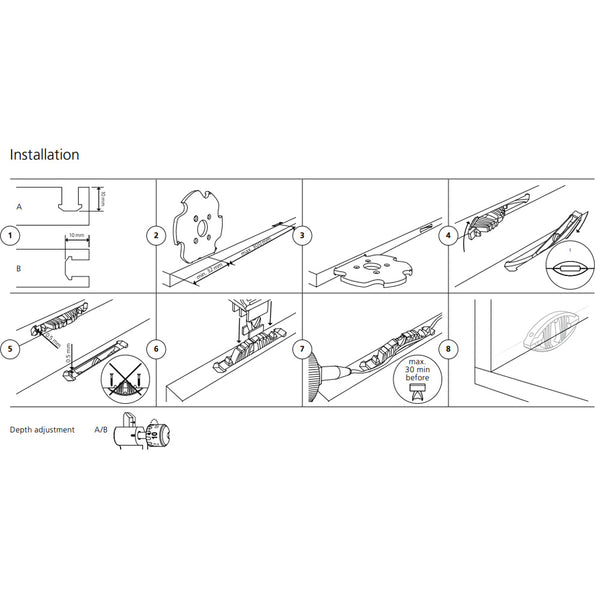

Installation Instructions

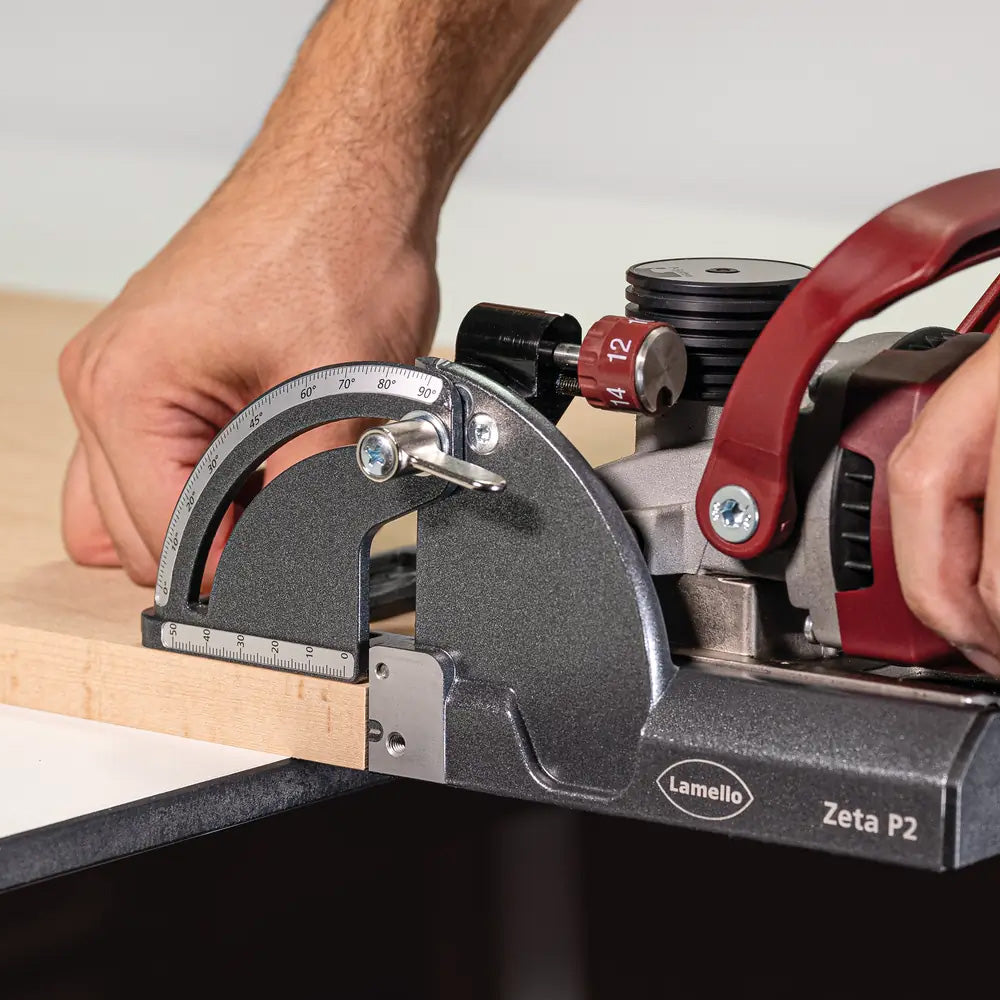

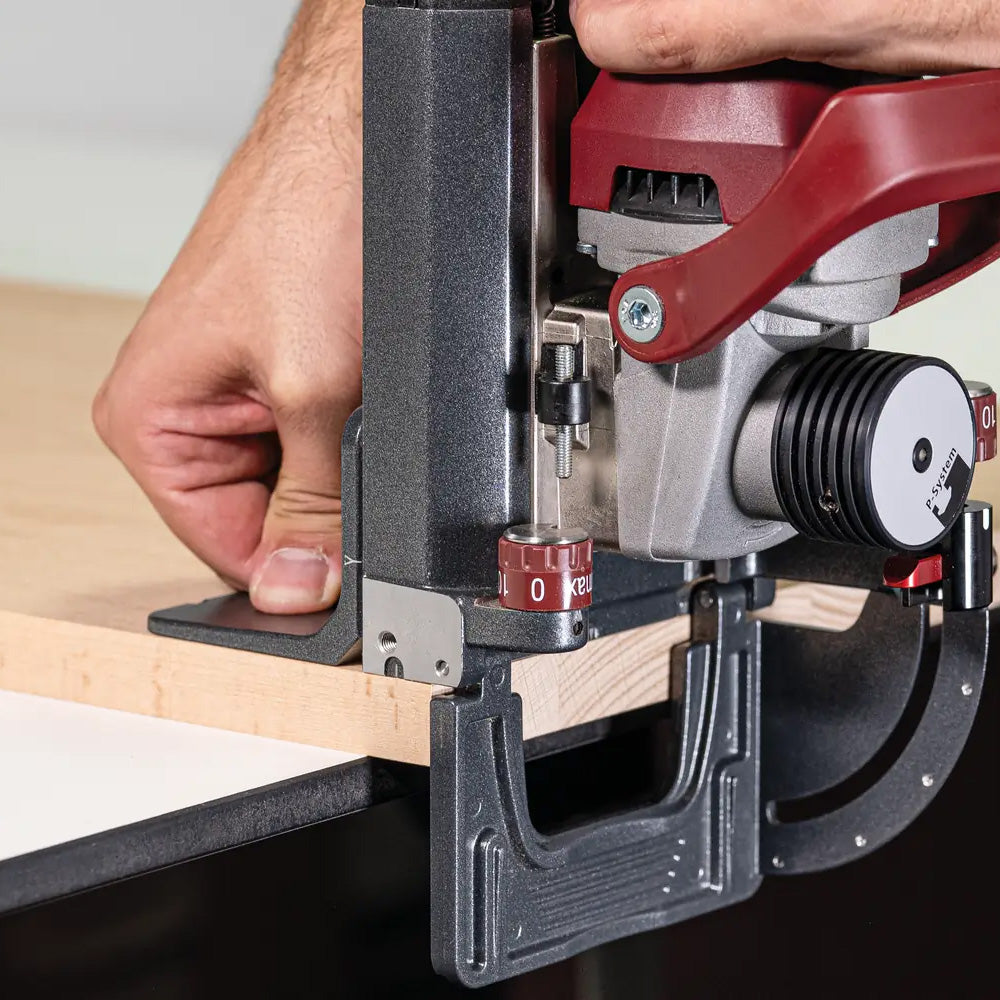

1. Cut grooves with a Zeta P2 with the depth adjustment set to 10. You can also use a CNC equipped with P-System tooling.
2. Insert each half of the connector into their respective grooves. Use the preload clip installation tool to snap those into place.
3. Apply glue, then join the two workpieces together. The self-clamping element combined with the glue will quickly create a permanent connection. (See secondary images)

Helpful tip: When applying glue, apply some to the inside slot of the female connector half. This increases connection strength by up to 25%.

Tenso P-10 Connectors are available to purchase on their own, as well as in the Professional Starter Set. These starter sets are a great way to become familiar with Lamello's full line of P-System Connectors. Plus, you'll always have a nice Systainer to store your connectors in for years to come!

Compare P-System Connectors with our Quick Guide.

Note: All Tenso P-10 boxes are sold with the corresponding amount of pre-load clips and one pre-load clip installation tool.
