Lamello Tenso P-14 (without preload clip) P-System Connectors
- Price
- $ 85
Have questions? Give us a call at 260-637-0054.

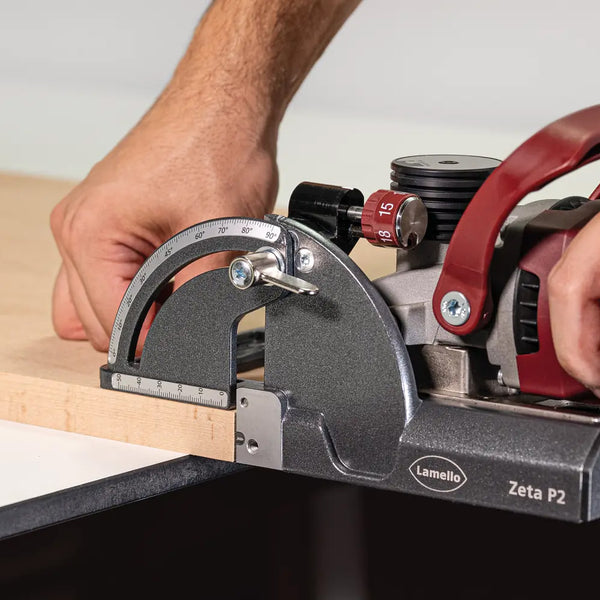

For use with Lamello Zeta P2 Joiners or P-System CNC Routers.

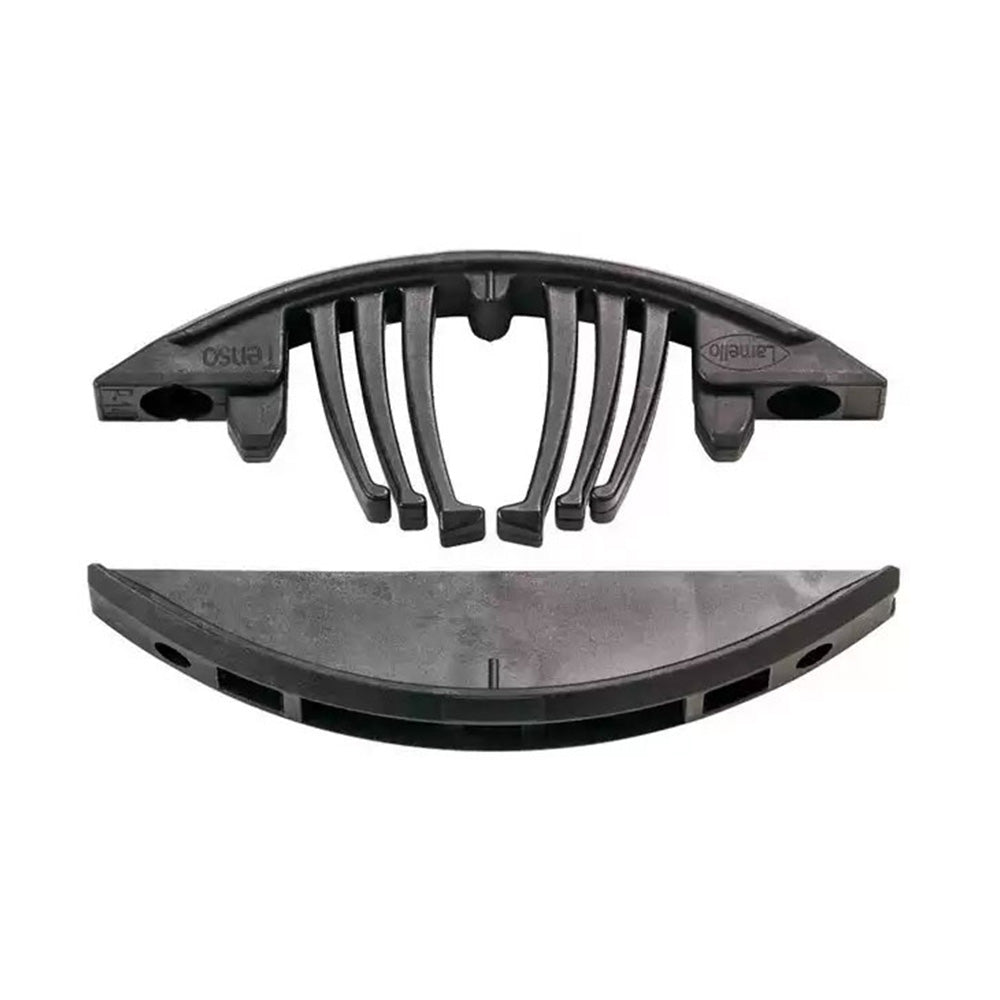

The Tenso P-14 is a self-clamping connector with three functions: alignment, clamping, and connecting. The very high level of clamping force allows workpieces to be glued without the need for screw clamps or pressure.
The Tenso without preload clip is ideal for smaller items of furniture when only one or two connectors are used. Smaller workpieces and 90° connections in particular are easily glued without the preload clip.

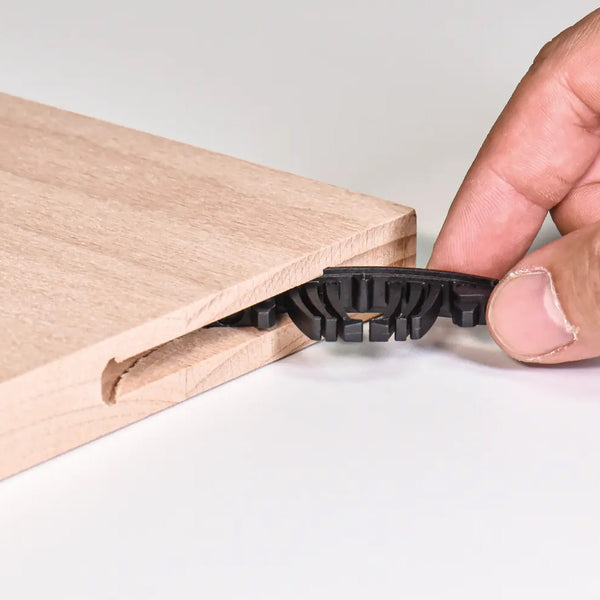

Based on the innovative P-System profile groove from Lamello, the connector also facilitates strong anchorage in the workpiece in just seconds without the need for tools. The two-part concealed connector meets the requirements for the implementation of a completely new connection process in interior fitting. It is an innovative connection method that facilitates an unprecedented level of flexibility, speed, and simplicity throughout the entire design, production, transport, and assembly process. Although the connector boasts excellent tightening force, this version is intended for use as a gluing aid.

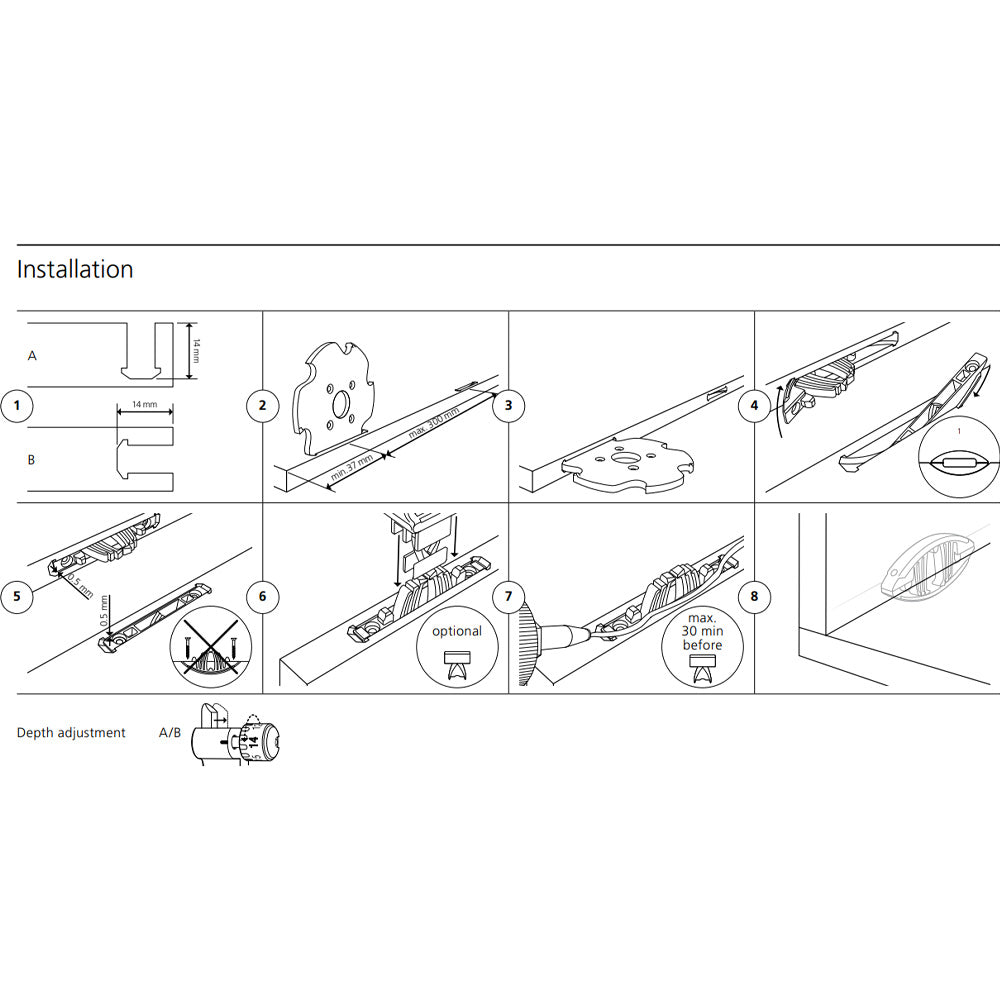

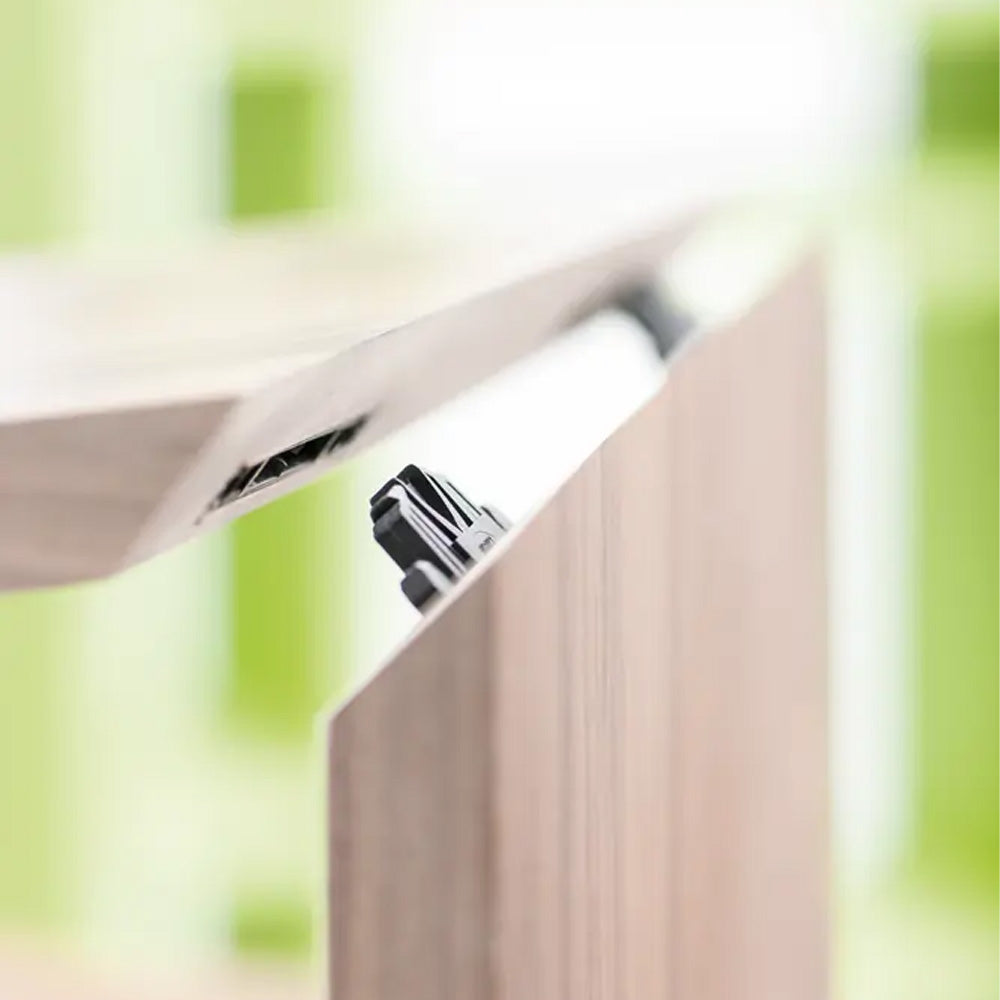

The additional option of preloading the connector prior to glue applications now enables use for all angles and miters. The individual preloading of the joining elements considerably reduces the required amount of force when connecting the workpieces, which is another benefit to the user. With the option to install the connector offset (surface 10 mm, edge 18 mm) it is possible to use the Tenso already from 13 mm panel thickness or for dividers from 19mm.
- Invisible, self-clamping connector as gluing aid

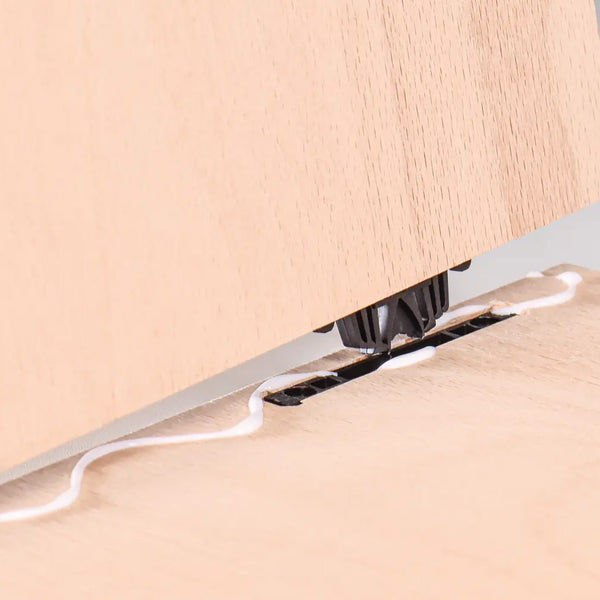

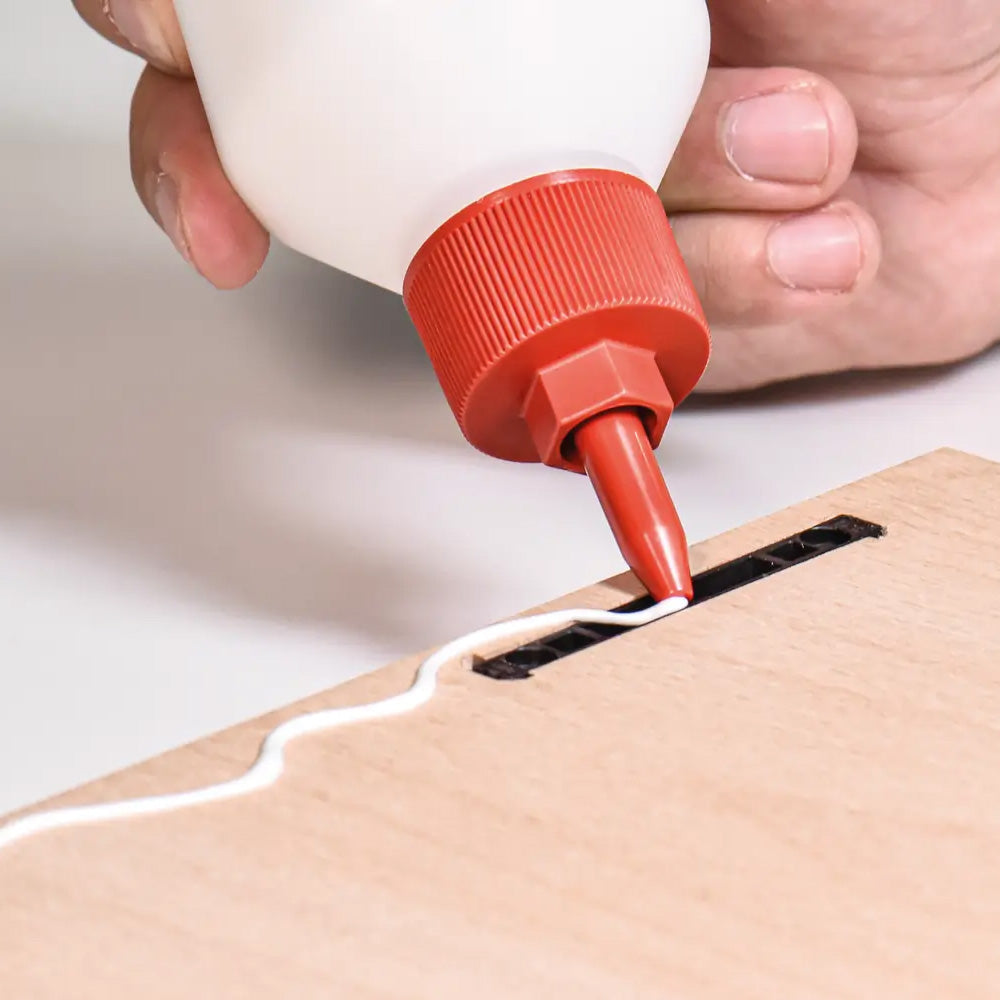

- Extremely fast gluing, as the workpieces are simply stuck together

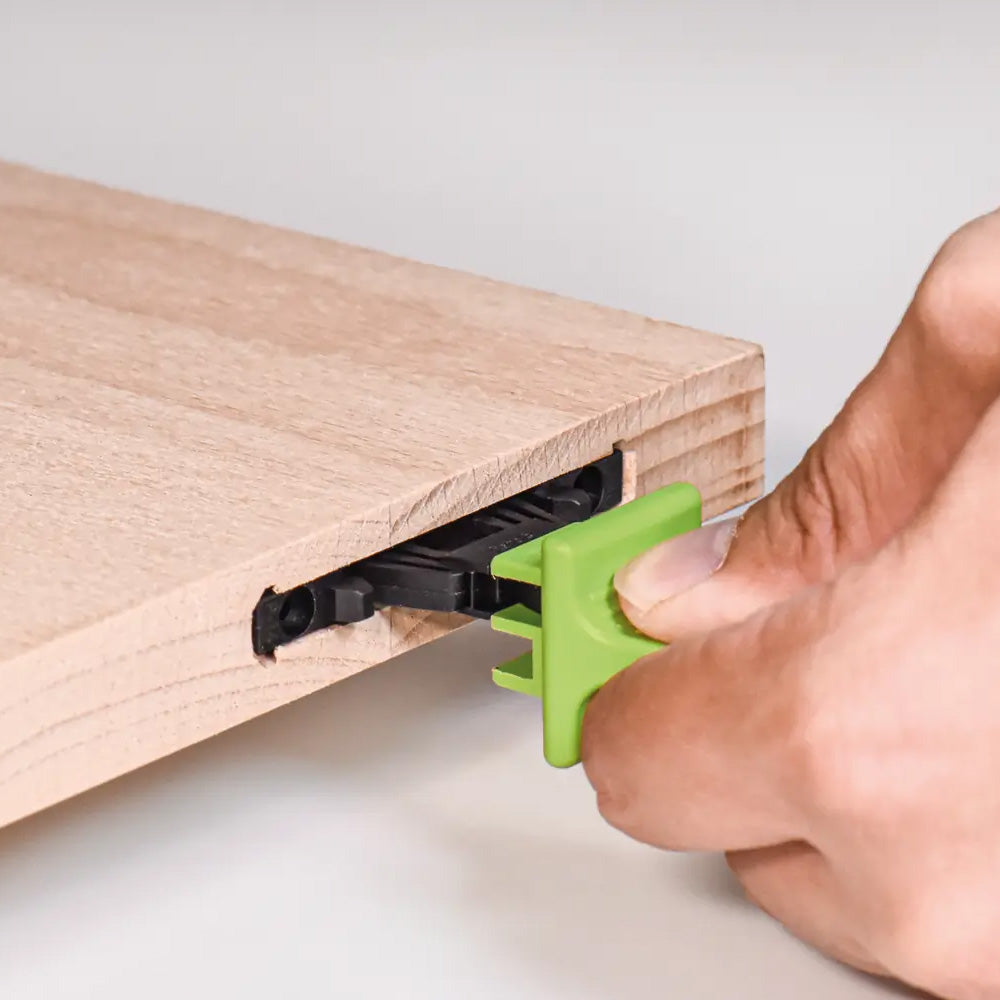

- Effortless gluing in all angles due to the preload function
Compare P-System Connectors with our Quick Guide.
Need Preloaded Clips? Find them here.
Features
- Concealed, self-clamping connector
- High level of clamping force
- For all angles

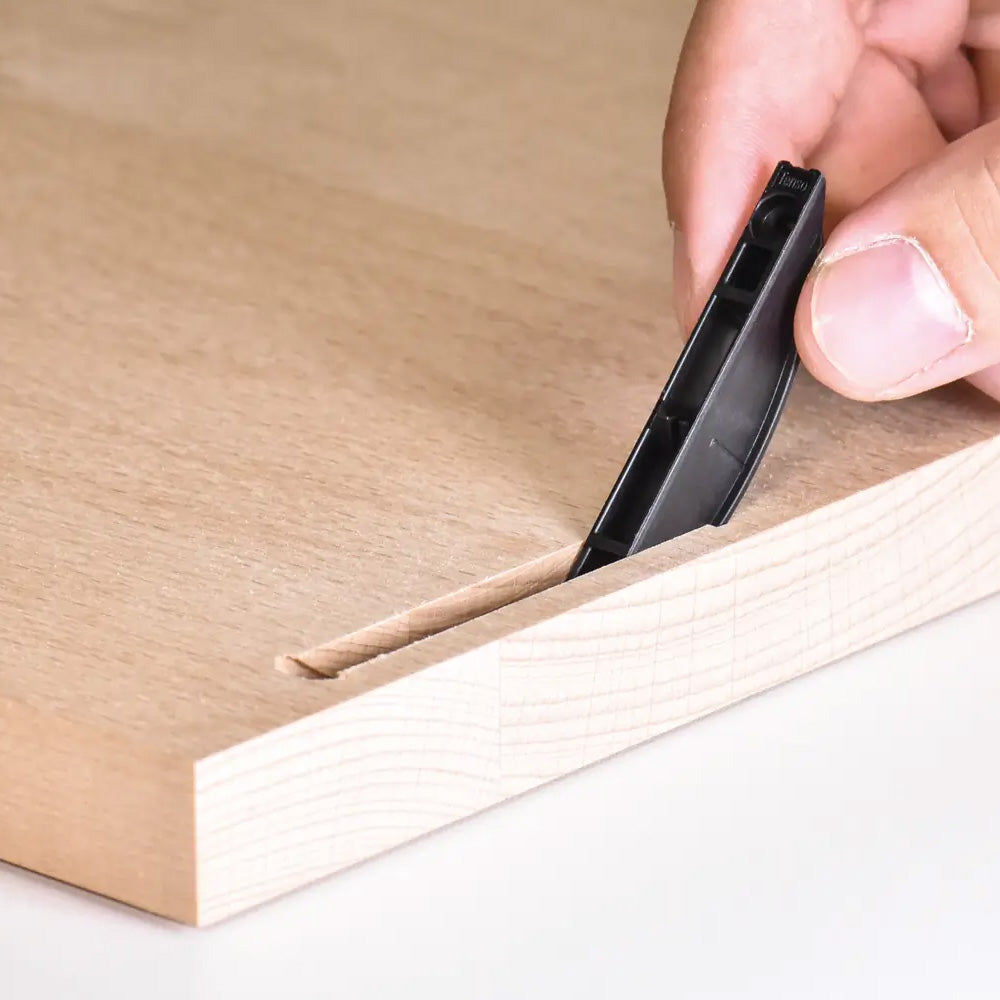

- Extremely fast, tool-free installation of connectors
- Stackable for transport, despite integrated connector

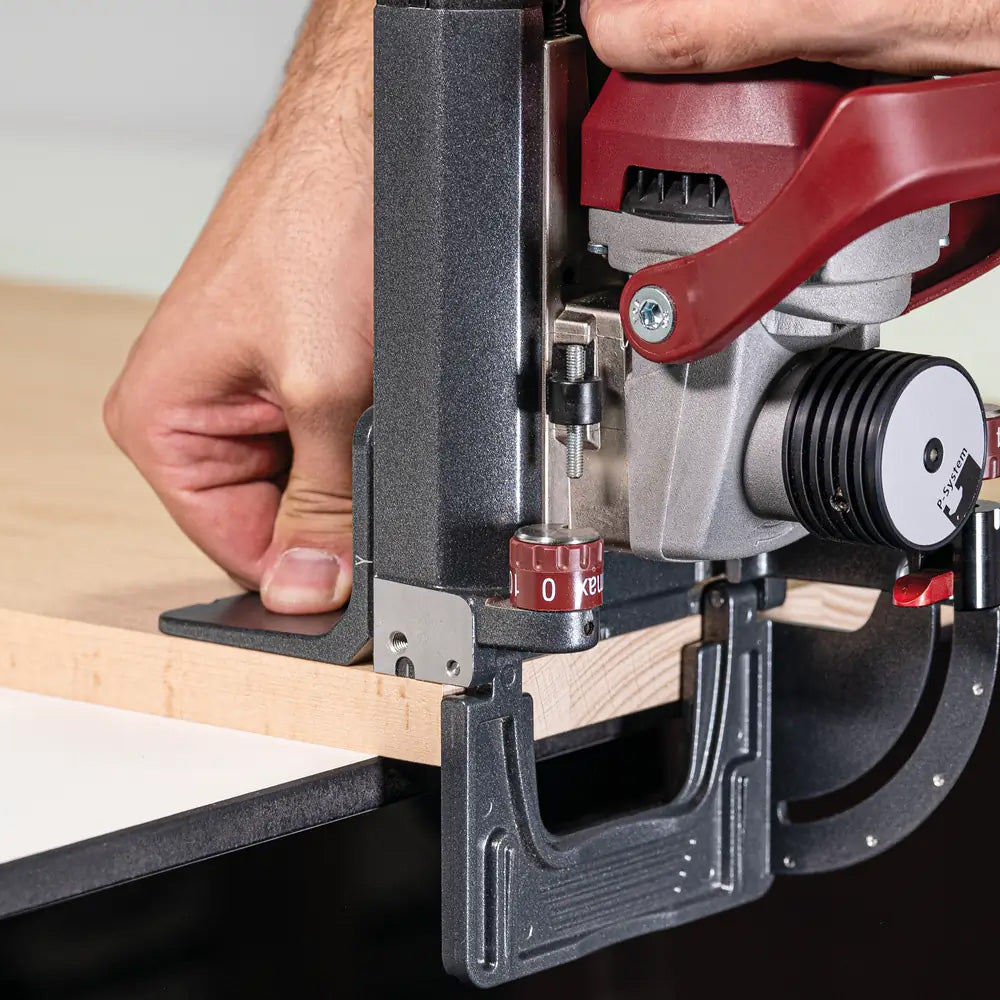

- Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine
Specs

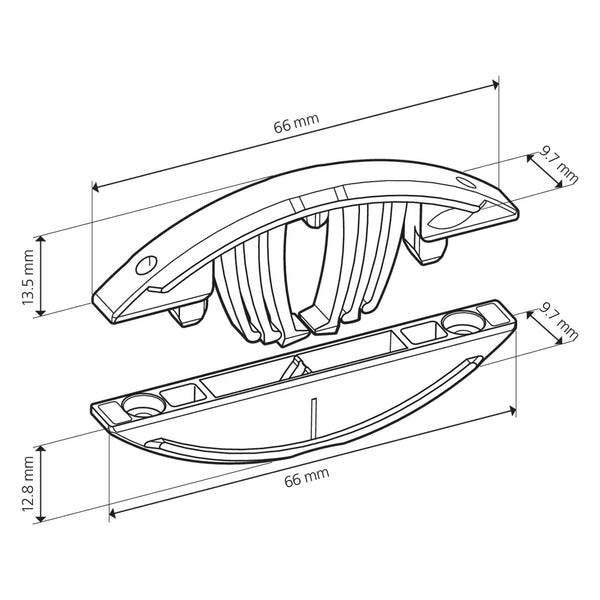

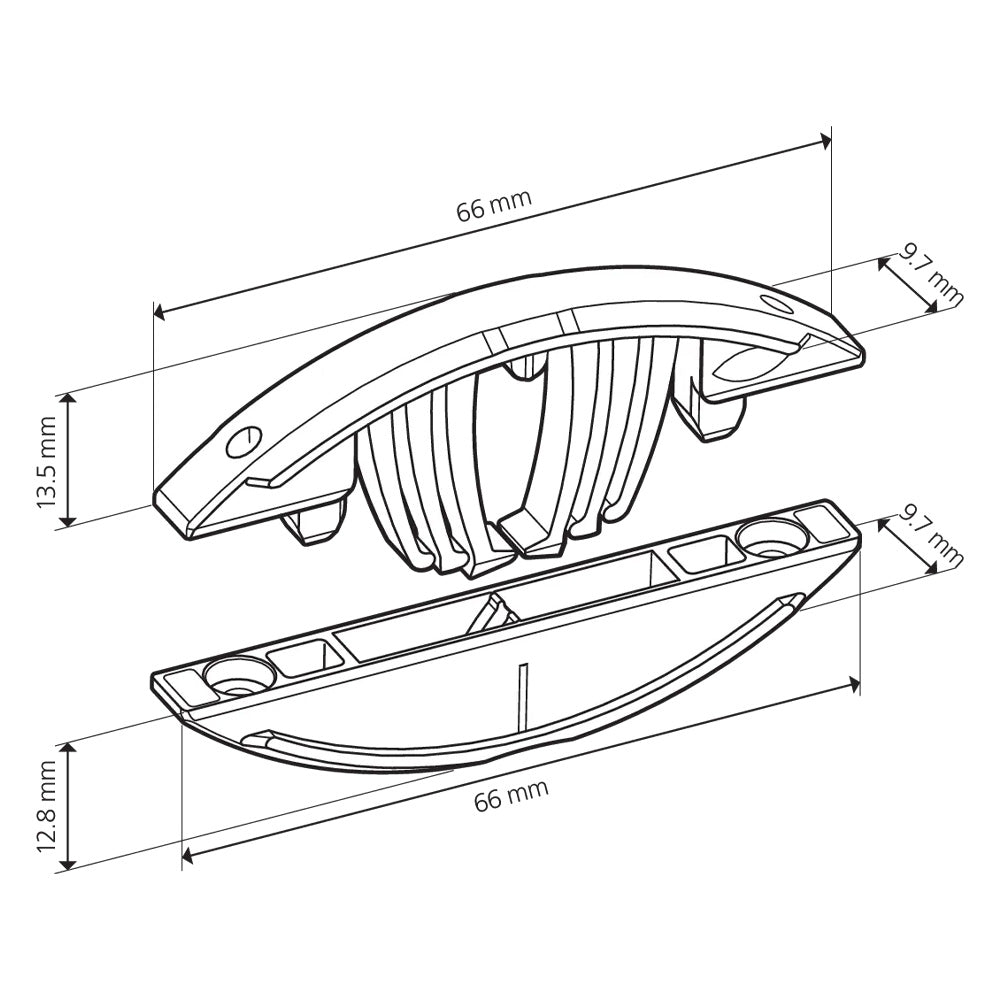

Size (mm): 66 × 27 × 9.7 mm
Cutter: Ø 100.4 x 7 x 22
Material connector: Glass fiber reinforced plastic
Installation tolerance: Longitudinal ± 1 mm
