Lamello Clamex P-14/10 Flexus P-System Connectors

For use with Zeta P2 Handheld Joiners or CNC Router with P-System tooling.

• Detachable, two-part connector that operates the same as Clamex P-14/10 Medius, but has flexible positioning pins for joints in hard-to-reach applications

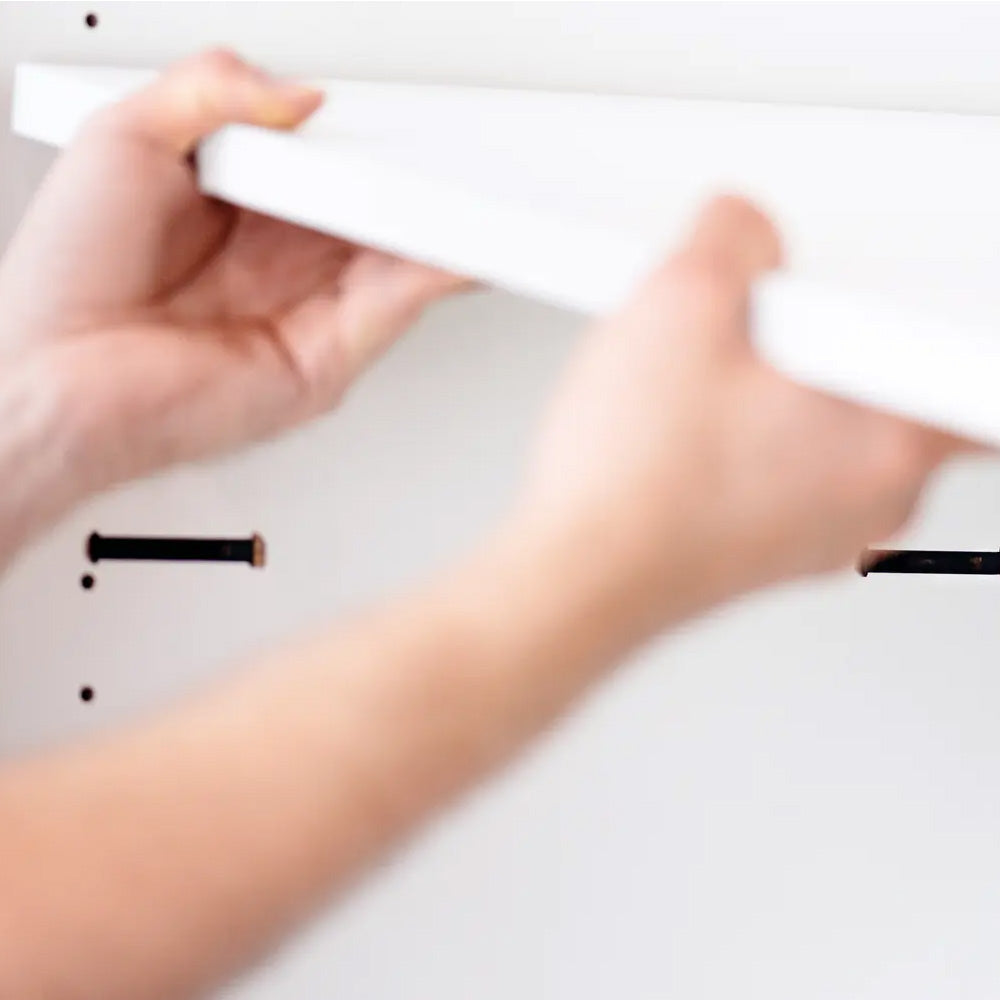

• Can also be used for retrofitting shelves to existing furniture

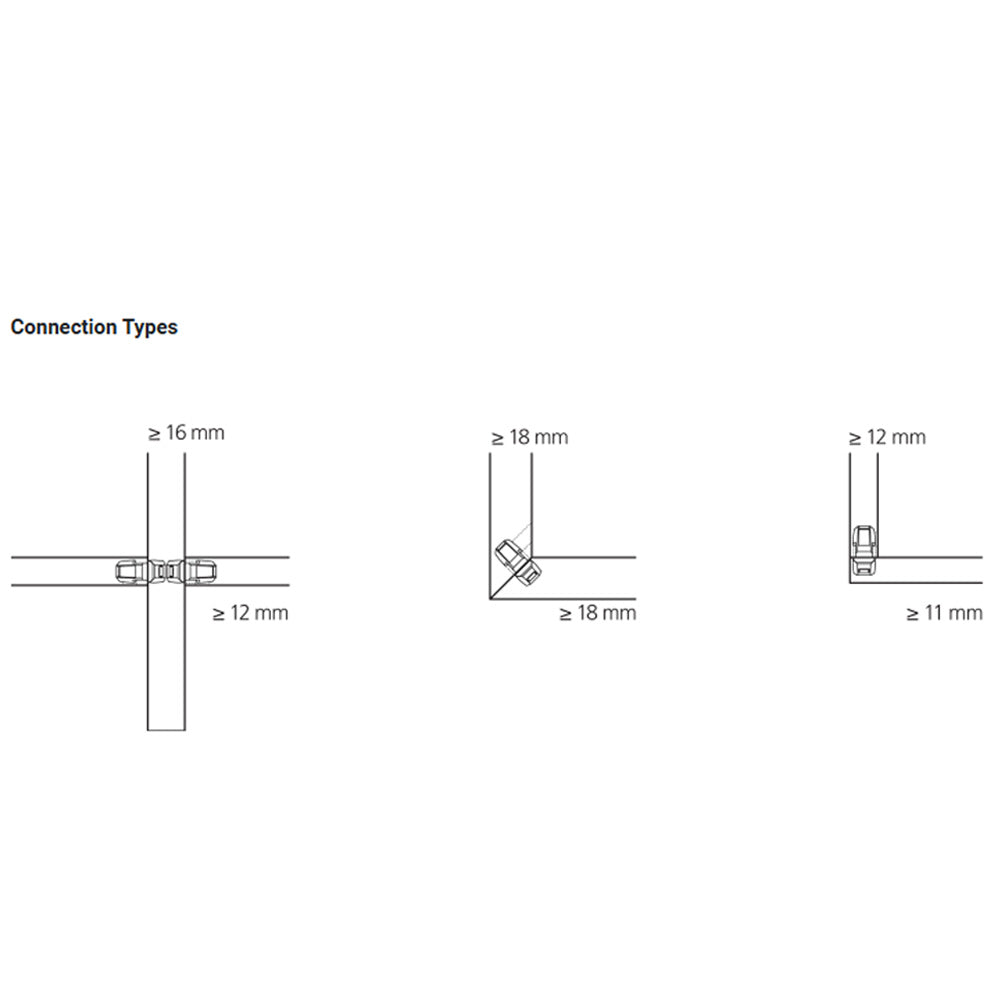

• Minimal installation depth for material as thin as 12mm for surface or corner joints

• No gluing necessary
• Nearly invisible connection with 6mm access holes (colored Cover Caps available)

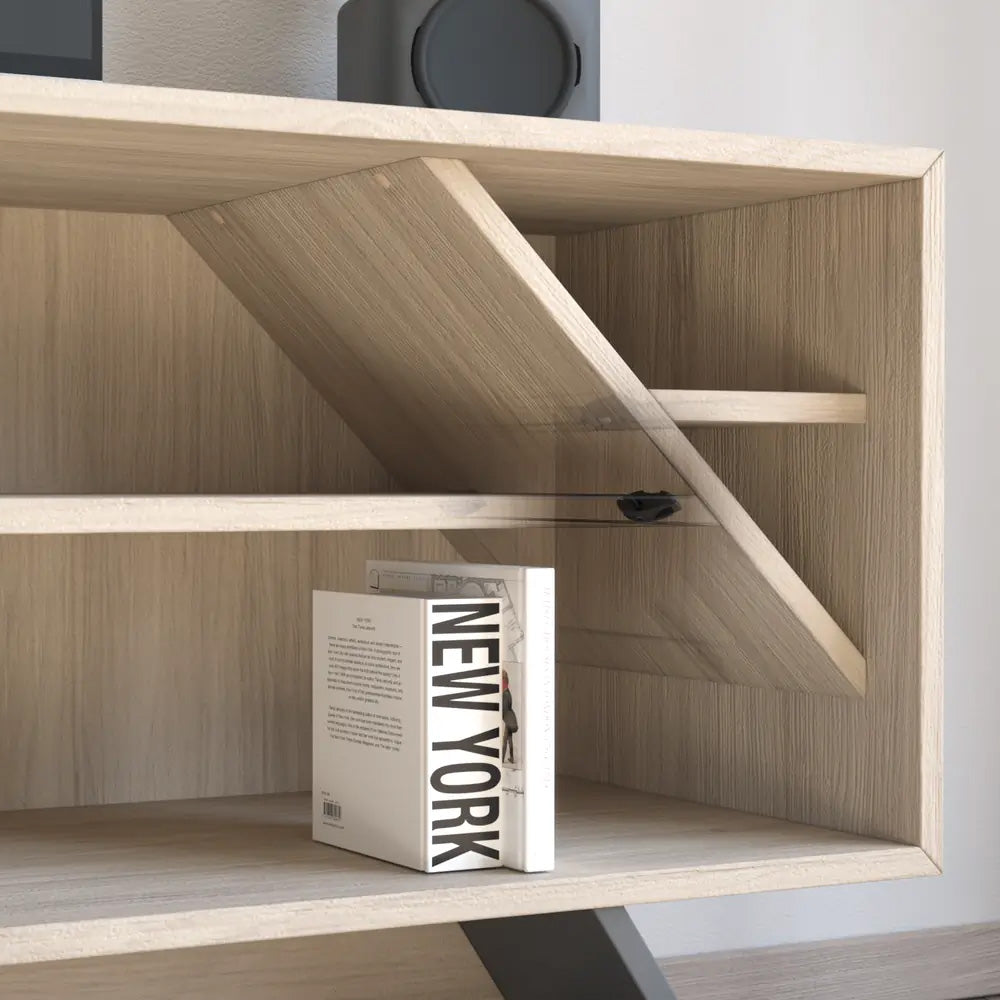

• Ideal for furniture construction, wine racks, bookshelves, etc.

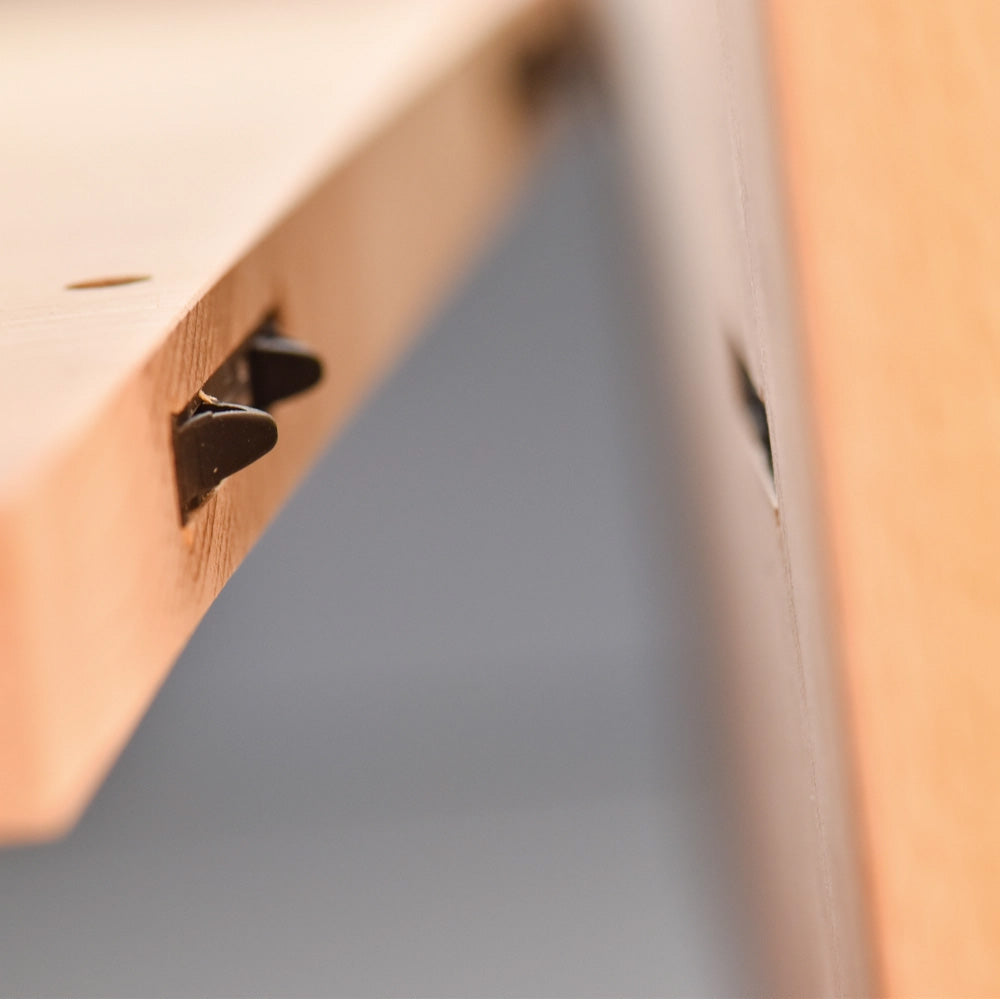

Clamex P-14/10 Flexus Connectors operate the same way as Clamex P-14/10 Medius, except that they have flexible positioning pins. The flexible pins allow the workpiece components to be slid and “snapped” into place since the tabs retract until they find their mating half. This makes Clamex P-14/10 Flexus ideal for joints in hard-to-reach applications, as well as for retrofitting shelves to existing furniture.

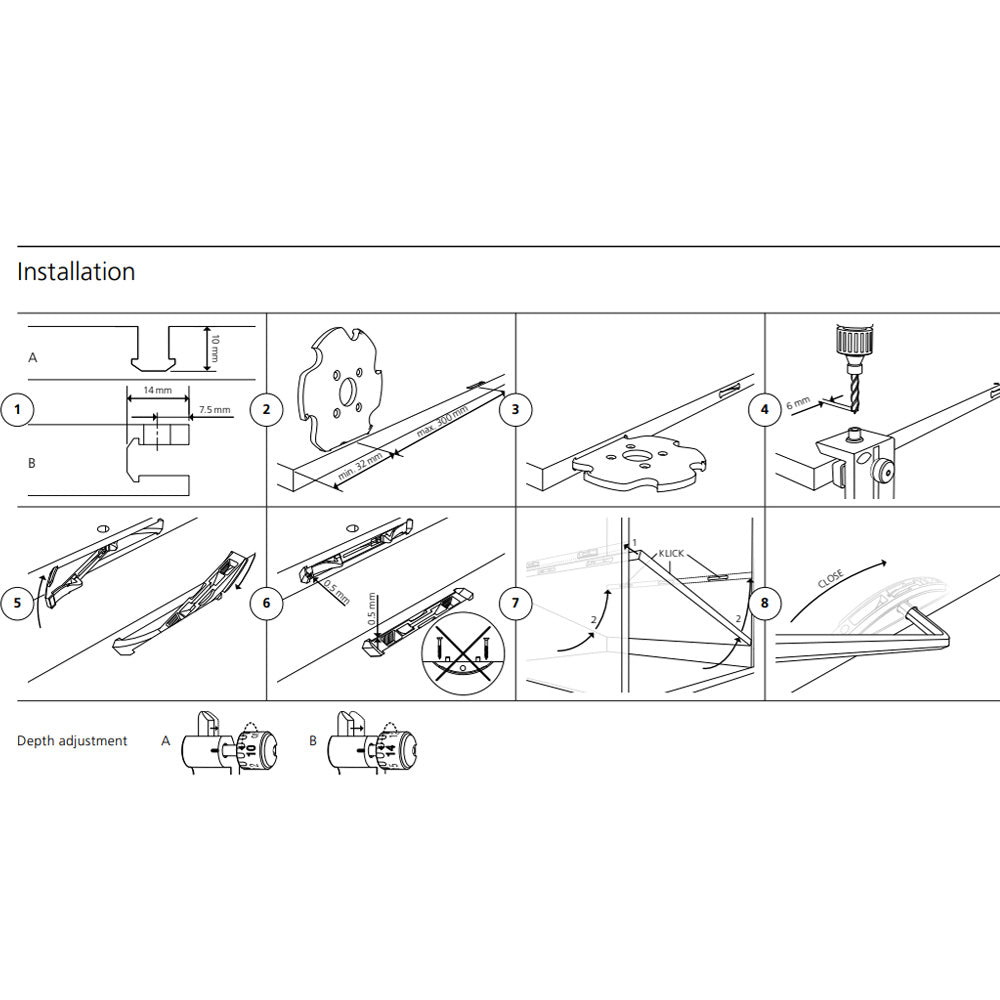

Installation Instructions

1. Use the Zeta P2 to make a surface cut with the depth adjustment set to 10. You can also use a CNC equipped with P-System tooling.
2. Set the depth adjustment to 14 and make a cut in the edge of the shelf where you will connect it to the other workpiece to create a dividing panel.
3. Use the drilling jig to drill the access hole (Included with Zeta P2 or sold separately).

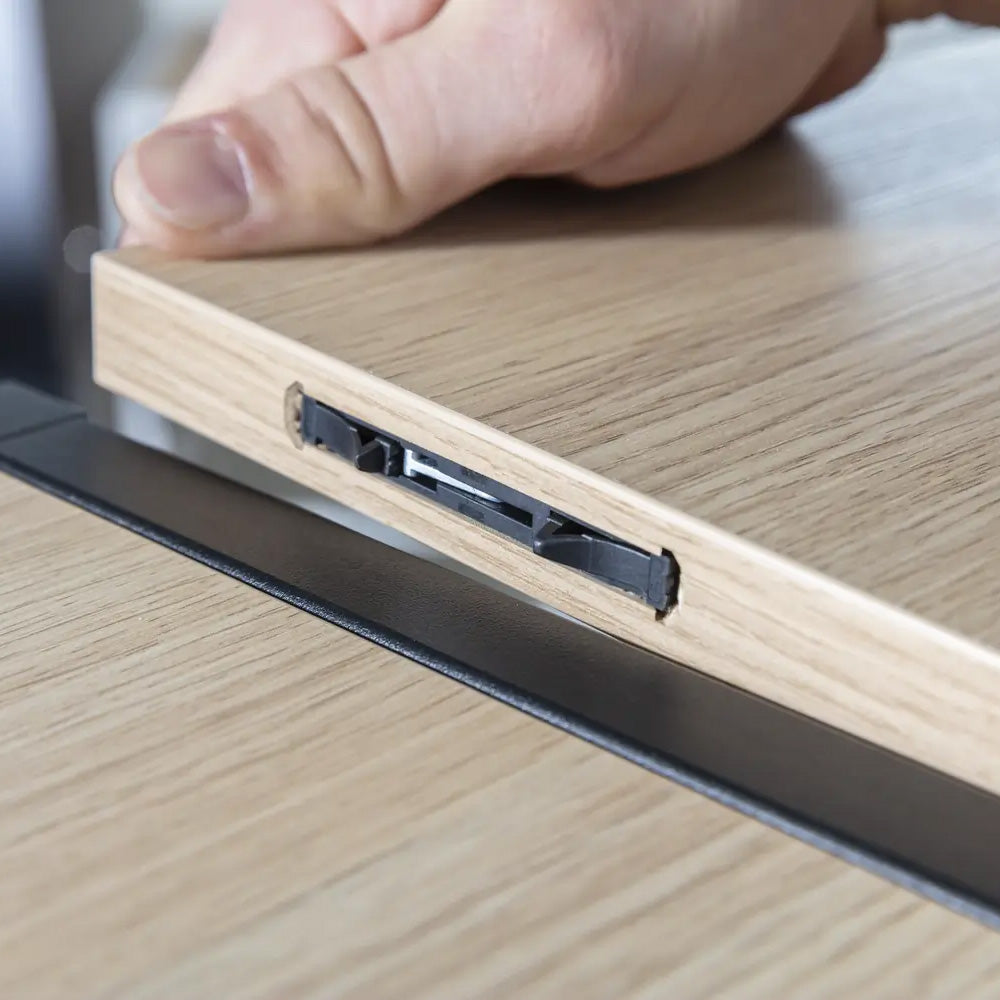

4. Insert the P-14 Flexus connector into the shelf groove, and the Medius P-10 into the surface groove to join the workpieces together.
5. Connect the workpieces by sliding one into the other until it snaps into place.

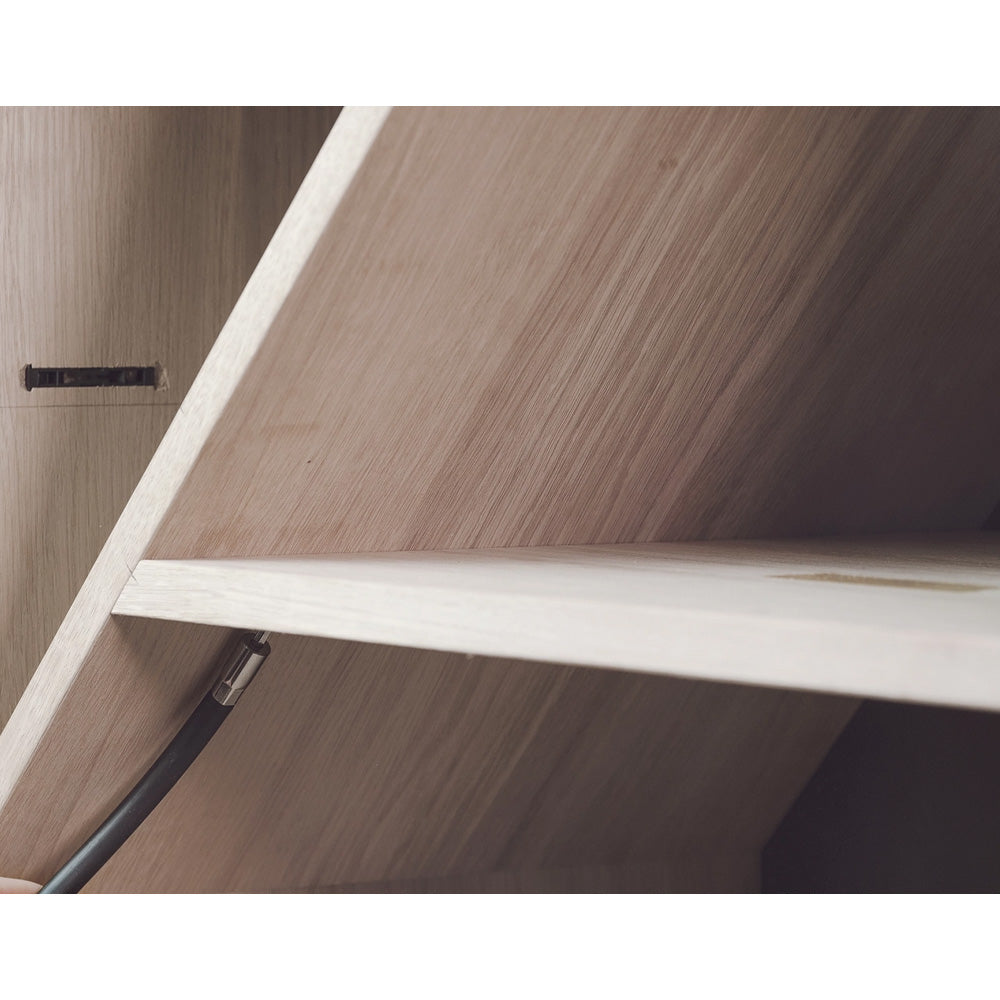

6. Secure the joint via the access hole using a 4mm Allen Key or the flexible Clamex Installation Tool. (Sold separately. See secondary images.)

Clamex Flexus P-14/10 Connectors are available to purchase on their own, as well as in the Professional Starter Set and the Basic Starter Set. These starter sets are a great way to become familiar with Lamello's full line of P-System Connectors. Plus, you'll always have a nice Systainer to store your connectors in for years to come!

Compare P-System Connectors with our Quick Guide.
