Lamello Cabineo 8 M6 Connectors

$ 225

Have questions? Give us a call at 260-637-0054.


The Cabineo is an innovative one-piece connector used in cabinetry. It can be used with all CNC routers including the Shaper Origin. Since no pre-assembly of screws or dowels in side panels is necessary, the Cabineo will save you time in the production, transportation, and assembly of cabinets.

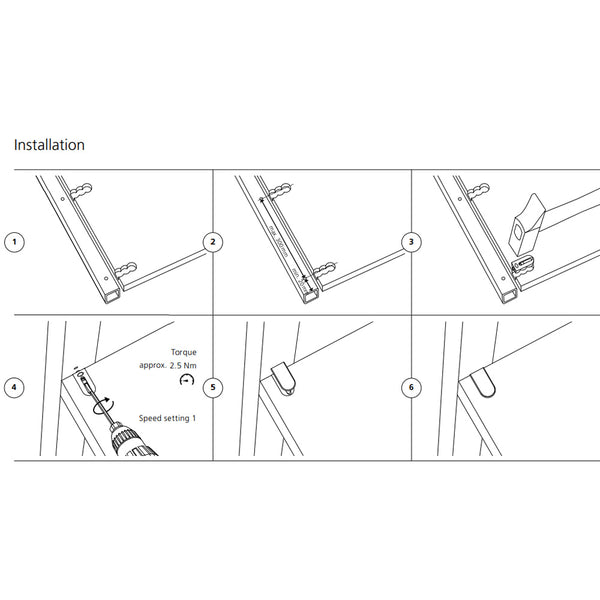

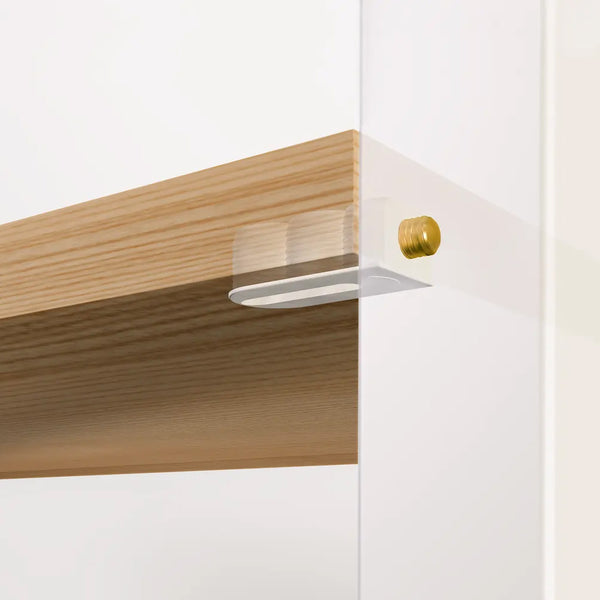

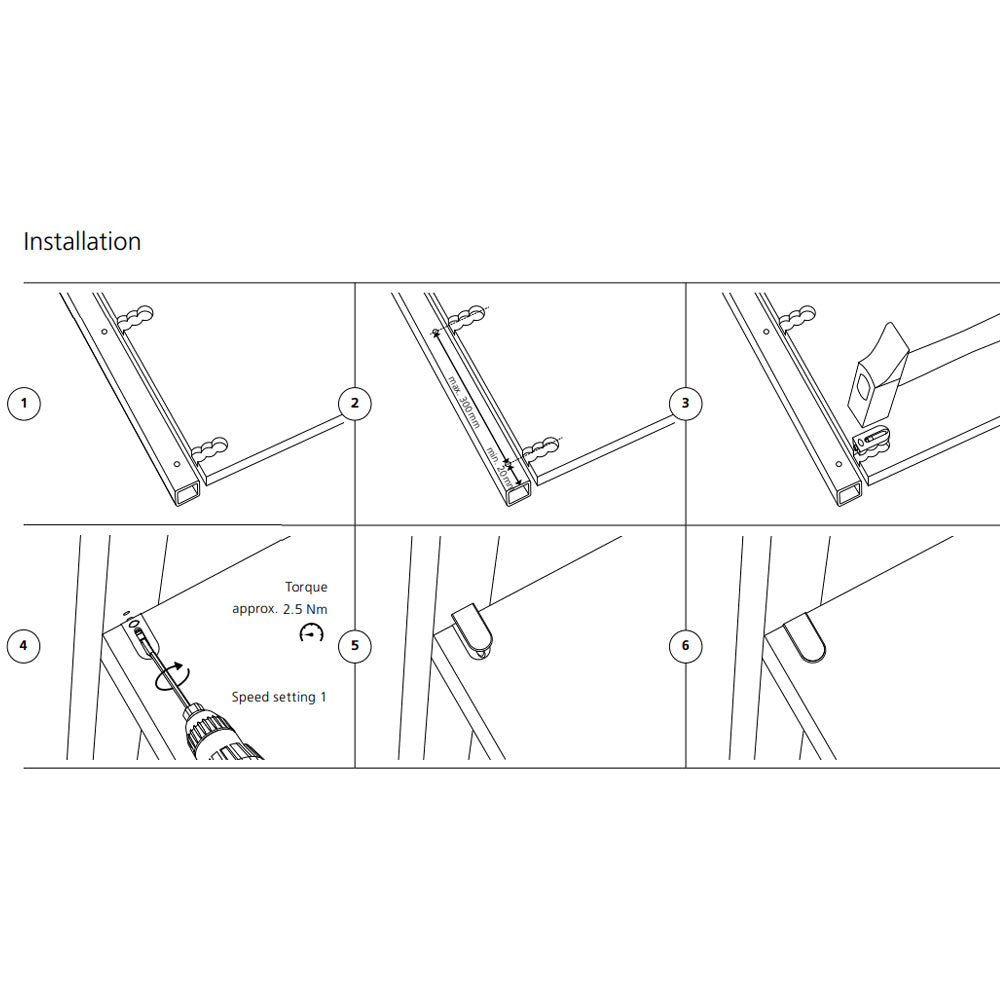

Like the Cabineo 8 or 12, the 8 M6 is tapped into a drilled or routed shape. The main difference is that a threaded insert nut is placed into the hole of the second workpiece. This insert nut provides a stronger connection and clamping force, and prevents wear and tear of the workpiece during assembly and disassembly.

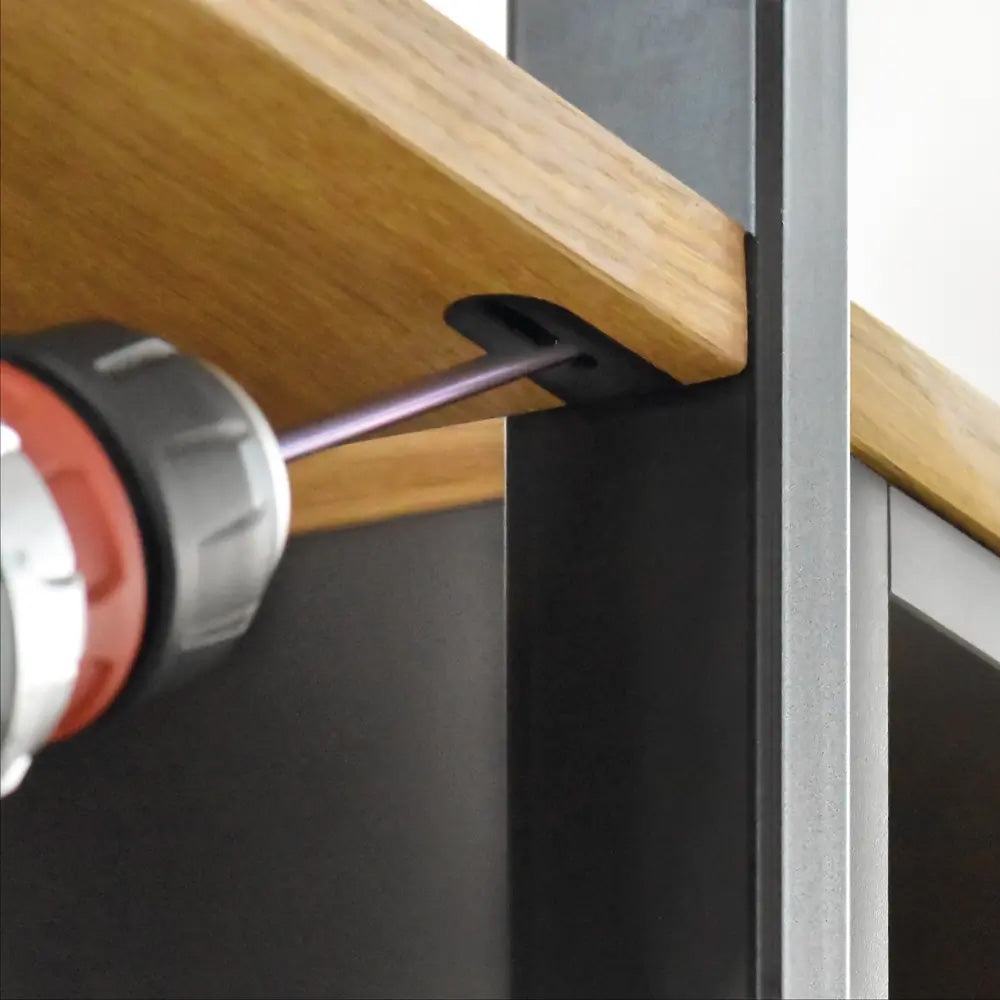

The Cabineo 8 M6 is made specifically for wood, aluminum, steel, or compact laminate. It features an 8 mm screw and an impressive 380 lb. clamping force. In dividing panels, the screws reach into the same insert nut from both sides. The same connector and insert can be used everywhere for corner and dividing panels.

Aesthetic Cover Caps are available separately in 12 solid and metallic colors to make Cabineo blend into your project or to match aluminum or stainless steel fittings. Parts may also be inverted to allow for a completely invisible application.

For a one-piece connection without the threaded nut, choose the Cabineo 8 or Cabineo 12

Benefits of Cabineo 8 M6 Connectors

Time-Saving: Save time in production with no edge drilling or dowel holes, during transportation with efficient pre-installation of the connector and flat-pack delivery, and during assembly with easy positioning and one-step connection.

Wear-Free Connection: With the Cabineo 8 M6, there is no wear and tear of the workpiece whether assembling or disassembling. This allows you to disassemble your work for adjustment or transportation as much as you want.

True Flat-Pack Delivery: Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This saves space and allows for true flat-pack delivery of workpieces.

Convenient: Because the Cabineo connectors are already factory-installed, the person assembling doesn't need to handle a bag of loose fittings and hardware during installation. This speeds up the assembly considerably and also helps in reducing possible mistakes.

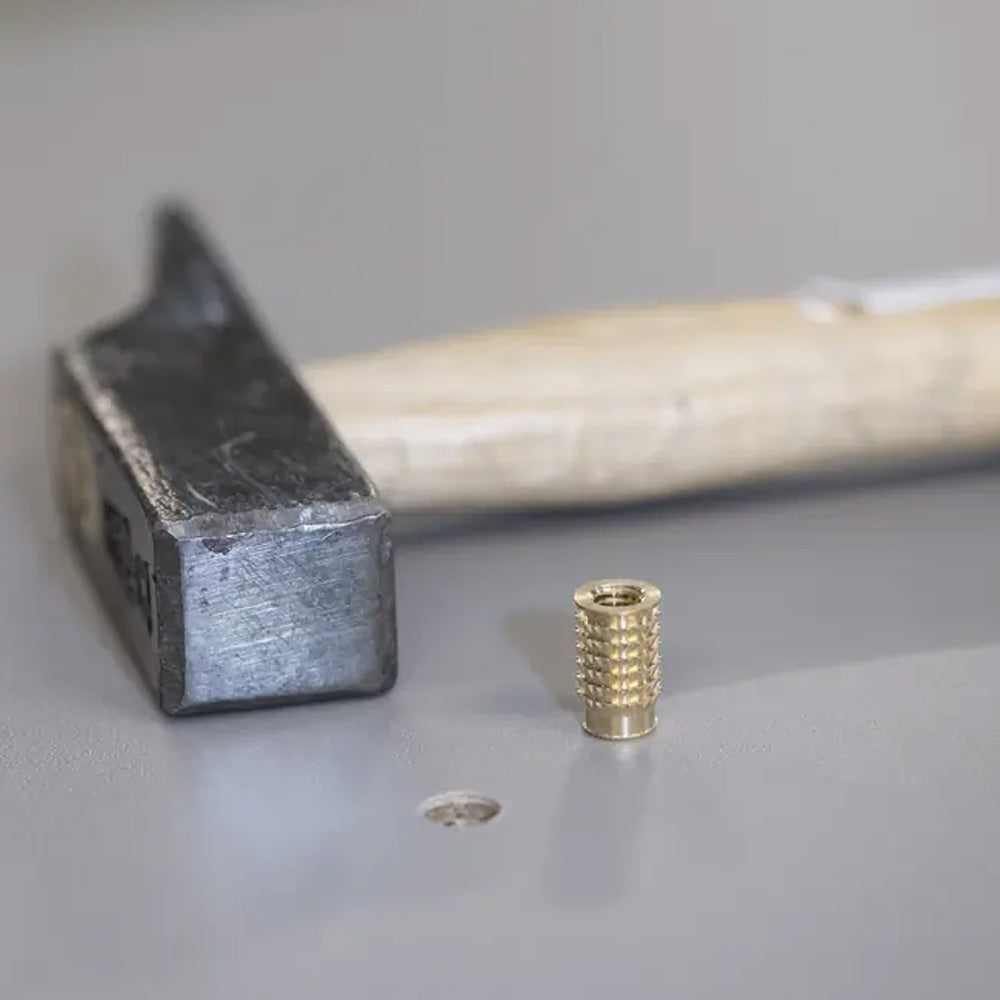

Note: Cabineo Insert Nuts not included. You can purchase them separately here. They are also included in the Cabineo 8 M6 Starter Set. You will also need the Cabineo Installation Tool (included with both the Insert Nuts, as well as the Starter Set).

  • Wear-free connection: No wear and tear of the workpiece when it is assembled and disassembled multiple times
  • Various materials: The Cabineo 8 M6 can be screwed directly into the material via a M6 tapped hole (HPL, aluminum, steel, etc.)
  • High-clamping force: In dividing panels, the screws reach into the same insert nut from both sides
  • Increased strength in various materials: Insert nut reaches deep into the material
  • Damage-free even after test installation
  • Same connector for all joining situations

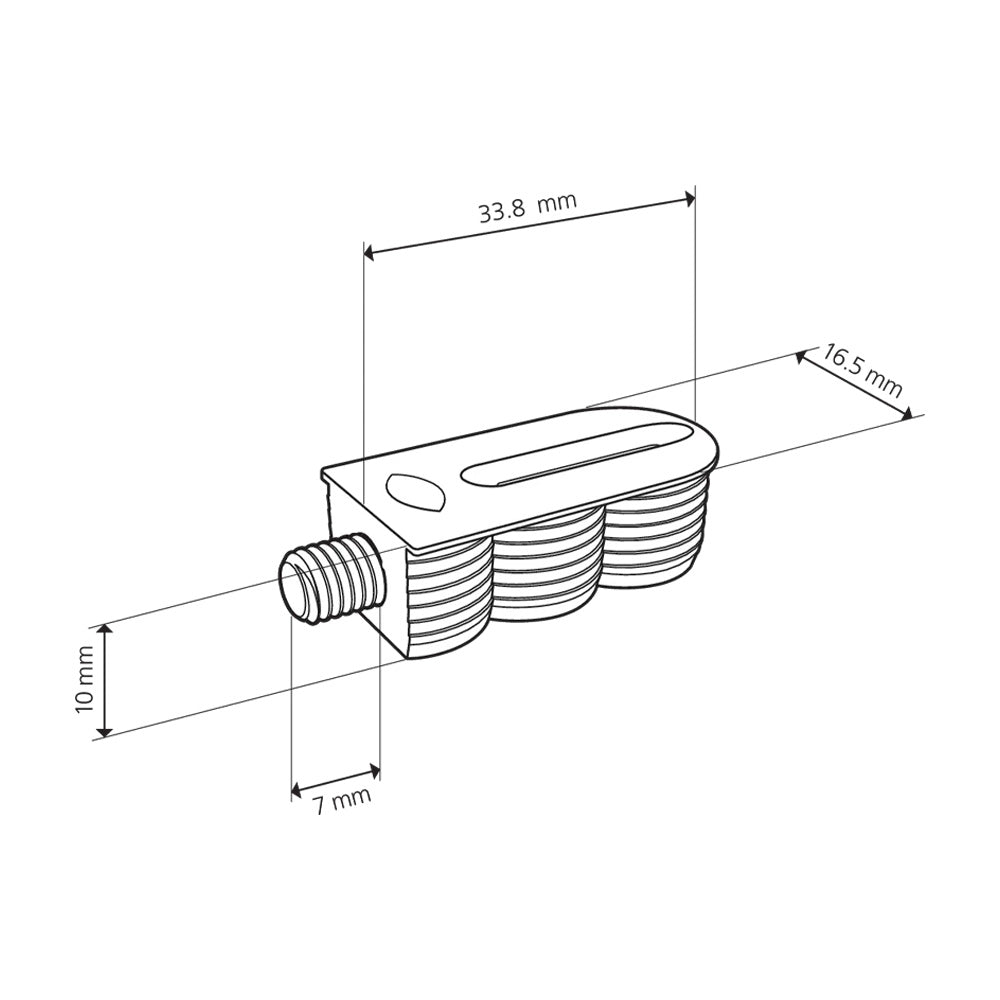

Size: 33.8 x 16.5 x 10.8 mm
Screw length: 8 mm

Cutter: 12 mm or smaller
Drill: 5 mm and 15 mm
Material: Fiber-glass reinforced plastic
Tensile strength: 380 lbs.
Shear strength: 220 lbs.
Clamping force: 380 lbs.


SKU: 186315
