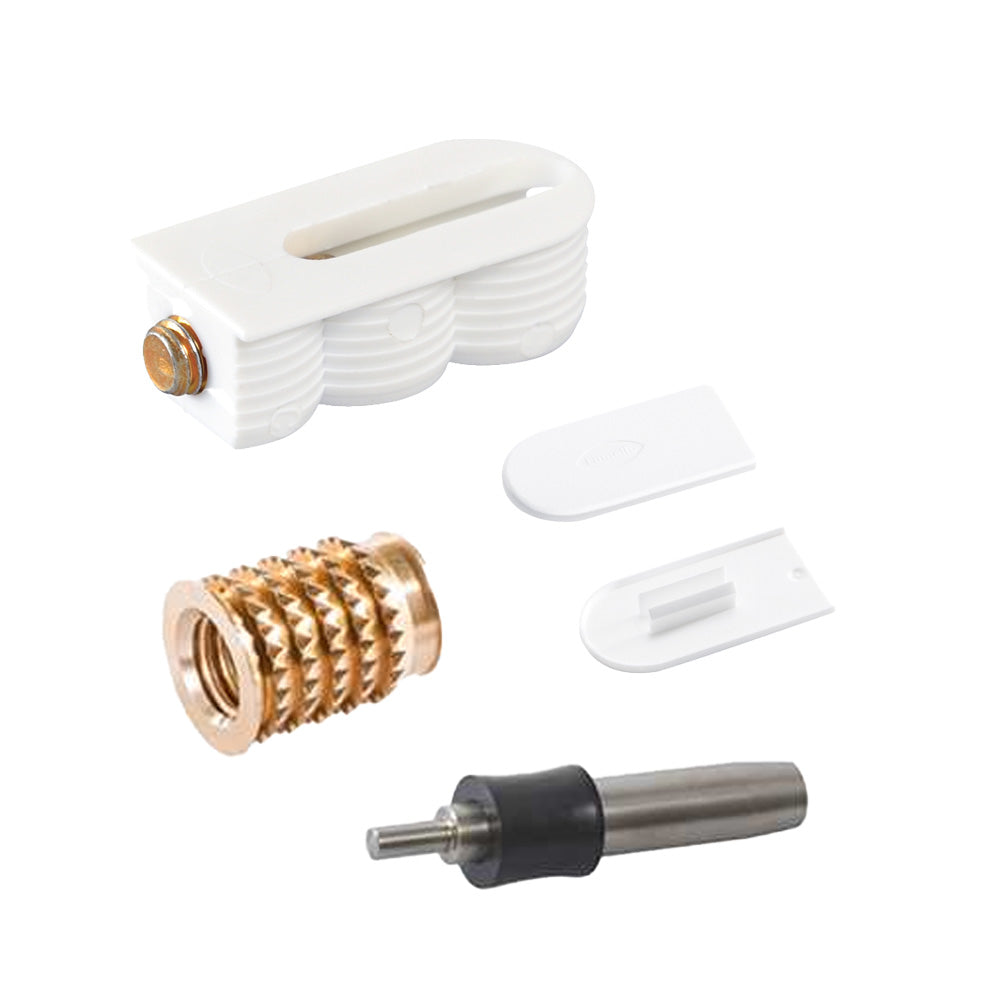

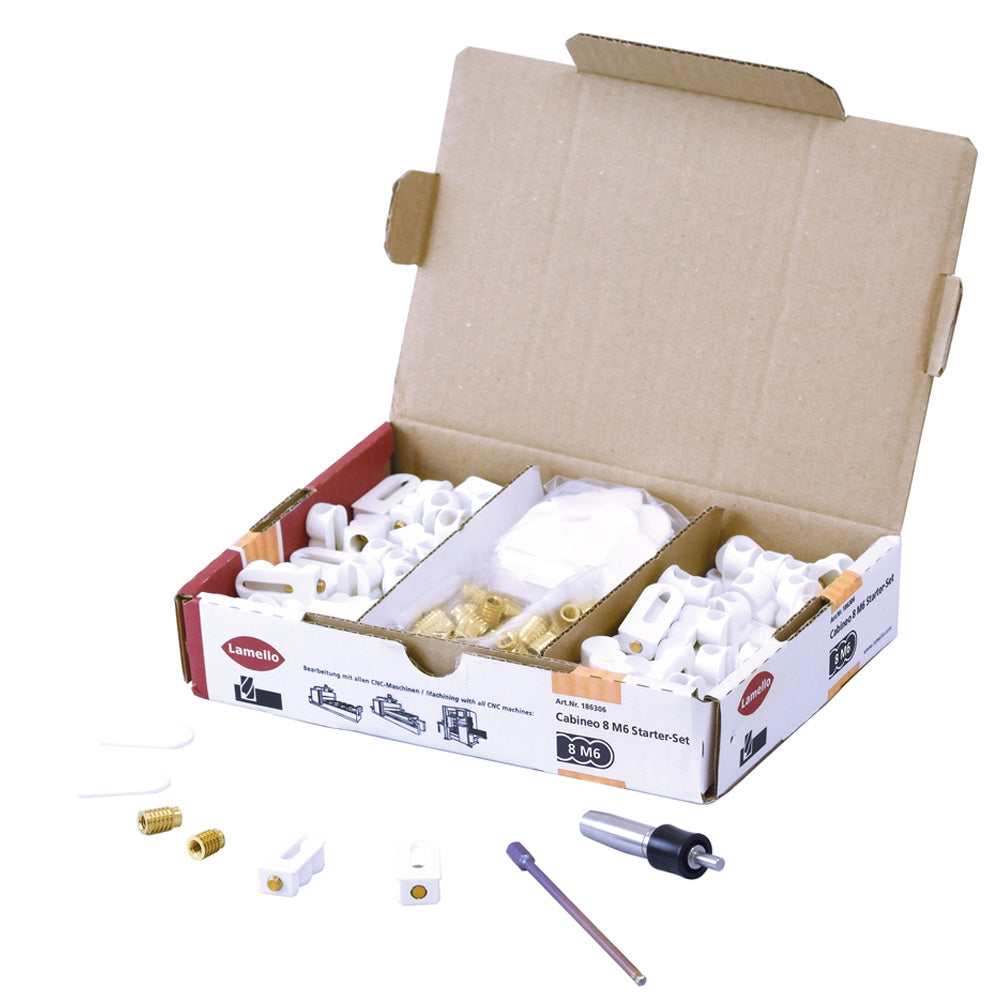

Lamello Cabineo 8 M6 Starter Set

For use with any CNC router.

• Time-saving cabinet connector
• For stronger connections or joining phenolic resin material or wood panels to metal components

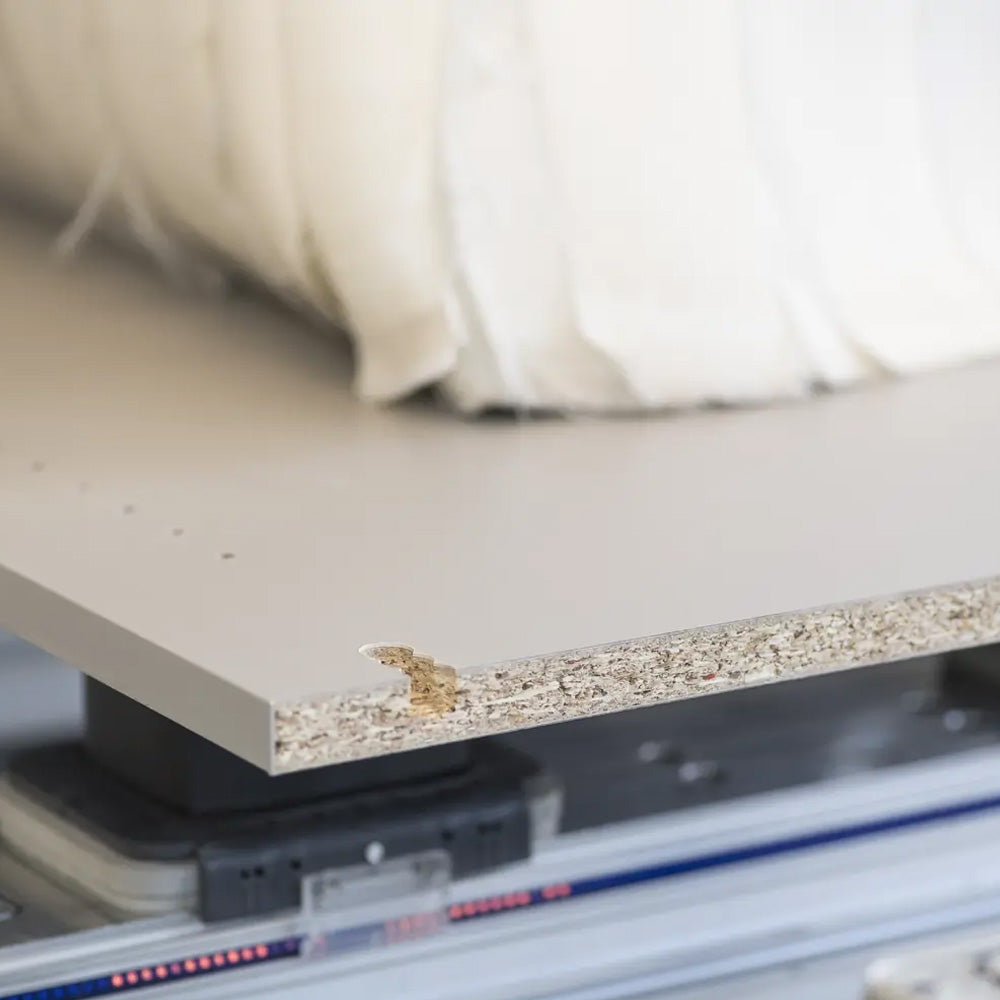

• Groove made with a CNC equipped with a standard, straight-shank bit
• No edge drilling necessary

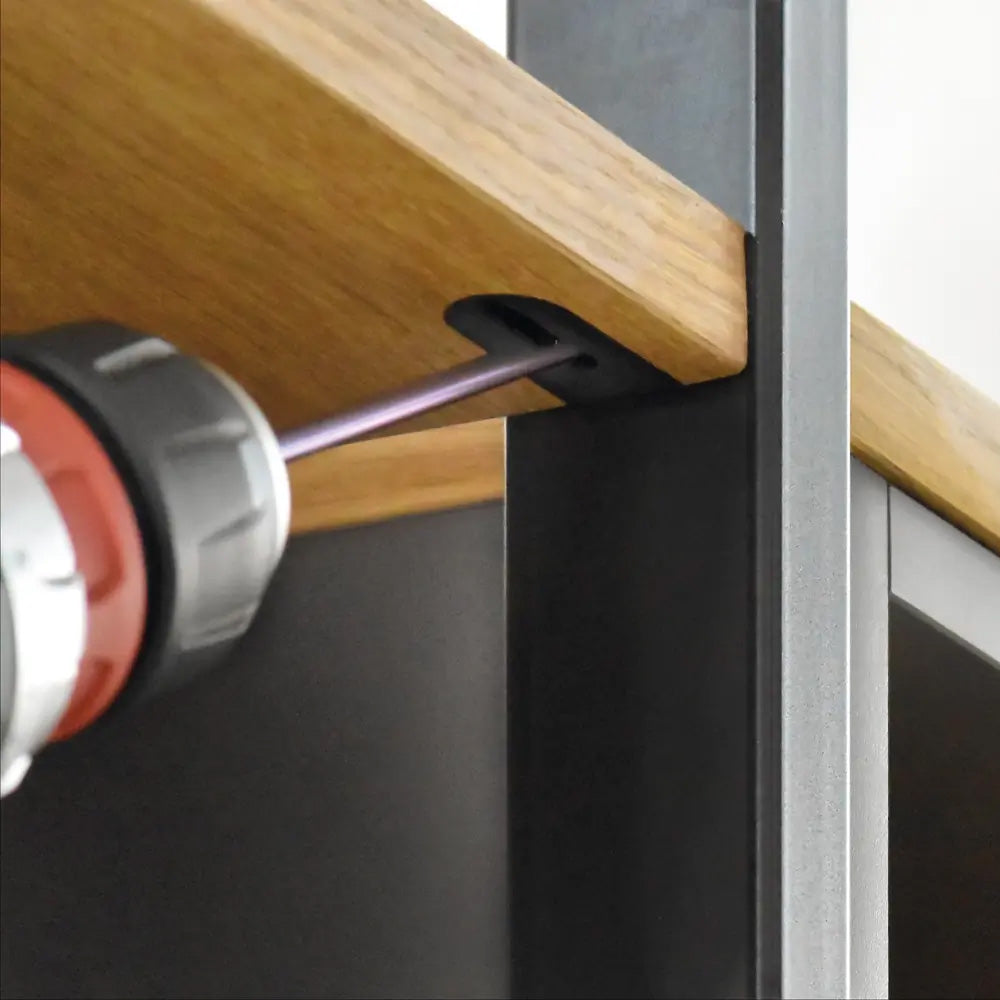

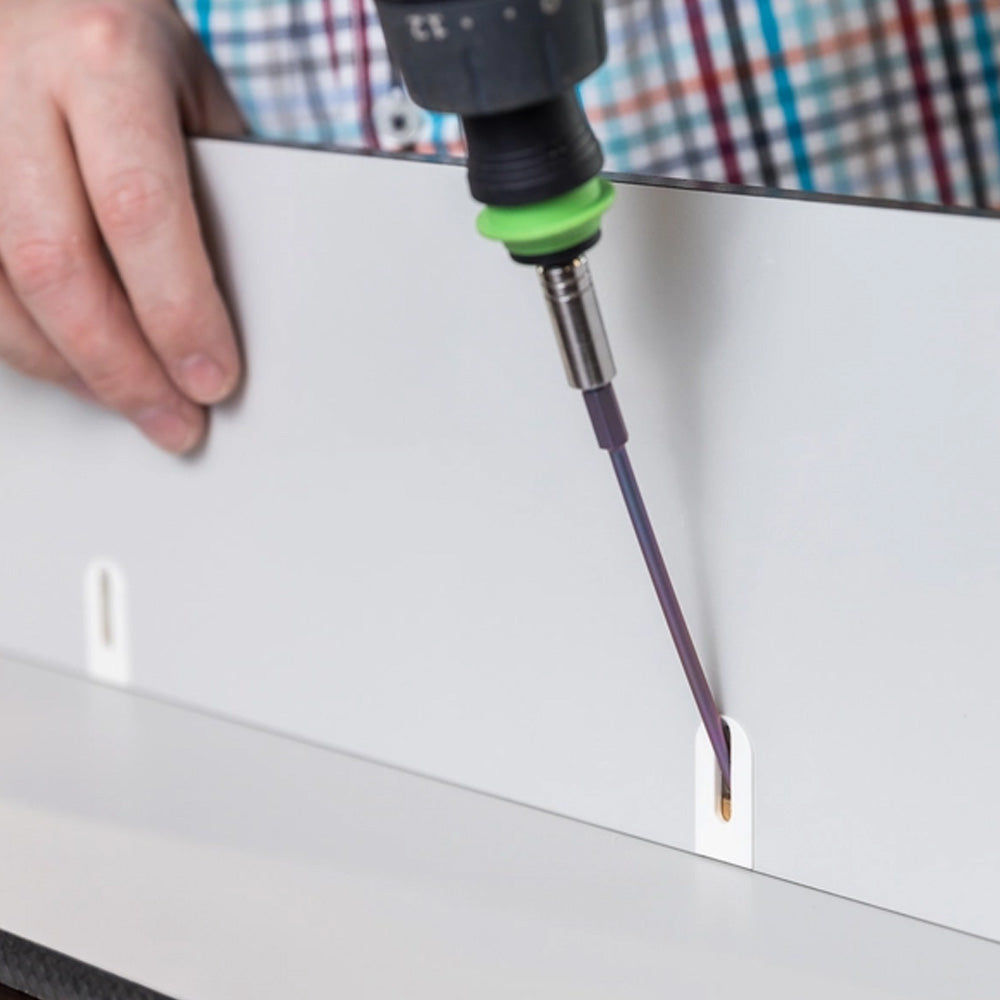

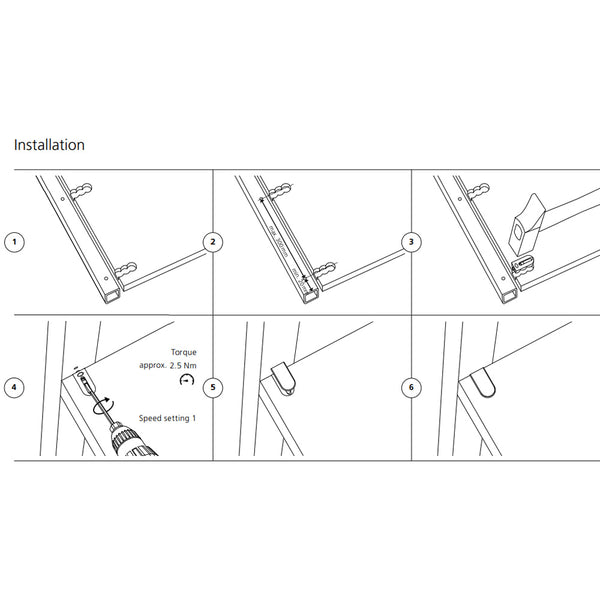

• Connector secured in workpiece via threaded insert nut using a power drill equipped with the Cabineo Driver Bit
• Detachable for transport or if the fixed shelves need adjusting

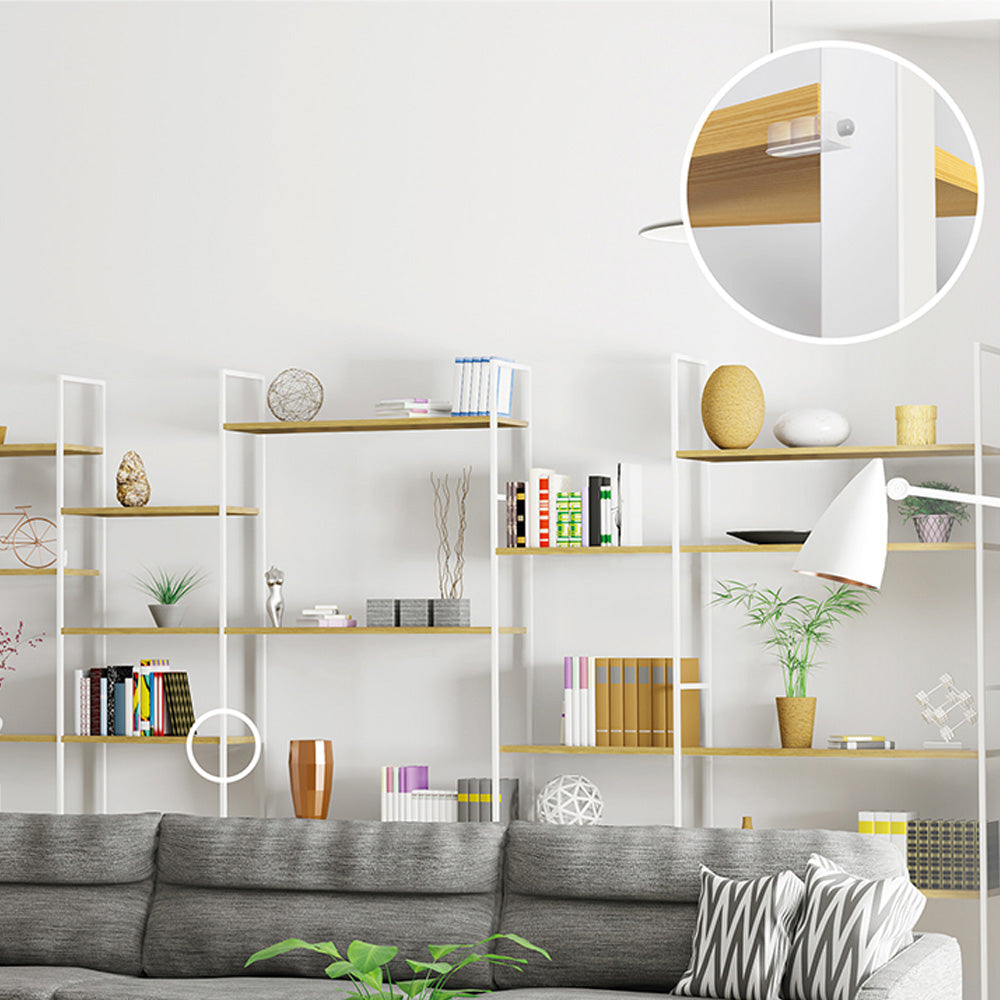

• Popular for shelving units with a metal frame, built-in cupboards or wardrobes, furniture and displays, etc.

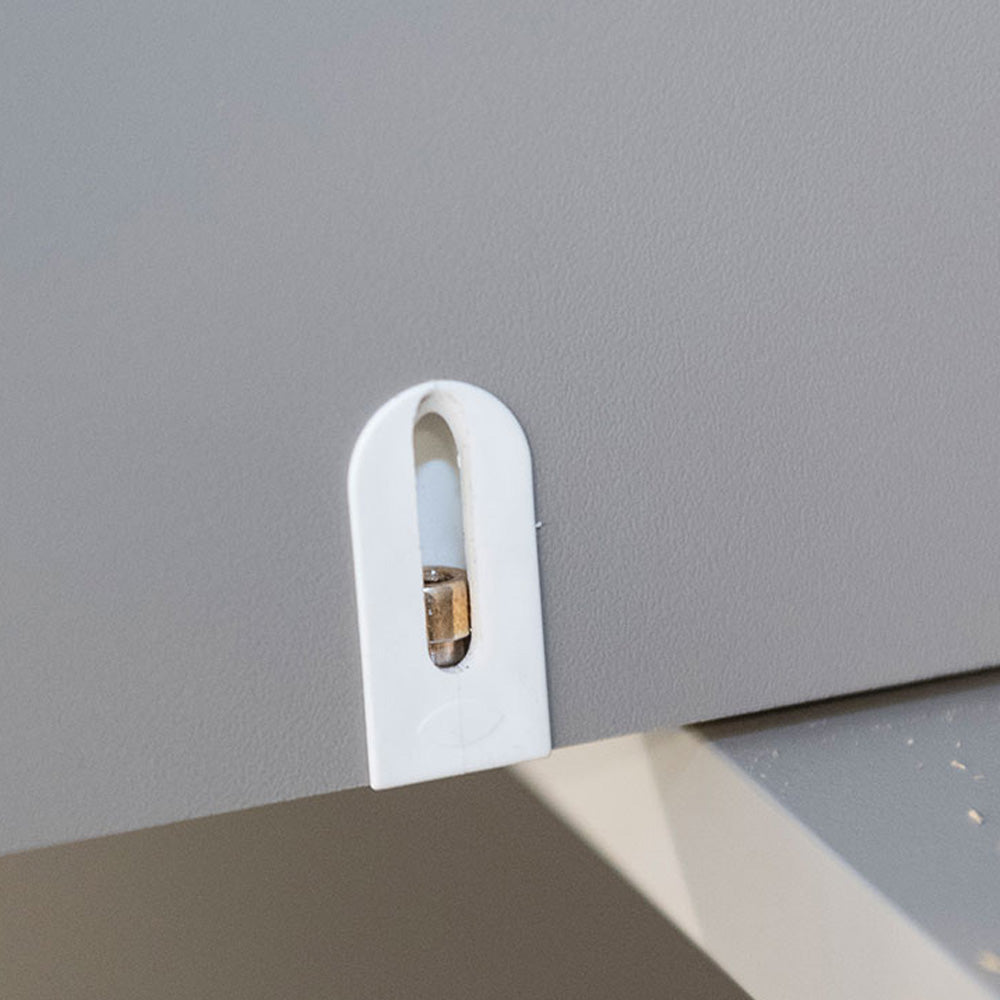

• Can be discretely hidden with Colored Cover Caps


The Cabineo is an innovative one-piece connector used in cabinetry. It can be used with all CNC routers including the Shaper Origin. Since no pre-assembly of screws or dowels in side panels is necessary, the Cabineo will save you time in the production, transportation, and assembly of cabinets.

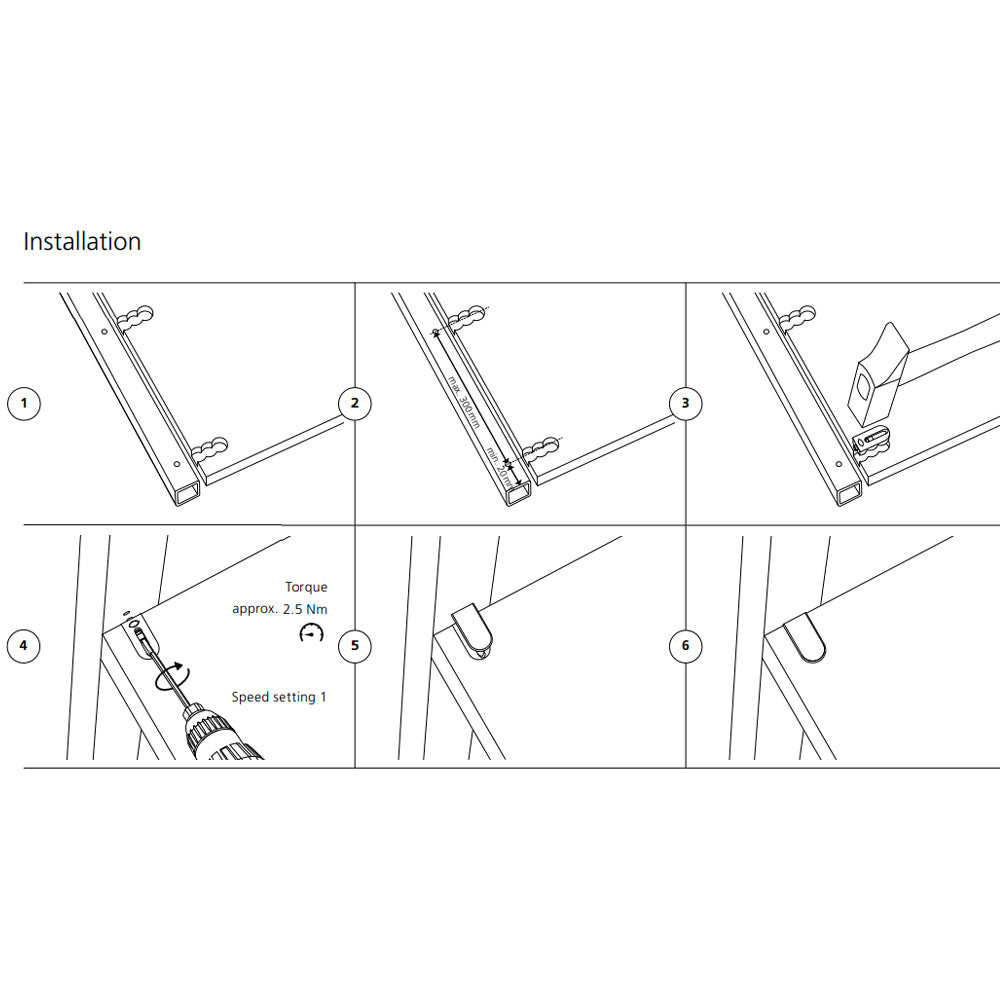

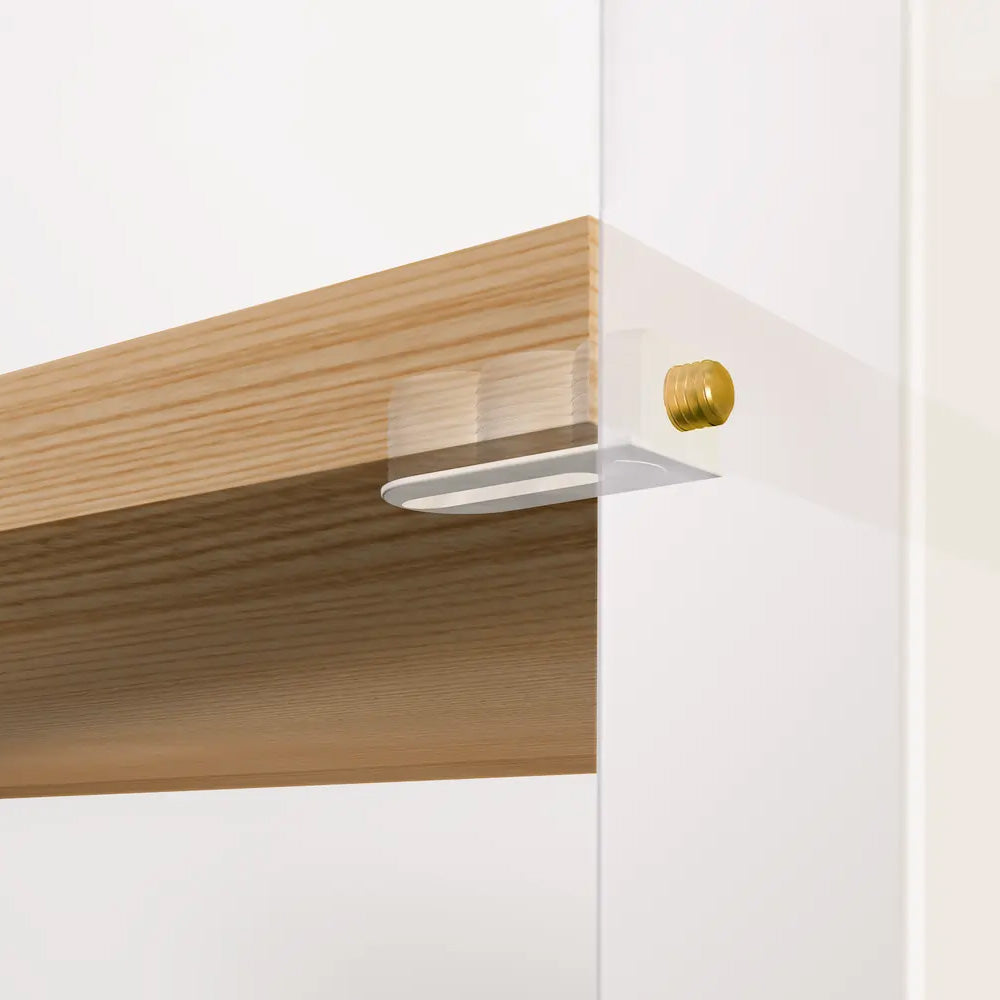

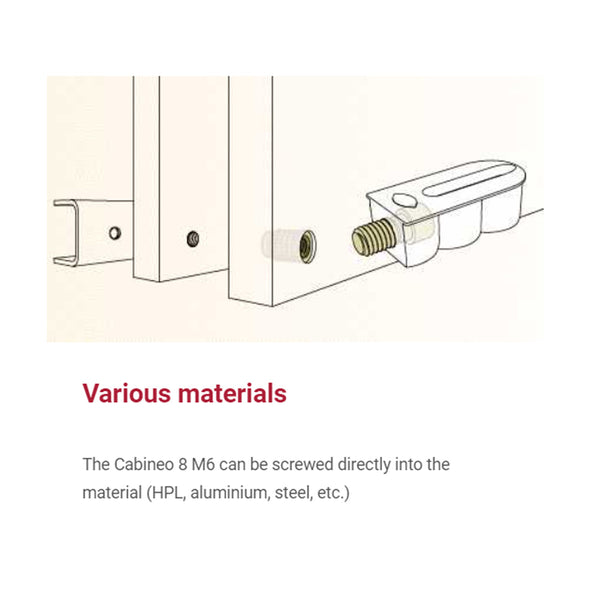

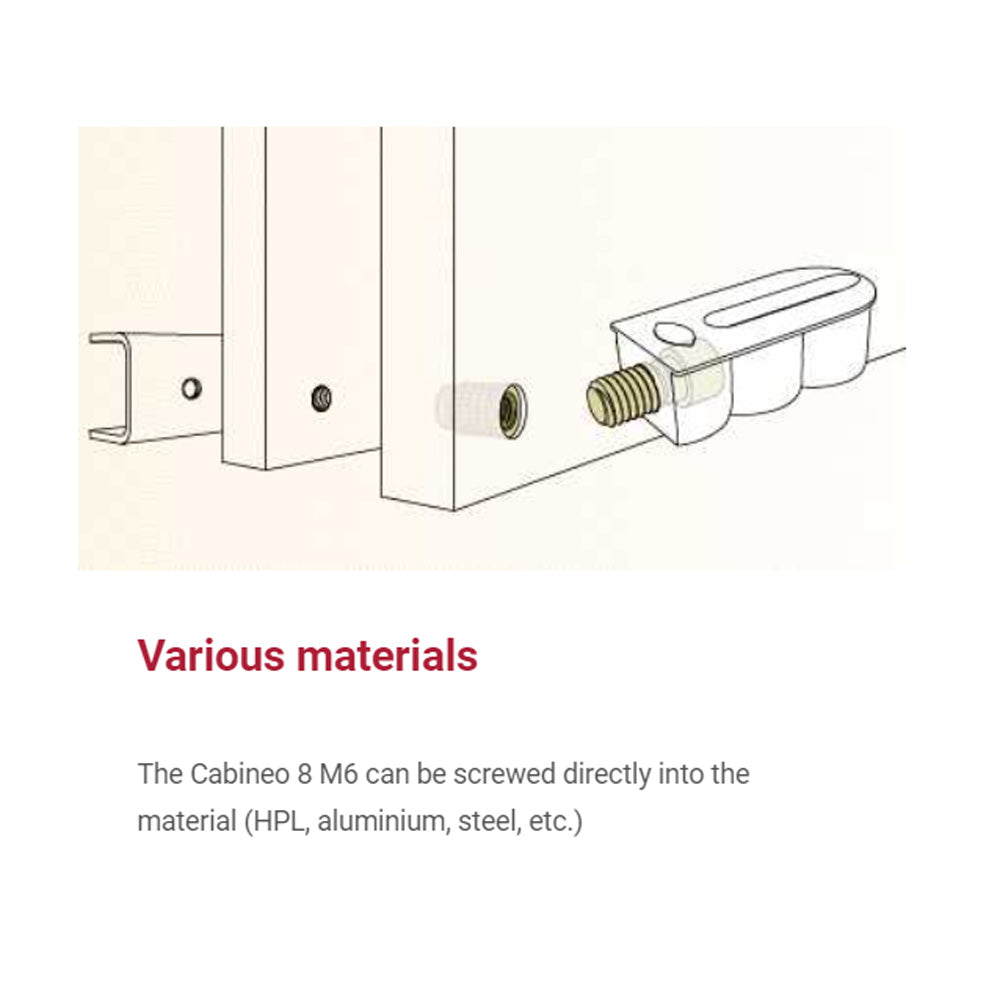

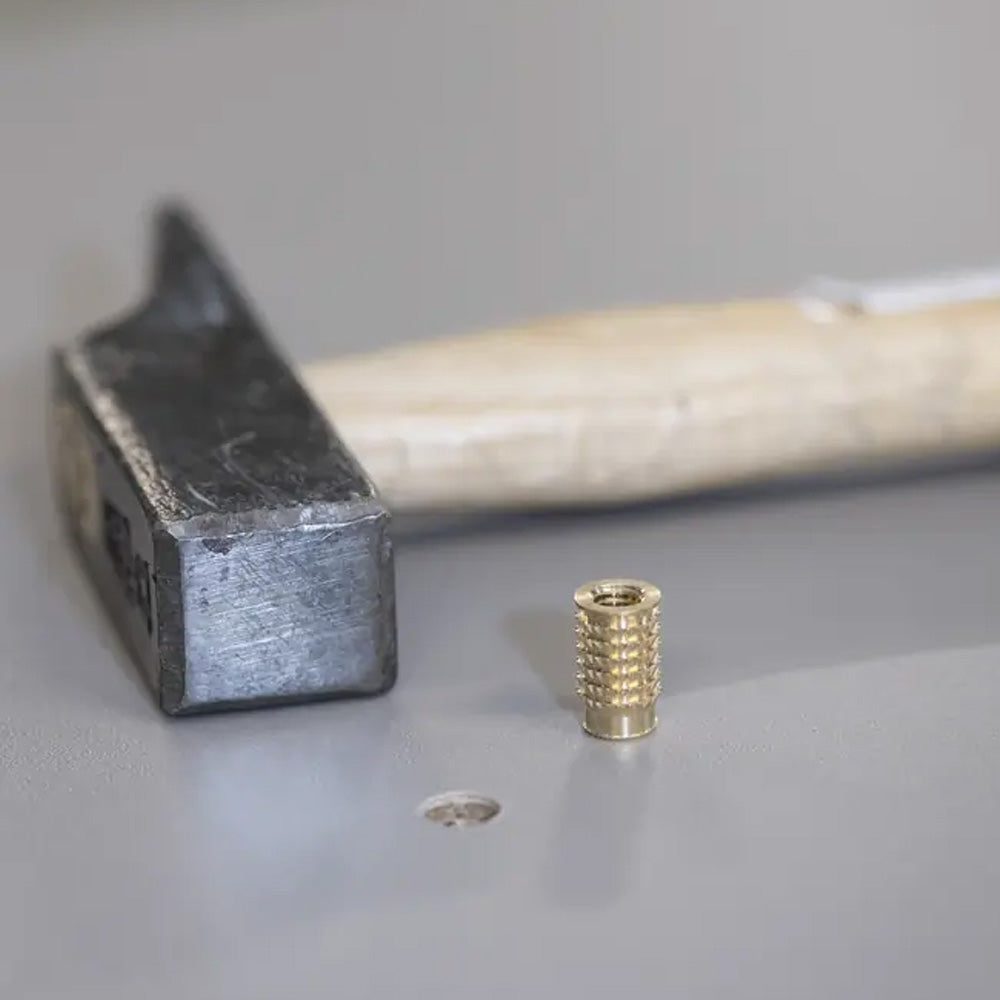

The Cabineo 8 M6 can be used with all CNC routers. This connector is ideal when joining wood composites with materials like aluminum, steel, or compact laminate. Also ideal for increasing the strength in corner and dividing panel joints. After installing the connector in the workpiece, the pre-assembled metric screw is drilled into a threaded hole using a cordless drill. This insert nut provides a stronger connection and clamping force, and prevents wear and tear of the workpiece during assembly and disassembly.

Aesthetic Cover Caps are available separately in 12 solid and metallic colors to make Cabineo blend into your project or to match aluminum or stainless steel fittings. Parts may also be inverted to allow for a completely invisible application.

For a one-piece connection without the threaded nut, choose the Cabineo 8 or Cabineo 12.

Benefits of Cabineo 8 M6 Connectors

• Time-Saving: Save time in production with no edge drilling or dowel holes, during transportation with efficient pre-installation of the connector and flat-pack delivery, and during assembly with easy positioning and one-step connection.

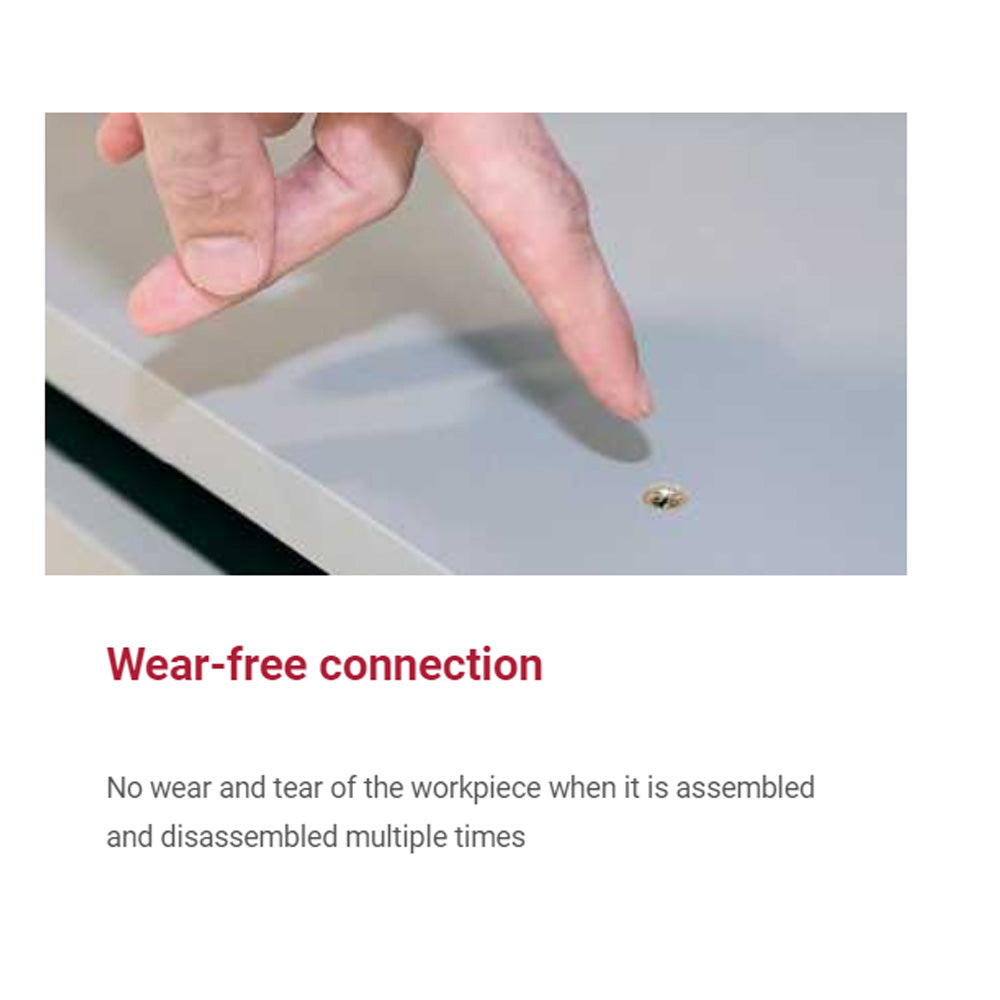

• Wear-Free Connection: With the Cabineo 8 M6, there is no wear and tear of the workpiece whether assembling or disassembling. This allows you to disassemble your work for adjustment or transportation as much as you want.
• True Flat-Pack Delivery: Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This saves space and allows for true flat-pack delivery of workpieces.

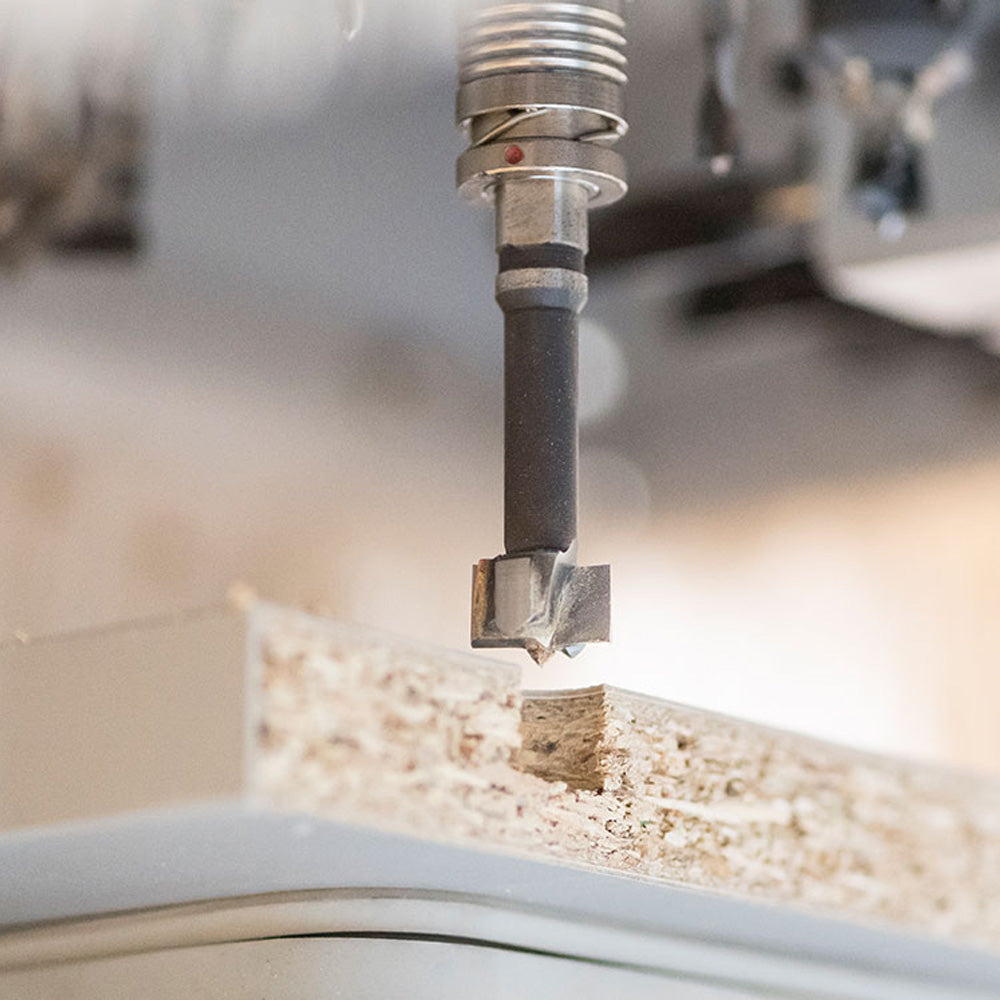

• Compatibility: You have three processing options for making the Cabineo 8 M6 groove. You can bore three separate holes with a 15mm drill bit, route the shape with a 3/8" or 1/2" bit, or drill with a multi-bit aggregate head.
