JLT 8' Buddy System Combo Clamp

Price
$ 9,650

Have questions? Give us a call at 260-637-0054.

Note: Due to the size of this product, freight fees vary. Please contact us at 260-637-0054 or sales@oaktreesupplies.com to get a freight quote and place your order.

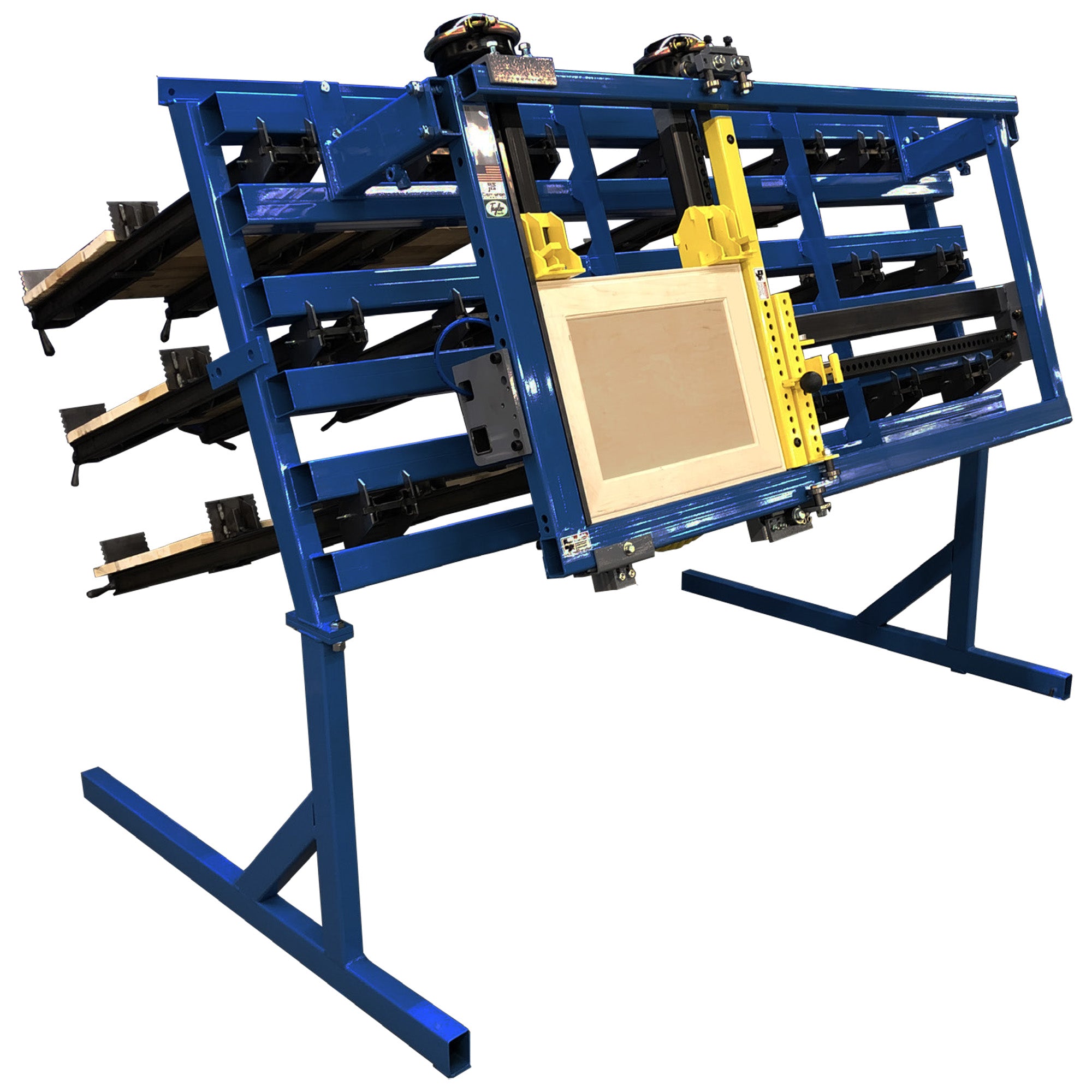

The 8' Buddy System Combo Clamps consists of the following:

  • #717A-6-DC: 6′ Stile and Rail Door Clamp
  • #79F-8-PC: 8′ Wide Panel Clamp

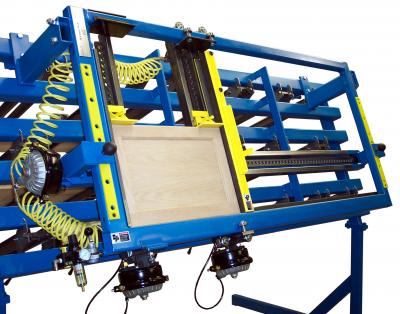

The 6′ Stile and Rail Door Clamp allows you to clamp and square 100+ doors per day! Its single lever operation makes it easy to use, and the intuitive pin system allows for quicker changeover. Includes 2 vertical clamps and 1 horizontal clamp.

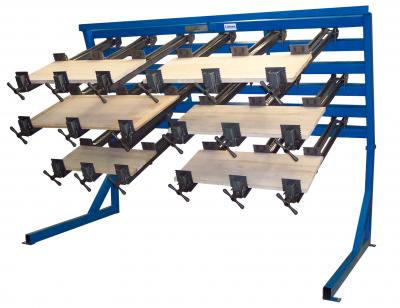

The 8′ Wide Panel Clamp allows you to produce 50+ edge-glued panels per day. The free standing unit has a 3,000 lb. weight capacity and 100% complete tubular steel construction. Features five total gluing levels. Includes (18) 40" High Jaw Clamps (52" clamps available upon request).

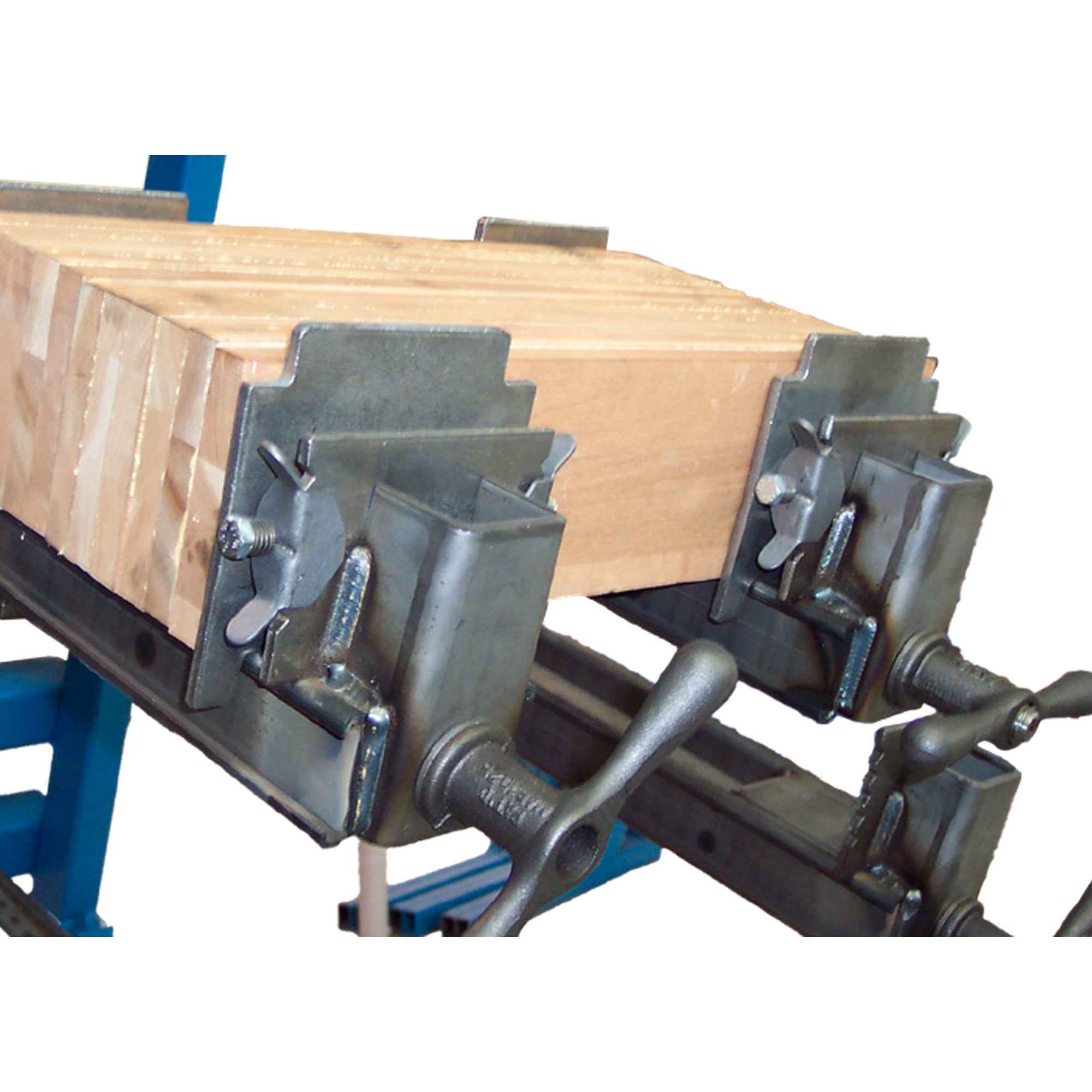

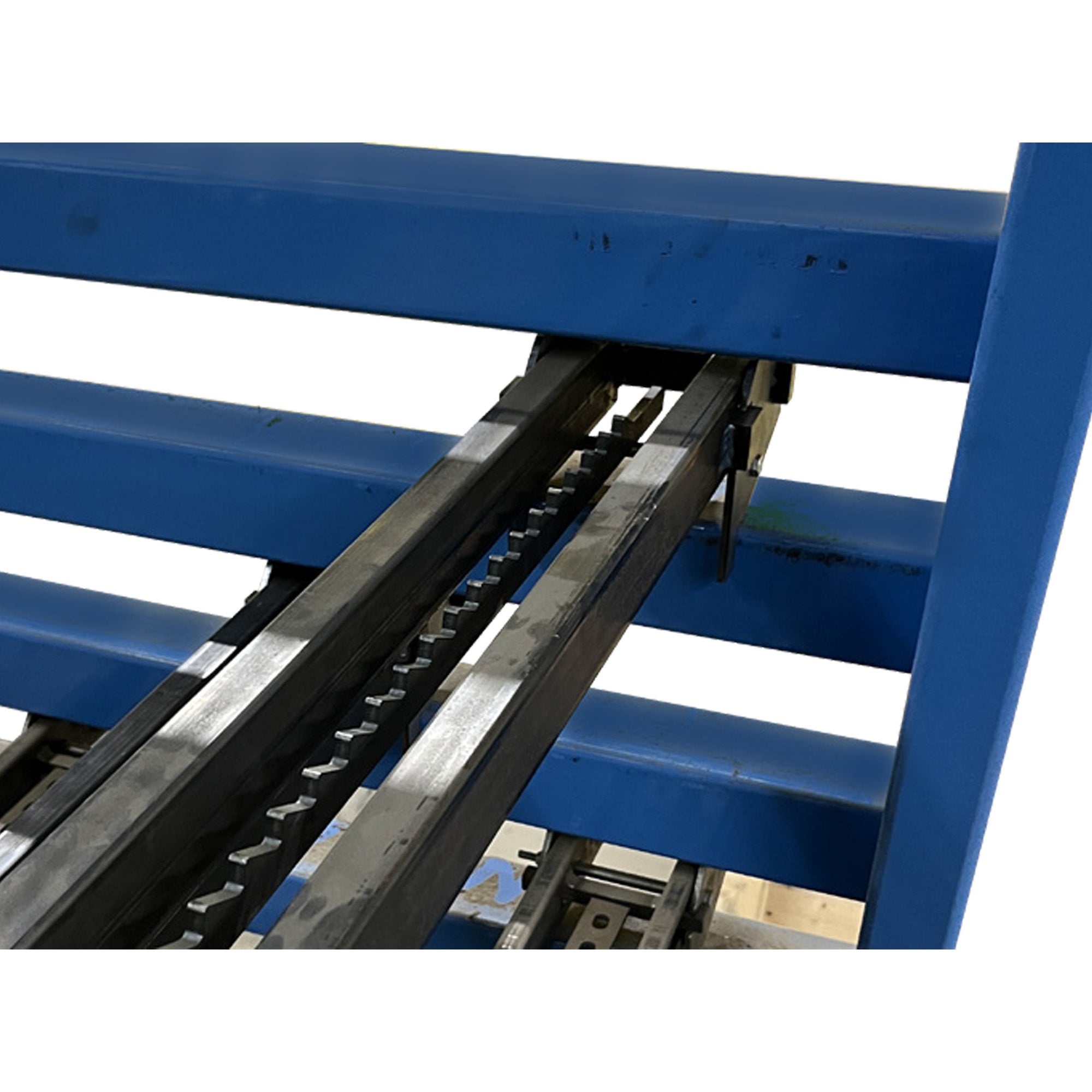

JLT Clamp arms are built to last. With minimal maintenance and strong steel construction, these clamps can last a lifetime. Mounting Plates on the back of the clamps allow for quick and easy attaching of the clamps onto the clamp rack. Easily slide the clamps left to right to create a desired setup.

Features

717A-6-DC

  • 26" x 62" maximum capacity
  • Easy-to-use single lever operation
  • Fast changeovers
  • Convenient 15° working angle

79F-8-PC

  • Innovative, space-saving feature that allows the Clamps to be hung vertically when not in use
  • Edge glue and face glue a variety of solid wood components
  • 100% steel tubular construction that creates a flat and even work area for clamping panels
Specs

Machine footprint (L x W x H): 97" x 64" x 70"

Includes
  • (18) 3-1/2″ High Jaw 40″ opening clamps (52″ clamps available upon request)
  • (2) Vertical clamps
  • (1) Horizontal clamp

SKU: #718A-8
