$ 155

Have questions or need help choosing a clamping system?
Call us at 260-637-0054 or email sales@oaktreesupply.com

No hidden fees or surcharges.

Eligible for a Section 179 tax deduction. See how much you can save >

Made in New York

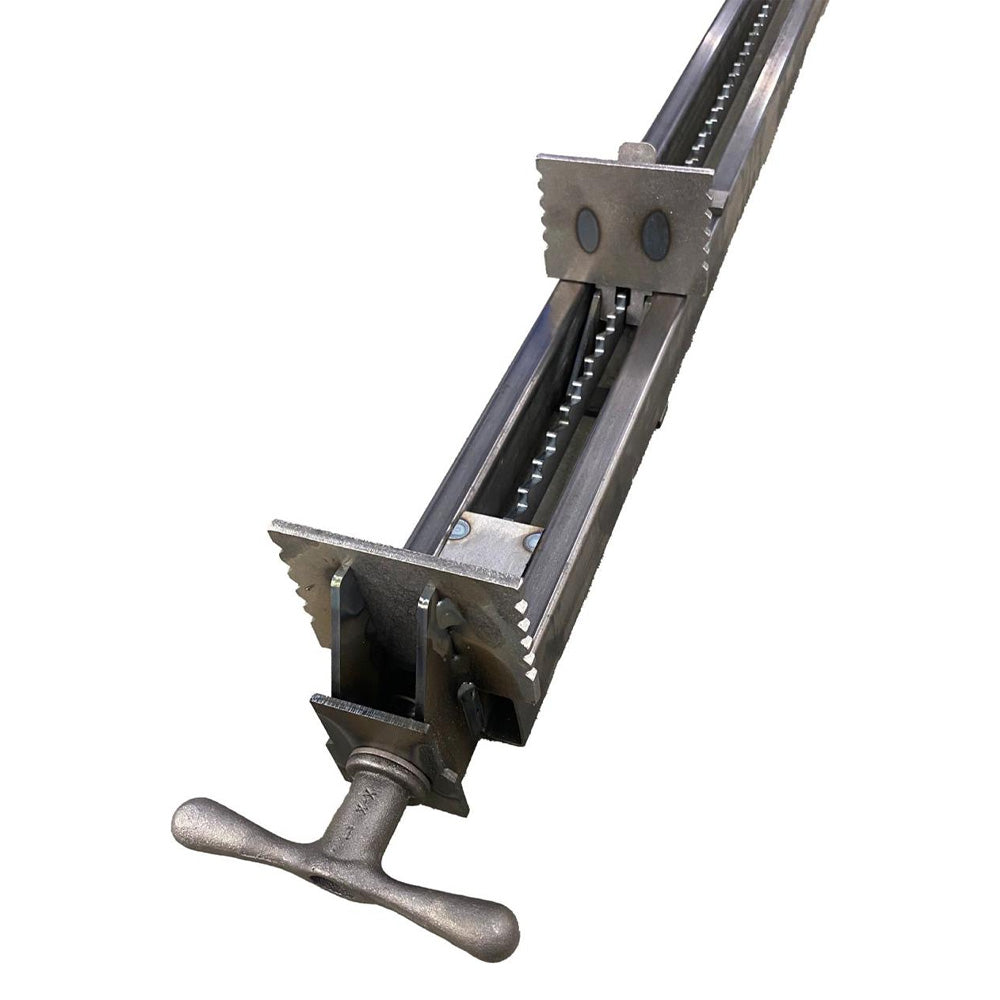

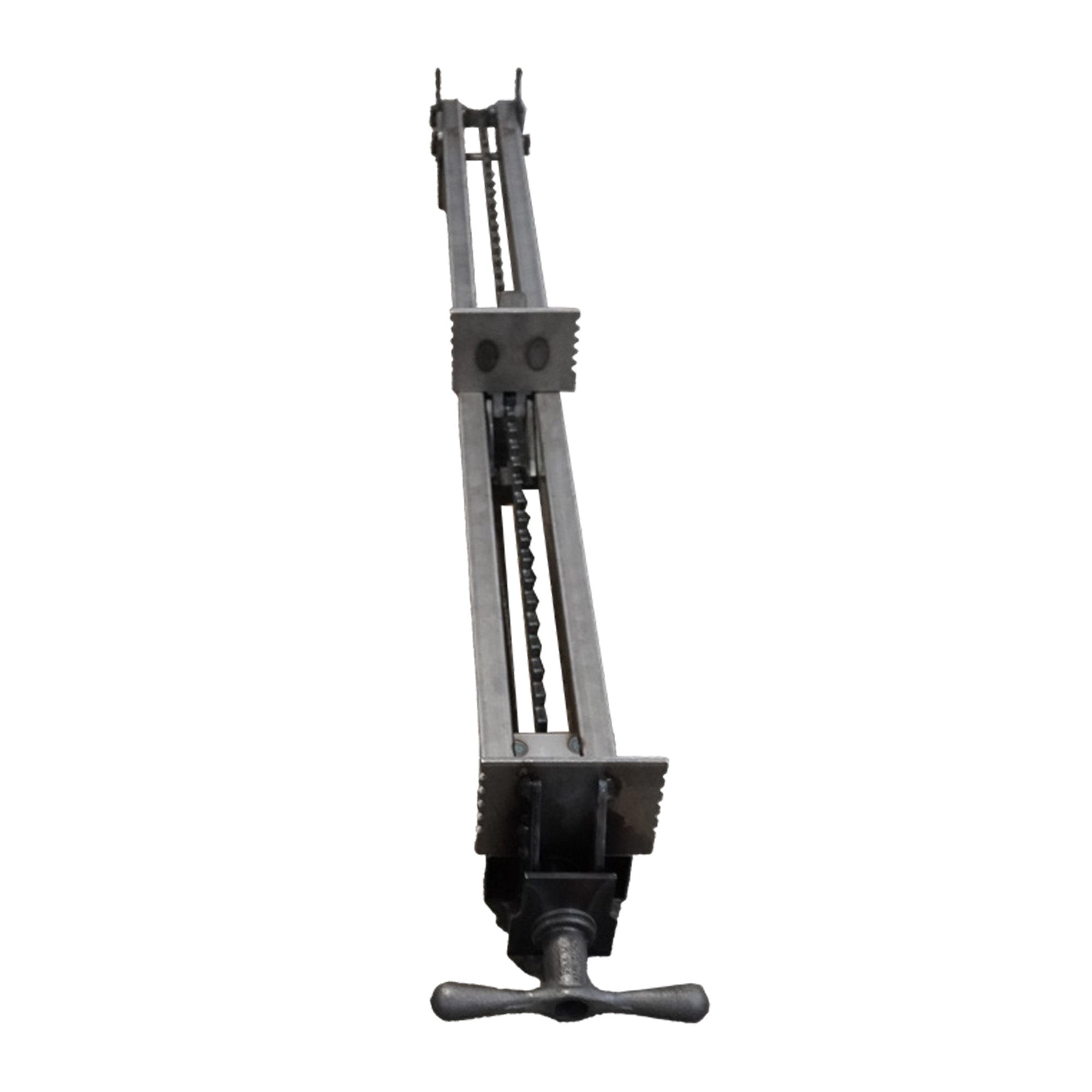

Updated robust design! Add these 40" panel clamps to your JLT Clamping System and boost your production. The 100% steel construction is guaranteed to never twist, bow, or bend and comes with a lifetime warranty on all welded components.

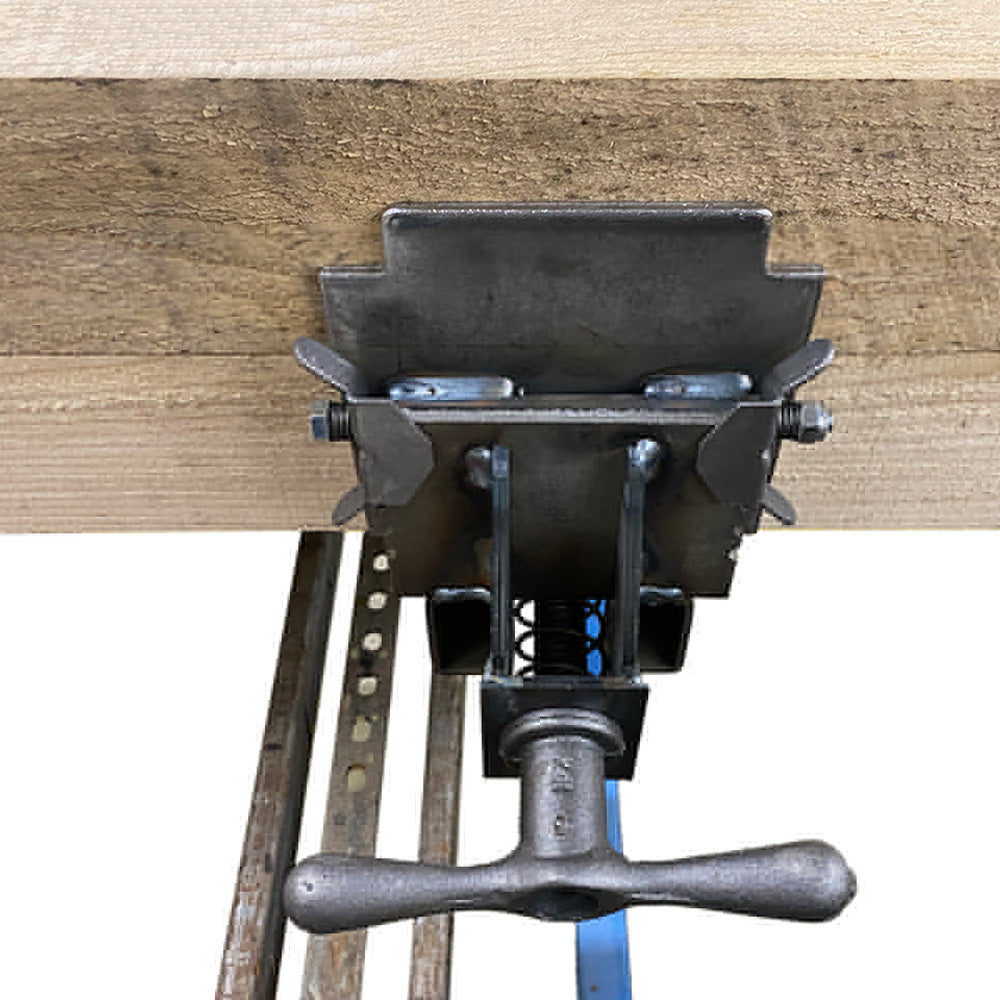

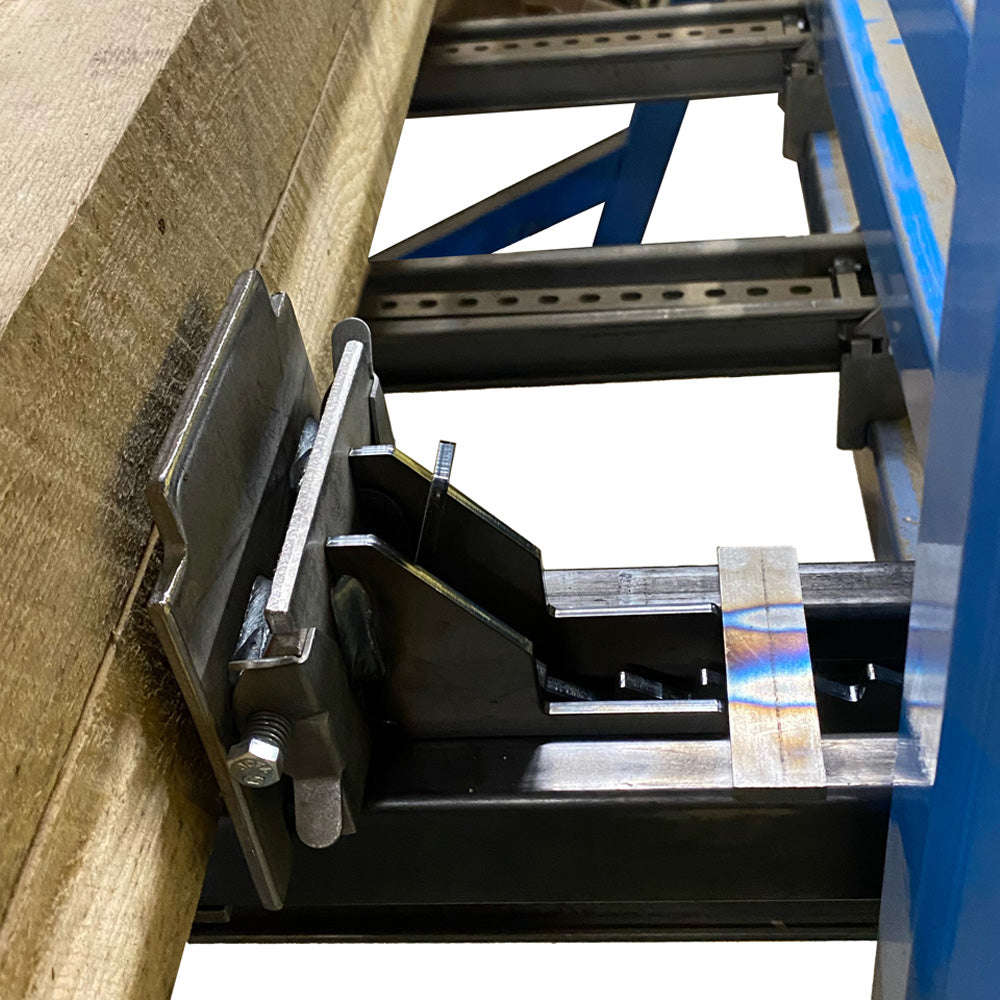

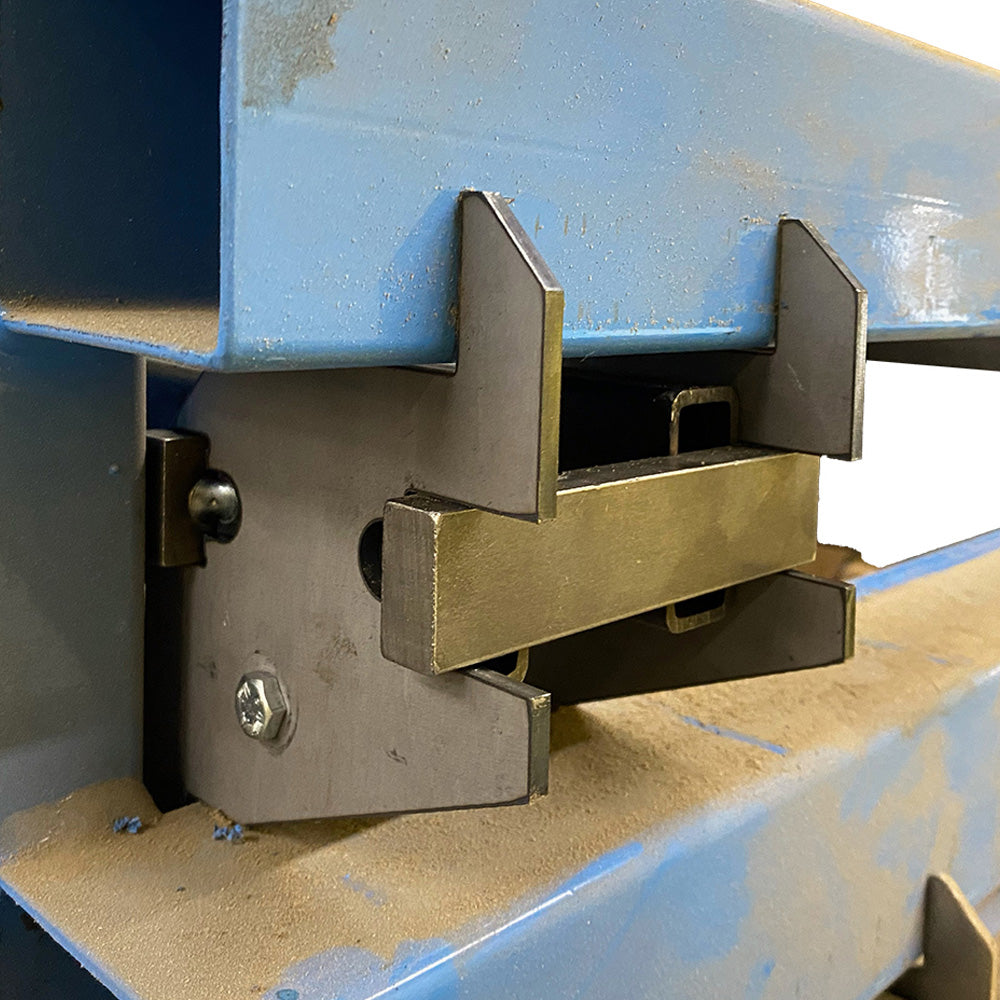

The included mounting plates easily hang and slide into a JLT stationary rack—simply attach with a bolt over the 1/2" sq. mounting blocks. Create and customize your glue up rack to your desired setup! The laser-cut, paddle-style jaw latch provides superior securement to the 1/4"-thick serrated drawbar.

Updated Features:

  • Boxed tubular frame is more rigid over previous C-channel

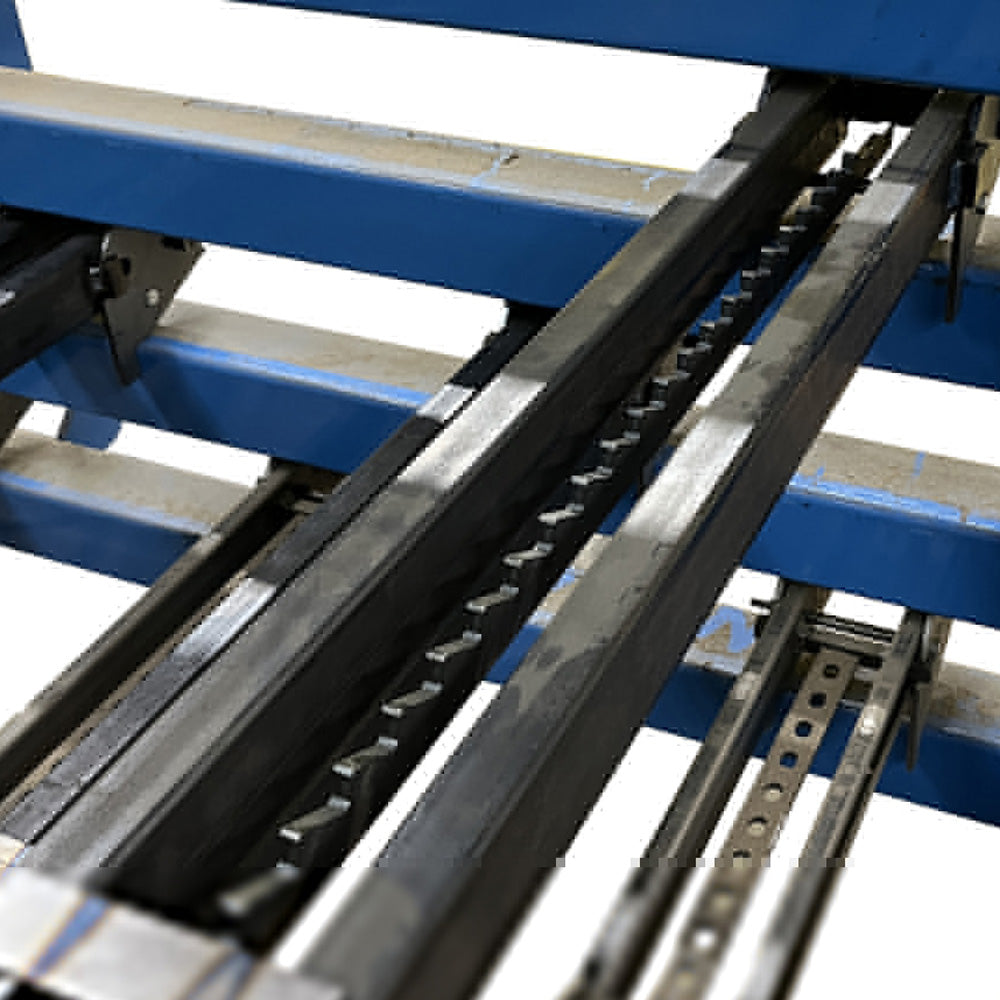

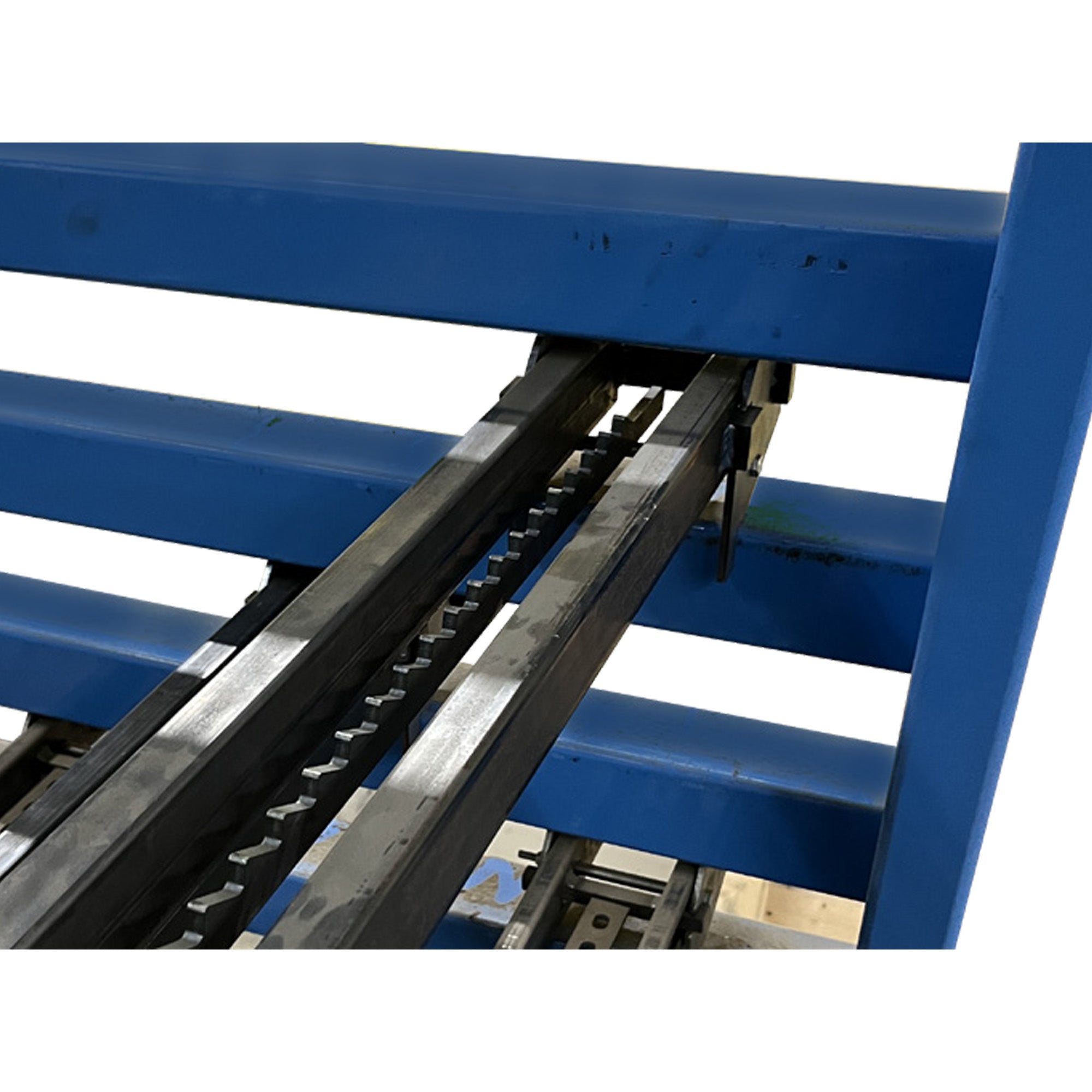

  • 1/4"-thick, vertically-oriented serrated drawbar
  • Latch provides stronger securement to the drawbar
  • One-piece welded clamp screw/drawbar assembly for more stability
  • Minimum clamp opening as small as 5"

Also available in 52" length.

Note: Cannot ship to Idaho, Montana, or Utah.

Features
  • Each clamp can achieve up to 3,000 lbs. clamping force
  • Patented Equalizer Design provides equal clamping from the front and rear jaws, resulting in a high quality panel

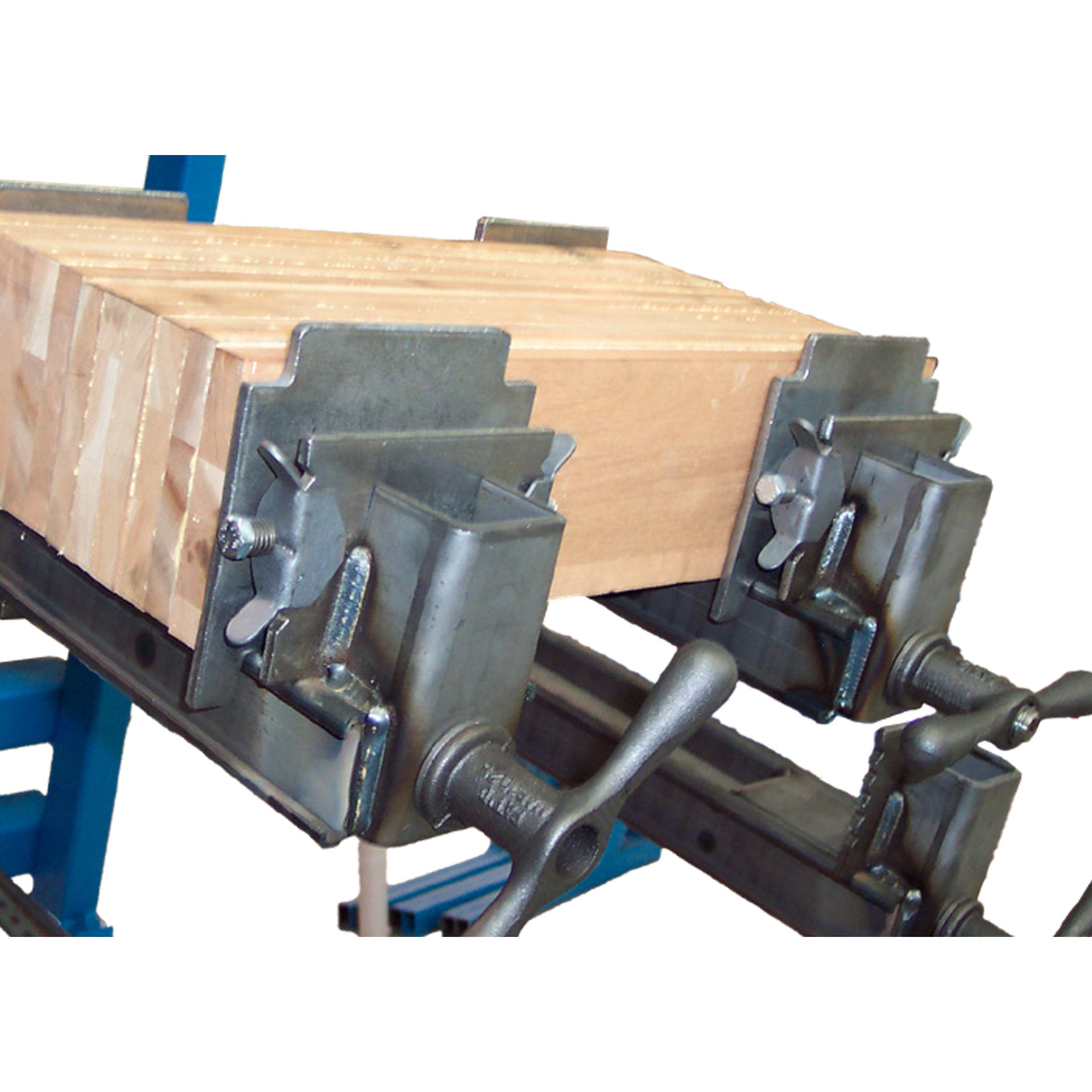

  • Clamps mounted on a JLT Panel Clamp provide a flat, even surface to ensure better glue ups
  • Jaws are toed in at a 1° angle to help hold boards in place
  • 100% steel construction and a lifetime warranty on all welded components
Specs

Clamp length: 40"
Jaw height: 3-1/2"
Jaw width: 4-5/8"
Min. clamp opening: 5"

SKU: #812B-M1-3.5J-40L-H-R
