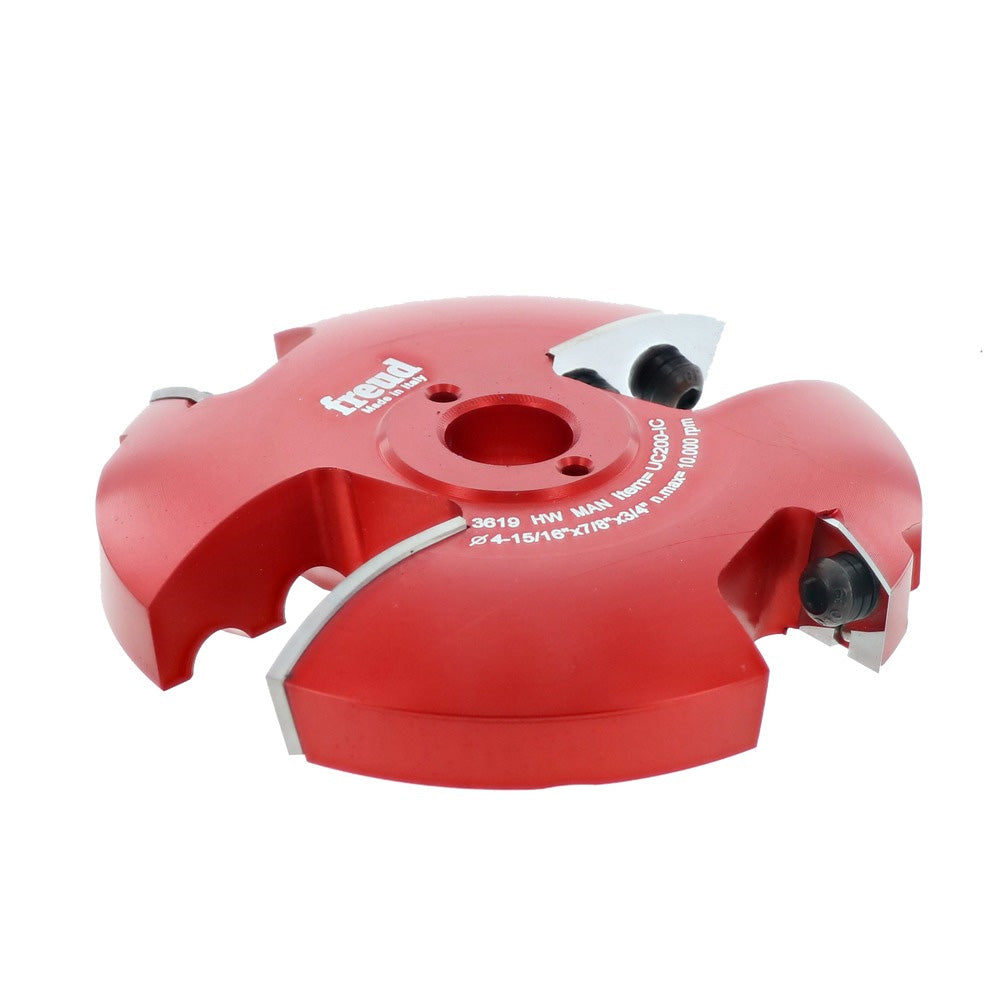

Freud 4-15/16" x 5/8" x 3/4" 2+2 Advanced Cutter Design For 5/8" Stock
- Sale price
- $ 235.06
- List price
- $ 239.97
Have questions? Give us a call at 260-637-0054.
Shaper cutters designed for 5/8" thick panels. All 1-1/4" bore cutters can be used with Backcutters UP230-IC and UP231-IC when using 3/4" stock. All 3/4" bore cutters can be used with Backcutters UC230-IC and UC231-IC when using with 3/4" stock.
Today's high production manufacturing plants demand reduced applied tooling costs and premium finishes. With the introduction of Freud's next generation of Industrial Raised Panel Insert Shaper Cutters for enthusiast and manufacturing environments, these shaper cutters feature 2+2 shear technology and a replaceable insert design for unmatched flawless finishes and longer life.
These innovative shaper cutters feature the latest in advanced shear technology design and Freud made TiCo Hi-Density Carbide knives designed for superior quality finishes in wood for maximum life and performance. Freud's advanced geometries take the outdated brazed technology of the past to an entirely new level by introducing a interchangeable sharpener friendly 2 mm TiCo carbide cutter knives.

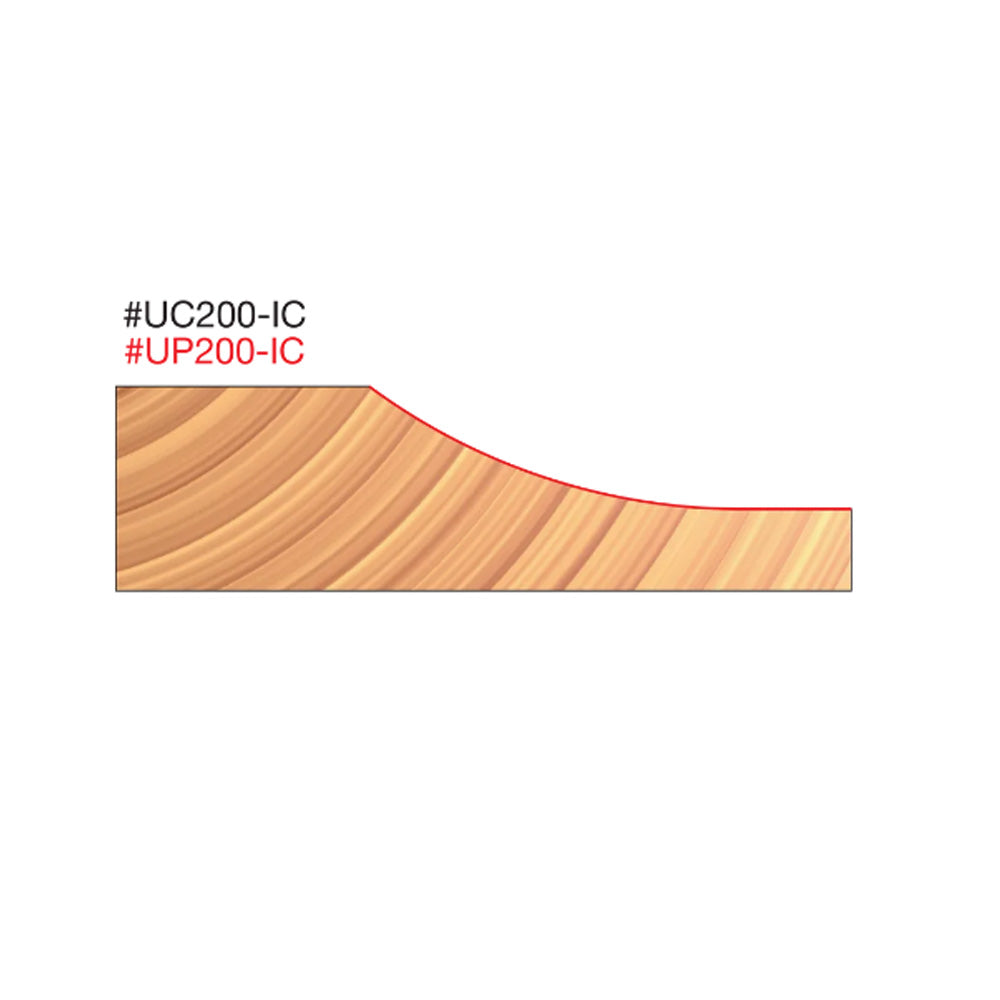

Ideal for producing raised panels that are glass smooth.
Features
- Freud TiCo carbide tips have Superior Shear Angles that slices through wood fibers, leaving cross-grain cuts with virtually no sanding required
- Advanced 2+2 Cutting Design includes two large cutters that shear upward and two smaller cutters that shear downward for splinter-free, flawless finishes
- Red Anodized Protective Coating protects the aluminum body from abrasion extending the life of the shaper cutter

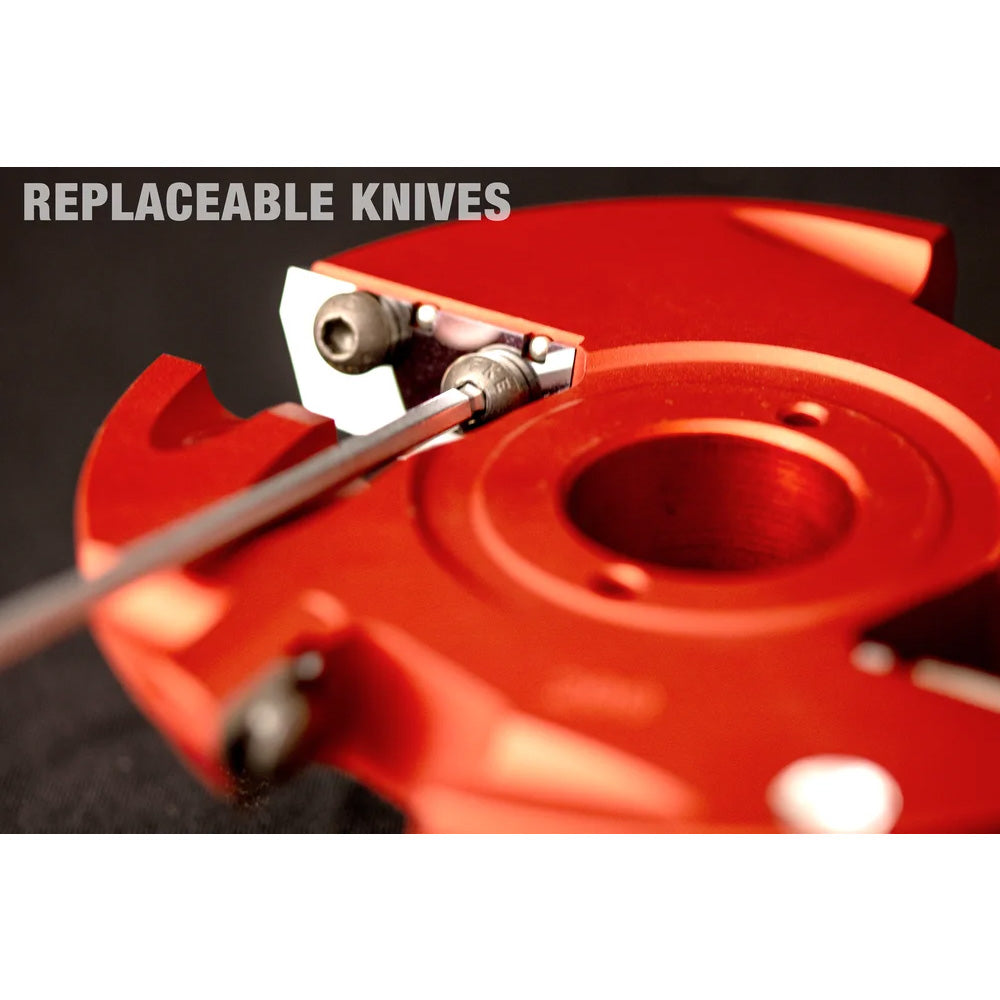

- Versatile Interchangeable Knives are easily interchanged during sharpenings for reduced tooling costs and minimal downtime
- 2 mm Thick Sharpener friendly carbide extends the shaper cutter's life through multiple sharpenings outlasting standard brazed carbide
- Kickback-Reducing Shoulder Design restricts the tooth bite to 1.1 mm, reducing the effects of overfeeding for more controlled, clean cuts
- Ultimate Precision Computer Balancing with strict tolerances are achieved by using computer-based applications to balance all cutters for super smooth, chatter-free cutting
Specs
Bore dia.: 3/4"
Carbide height: 5/8"
Overall dia.: 4-15/16"
Minor height: 15/64"
Large radius: 1-29/32"
