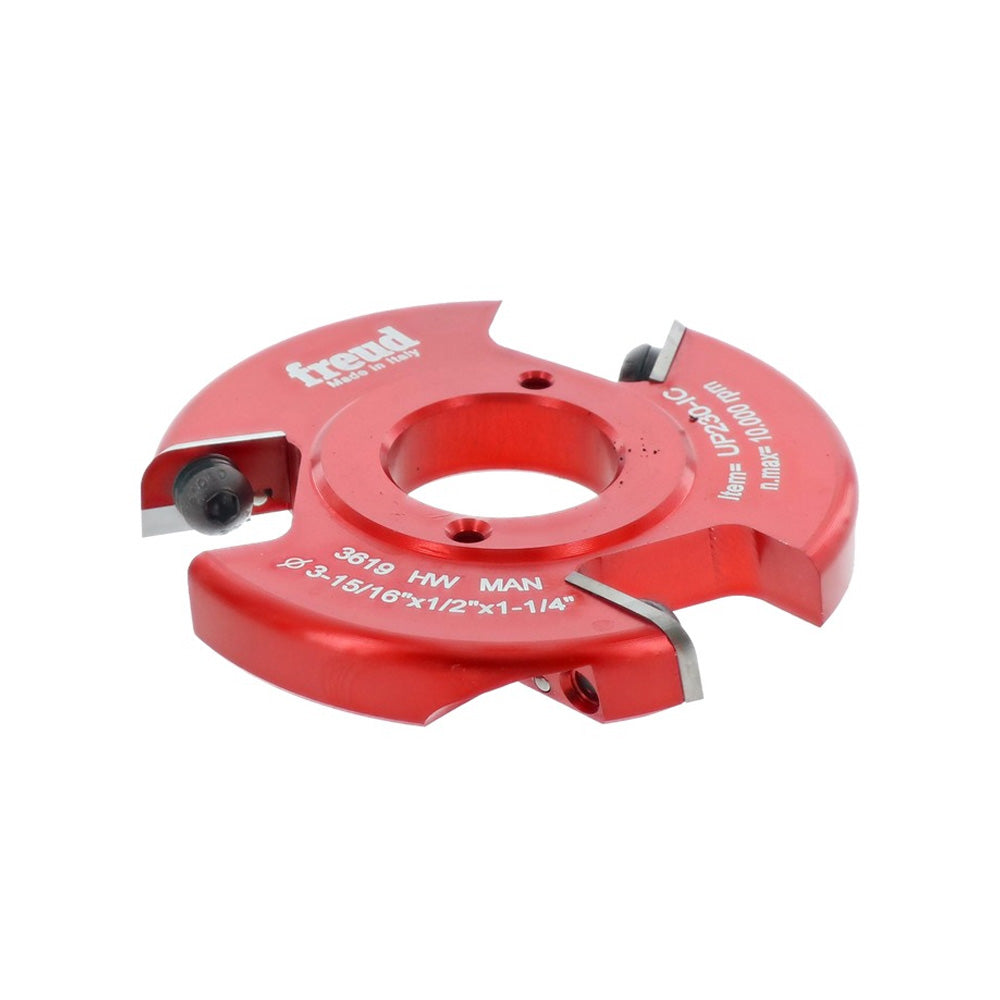

Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design
Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design
Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design
Click image to open expanded view
Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design
Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design
Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design

Freud 3-15/16" x 3/8" x 1-1/4" Backcutter For 2+2 Advanced Cutter Design

$ 165.32
$ 169.97

Have questions? Give us a call at 260-637-0054.

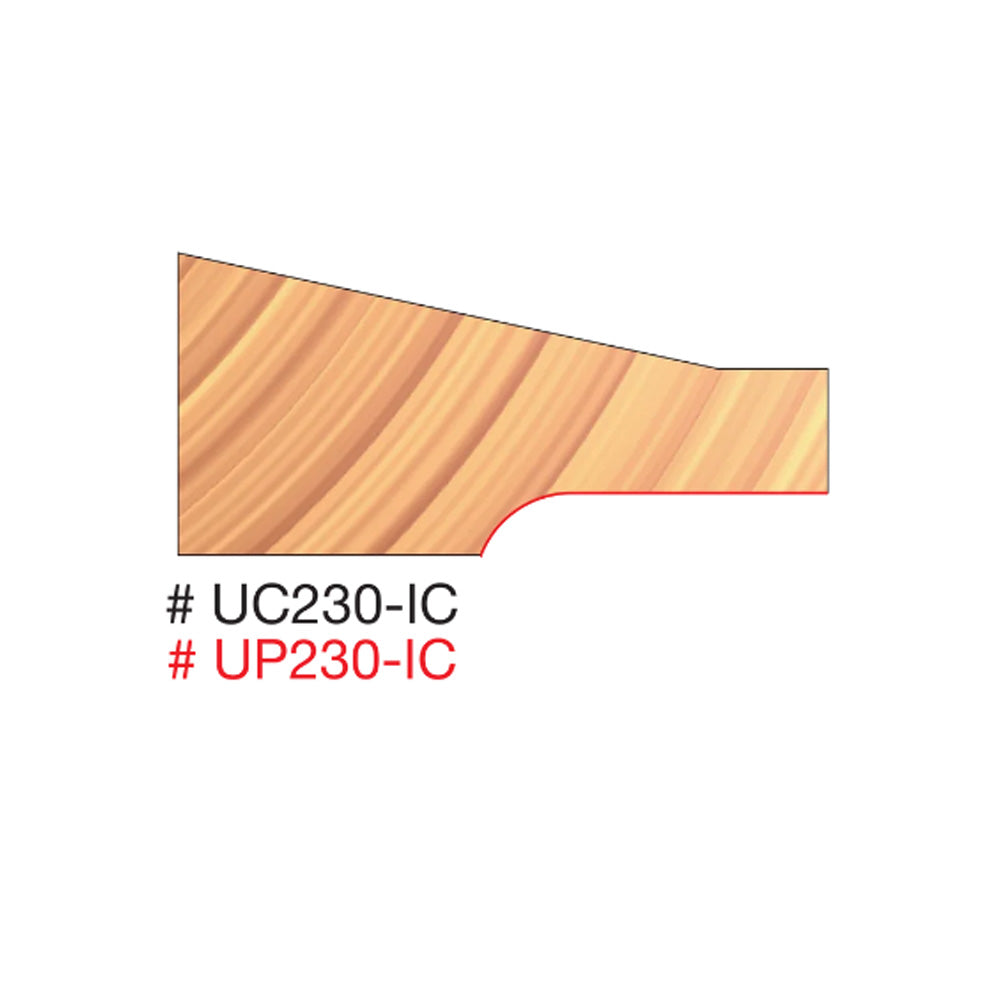

Designed to be used with Freud's 2+2 advanced cutters when cutting 3/4" stock. These shaper cutters leave a decorative profile on the back side of the panel making the panel flush with both the front and back of the rails and stiles. Use these cutters with Freud Panel Cutters UC200-IC through UC208-IC.

Today's high production manufacturing plants demand reduced applied tooling costs and premium finishes. With the introduction of Freud's next generation of Industrial Raised Panel Insert Shaper Cutters for enthusiast and manufacturing environments, these shaper cutters feature 2+2 shear technology and a replaceable insert design for unmatched flawless finishes and longer life.

These innovative shaper cutters feature the latest in advanced shear technology design and Freud made TiCo Hi-Density Carbide knives designed for superior quality finishes in wood for maximum life and performance. Freud's advanced geometries take the outdated brazed technology of the past to an entirely new level by introducing a interchangeable sharpener friendly 2 mm TiCo carbide cutter knives.

Features
  • Advanced 2+2 Cutting Design includes two large cutters that shear upward and two smaller cutters that shear downward for splinter-free, flawless finishes
  • Red Anodized Protective Coating protects the aluminum body from abrasion extending the life of the shaper cutter

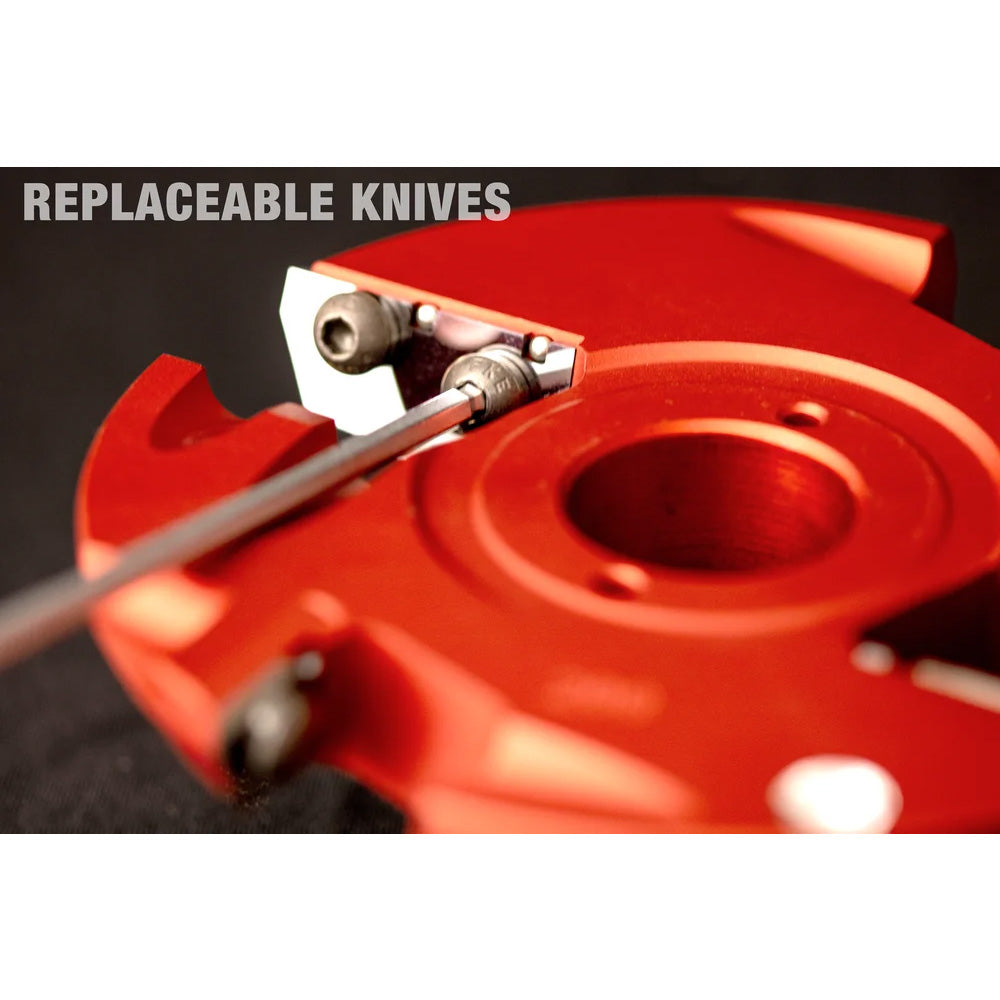

  • Versatile Interchangeable Knives are easily interchanged during sharpenings for reduced tooling costs and minimal downtime
  • Exclusive Freud TiCo Hi-Density Micro-Grain Carbide blend of Titanium Cobalt carbide allows for a sharper cutting edge, with minimal wear for dramatically longer cutting life
  • Freud TiCo carbide tips have Superior Shear Angles that slices through wood fibers, leaving cross-grain cuts with virtually no sanding required
  • 2 mm Thick Sharpener friendly carbide extends the shaper cutter's life through multiple sharpenings outlasting standard brazed carbide
  • Kickback-Reducing Shoulder Design restricts the tooth bite to 1.1 mm, reducing the effects of overfeeding for more controlled, clean cuts
  • Ultimate Precision Computer Balancing with strict tolerances are achieved by using computer-based applications to balance all cutters for super smooth, chatter-free cutting
Specs

Bore dia.: 1-1/4"
Carbide height: 3/8"
Overall dia.: 3-15/16"
Large radius: 13/64"

SKU: UP230-IC
