Freud’s Ultimate High Production Cut-Off blades features a high tooth count, alternate face shear technology and a 25-degree High Alternate Top Bevel (Hi-ATB) tooth geometry to decrease cutting pressure for less blowout and superior finishes in extremely high-speed cutting applications. Freud-made TiCo™ Hi-Density Carbide coupled with Freud’s Silver I.C.E. (Industrial Cooling Element) coating gives these blades the longest run time of any optimizing blade on the market.
This range features unique laser-cut anti-vibration slots, which practically eliminate the vibration that resonates in standard blades producing a ready to profile material edge. Freud’s Ultimate High Production Cut-Off blades are precisely the best when it comes to more production capabilities, higher cut quality, and less down time making these the highest value for today’s production environment.

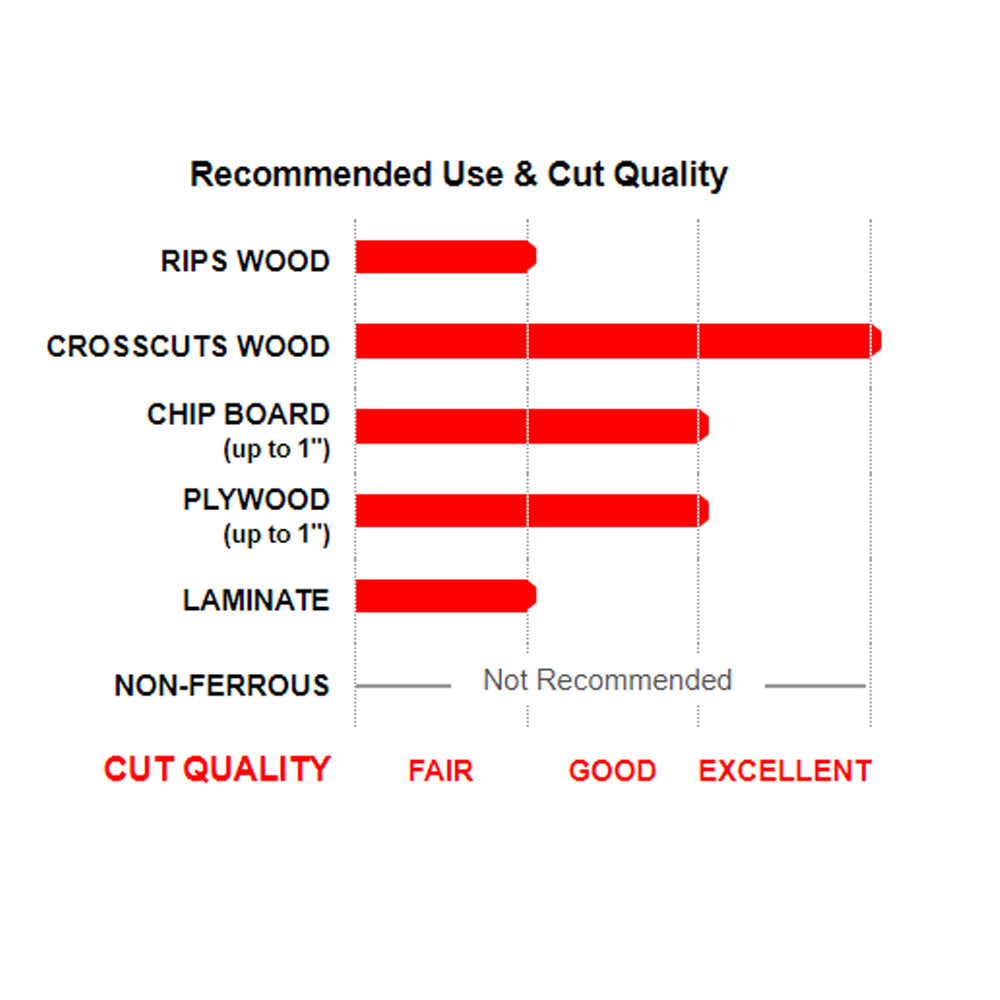

Ideal for glass-smooth finishes when crosscutting hard and soft woods, so no sanding is required. Depth of cut 1/4" min to 1-5/8" max. Note: depth of cut for chip board and plywood is 1" max.
[TABS]
Features
- Freud’s exclusive blend of TiCo™ Hi-Density Carbide is specifically designed for each cutting application to maximize cutting life and material finish
- Freud’s own Silver I.C.E. Coating™ reduces heat, build up, and eliminates rust and corrosion to maximize the life of the blade
- Hi-Alternate Top Bevel (Hi-ATB) tooth geometry with Axial Shear Face side grind polishes the material to produce a superior finish in high-speed applications
- Laser-cut blade body with anti-vibration technology add superior stability, a precise quality of cut while reducing machine vibration and maximizing the life of the blade in upcut saws and large production manufacturing
- Tri-Metal Brazing gives the tooth superior bond strength and protects the carbide tooth by giving it increased flexibility and impact resistance
- Freud’s Hi-Tolerance Precision Plate Grinding & Tensioning features a laser cut blade body from 48 Rockwell steel plate (the world’s highest quality steel) that remains flat and true, over the lifetime of the blade for ultimate accuracy
Specs
Arbor: 5/8"
Diameter: 9"
Grind: ATB
Hook Angle: 10°
Kerf: 0.116"
Plate: 0.098"
Teeth: 72
