SuperMax 25×2 Double Drum Sander

$ 3,999

Have questions? Give us a call at 260-637-0054.

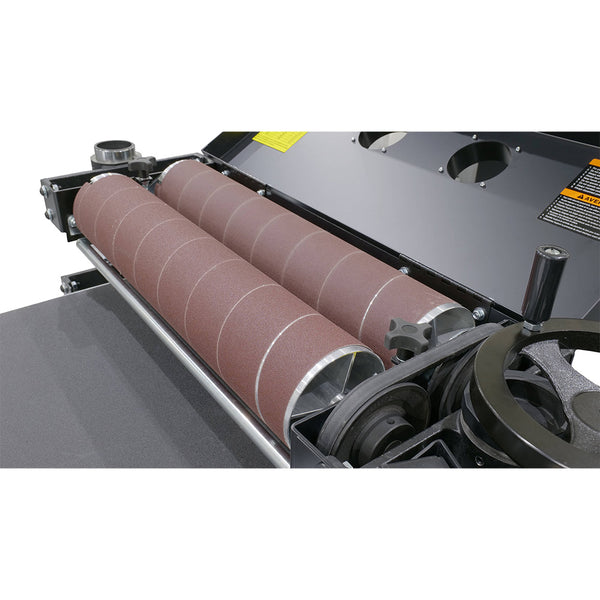

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

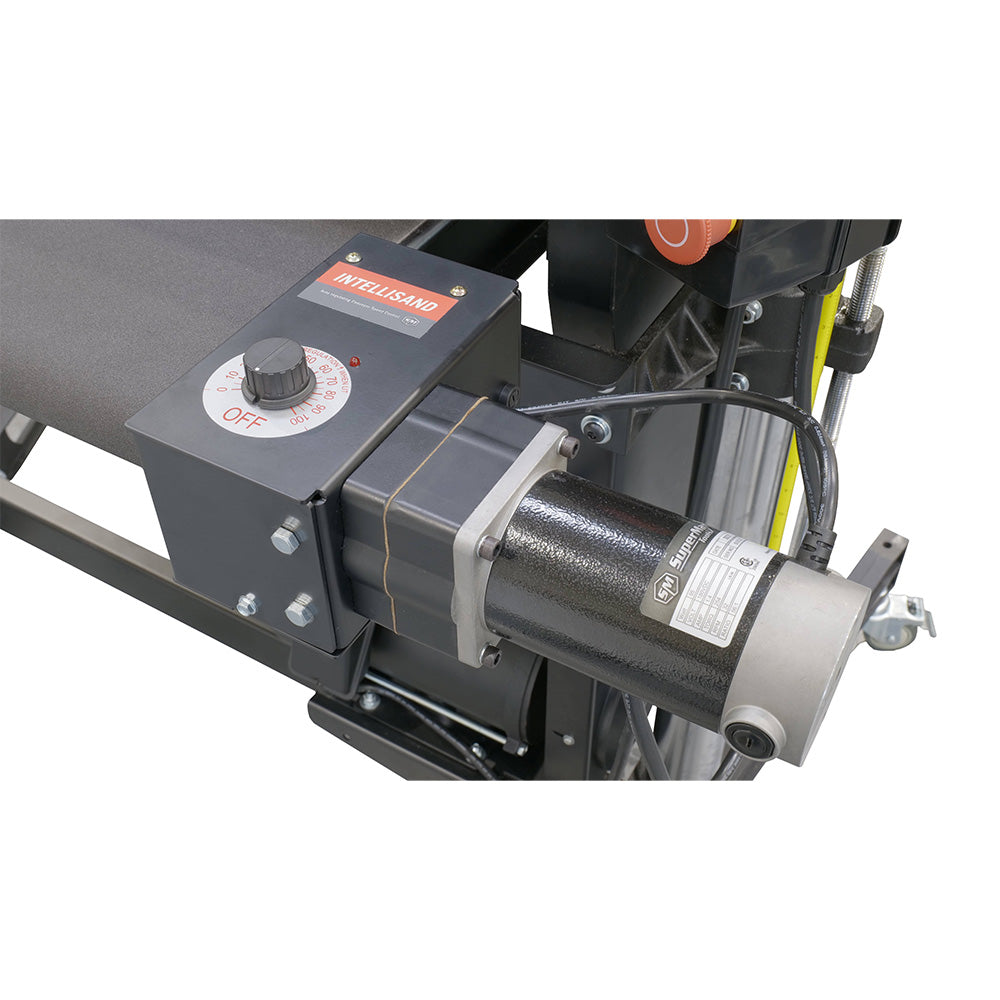

  • INTELLISAND®Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner

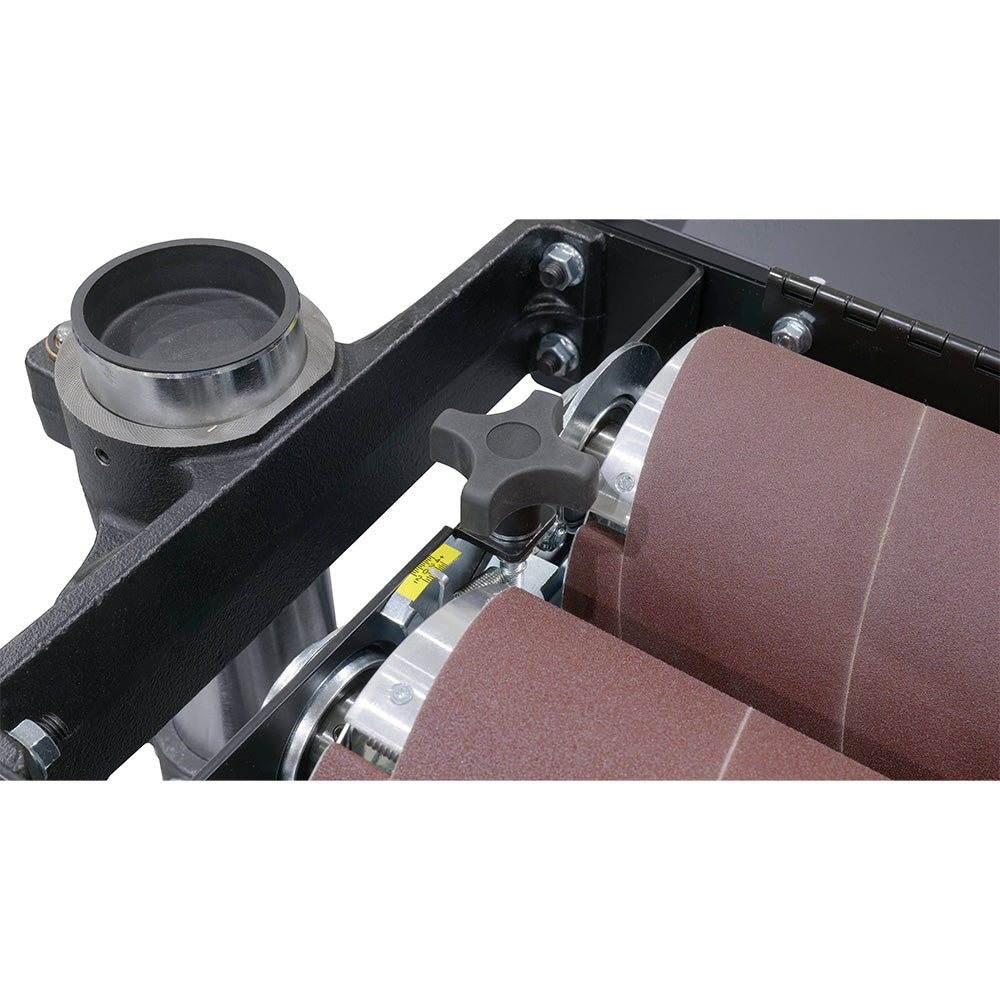

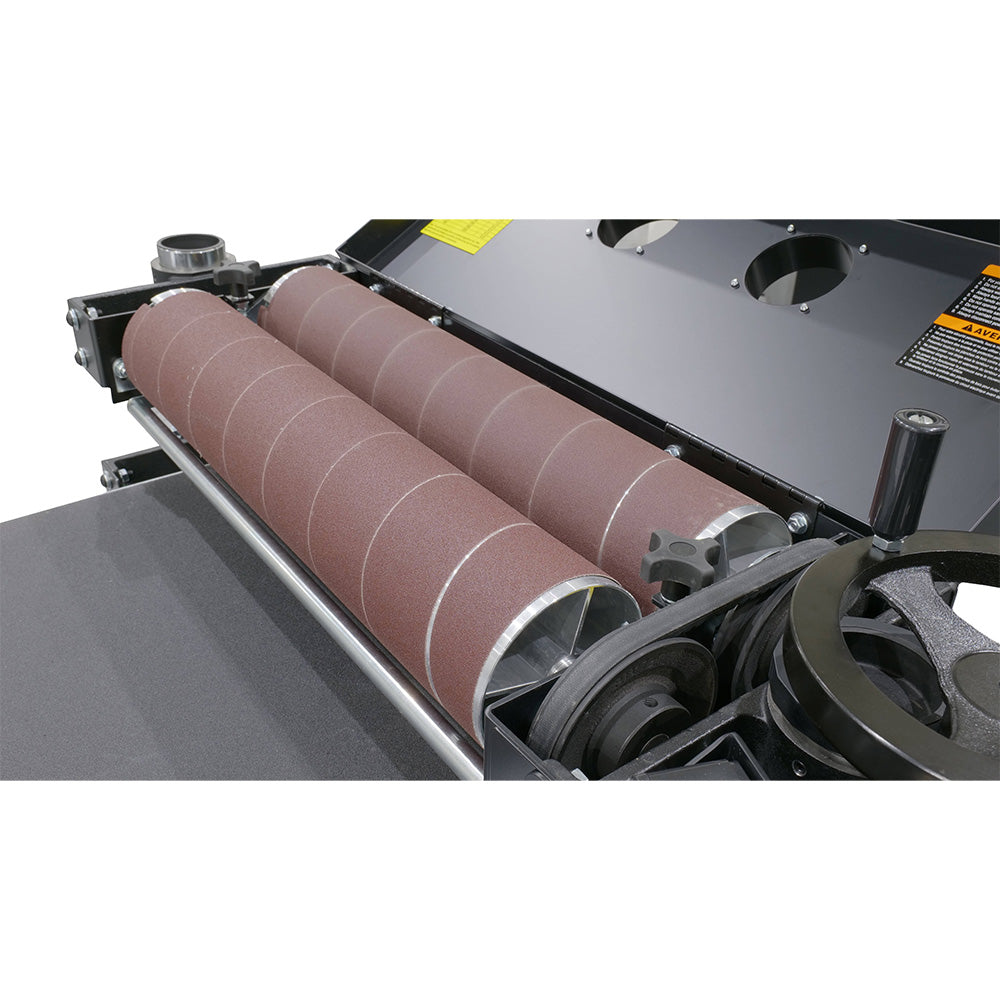

  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe

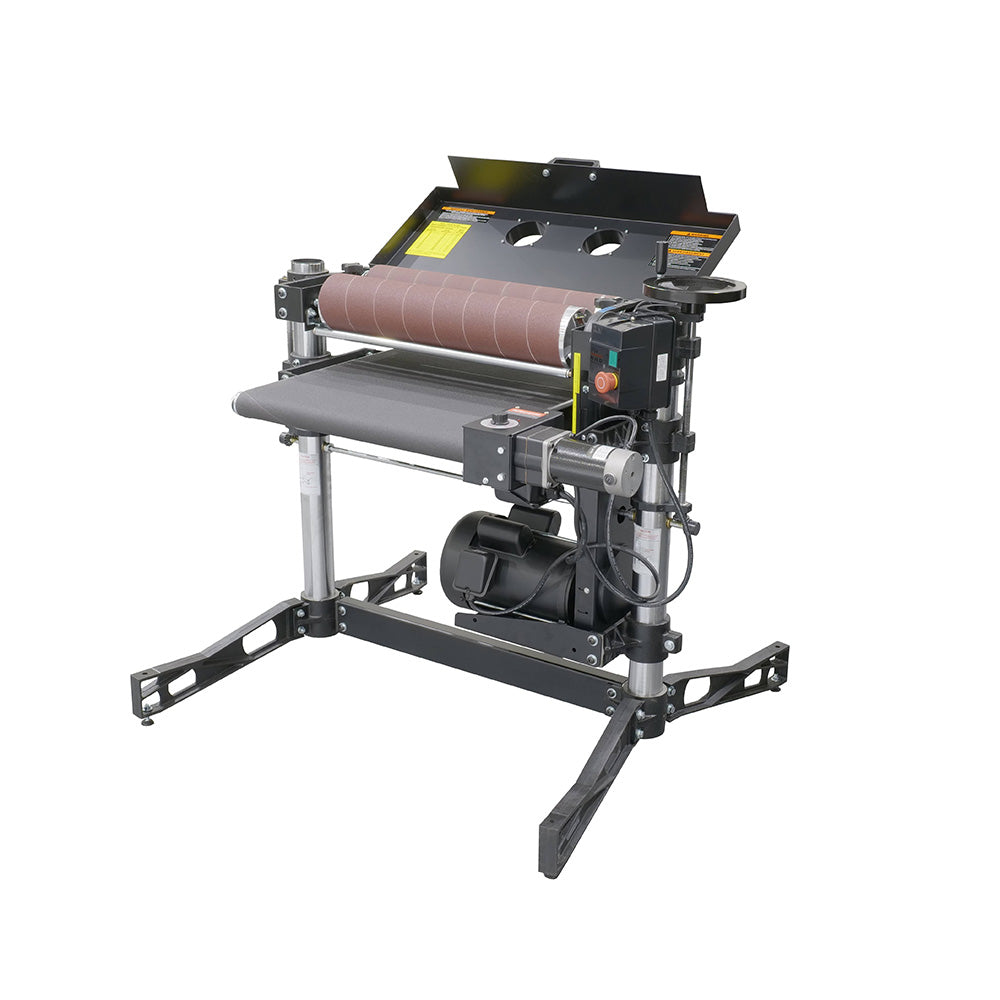

  • Excellent dust extraction as dust cover is formed to shape of drum
  • Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile base allows for stand and machine to be to moved easily

Sanding Max. Width: 25"
Sanding Min. Length: 3-1/2"
Sanding Max. Thickness: 6"
Sanding Min. Thickness: 1/32"
Dimensions (H x W x D): 43″ x 46″ x 31″
Drum (Extruded Aluminum): 5″ x 25″
Drum Speed: 1,740 RPM
Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports
Min CFM: 1,000 Recommended
Ball Bearing (1″): 4 sealed and permanently lubricated
Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
Drive Motor (TEFC): 5hp, 1 Phase
Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service
Shipping Weight: 475 lbs.
Shipping Dimensions (L x W x H): 50″ x 44-1/2″ x 44-1/2″


SKU: SUPMX-913002
