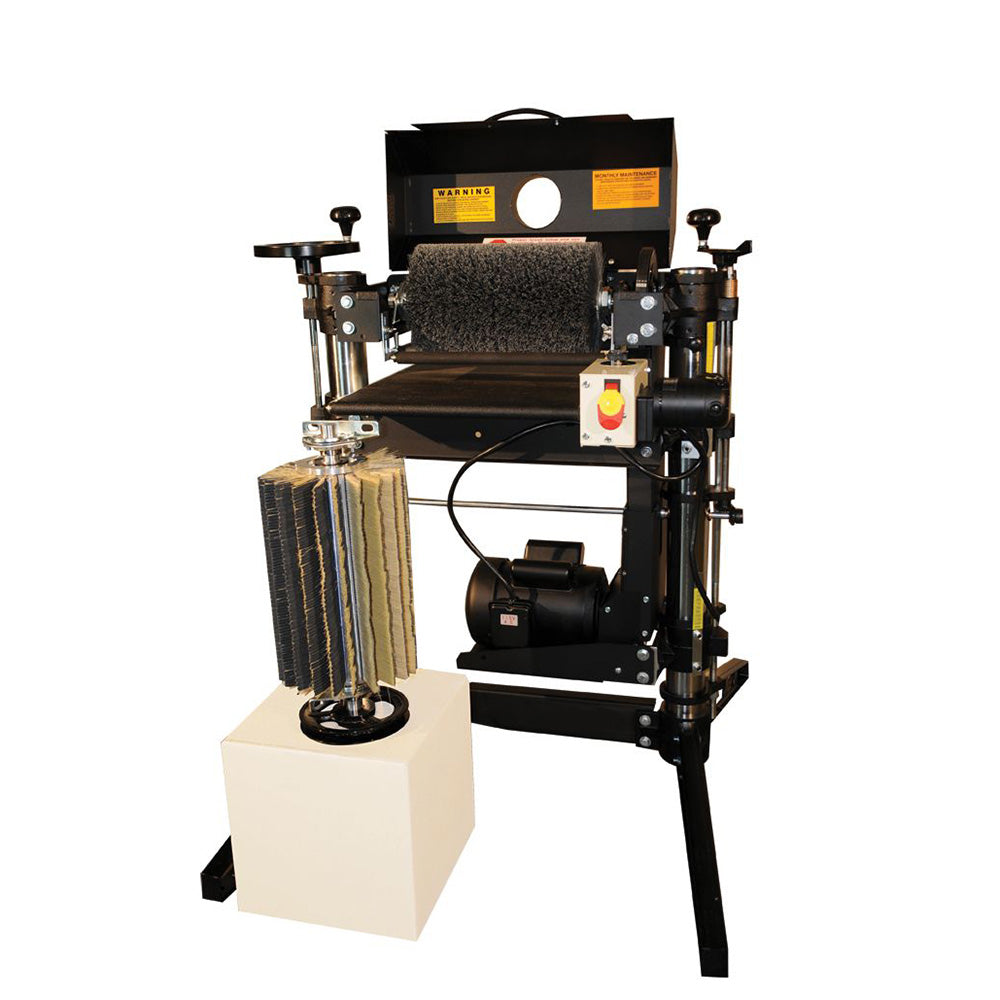

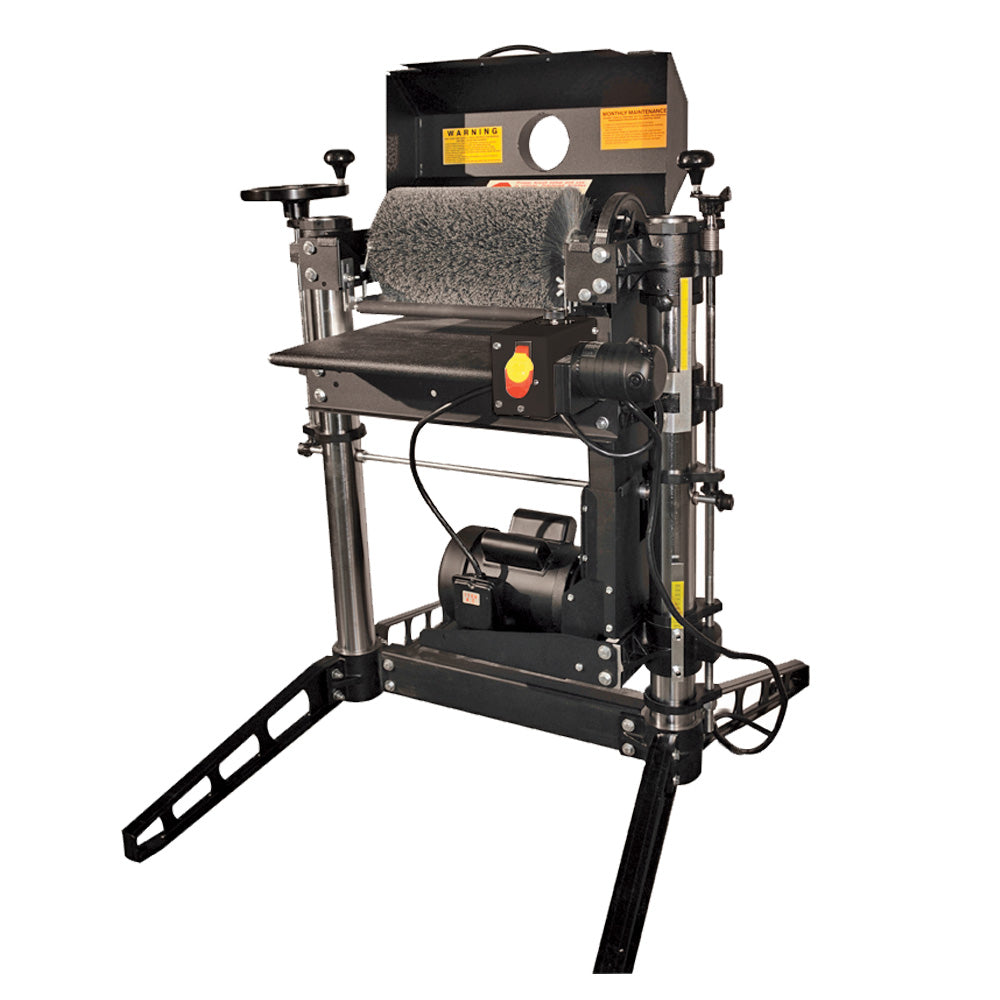

SuperMax 13″ Combination Brush/Drum Sander

$ 4,499

Have questions? Give us a call at 260-637-0054.

Attention: Please call for availability: 260-637-0054. This item may be on backorder. You may still place an order to reserve your place in line. As we receive inventory, orders will be fulfilled in the order they are received.

The 13″ Combination Brush/Drum is the answer to your production bottleneck. Developed with moldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding in between coats of stain or primer. Read about other applications below.

This model features a 1-3/4 HP motor, and can handle stock up to 4″ thick, or as thin as 1/32″. It can also be equipped with an optional sanding drum for surface sanding.

  • Infinitely variable brush speed and conveyor feed rate
  • Optional Drum for surface sanding
  • Quickly change brush heads or abrasive loadings
  • Fully adjustable tension rollers prevent stock slippage
  • Reinforced steel conveyor bed with a poly conveyor belt
  • Precision height adjustment
  • Bristle Contact Gauge included

Sanding Max. Width: 13″
Sanding Min. Length: 9″
Sanding Max. Thickness: 4″, varies with drum/brush style
Sanding Min. Thickness: 1/32″
Dimensions (W x L x H): 42″ x 35″ x 44″
Drum: 5″ x 13″ Extruded Aluminum
Brush: 6-8″ Typical Diameter
Speed: Ranged Variable RPM, 400-1200
Dust Hood: 1-4″ Port, Hinged At Back, 600 CFM Min. Recommended
Conveyor Motor: 43 in.-lb. Torque, Ranged Variable, 0-10 FPM
Drive Motor (TEFC): 1-3/4hp
Power Requirements: 110 Volt, 20 Amp Service
Shipping Weight: 300 lbs. (Approx, Varies Based On How Equipped)
Shipping Dimensions (L x W x H): 34-1/2″ x 45-1/2″ x 46-1/2″

SKU: SUPMX-91067
