SCM Nova SI 4k 10.5' Sliding Table Saw (1PH)
- Price
- $ 14,475
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
In stock as of 7.3.26*
Made in Italy. Ships from the United States.

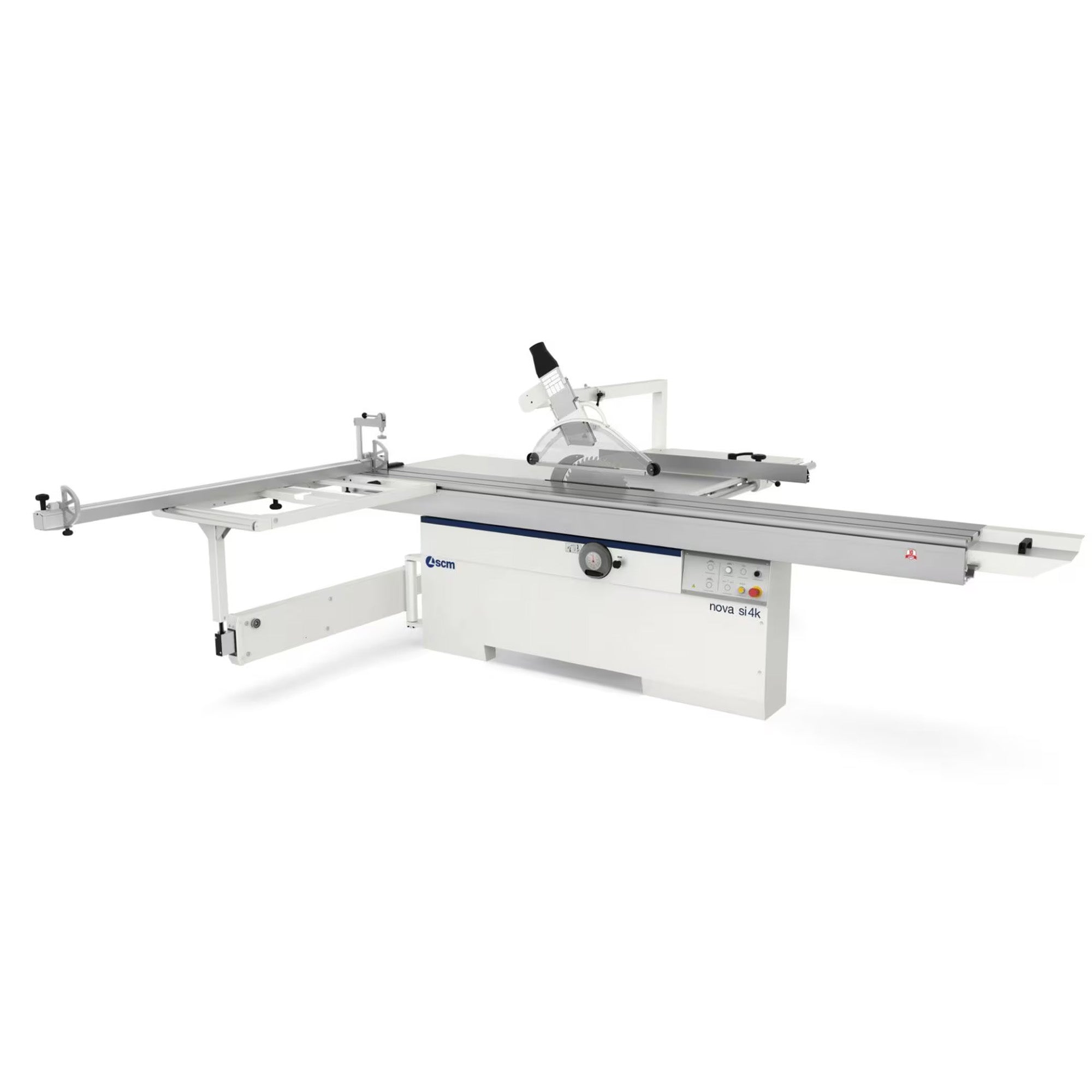

The Nova SI 4k from SCM is a professional sliding table saw designed for small but growing shops. It boasts a 5.5HP motor, 10.5 ft. stroke, and 50" rip capacity for handling a wide variety of materials, from plywood to melamine. Equipped with both scoring and dado capabilities, the Nova SI 4k has everything woodworkers need to maximize their production while saving time and shop space.

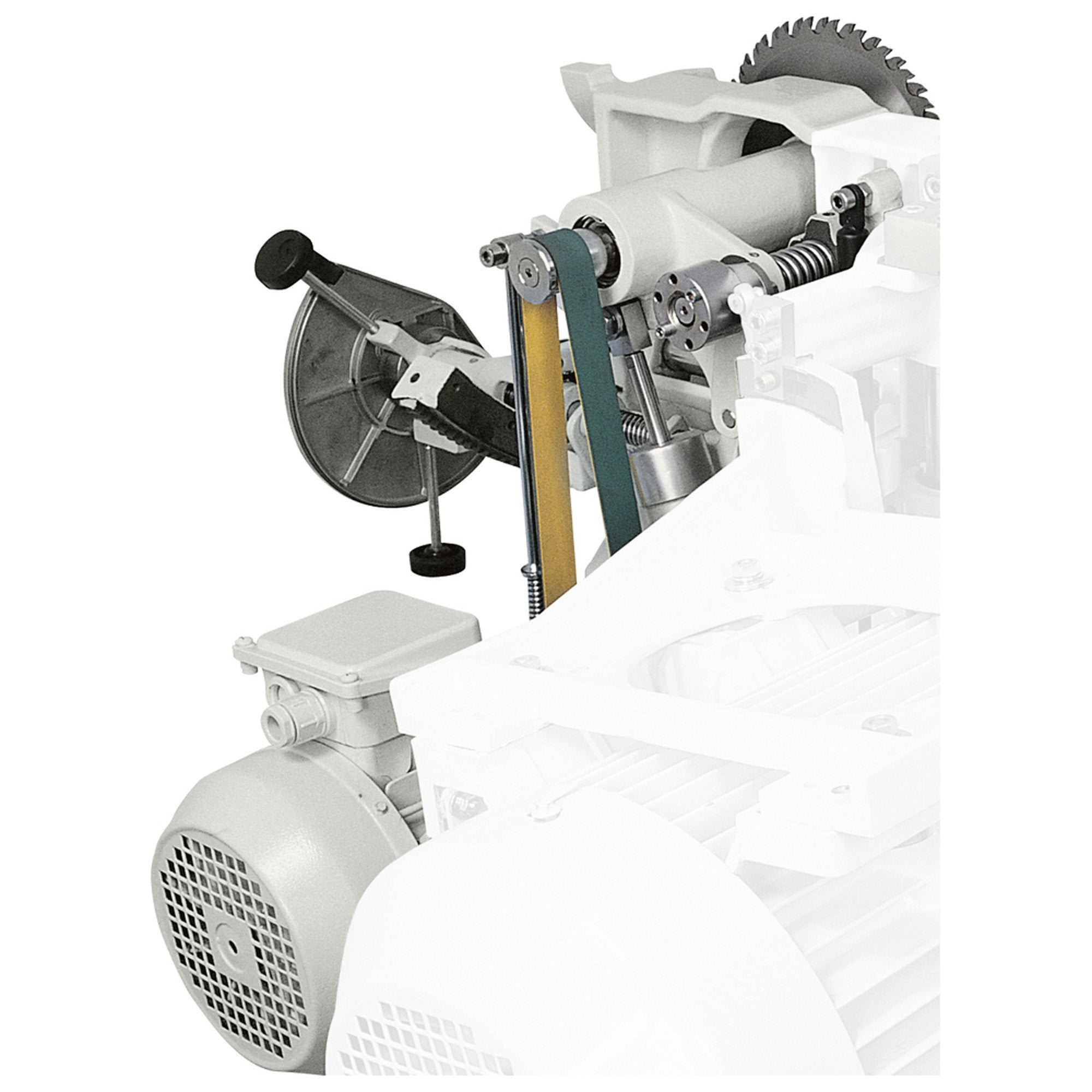

Along with a maximum blade capacity of 15.75” (400mm), the Nova SI 4K also features a scoring unit that accepts a 4.7” (120mm) scoring blade. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tear-out and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels. Adjusting the scoring blade can be done via the handwheel on the front of the machine.
Smooth cuts and exact accuracy are paramount on the Nova SI 4K. To ensure maximum accuracy and effortless movement, the carriage guide rails are secured using a specialized aluminum riveting process instead of adhesive. This eliminates the potential for glue thickness variations, resulting in smoother travel and consistently precise performance. An integrated track system allows the user to lock the table in at any position.
All Nova Saws come with a 10-year warranty on the sliding table.
Utilize SCM's Thundercut App to get the most out of the Nova SI 4K. This app is compatible with iOS and Android operating systems, and allows you to:
- Manage stock material and guides you through the cut
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
- Choose different cutting patterns based on the app's suggestions, such as "minimum waste," "maximum speed," etc.
- Set cuts based on the app's 3D sequencer that guides you with step-by-step instructions
- View machine configuration in 2D or 3D
- Print panel labels
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Features
- Anodized aluminum alloy sliding carriage with hardened steel guides
- Sliding table can be locked at any position along track

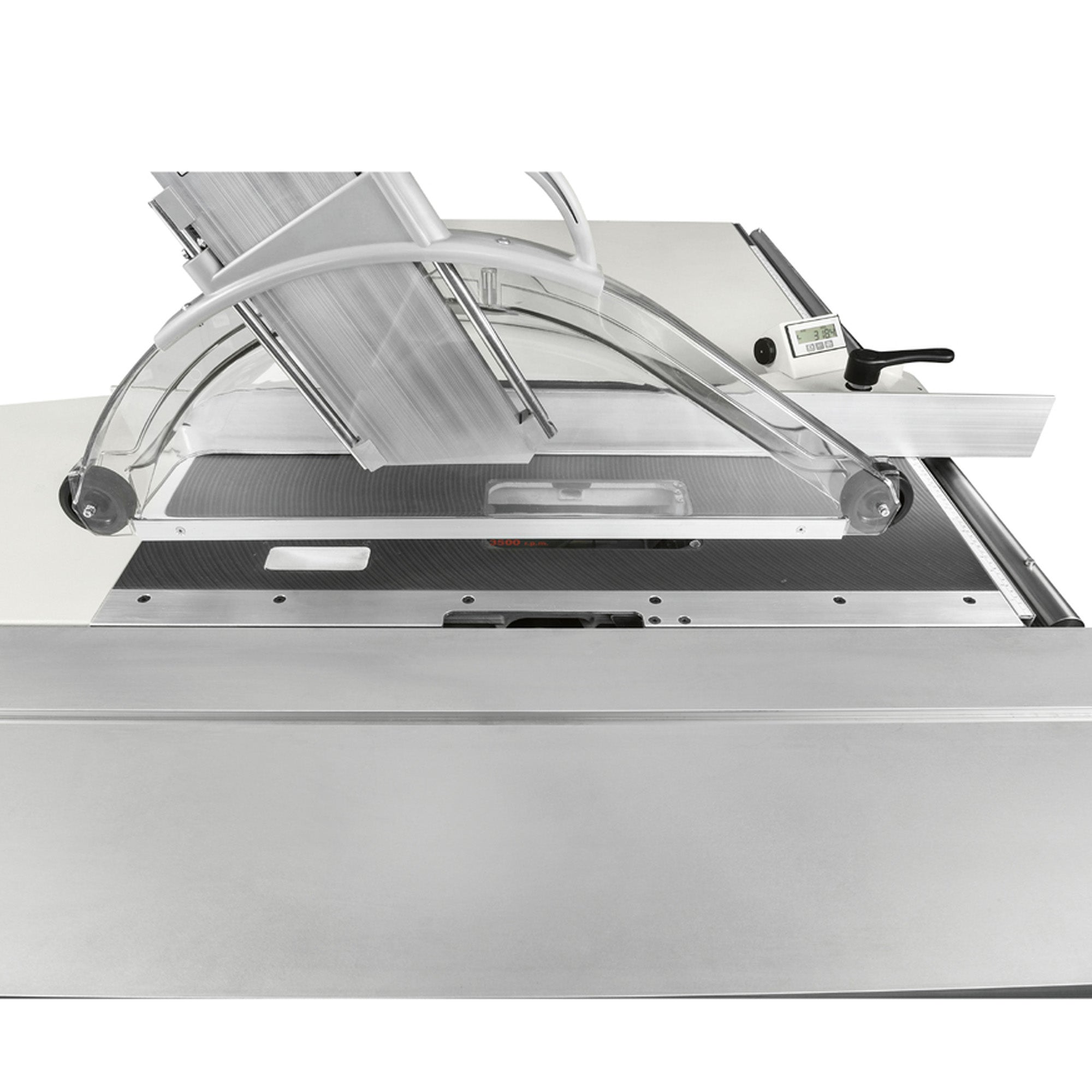

- Overhead blade guard with integrated dust extraction
- Blades lift on dove-tail guideways via handwheel
- Blades tilt on high rigidity sliding side trunnions via handwheel (with readout)
- Independent scoring blade unit

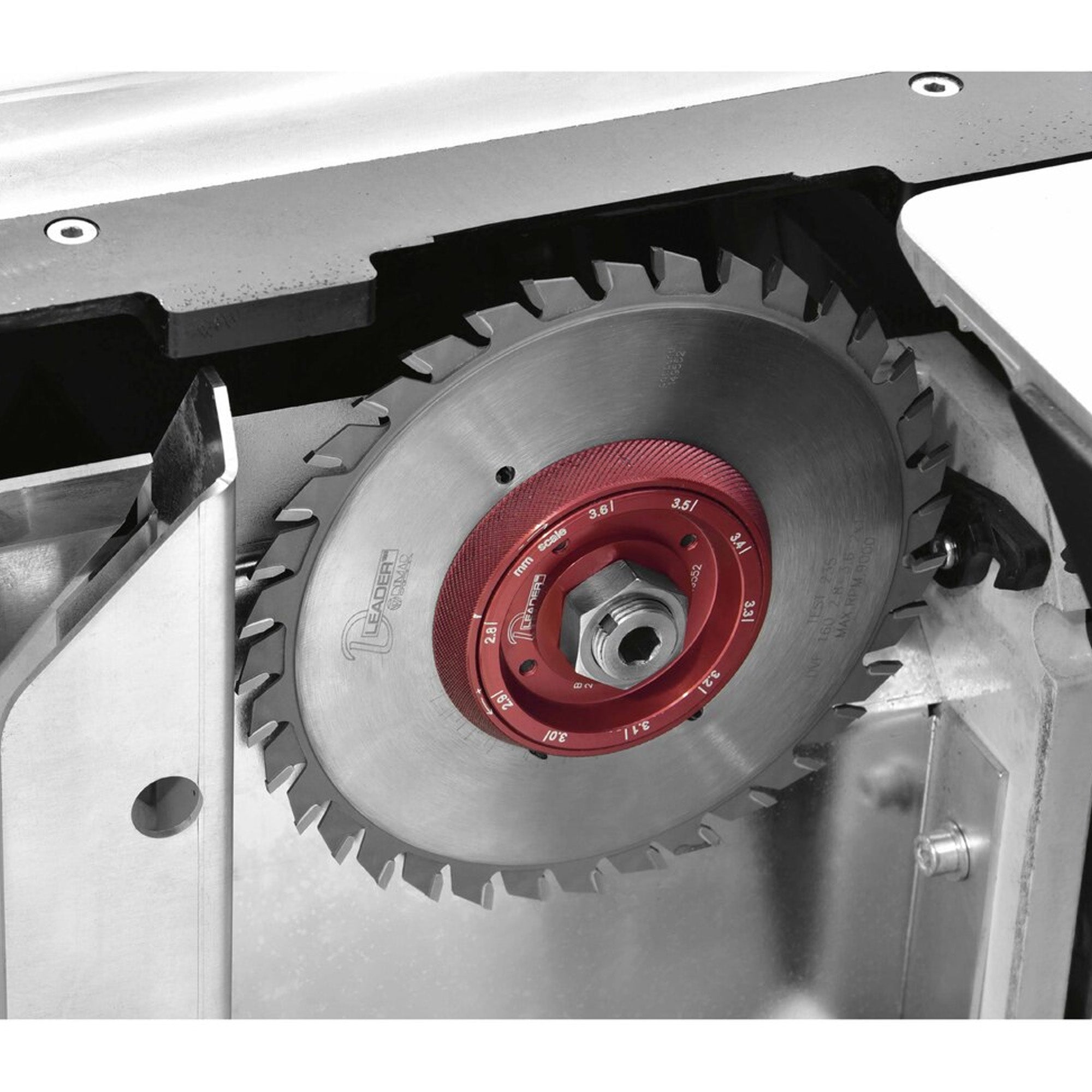

- Dado capability
- Squaring frame with telescopic swinging arm support and idle roller for panel loading/unloading
- Telescopic squaring fence equipped with 2 flip-over stops, metric/imperial rule tilted towards the operator, and tilting ability up to 45°
- Manual rip fence with metric/imperial rule and micrometric adjustment
- SCM Thundercut App optimizer
Specs
Main motor: 5.5HP (4 kW)
Scoring motor: 1HP (0.75 kW)
Max. main blade diameter: 15.75" (400mm)
Main blade arbor: 1.18" (30mm)
Max. scoring blade diameter: 4.7" (120mm)
Scoring blade arbor: .79" (20mm)
Blade tilt: 90° - 46°
Max. cutting height (90°): 5.31" (136mm)
Max. cutting height (45°): 3.81" (97mm)
Max. squaring capacity: 10.5 ft. (3,200mm)
Rip capacity: 50" (1,270mm)
Worktable dimensions: 39.4" x 22" (1,000 x 560mm)
Dust extraction required: 696 CFM
Dust port diameter: 4.69" (120mm)
*Electrical requirements: 220V, 1-phase, 28 A
*Subject to change; must be verified prior to installation
Includes
- Main blade 315mm diameter x 30mm arbor x 48T
- Scoring blade 120mm diameter x 20mm arbor x 20T
- Eccentric clamp
- Trimming shoe
- Push stick and handle
- Toolbox
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Squaring fence with 2 DRO flip-over stops
-LCD readout and magnetic band system guarantee reliable stop positioning. Each stop has a micrometric adjustment wheel.
Extra DRO flip-over stop
Digital readout for parallel fence
-Complete with digital display and magnetic band.
Angular cutting device (miter gauge)
-Equipped with telescopic fence with 2 flip-over stops. Pre-set for rapid angle selection.
Self-adjusting device for angular cutting
-With self-adjustment of the stop position in respect to the blade. Complete with aluminum fence and flip-over stop.
Complementary cutting fence
-Applied to the squaring fence.
Parallel cutting fence for sliding carriage
-Complete with millimetric ruler, extended stop for cutting sizes up to 1,000mm, and millimetric reference system for the first trim cut.
Additional table on sliding table
Panel support extension with roller conveyor
-Positioned on the rip fence feed side. Easy to fold when not in use.
