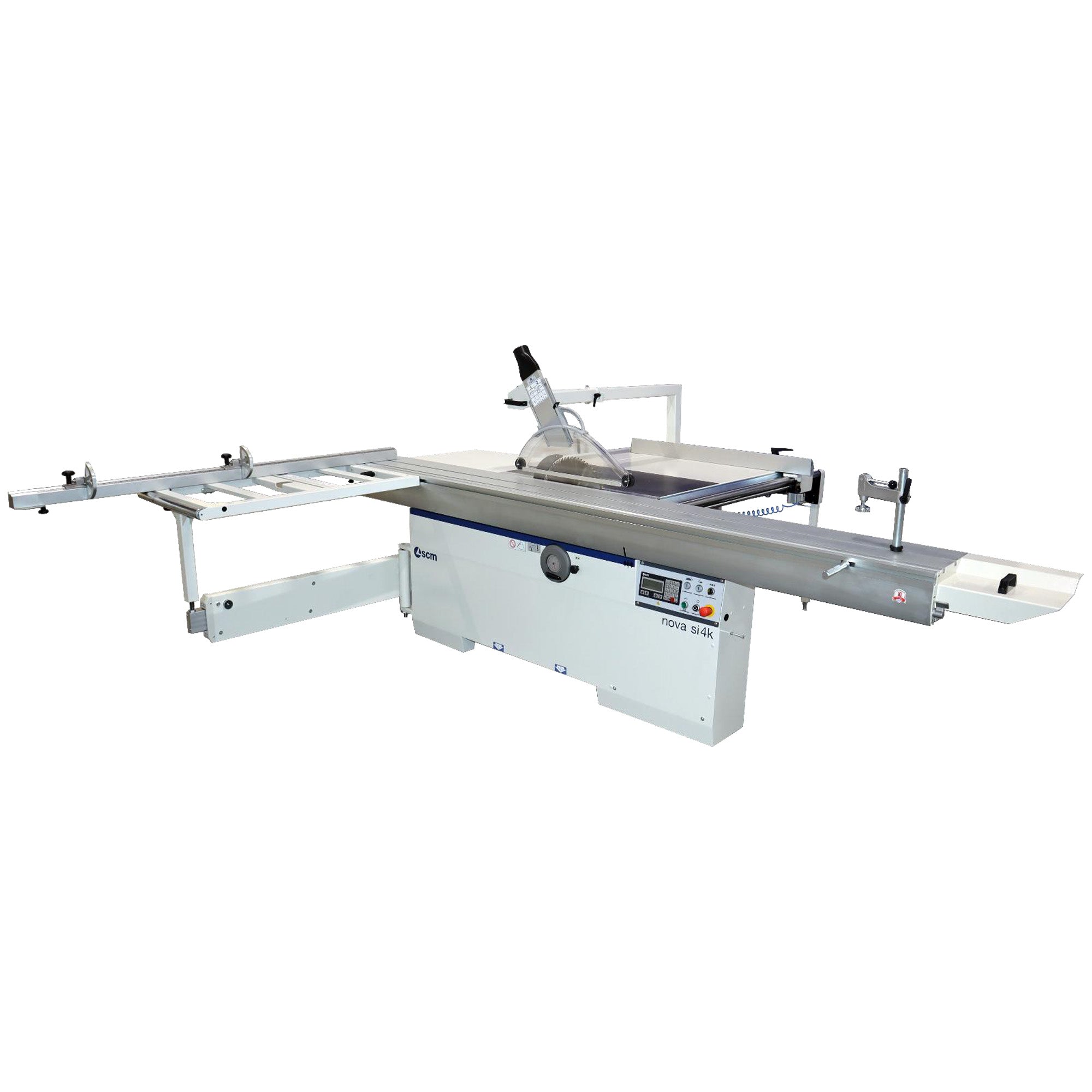

SCM Nova SI 4K R Table Saw w/Ready Control (1PH)
- Price
- $ 17,425
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
In stock as of 6.9.26*
No hidden fees or surcharges.
Made in Italy. Ships from the United States.
The Nova SI 4K R is the best choice for professionals who require a quality sliding table saw with the convenience of electronic controls and adjustments. Equipped with a 5.5HP motor, independent scoring unit, dado capability, and the "Ready" control panel, the Nova SI 4K R is a versatile sliding table saw designed to maximize throughput.
Most notable on the Nova SI 4K R is the "Ready" control panel. This panel gives the operator full powered control over the parallel fence. Move the fence manually by simply holding a button, or program the exact desired position by keying it in on the panel. The operator can also use the Ready control panel to set the angle of both the blade and the fence for a variety of cuts. Includes a memory capacity of up to 99 programs.

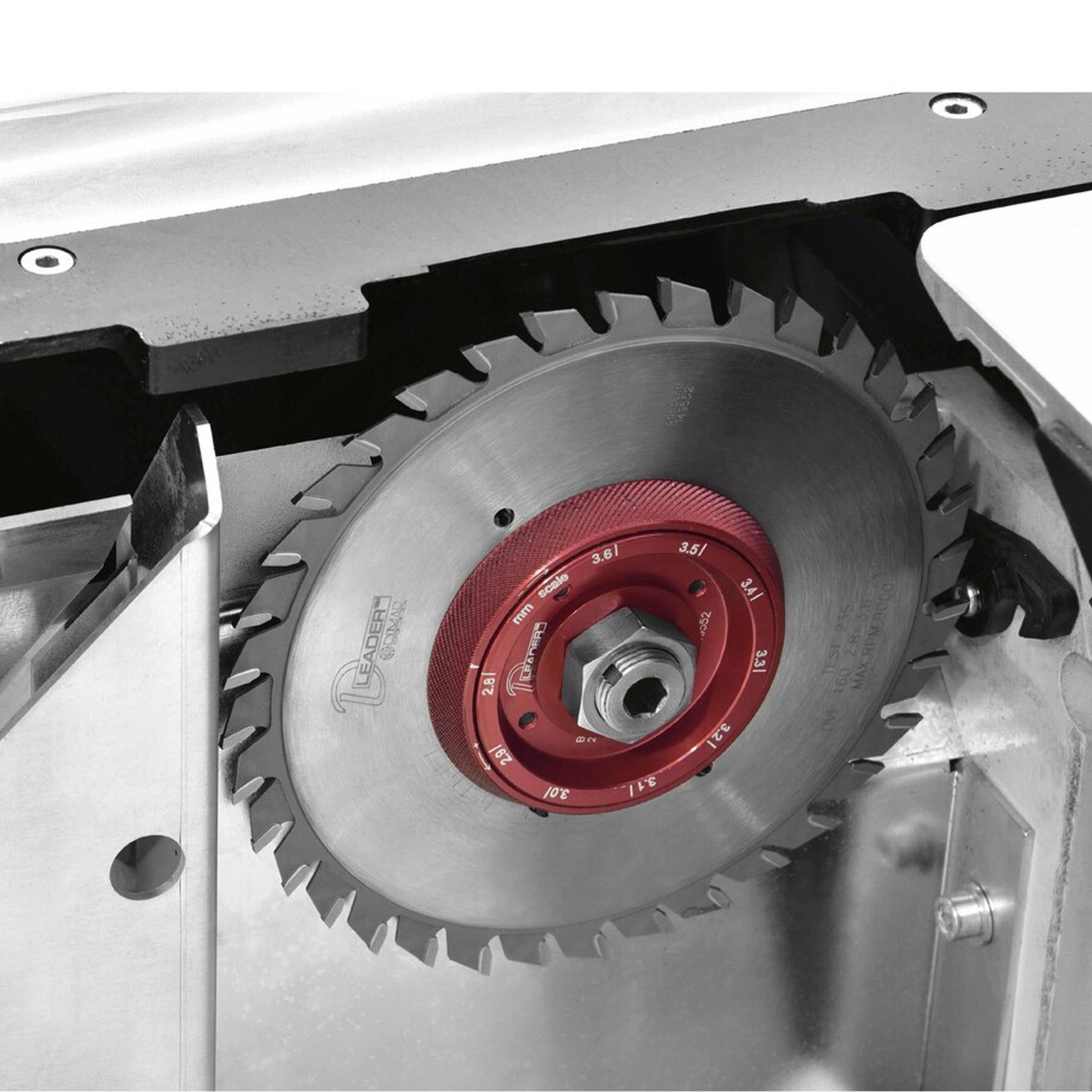

The cast-iron saw unit on the Nova SI 4K R can accommodate a 400mm (15.75") blade with the scoring blade (120mm) mounted, ensuring easy and precise cuts in solid wood materials and veneer panels. This unit runs on dovetail guideways and features high rigidity sliding side trunnions for effortless passes. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tear-out and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels.
Utilize SCM's Thundercut App to get the most out of the Nova SI 4K R. This app is compatible with iOS and Android operating systems, and allows you to:
- Manage stock material and guides you through the cut
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
- Choose different cutting patterns based on app's suggestions, such as "minimum waste," "maximum speed," etc.
- View machine configuration in 2D or 3D
- Print panel labels
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Features
- "Ready" control panel for both automatic and manual fence adjustment
- Cast-iron saw unit with main blade and scoring blade
- Dado capability - 7.81" (200mm) max. diameter, 0.69" (19mm) max. thickness
- Independent scoring unit
- Anodized aluminum alloy carriage sliding on fixed hardened steel guides
- Squaring frame equipped with swinging arm support and idle roller for panel loading/unloading
- Telescopic squaring fence equipped with two flip-over stops and a scale (metric & imperial) tilted towards operator

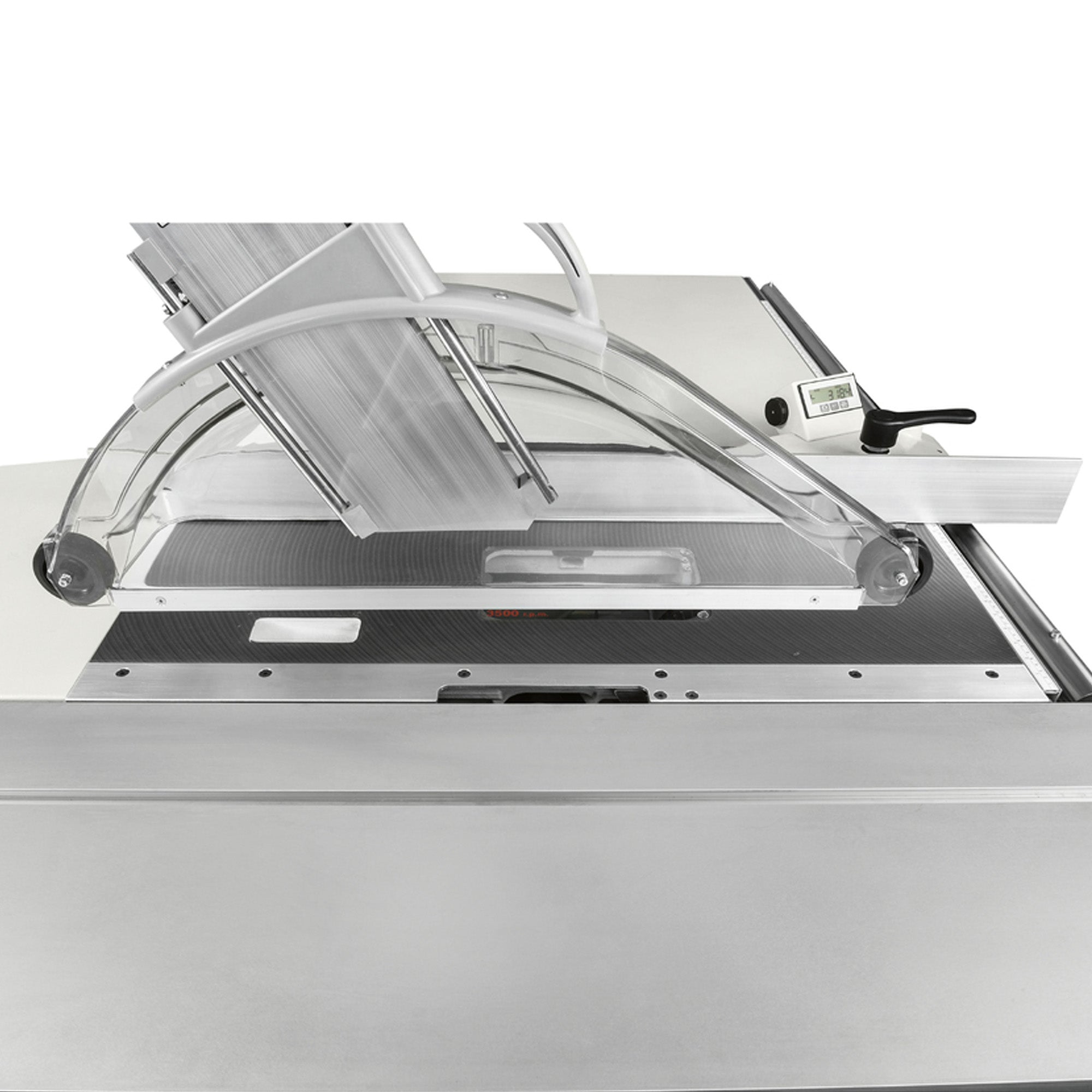

- Overhead blade guard with incorporated dust extraction
- Outfeed table extensions
Specs
Main motor: 5.5HP (4 kW)
Scoring motor: 1HP (0.75 kW)
Cast iron worktable: 39.3" x 22" (1,000 x 560mm)
Max. blade (w/scoring blade installed): 15.75" (400mm)
Blade arbor: 1" (25.4mm)
Scoring blade: 4.72" (120mm)
Scoring blade arbor: 0.79" (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° - 45°
Max. rip capacity: 50" (1,270mm)
Max. cutting height (90°): 5.3" (136mm)
Max. cutting height (45°): 3.8" (97mm)
Dust port: 4.7" (120mm)
Dust collection required: 696 CFM
Approx. shipping dimensions (L x W x H): 132" x 43" x 46"
Approx. shipping weight: 1,409 lbs.
*Electrical requirements: 220V, single-phase, 28 A
*Subject to change; must verify prior to installation
Includes
- Main blade 48T
- Scoring blade 20T
- Eccentric clamp
- Trimming shoe
- Push stick & handle
- Toolbox
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Squaring fence with 2 DRO flip stops
-Each stop features a detecting system and micrometric adjustment, and is equipped with independent electronic digital readout on LCD displays. The stop can be positioned close to the blade with a minimum distance of 350mm.
Extra DRO flip-over stop
Angular cutting device with flip-over stops
-This device is pre-set for rapid angle selection and is equipped with a telescopic fence with two flip-over stops.
Additional table on sliding table
-For supporting large panels.
Digital readout for parallel fence
-Complete with digital display and magnetic band.
Self-adjustment device for angular cutting
Fence for complementary cutting
Fence for parallel cutting on the sliding carriage
-Complete with millimetric ruler, extended stop for cutting sizes up to 1,000mm, and millimetric reference system for the first trim cut.
Panel support extension with roller conveyor
-Positioned on the rip fence feed side. Easy to fold when not in use.
Eccentric clamp
