SCM Nova SI 4K EP Sliding Table Saw w/Ready 3UP Control (3PH)
- Price
- $ 16,625
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
In stock as of 6.23.26*
Factory install included in price
No hidden fees or surcharges.
Made in Italy. Ships from the United States.

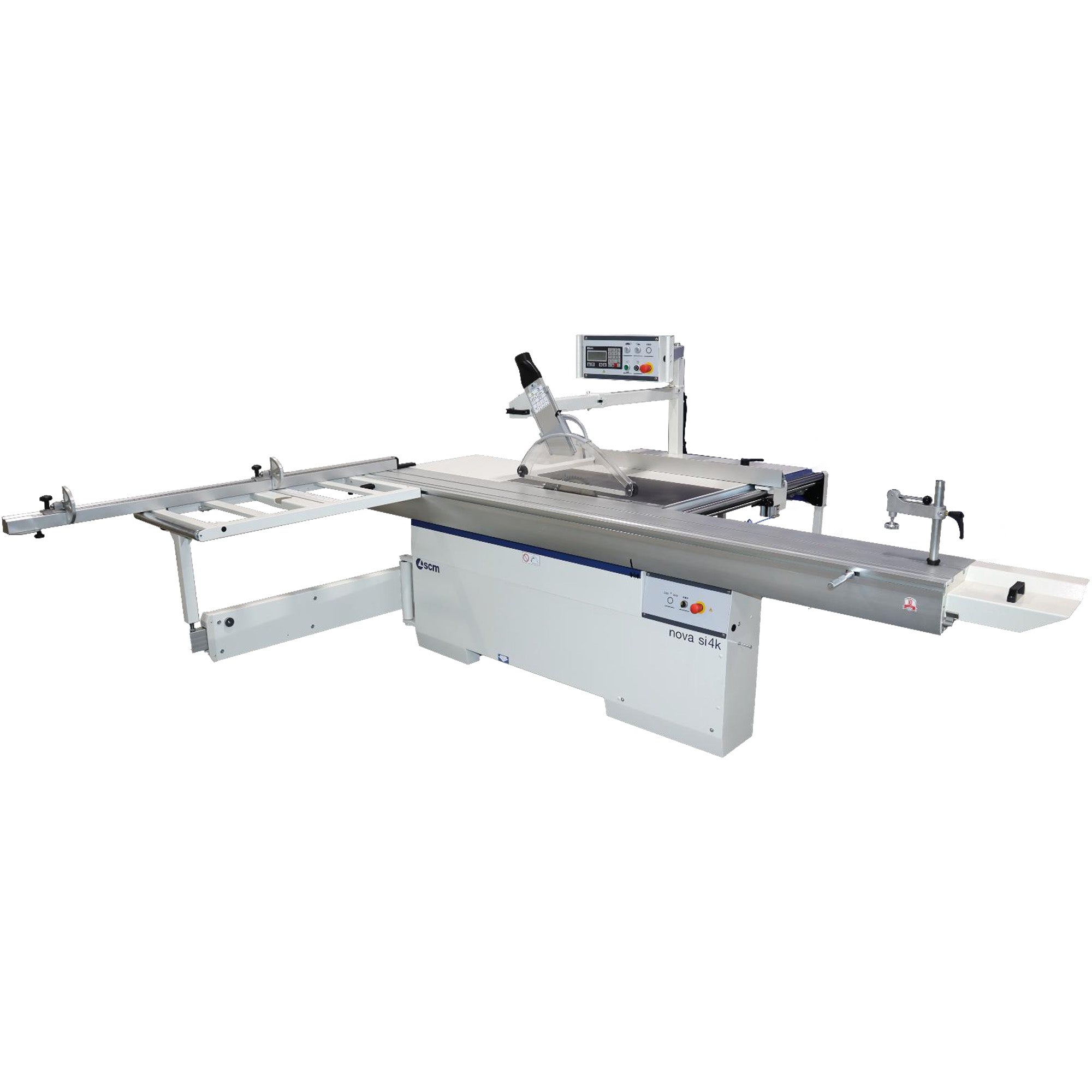

The Nova SI 4K EP Sliding Table Saw delivers on power, precision, versatility, and automation. Powered by an 8HP, 3-phase motor, this saw can handle stock as thick as 5.3" with ease. With a 10.5 ft. squaring stroke, independent scoring motor, dado capability, and the "Ready 3UP" 3-axes control panel, the Nova SI 4K EP is built for high-production shops who value precision as much as ease of use.

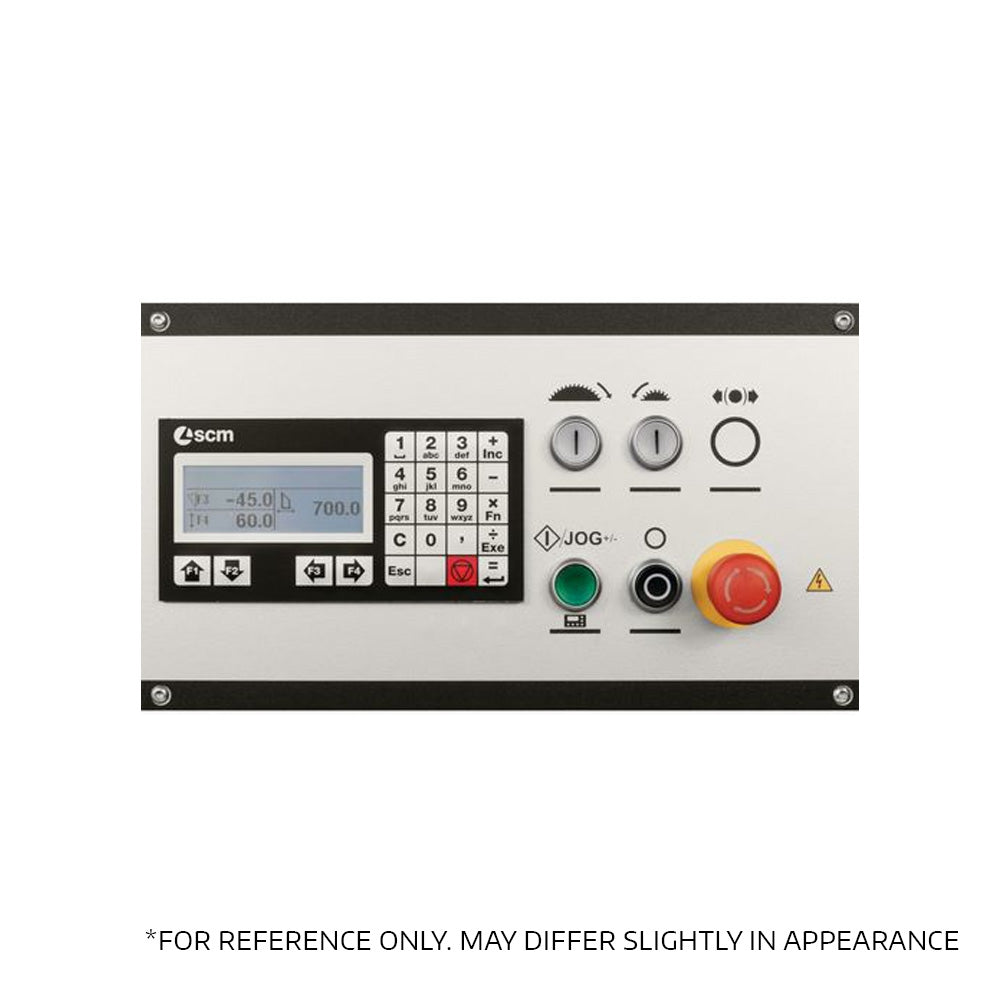

Most notable on the Nova SI 4K EP is the "Ready 3UP" overhead control system. This system enables manual, semi-automatic, and automatic operating modes with a memory capacity to store up to 99 custom programs. The operator uses Ready 3UP to manage motorized movements for blade lifting/tilting and rip fence positioning.

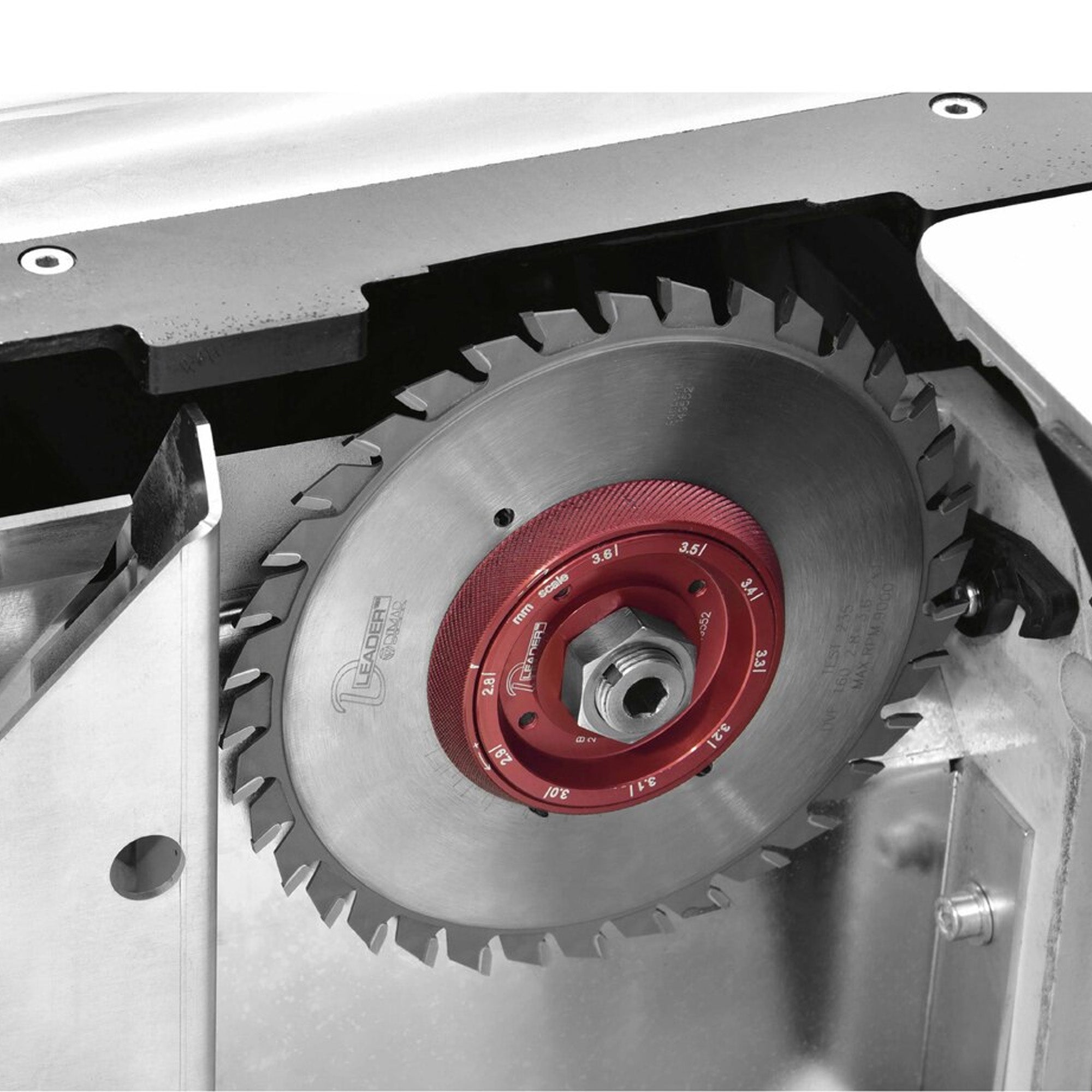

The cast-iron saw unit on the Nova SI 4K EP can accommodate a 400mm (15.75") blade with the scoring blade (120mm) mounted, ensuring easy and precise cuts in solid wood materials and veneer panels. This unit runs on dovetail guideways and features high rigidity sliding side trunnions for effortless passes. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tear-out and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels.
Utilize SCM's Thundercut App to get the most out of the Nova SI 4K EP. This app is compatible with iOS and Android operating systems, and allows you to:
- Manage stock material and guides you through the cut
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
- Choose different cutting patterns based on app's suggestions, such as "minimum waste," "maximum speed," etc.
- View machine configuration in 2D or 3D
- Print panel labels
Features
- "Ready 3UP" control system for managing up to 3 axes automatically
- Cast-iron saw unit with main blade and scoring blade
- Independent scoring unit
- Dado capability - 7.8" (200mm) max. diameter, 0.69" (19mm) max. thickness
- Large sliding carriage with guides secured by riveting
- Squaring frame equipped with swinging arm support and idle roller to facilitate panel loading/unloading
- Telescopic squaring fence equipped with two flip-over stops and a scale (metric & imperial) tilted towards operator
- Outfeed table extensions
Specs
Main motor: 8HP (6 kW)
Scoring motor: 1HP (0.75 kW)
Cast iron worktable: 39.4" x 22" (1,000 x 560mm)
Max. blade (w/scoring blade installed): 15.75" (400mm)
Blade arbor: 1.18" (30mm)
Scoring blade: 4.72" (120mm)
Scoring blade arbor: 0.79" (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° - 45°
Max. rip capacity: 50" (1,270mm)
Max. cutting height (90°): 5.3" (136mm)
Max. cutting height (45°): 3.8" (97mm)
Dust port: 4.7" (120mm)
Dust collection required: 696 CFM
*Electrical requirements: 220V, 3-phase, 21 A
*Subject to change; must verify prior to installation.
Includes
- Main blade 48T
- Scoring blade 20T
- Eccentric clamp
- Trimming shoe
- Push stick & handle
- Toolbox
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Squaring fence with 2 DRO flip stops
-Each stop features a detecting system and micrometric adjustment, and is equipped with independent electronic digital readout on LCD displays. The stop can be positioned close to the blade with a minimum distance of 350mm.
Extra DRO flip-over stop
Angular cutting device with flip-over stops
-This device is pre-set for rapid angle selection and is equipped with a telescopic fence with two flip-over stops.
Additional table on sliding table
-For supporting large panels.
Digital readout for parallel fence
-Complete with digital display and magnetic band.
Self-adjustment device for angular cutting
Fence for complementary cutting
Fence for parallel cutting on the sliding carriage
-Complete with millimetric ruler, extended stop for cutting sizes up to 1,000mm, and millimetric reference system for the first trim cut.
Panel support extension with roller conveyor
-Positioned on the rip fence feed side. Easy to fold when not in use.
Eccentric clamp
