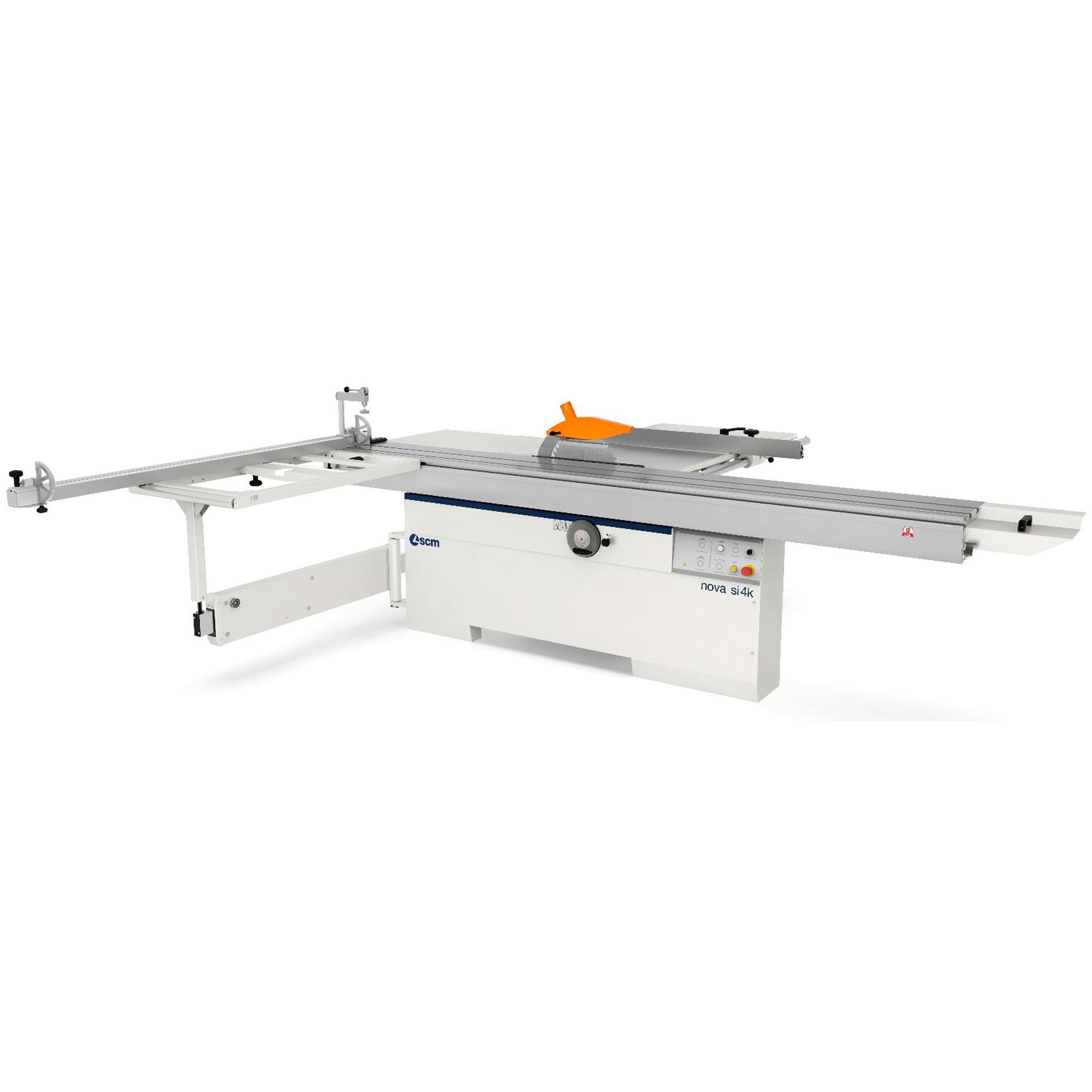

SCM Nova SI 4K-315 Sliding Table Saw - 10.5' Slider
- Price
- $ 13,275
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
Estimated to ship October 2026*
No hidden fees or surcharges.
Made in Italy. Ships from the United States.
The Nova SI 4K-315 Sliding Table Saw is designed to optimize performance and adapt to the needs of professional shops everywhere. This saw’s robust features and components make it ideal for businesses and demanding workshops that process large amounts of sheet goods. Equipped with a 5.5HP motor, independent scoring unit, and 10.5 ft. stroke, the Nova SI 4K-315 is built to handle a wide variety of materials, from plywood to melamine to OSB.

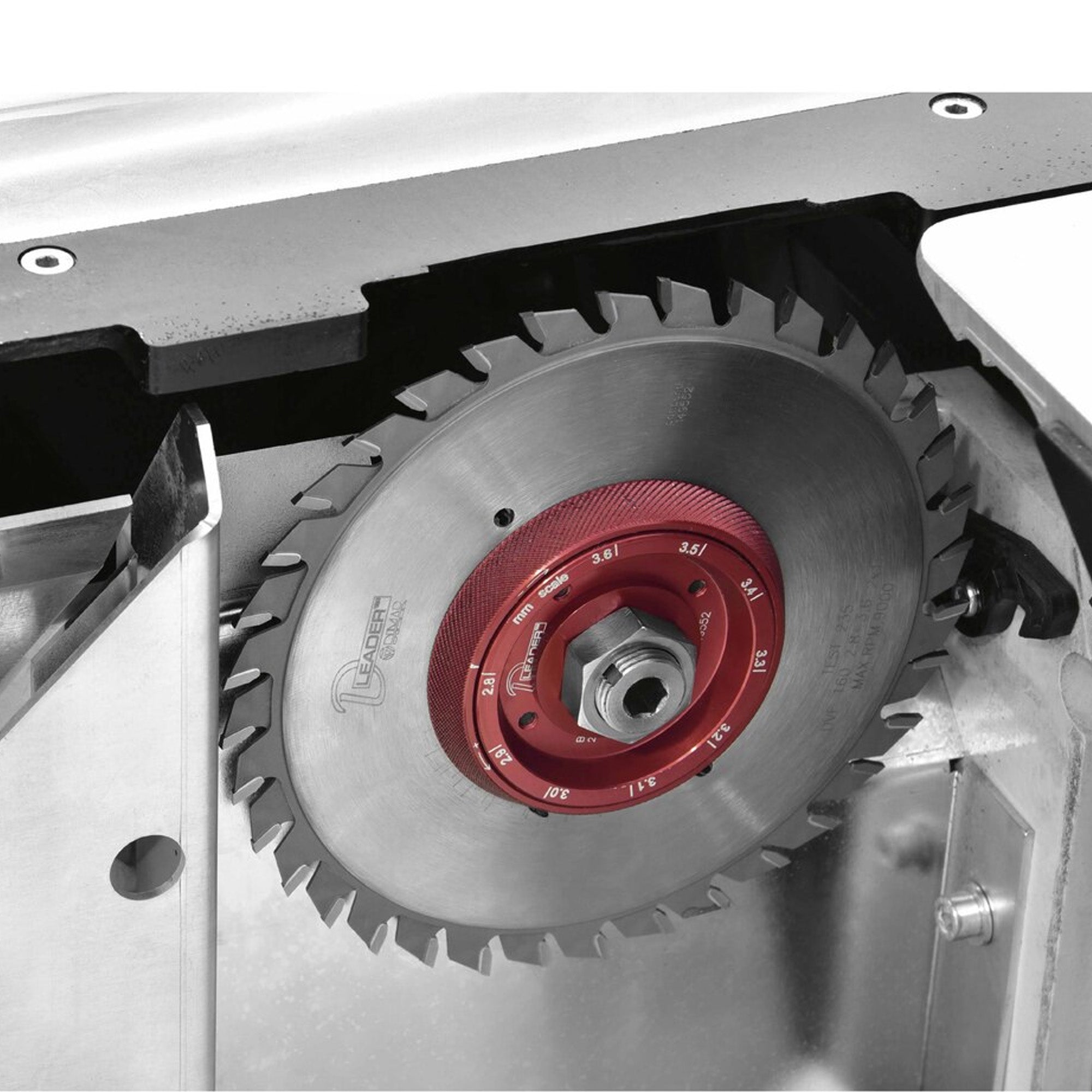

Along with a maximum blade capacity of 12.37” (315mm), the Nova SI 4K-315 also features a scoring unit that accepts a 4.7” (120mm) scoring blade. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tear-out and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels. Adjusting the scoring blade can be done via the handwheel on the front of the machine.

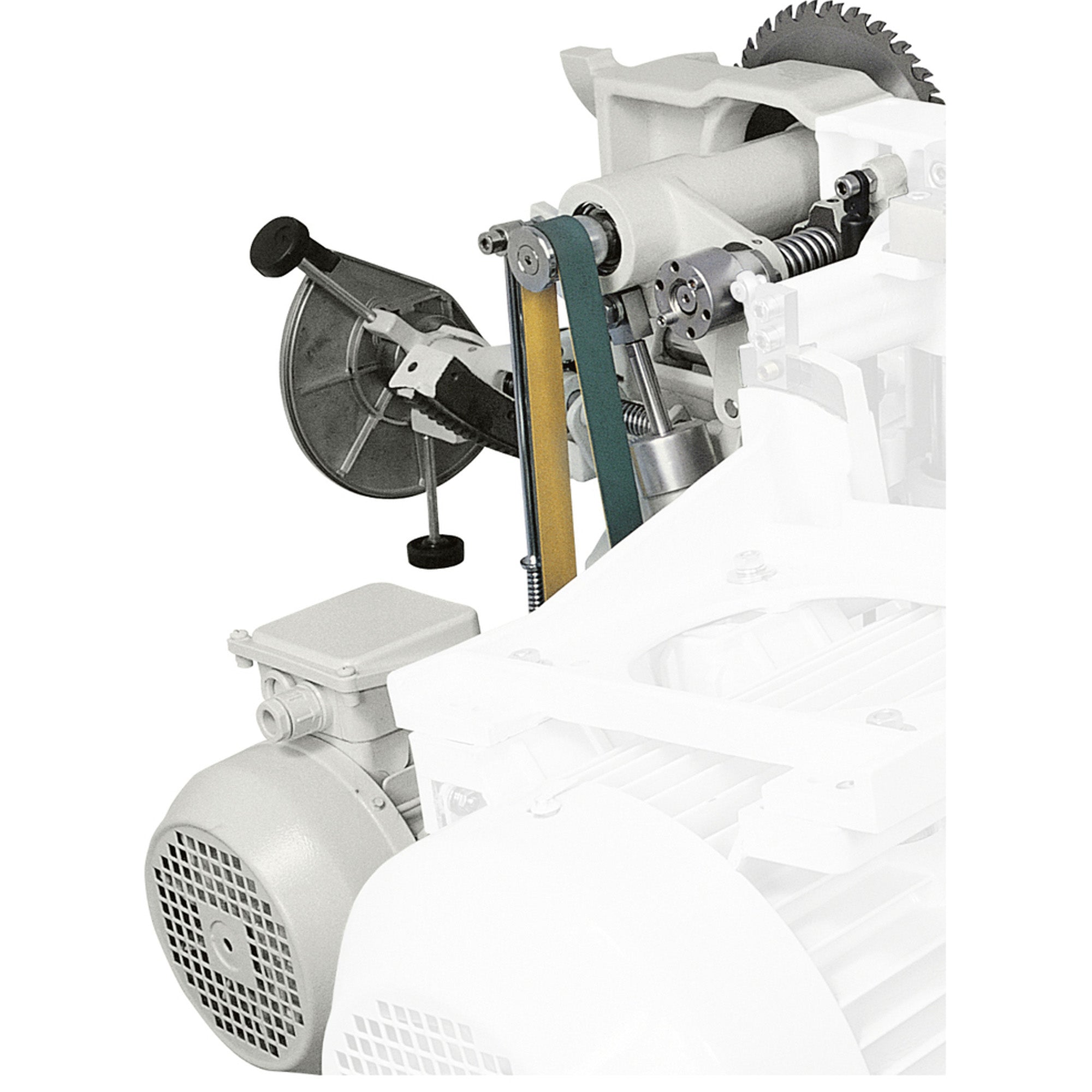

The Nova SI 4K-315 features a massive cast-iron blade unit that contains both the main motor and the scoring blade motor. Setting the height of the blade is done by way of a lifting system that runs on cast-iron dovetail guideways. The sliding carriage on the Nova SI 4K-315 features steel ball bearings that run on tempered and calibrated steel guideways. These guideways are embedded into the aluminum extrusions mechanically for absolute rigidity — no adhesive is used!
Panel loading has never been easier thanks to the 47.2” x 25.59” (1,200 x 650mm) squaring frame that features a steel idle roller to facilitate infeed and outfeed operations. This frame boasts an extendable squaring fence with two reversible flip stops and a metric/imperial ruler tilted towards the operator for convenient measuring.
Utilize SCM's Thundercut App to get the most out of the Nova SI 4K-315. This app is compatible with iOS and Android operating systems, and allows you to:
- Manage stock material and guides you through the cut
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
- Choose different cutting patterns based on the app's suggestions, such as "minimum waste," "maximum speed," etc.
- Set cuts based on the app's 3D sequencer that guides you with step-by-step instructions
- View machine configuration in 2D or 3D
- Print panel labels
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Features
- Anodized aluminum alloy carriage sliding on fixed hardened steel guides
- Overhead saw guard with incorporated dust extraction
- Blades lift on dove-tail guideways via handwheel
- Blades tilt on high rigidity sliding side trunnions via handwheel (with readout)
- Independent scoring unit
- Squaring frame with telescopic swinging arm support and idle roller for panel loading/unloading
- Telescopic squaring fence equipped with 2 flip-over stops, metric/imperial rule tilted towards the operator, and tilting ability up to 45°

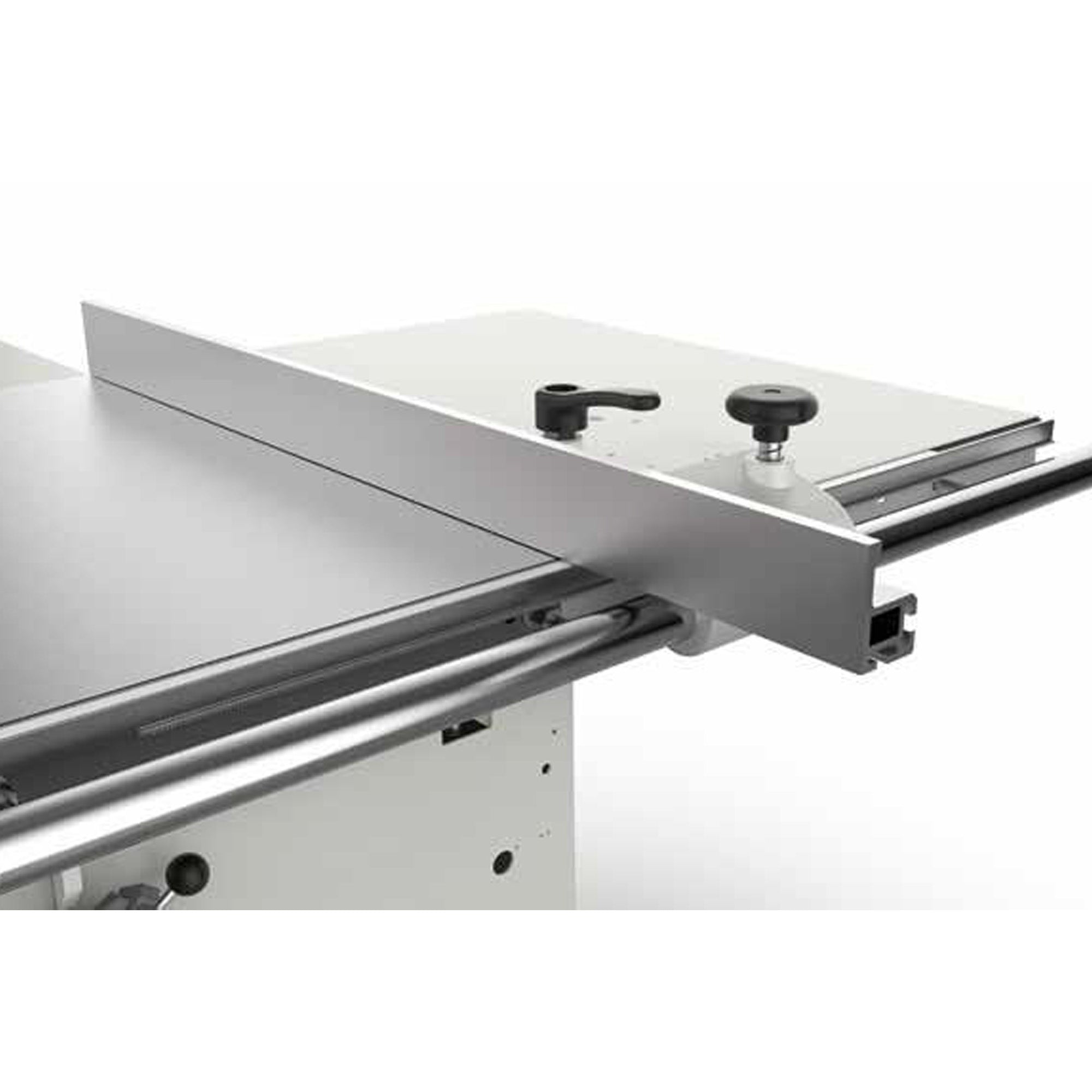

- Manual rip fence with metric/imperial rule and micrometric adjustment
- SCM Thundercut App optimizer
Specs
Squaring stroke: 10.5' (3,200mm)
Worktable dimensions: 37" x 22" (940 x 560mm)
Max. saw blade (w/scoring blade installed): 12.37" (315mm)
Blade arbor: 1.18" (30mm)
Scoring blade diameter: 4.7" (120mm)
Scoring blade arbor: 0.79" (20mm)
Main blade speed: 4,000 RPM
Scoring blade speed: 9,200 RPM
Blade tilting: 90° to 45°
Max. thickness (at 90°): 3.87" (100mm)
Max. thickness (at 45°): 2.75" (71mm)
Rip capacity on parallel fence: 50" (1,270mm)
Dust outlet diameter: 4.69" (120mm)
Min. dust extraction required: 696 CFM
Approx. shipping dimensions (L x W x H): 132" x 43" x 46"
Approx. shipping weight: 1,409 lbs.
Main blade motor: 5.5HP (4 kW)
Scoring blade motor: 1HP (0.75 kW)
*Electrical requirements: 220V, single-phase, 28 A
*Subject to change; must be verified prior to installation.
Includes
- Main blade 48T - 315mm diameter x 30mm arbor
- Scoring blade 20T - 120mm diameter x 20mm arbor
- Eccentric clamp
- Push stick
- Push handle
- Toolbox
- User manual
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Squaring fence with 2 DRO flip-over stops
-LCD readout and magnetic band system guarantee reliable stop positioning. Each stop has a micrometric adjustment wheel.
Extra DRO flip-over stop
Digital readout for parallel fence
-Complete with digital display and magnetic band.
Angular cutting device (miter gauge)
-Equipped with telescopic fence with 2 flip-over stops. Pre-set for rapid angle selection.
Self-adjusting device for angular cutting
-With self-adjustment of the stop position in respect to the blade. Complete with aluminum fence and flip-over stop.
Complementary cutting fence
-Applied to the squaring fence.
Parallel cutting fence for sliding carriage
-Complete with millimetric ruler, extended stop for cutting sizes up to 1,000mm, and millimetric reference system for the first trim cut.
Additional table on sliding table
Panel support extension with roller conveyor
-Positioned on the rip fence feed side. Easy to fold when not in use.
Overhead blade protection
-Complete with 80mm exhaust outlet.
