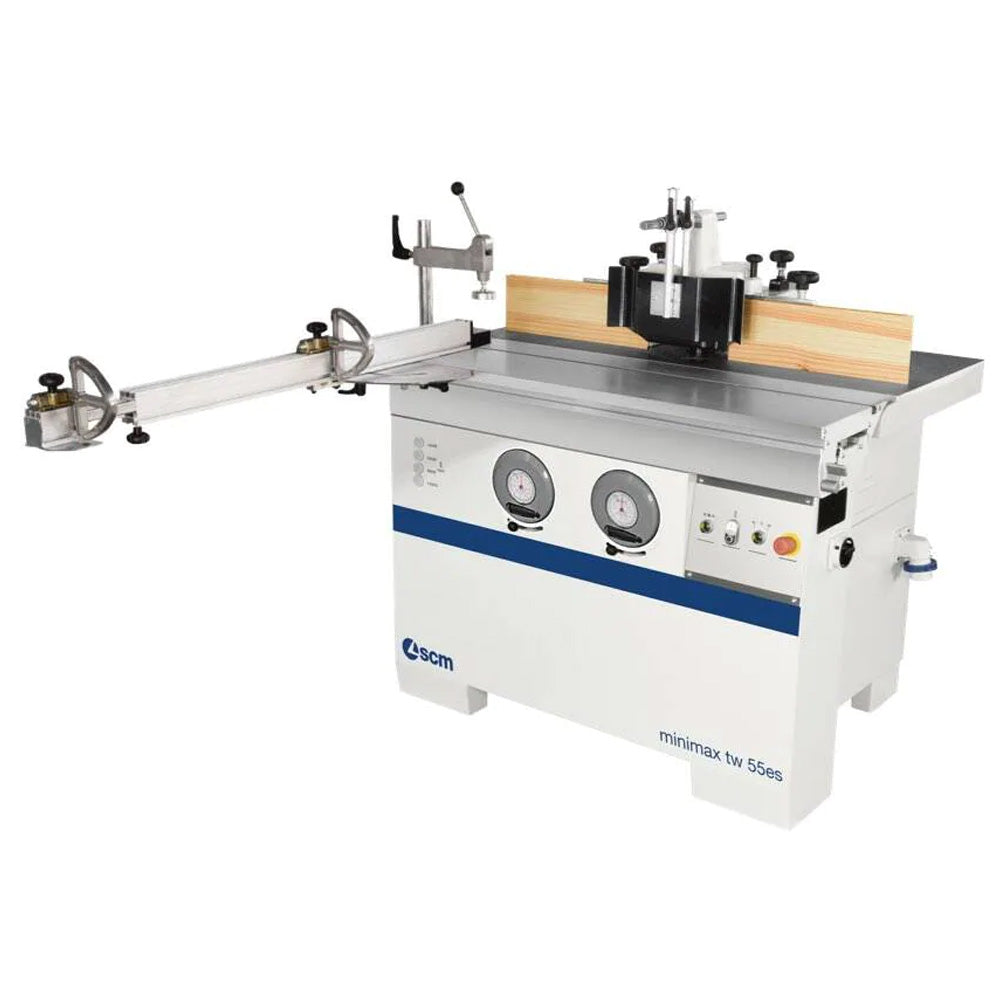

SCM Minimax TW 55es Tilting Spindle Shaper - 8HP, 3PH, 220V
- Price
- $ 12,075
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
Made in Italy. Ships from the United States.
- Freight included in price*
- Estimated to ship March 2026**
Cabinet and custom millwork shops, furniture makers, and door and window manufacturers all utilize shapers to cut, shape, and profile wood edges. The Minimax TW 55es can handle any shaping, routing, or tenoning application you desire. This 4-speed heavy duty machine features a tilting spindle, sliding table on hardened steel guideways, and adjustable fence with micrometric adjustment.
The Minimax TW 55es is the culmination of years of experience in manufacturing quality solid wood products. The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable. A wide sliding table rides on hardened steel guideways. This is the same design SCM incorporates into their high-end sliding table saws. The sliding table greatly increases the shaper’s versatility, and makes tenoning operations as easy as can be.
Tooling capabilities are endless on the TW 55es thanks to the interchangeable, tilting spindle. Users can create angled cuts between 45° and 90° simply with a straight cutter, which also saves costs from needing to purchase expensive, specialized cutters. Custom and crown moldings are therefore a breeze to perform!
The Minimax TW 55es features a fence with reference pins for easy repositioning and numeric readouts for micrometric adjustment. It also comes with a miter gauge with flip-over stops for angled cuts and eccentric clamp. The flip-stops adjust along the fence for repeatable accuracy by creating easy to use reference points, while the eccentric clamp securely holds the workpiece in place.
Also available with a 4.8HP, 1-phase motor.
Optional Installation & Training
When purchased, installation will be performed by an SCM factory-trained service technician or certified dealer technician. Installation is defined as assembling the machine to its "ready-to-run" state; it does not include floor/masonry work or running electrical, pneumatic, or dust extraction services. Training will be conducted on site by the technician after installation is completed.
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Features
- Spindle fence with reference pins for easy repositioning and numeric readouts for micrometric adjustment
- Tenoning table and protection hood (275mm max. tool diameter)
- Tilting spindle equipped with fixed handwheel w/gravitational numerical readout
- Interchangeable 1.25" spindle with reverse rotation
- Extruded anodized aluminum sliding table on high precision, hardened steel guideways
- Electric pre-setting for optional feeder
- Angular cutting device with two flip-over stops and eccentric clamp
Specs
Spindle tilting range: 45° to 90°
Capacity, under the nut, w/interchangeable spindle: 3.3" (85mm)
Max. useful spindle length: 3.5" (90 mm)
Max. useful spindle length (3/4" spindle): 2.75" (70mm)
Max. tool diameter profiling: 8.25" (210mm)
Max. tool diameter lowered under table at 90°: 9.44" (240mm)
Sliding table dimensions: 47.2" x 14.2" (1,200 x 360 mm)
Spindle moulder speeds: 4,000/7,000/9,000/12,000 RPM
Exhaust outlets dia.: 4.75" (120 mm)
Min. required dust collection: 600 CFM
Gross weight: 1,065 lbs.
Motor: 8HP
*Electrical requirements: 220V, 3-phase, 28 Amps
*Subject to change. Must be verified prior to installation.
Includes
- (1) Spindle, 1-1/4"
- Shaper push handle
- Spare belts
- Toolbox
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Additional eccentric clamp
Tenoning table and protection hood
-275mm max. tool diameter with electrical limitation at 4,000 RPM. Available only with 1-1/4" spindle.
Spindle shaper protection
-For spindle diameters 30mm, 35mm, 3/4", 1", and 1-1/4"
Spindle shaper protection
-For spindle diameters 40mm and 50mm
Anodized aluminum tables for spindle shaper fence
Spare spindle
-Available in diameters of 30mm, 35mm, 40mm, 50mm, 3/4", 1", and 1-1/4"
Spare spindle (125mm length)
-Available in diameters of 30mm, 35mm, 40mm, 50mm, and 1-1/4" (*Note: It is not possible to lower this spindle below the worktable. Therefore, it is necessary to remove it in order to clear the table.)
Spare spindle for router bits
-Complete with a 1/2" clamp.
Support frame (1,200 x 650mm)
-Telescopic fence with 2 flip-over stops, eccentric clamp, and swinging arm support.
Swing away support for feeder
-Note: No electric pre-setting for feeder.
Feed 48 Power Feeder
-220V, 3-phase, 4 rollers.
