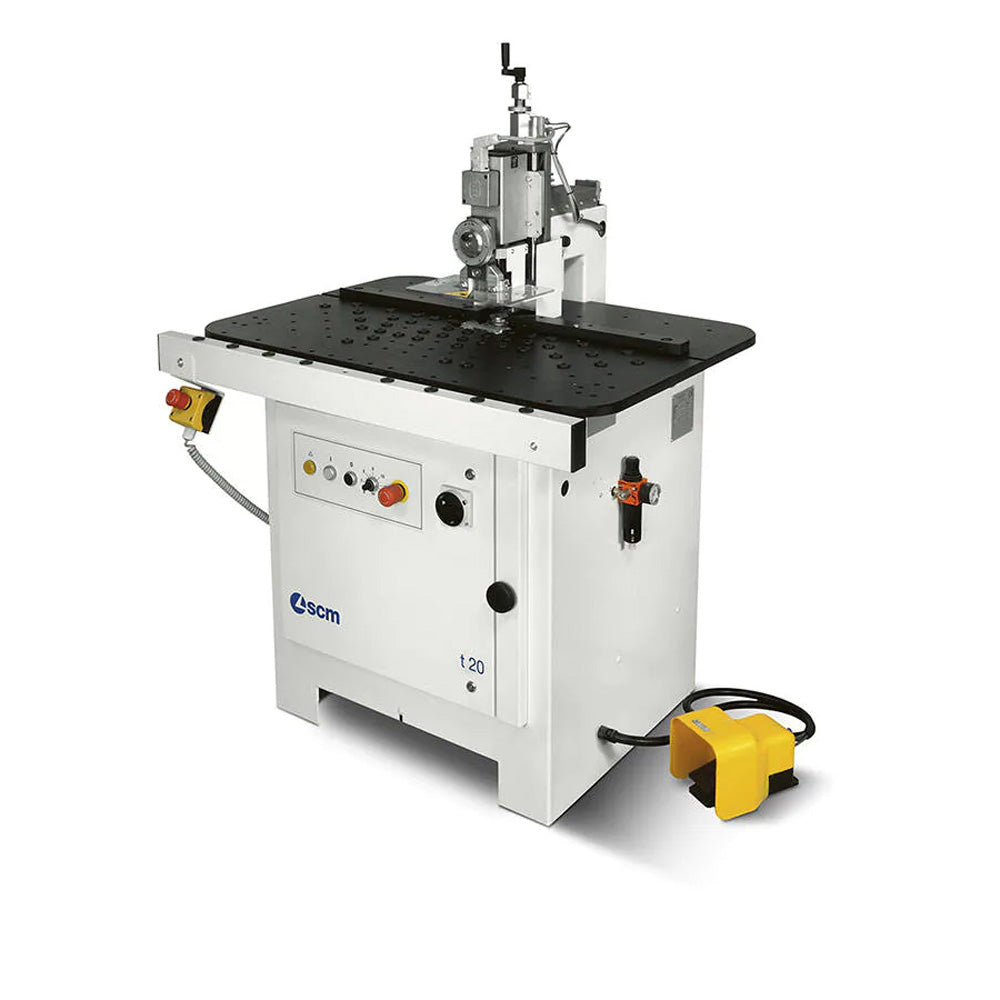

SCM Minimax T 20 Contour Trimmer

Price
$ 10,165

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • In stock as of 1.30.24

The Minimax T 20 is simply intelligent and versatile. This machine allows you to trim and cut any type of panel. Designed with exclusive solutions, it also allows for a quick setup.

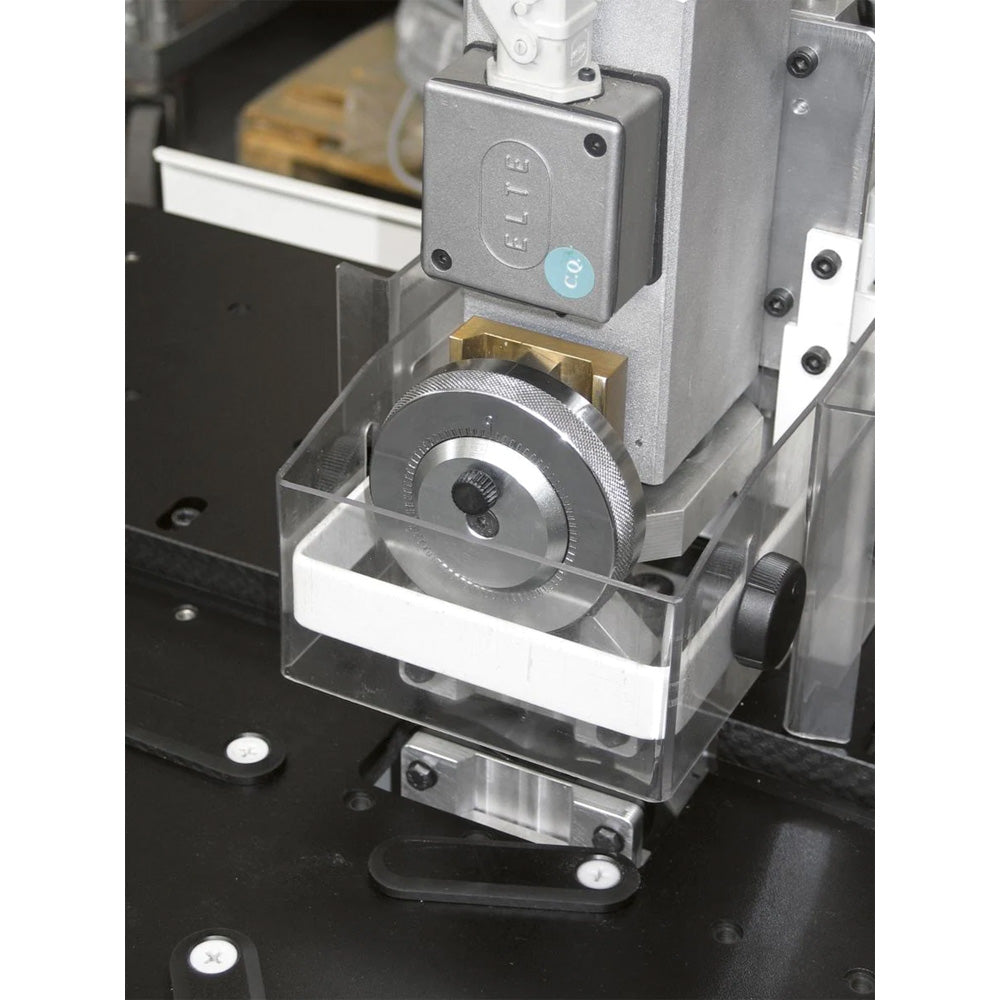

Trimming adjustment can be carried out in few seconds and without errors by means of the SCM exclusive device. This provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool.

The diamond multifunction tools, supplied as standard, provide a high quality finish and easy setup as well as a very long working life. No adjustments, only copying device substitution with and rapid and precise setup during machine changeover with the interchangeable horizontal copying device coupled with the multifunctional tools.

Front interchangeable rotating copying devices kit with hardened, ground chromed contact surfaces. Five different copiers are supplied as standard for an easy and rapid machine set up.

Features
  • High rigidity and stability steel monoblock base
  • Scratch phenolic multilayer work table w/ modular holes w/ adjustable and rotating supports (no. 20 standard supports)
  • (2) 0.55 kW motors with support carriages running on ground guides
  • Manual device for moving the two motors apart vertically in order to facilitate the insertion of curved panels

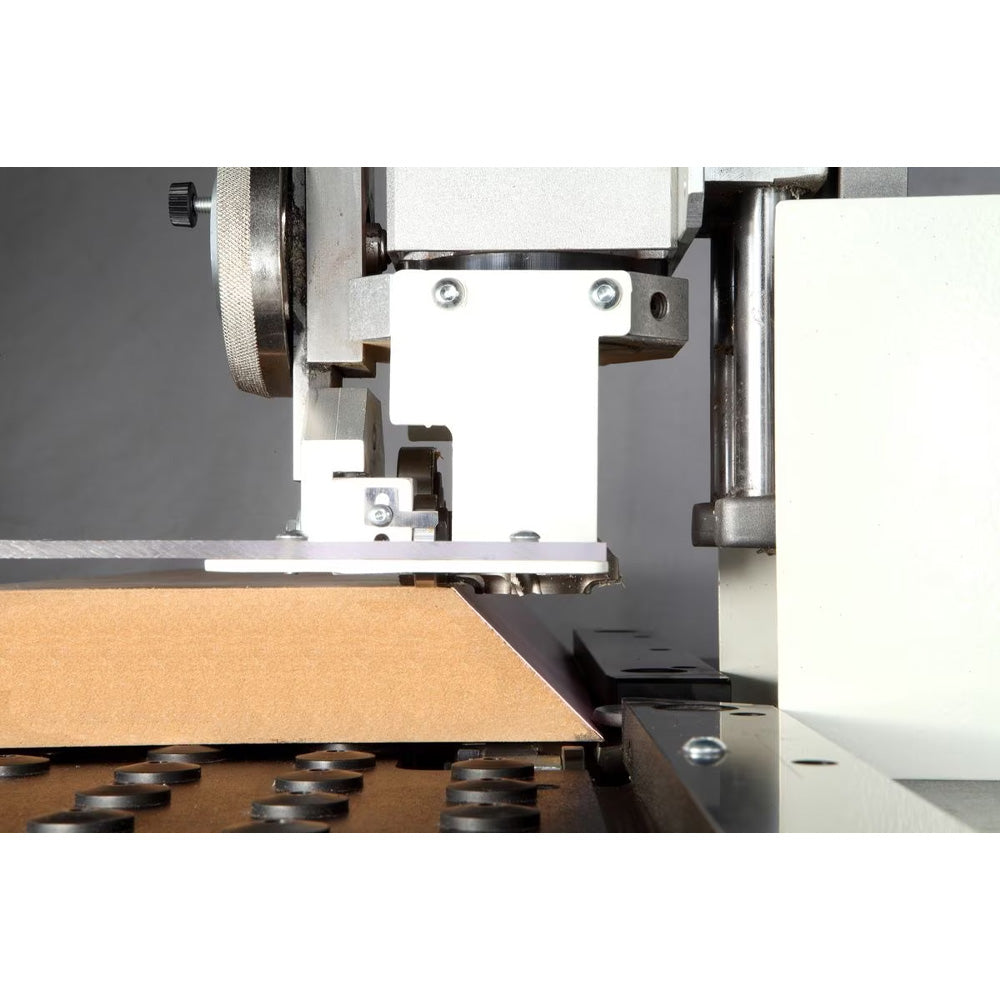

  • Horizontal adjustment of the upper motor to enable the trimming of a panel with a chamfered edge
  • Vertical adjustment of the upper motor to enable adjustment to match panel thickness.
  • 200 Hz inverter, complete with electronic brake
  • Integrated exhaust outlets to ensure a clean work table at all times without hampering the machining
  • Vertical-scratch copiers kit to ensure optimum machine operation.
  • Simple and immediate positioning of tools with reference to the cutting point, by means of pivoting rings with decimal indication
  • Front interchangeable rotating copying devices kit with hardened, ground chromed contact surfaces
  • Emergency push button located on the front machine side
  • Padlockable main switch
  • Auxiliary low voltage circuit (110 voltage)
Specs

Panel thickness: 0.55” – 3.15” (14 mm – 80 mm)
Max. edge thickness: 4 mm
Min. panel width: 6.3” (160 mm)
Min. panel length: 7.87” (200 mm)
Min. internal radius: 1” (25 mm)
Exhaust hoods (x2): 3.15” (80 mm)
Installed motor power: 2hp (1.5 Kw)
Variable cutters speed: 9,000 – 15,000 RPM

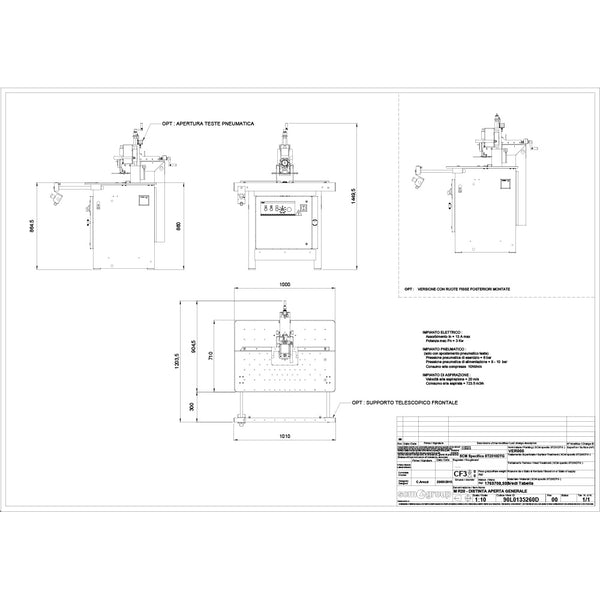

Overall dimensions (L x W x H): 1,000 mm x 800 mm x 1,400 mm

Includes
  • (2) Multifunction diamond cutters R=2mm
  • (2) Copiers with three bearings for straight panels

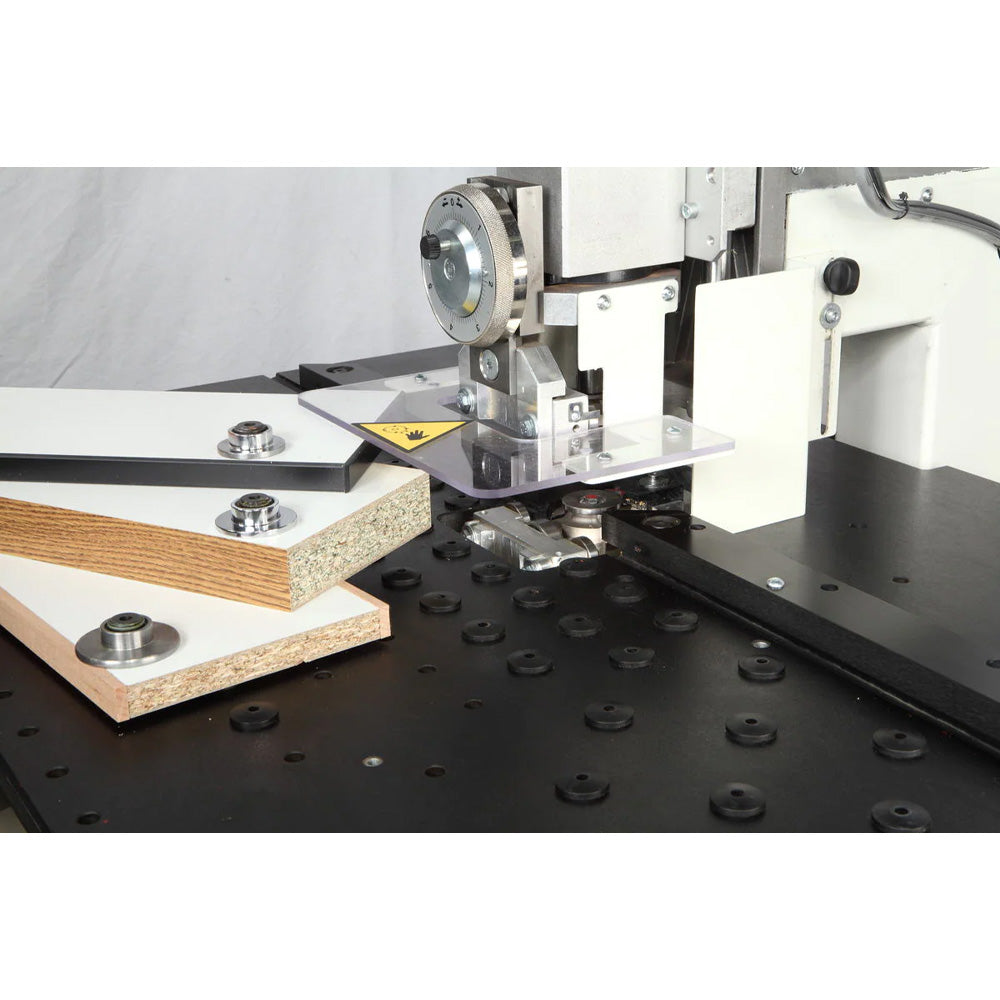

  • (2) Copiers with single large dimensions bearing for curved and shaped panels
*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: T 20
