SCM Minimax T 124 Woodturning Copy Lathe

Price
$ 6,695

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available February 2024

The Minimax T 124 is a woodturning lathe for D.I.Y woodworkers and craftsmen workshops. This machine is fast, easy to use, reliable, and capable of a variety of woodworking projects.

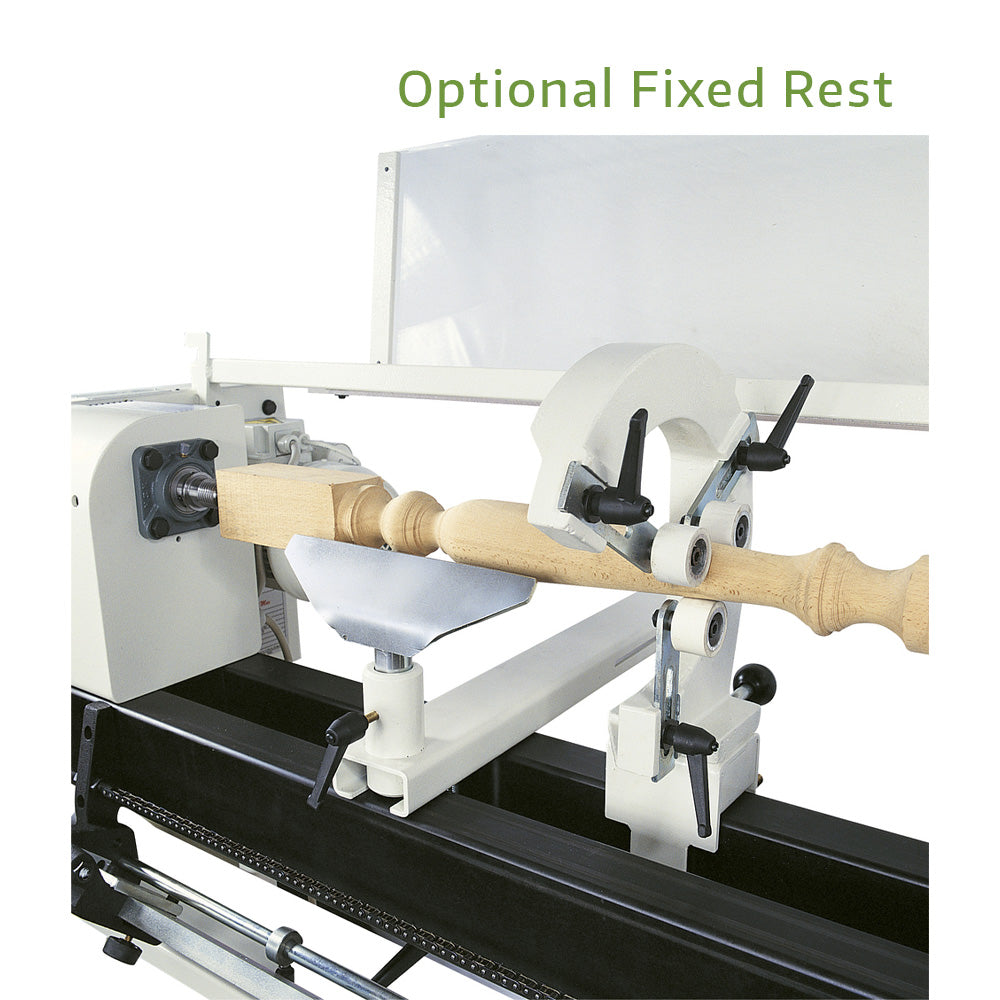

The Minimax T 124 copier enables copying work at diameters greater or smaller than the template pattern. The mobile steady rest with pre-cutting tool guarantees a perfect finish. The fixed steady rest reduces vibration when turning long, thin components. The "C" shape enables turning with hand tools.

Power must be adequate to the size of the piece being machined - this is why the T 124 has a power of 1.8kW and 4 speeds (680 / 1,200 / 2,200 / 3,000 RPM) so they can machine both small and large pieces. The 300 mm face plate is ideal for large bowls. The 40 mm cup center and 70 mm screw center are made from a single piece of stainless steel - these are necessary for turning small cups and bowls.

Features
  • Steel end pillars and box-beam construction
  • Rapid-lock tailstock allows quick tool changes
  • Copy unit with pre-cut tool
  • Finish tool for profiling
  • Pattern adjustment knob and scale
  • #2 MT (Morse Taper) drive and tail centers
  • Safety shield
  • Floor stand, face plate, tool rest, drive center, live center, and travelling dust collection come standard
Specs

Max. working length w/copier & mobile rest: 42.1" (1,070 mm)
Max. working diameter (hand turning): 16" (406 mm)
Distance between centers: 45.3" (1,150 mm)
Centers height: 7.9" (200 mm)
Chuck speeds: 570/1,000/1,850/2,500 RPM
Tool rest: 10"
Face plate dia.: 5.1" (130 mm)

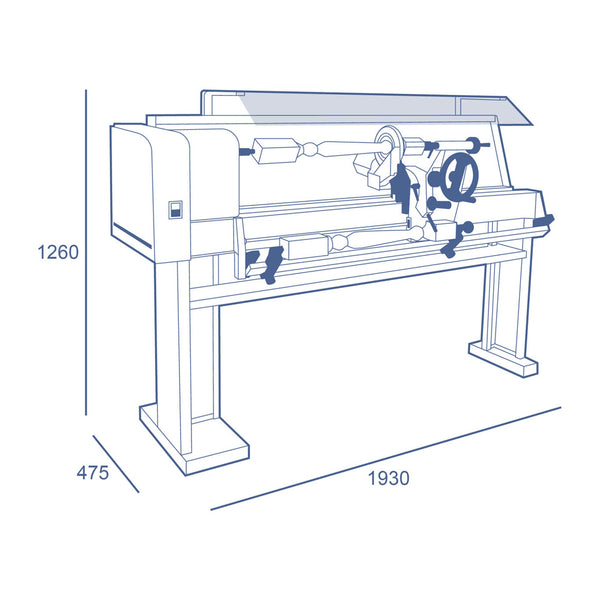

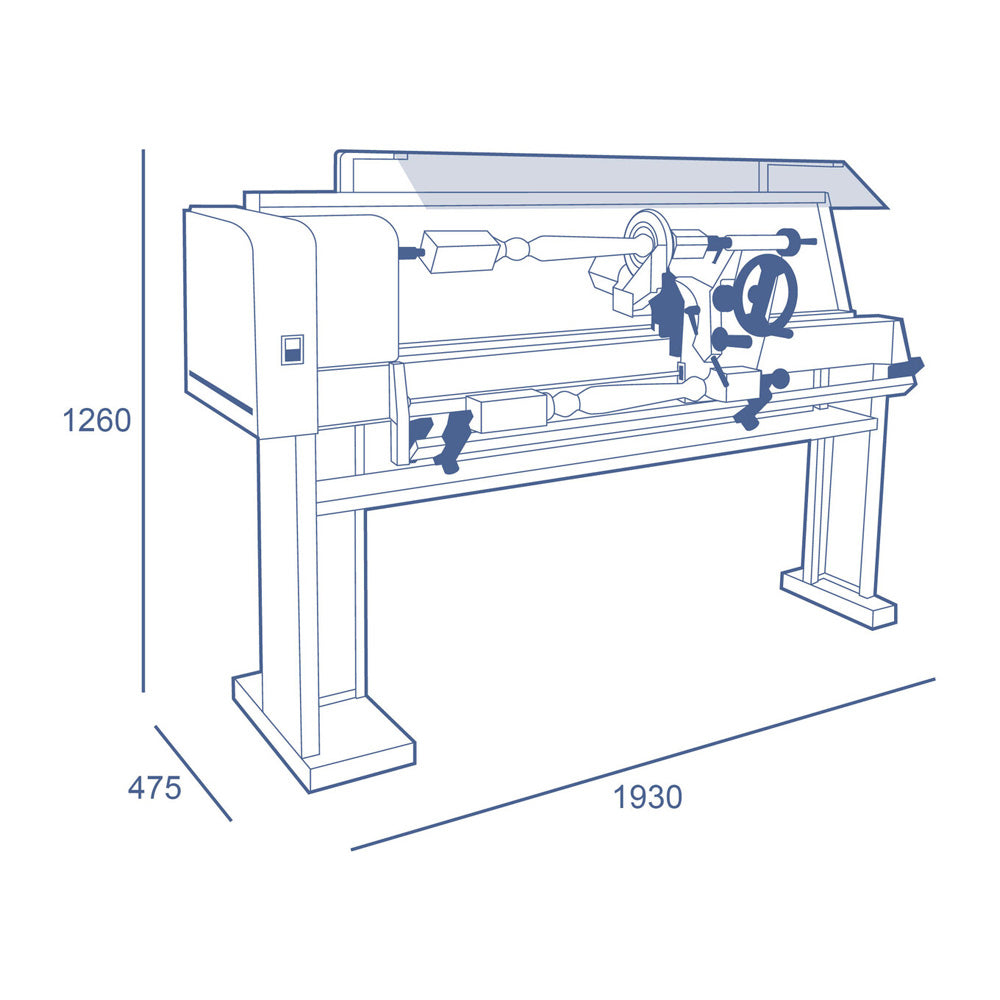

Overall dimensions: 77" x 24" x 44.5"
Motor: Single-phase 230V
Dust port dia.: 4"
Min. dust extraction: 400 CFM
Net weight: 400 lbs.
