SCM Minimax ME 35ET Automatic Edgebander With Pre-Milling & Corner Radius - 3-Phase

Price
$ 26,395

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available October 2024

The Minimax ME 35ET is a single-phase automatic edgebander with great flexibility for both thin and thick edges. It is intended to bridge the gap between a traditional small to midsize edgebander to the more robust equipment used in the Classical line of products. There is no competition in the U.S. market for such a small, versatile machine, with pre-mill that is so economical!

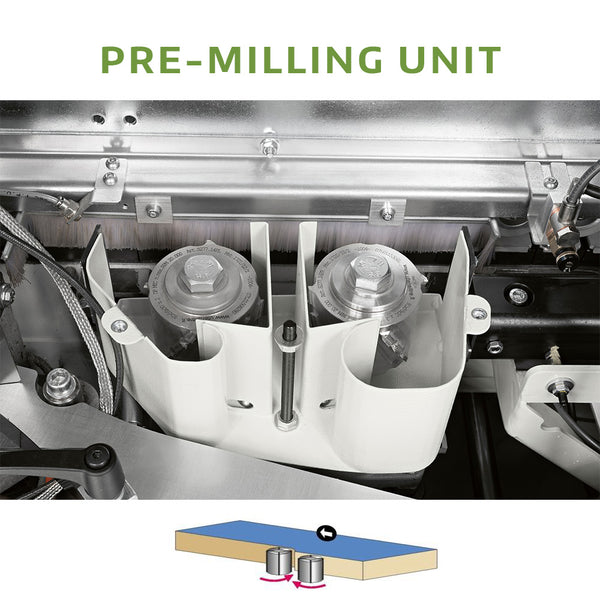

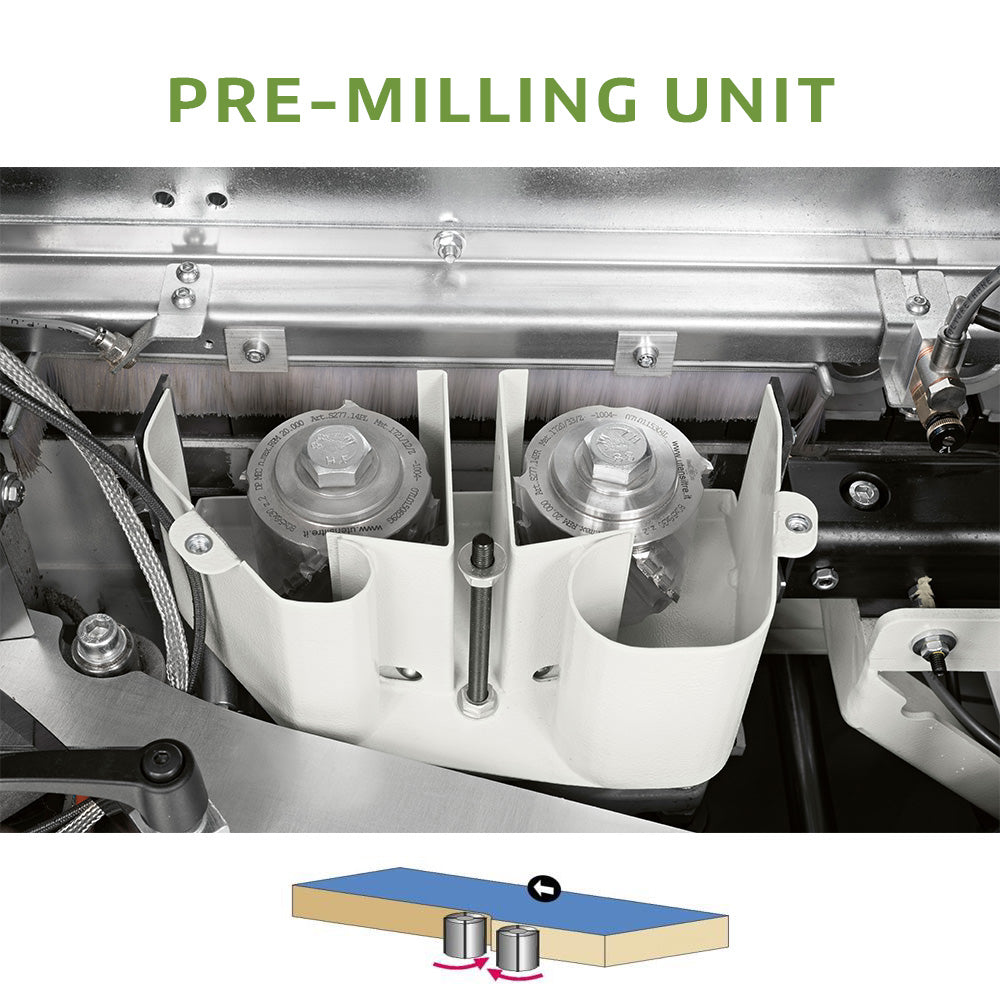

The ME 35ET pre-mill unit is complete with two diamond tools, 80mm diameter. This allows for a clean edge and a good lineal finish during the pre-mill process. The pre-milling unit comes with an independent exhaust and air blower for cleaning of the panel during the process. You can carry out vertical adjustments of the tools for use even into the final sharpening phase.

An interchangeable glue pot allows for easier access. The glue pot is Teflon coated to allow for easy clean up and easy glue replacement with a quick heat-up system. The system applies the glue to the panel with a vertical glue spreading roller, and the temperature is adjustable via the EYE-S control panel. This machine also has a device to automatically recover any unused glue.

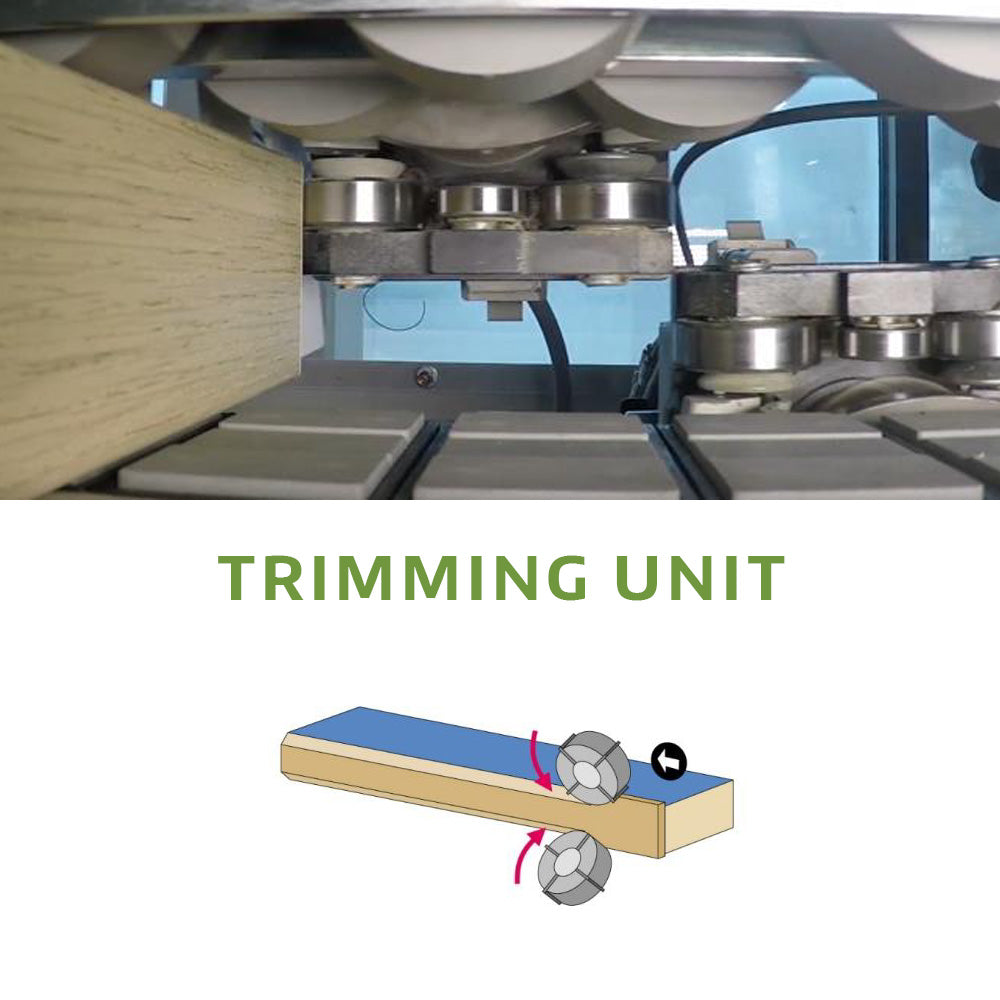

The high frequency motors generate high cutter rotating speed, reducing to a minimum any marks left from trimming and guaranteeing the absence of vibrations. These cutters are designed for straight or radius trimming of any type of edge.

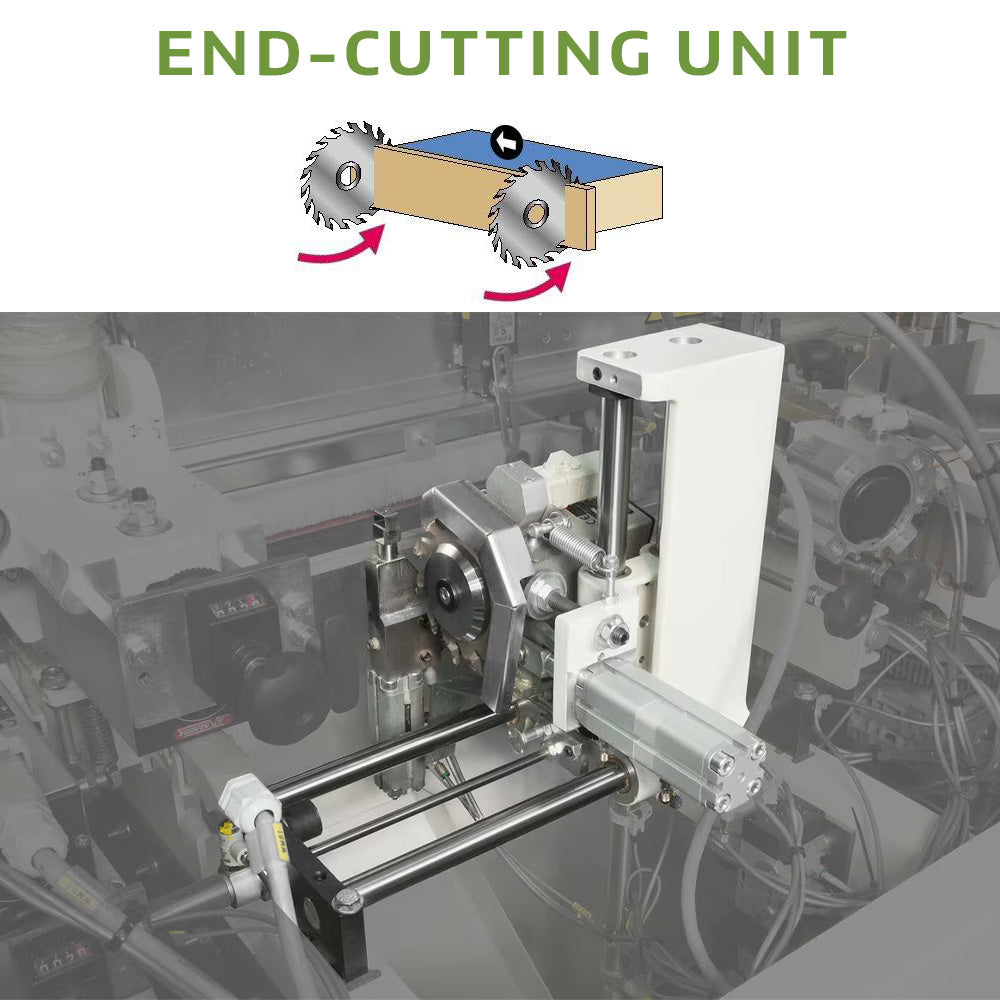

The special end-cutting unit with radius function is installed in place of the standard end-cutting unit. During the process of cutting off the front and rear exceeding edges (except for solid wood strips), it rounds off the angles of the edge banded panel. This creates a beautiful radius edge. This function is directly controlled with the operator interface at the control panel.

The Minimax 35ET comes with the Eye-S, a touch screen control panel loaded with features to make edge banding applications easy. It allows you to choose the type of material you’re working with (MDF, chipboard, etc.), set the height and thickness of material, and adjust the glue temperature and type, among other things. All edge banding functions are shown graphically on the screen, so it leaves little room for errors or confusion.

Units included on the ME 35ET:

  • Pre-Milling
  • Glue Pot
  • End Cutting w/Radius Function
  • Top/Bottom Trimming

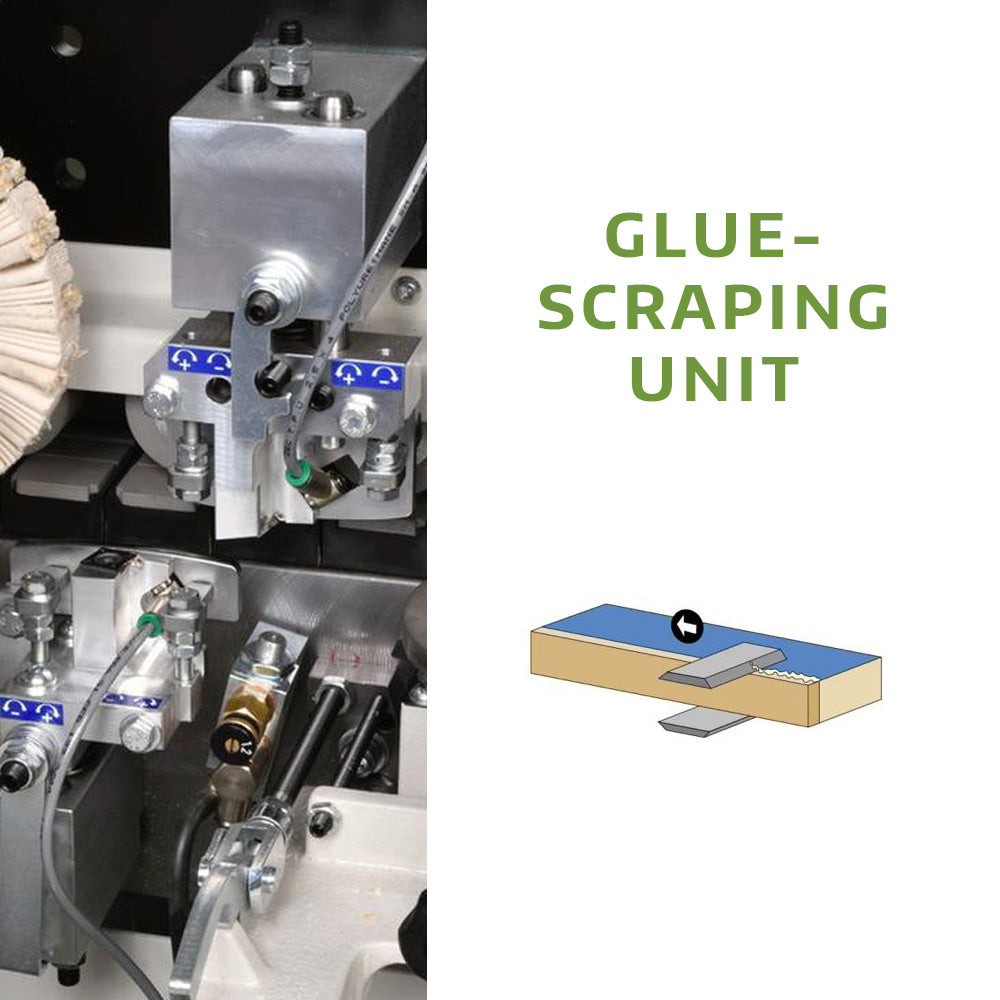

  • Profile Scraping
  • Brushing (Buffing)

ME Edgebander Comparison Chart >

Features
  • Pre-milling unit creates perfect joint lines
  • Interchangeable glue pot for PU accuracy
  • Intuitive EYE-S Touchscreen Control Panel allows user to select material size, control glue temperature, and many other edge banding functions
  • Rounding unit rounds thin and thick edges up to 3 mm
  • End cutting unit with radius function cuts off the front and rear exceeding edges and also performs the end rounding
  • Always accurate and high-speed cuts thanks to blade and high frequency motor
  • High productivity by the track feed speed
  • 9 meter/min panel feed speed with track movement for increased productivity with dual presser wheels and panel roller support on the entire length of the machine
  • Top thick steel pressure beam with rubber-coated wheels
  • Precise horizontal and vertical copying wheels have chrome plated surfaces, and assure accurate positioning of knives in relation to the cutting point

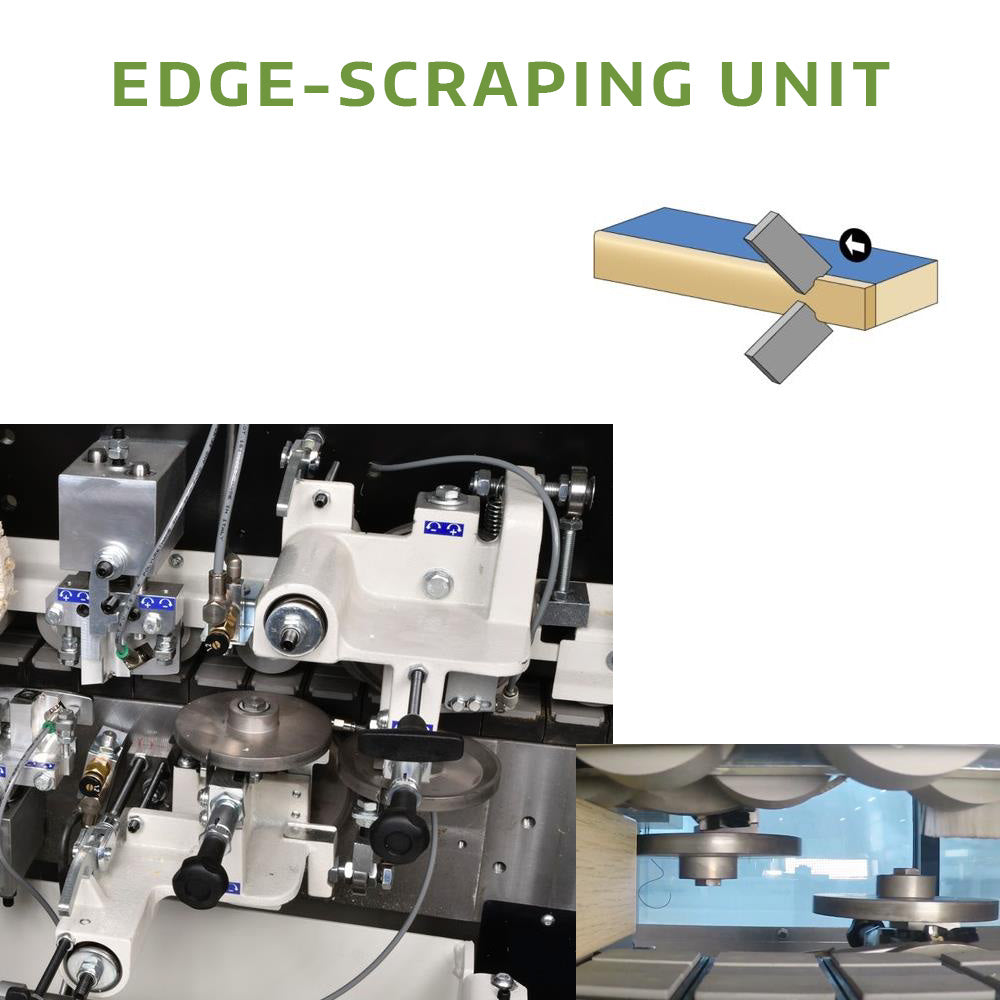

  • Excellent vibration-free finish thanks to the high-rigidity structure of the edge scraping unit
Specs

Motor: 3-phase, 220V
Pneumatic operating pressure: 6.5 bar
Exhaust outlets – Pre-Milling Unit (x2): 3” (76 mm)
Exhaust outlet - Glue Pot: 2.36” (60 mm)
Exhaust outlets – Edgebander Unit Stations (x2): 2.36” (60 mm)
Worktable dimensions: 118” x 20.6” (3,000 mm x 525 mm)
Worktable height: 35.5” (904mm)
Thickness of rolled edges: 0.4 - 3 mm
Thickness of edges in strips: up to 5 mm
Min. - max. panel height: 8 mm - 50mm (.315” – 1.96”)
Min. panel length/width with rolled edges: 7.48”/4.33” (190/110 mm)
Min. panel length cut only on the front: 4.72” (120 mm)
Feed speed: 7 m/min (23 fpm)
Feed motor power: .73Hp (.55 kW)
Operating temperature: 68 - 374°F (20 - 190°C)

Pre-Milling Unit
Motor power: 3Hp (2.2 kW)
Diamond cutter: Ø 80mm Z2 H=56
Blade rotation speed: 7,200 rpm
Stock removal: 0.5 / 1 / 1.5 / 2 mm

Glue Pot Unit
Motor power:
.33 Hp (.25 kW)
Glue capacity: 1.76 lbs. (.8 kg)

End Cutting Unit With Radius Function
Motor power: .25Hp (.19 kW)
End cutting blade: Ø 125mm Z12
Blade rotational speed: 12,000 RPM

Trimming Unit
Upper/lower motor power:
2x .47 Hp (.35 kW)
Widia cutters: Ø 55.3 mm Z3
Cutters rotational speed: 12,000 RPM
Vertical/horizontal copying devices: Rotating/rotating

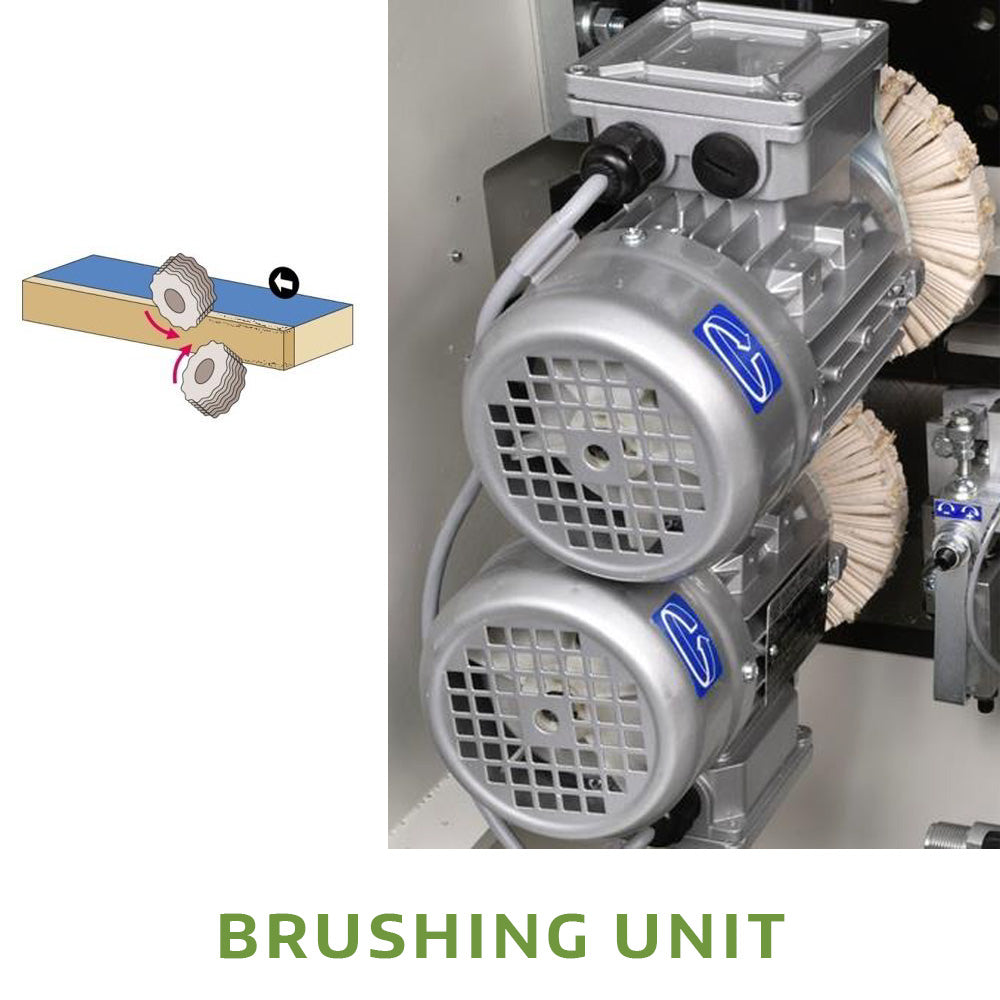

Brushing (Buffing) Unit
Motor power: 2x .23hp (.17 kW)
Speed: 2,800 RPM

Includes
  • (2) Pre-Mill diamond cutters
  • Radius tooling set (2 mm)
  • Toolbox
*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.



SKU: ME 35ET-3ph
