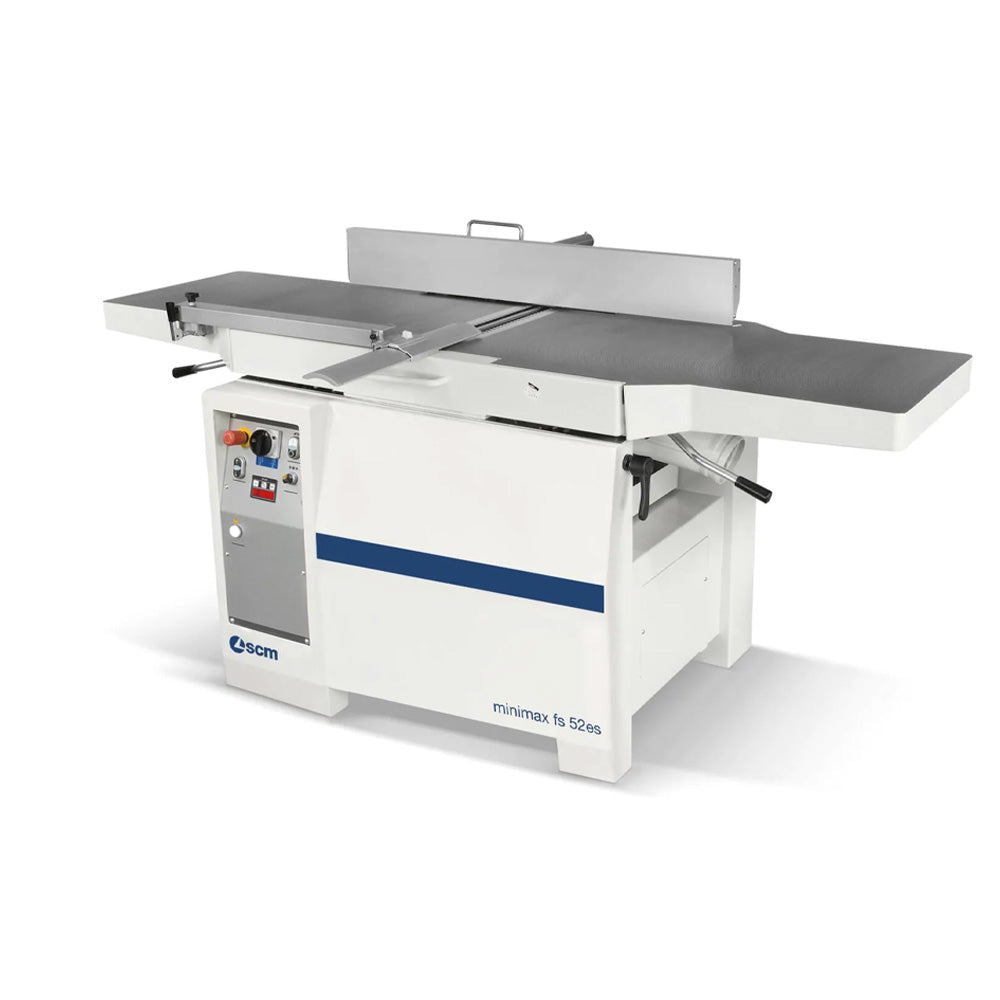

SCM Minimax FS 52ES - Xylent 20" Jointer/Planer (3-Phase)

Price
$ 20,095

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Contact us for current lead times

The Minimax FS 52ES is a professional grade, heavy duty, long bed jointer/planer combination machine designed to meet the needs of the most demanding environments. It features heavy cast iron tables, an 11 horsepower 3-phase motor, and an additional overturning fence.

The FS 52ES comes with a XYLENT cutterhead block with 3 series of knives designed to significantly reduce to decibel levels during operation. Totaling 84 plates of 15 x 15 x 2.5 mm. These knives are 4 self-locking and self-centering screw knives. XYLENT cutterheads are noticeably quieter. They also improve dust extraction because they produce very small chips.

The standard guard offered on the Minimax jointer/planer combination machine is a spring type guard which always covers the unused portion of the knife. Other style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with dust protected trapezoidal threads. The Minimax FS 52ES T uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

Comfortable and precise planing. The ES series adopts ergonomic solutions like the 2,200 mm jointer tables, in ribbed cast iron, that allows for the simultaneous opening towards the inside of the machine with a 90° angle. For maximum long lasting stability the cast iron thicknessing tables lift on 4 spindles with dust protected trapezoidal threads.

Features
  • Parallelogram jointer tables
  • 4 post planer table
  • Digital-mechanical readout on planer height
  • XYLENT cutterhead
  • American-style jointer guard
  • Wheels for machine movement
Specs

Motor: 11hp
Electrical requirements: 3-phase, 220V
Dust extraction outlet diameter: 4.75” (120 mm)

Jointer
Working width: 20" (520 mm)
Overall table length:
 88.6” (2,250 mm)
Cutter block dia.: 4.7" (120 mm)
Max. stock removal: 0.196" (5 mm)

Planer
Table size: 20.47" x 33.46” (520 mm x 850 mm)
Min./Max. working thickness: 0.06”/9” (3 mm/230 mm)
Min. working length: 8.66" (220 mm)
Feed speed: 16 / 26 / 39 / 59 ft/min (5 / 8 / 12 / 18 meter/min)

*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: FS 52ES-X-3ph
