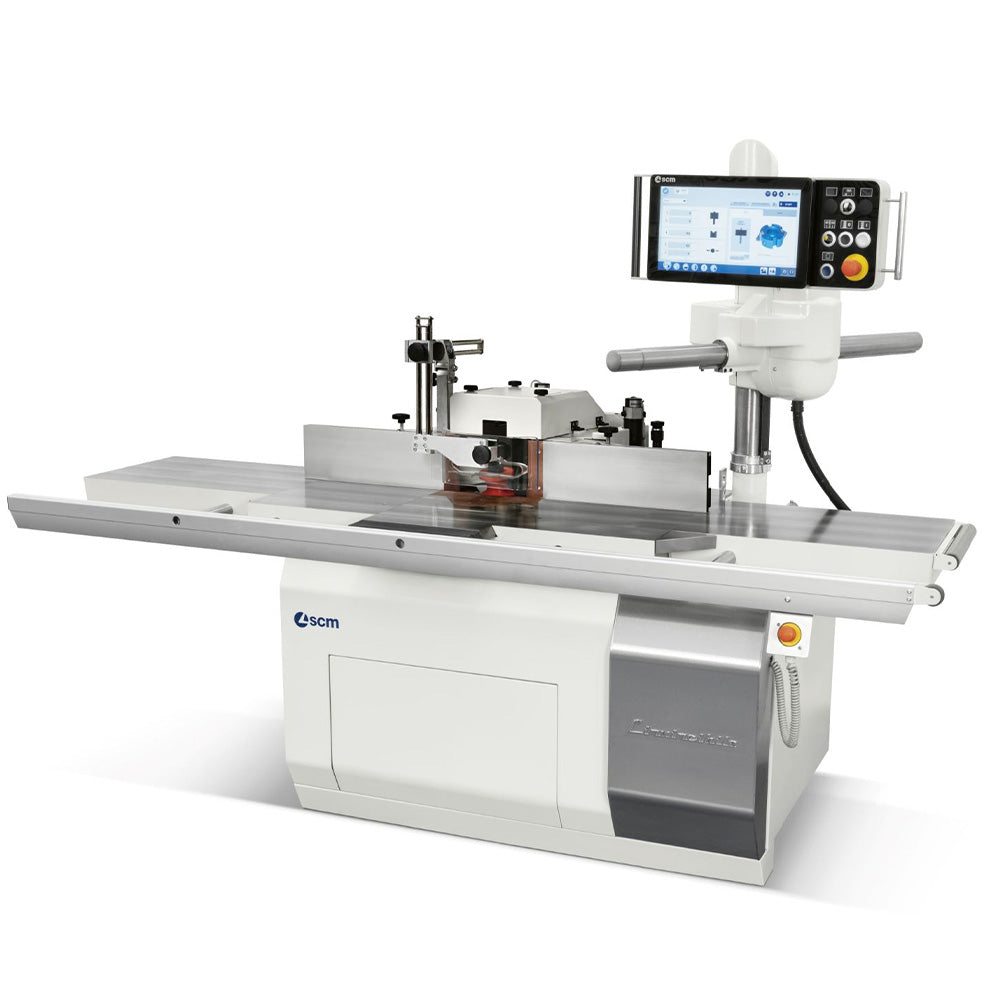

SCM L'invincibile TF 5 Fixed Spindle Shaper - Custom "EASY TOP Version"

• Freight included in price*
• Sale price valid while supplies last - Please call for availability
• Factory install included in price
• Machine configuration

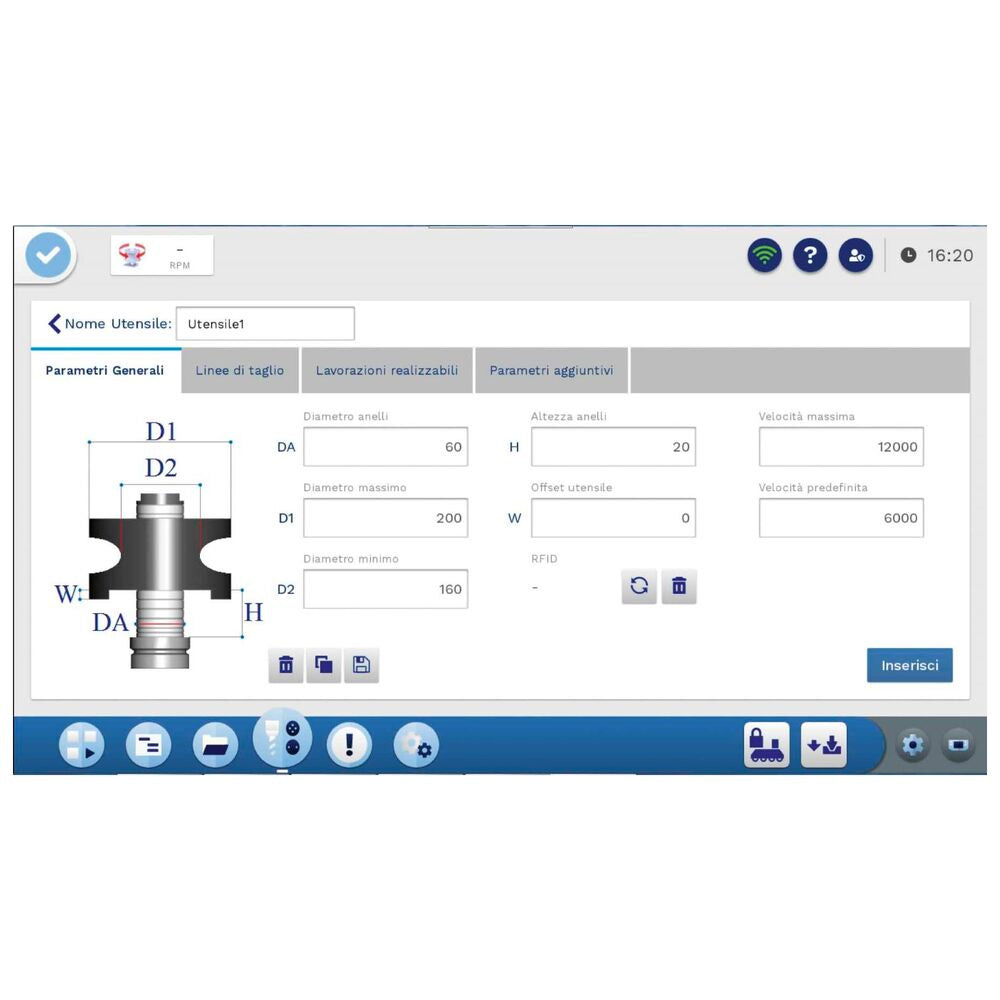

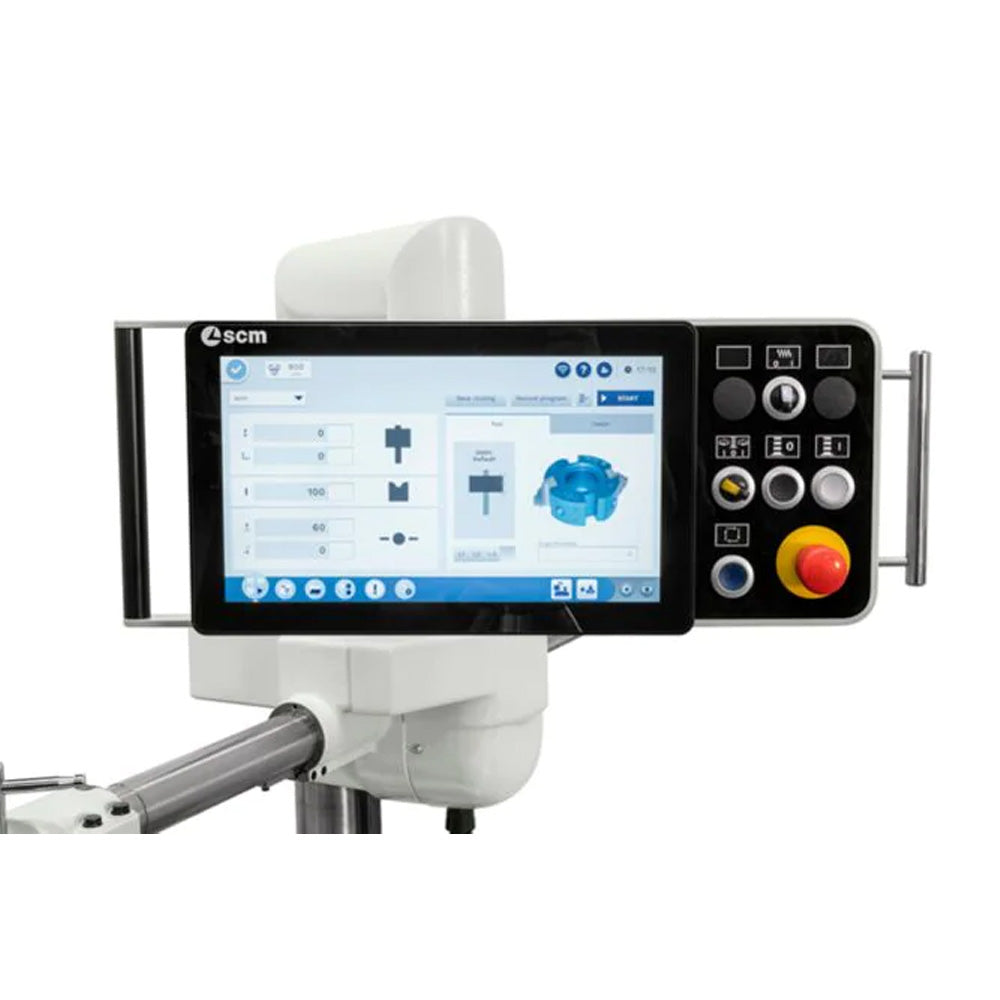

The L’invincibile TF 5 combines old world quality with new age technology. It comes standard with the "Eye-S," a 15" touch-screen control panel that gives you full control of up to 4 working axes: spindle height, shaft rotating speed, "FAST" table, and whole fence assembly. The Eye-S also has storage capacity for up to 1,000 programs and 1,000 tools.

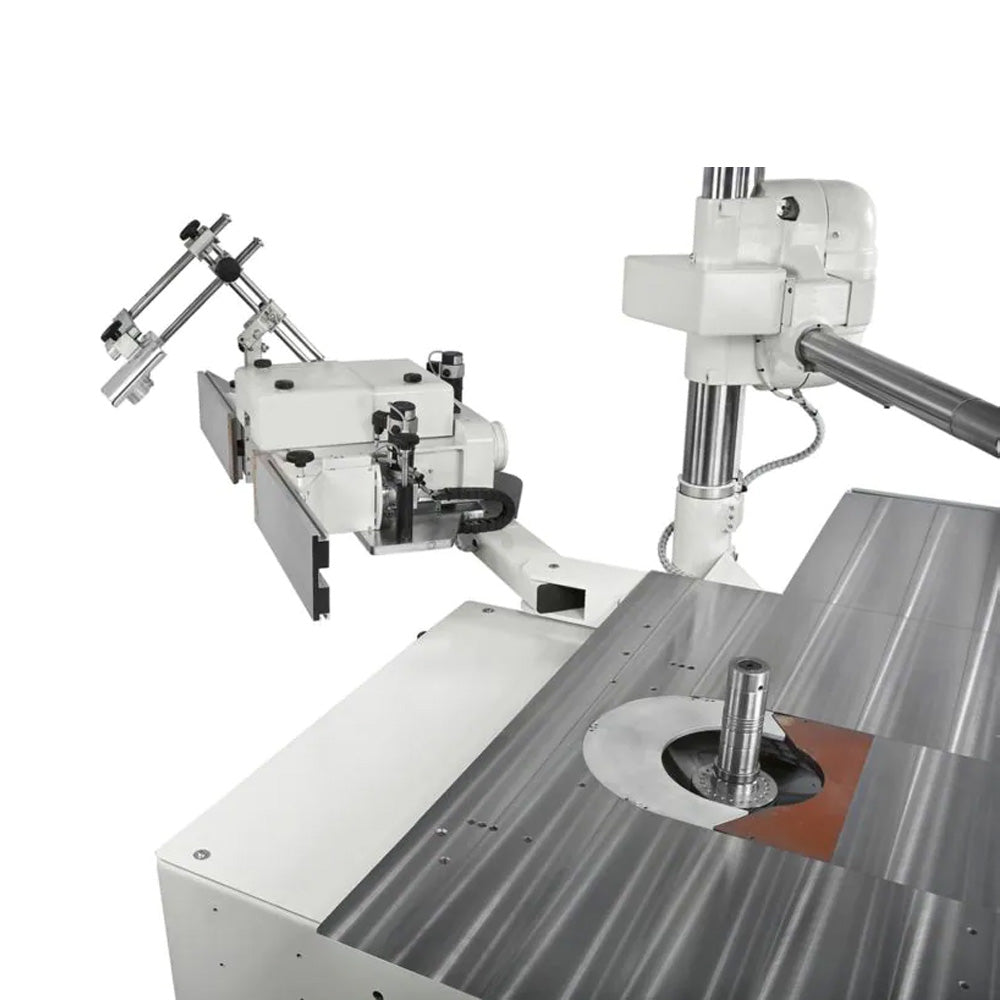

The "FLEX" fence can retract and be re-positioned on the worktable in one simple movement. The entire fence can be moved with reference to the tool diameter. It can also be moved away from the worktable if needed. Includes aluminum profiling fence with connecting bars.

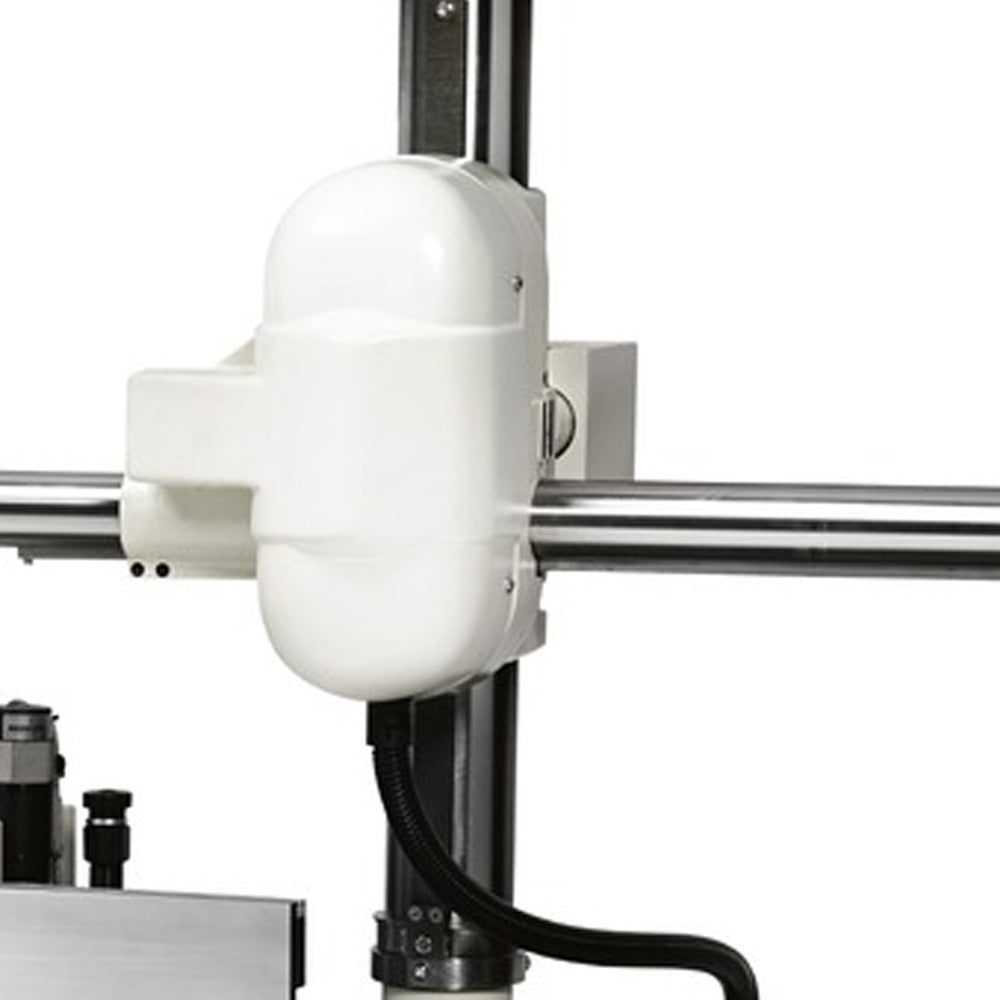

This "EASY TOP version" features an auto adjusting feeder support controlled directly via the EYE-S panel. The feeder support can be adjusted vertically for precise positioning based on the thickness of the workpiece, as well as horizontally adjusted relative to the tool's diameter. There is an auto pneumatic locking system to ensure secure positioning, and the column support design allows the feeder to be easily swung or moved away from the table when not in use.

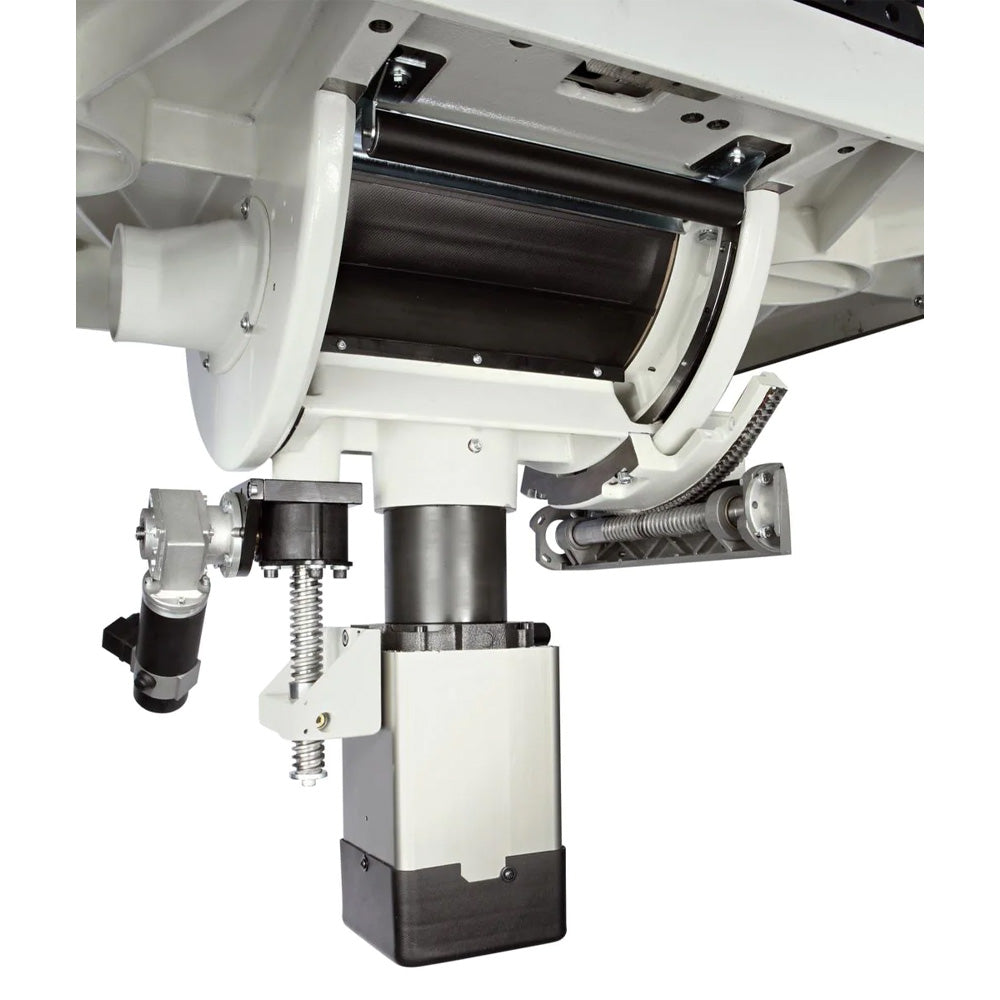

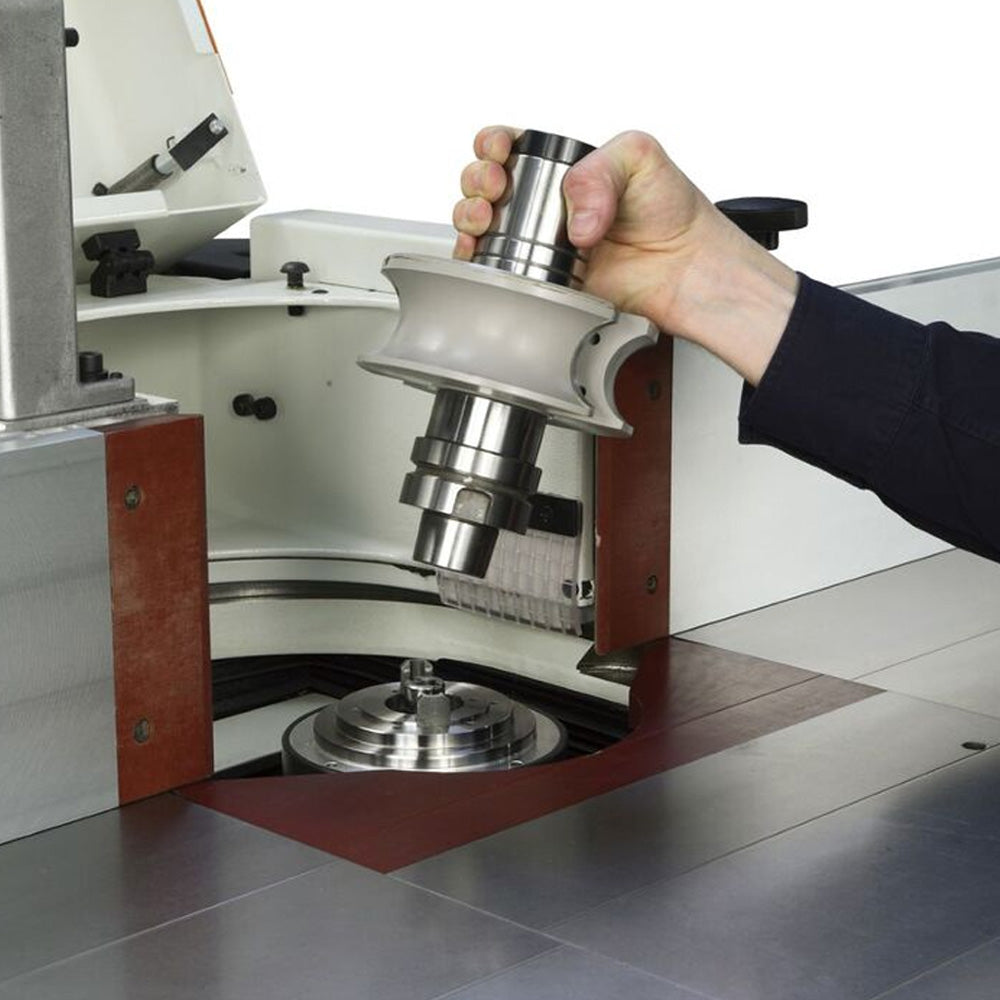

On the TF 5 you will also find an HSK 63B rapid tool changer for proper alignment, a 10HP electrospindle, an air blower system to maintain clean coupling surfaces, and an inverter for electronically programming the shaft's rotating speed (900 - 12,000 RPM).

Safety/protections on the TF 5 include:

• Spindle protection
• Mechanical brake on main motor
• Safety sensors for changing tool operation
• Rotating stop control, tool taper locking/unlocking
• Safety microswitch on motor access door
• Emergency push buttons
• Main power switch can be locked in the off position
• Overload switch protection
• 24V auxiliary low voltage circuit
