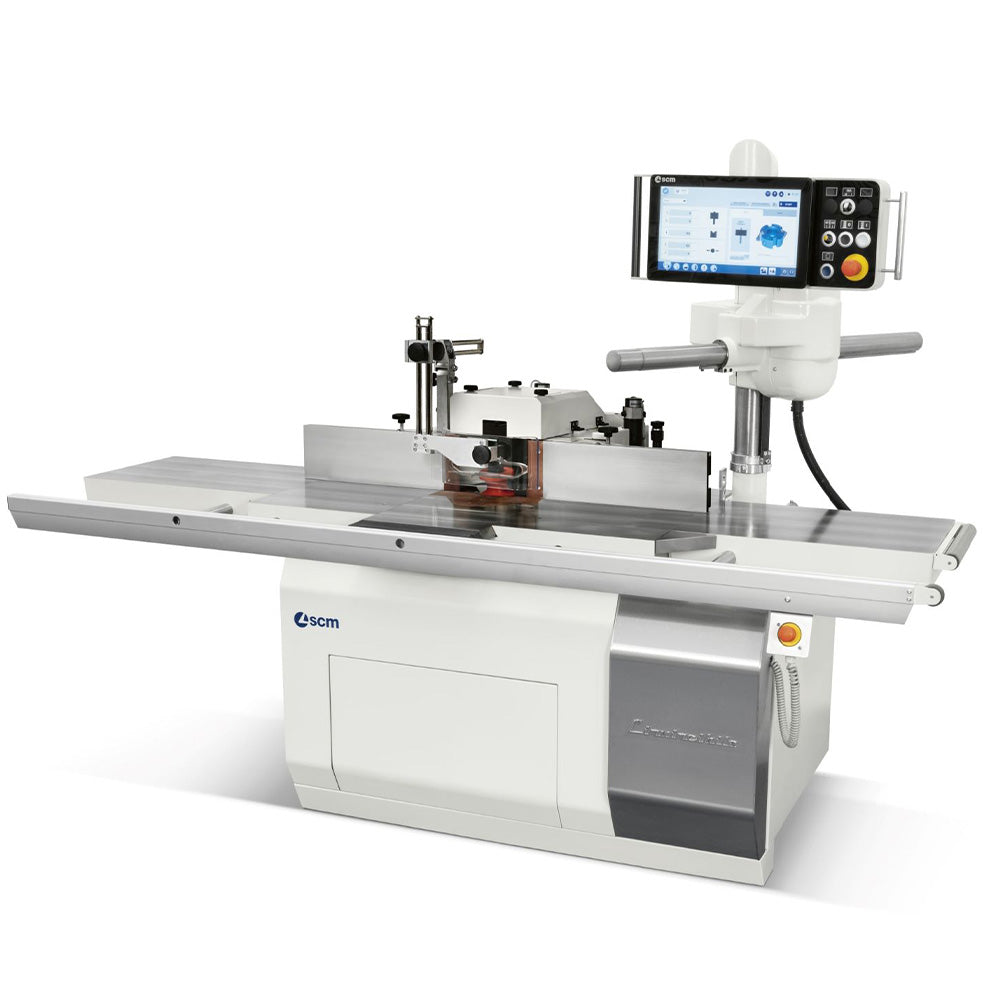

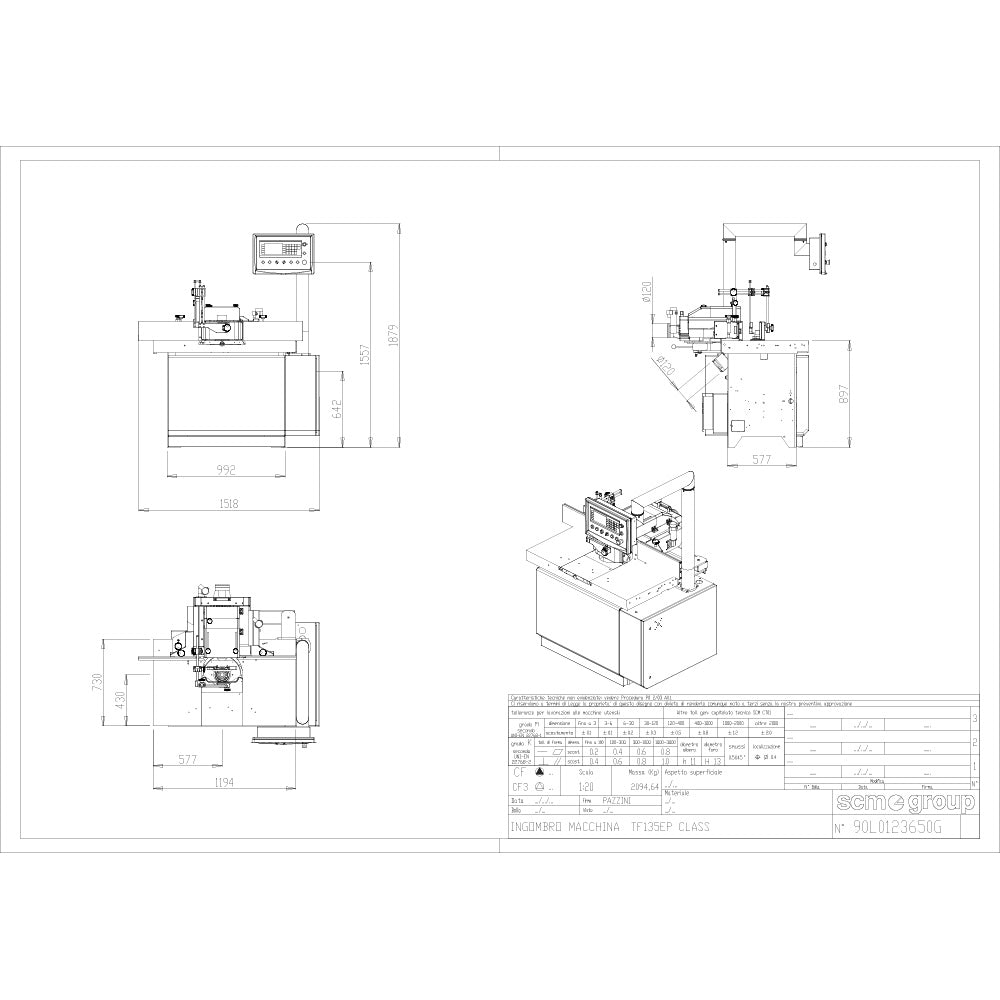

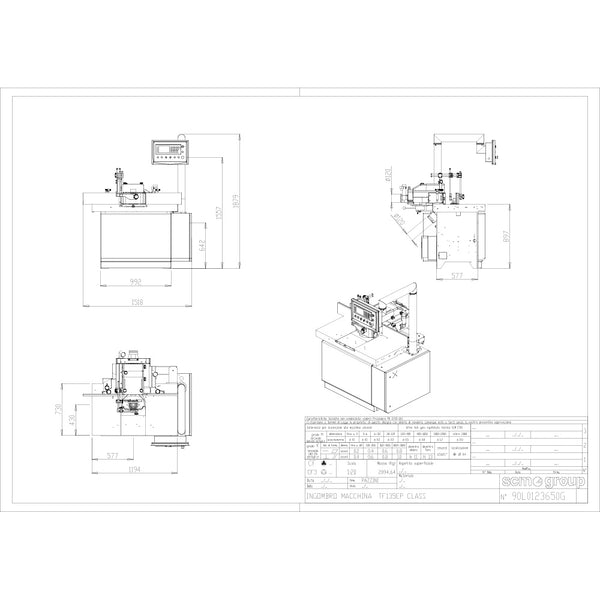

SCM L'invincibile TF 5 Fixed Spindle Shaper

Starting at $ 29,300.00

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • In stock as of 4.10.24

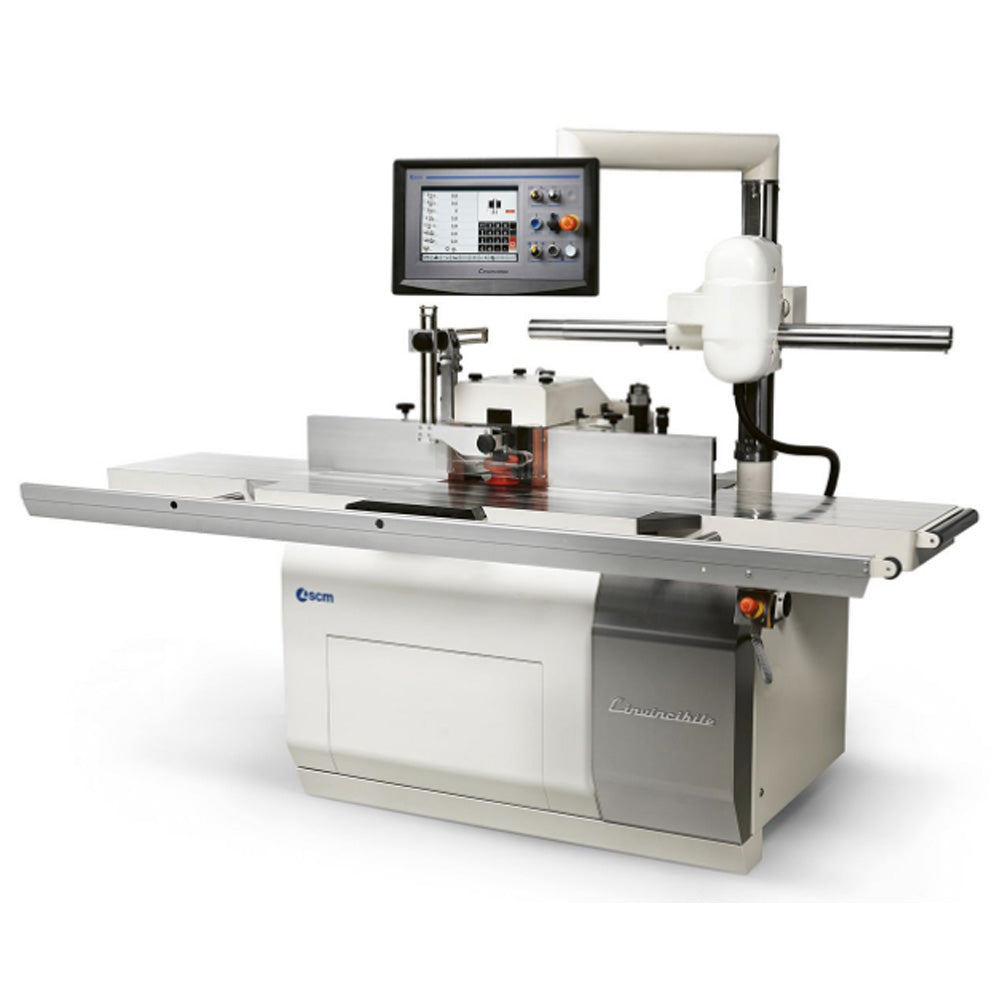

The L’invincibile TF 5 combines old world quality with new age technology. The “EASY” four axes programmer controls the powered sectioned table, spindle height, infeed fence, and outfeed fence and has the capacity to store up to 300 programs. Spindle speed is also regulated from the controller, and the “FAST” sectioned table eliminates the need for insert rings.

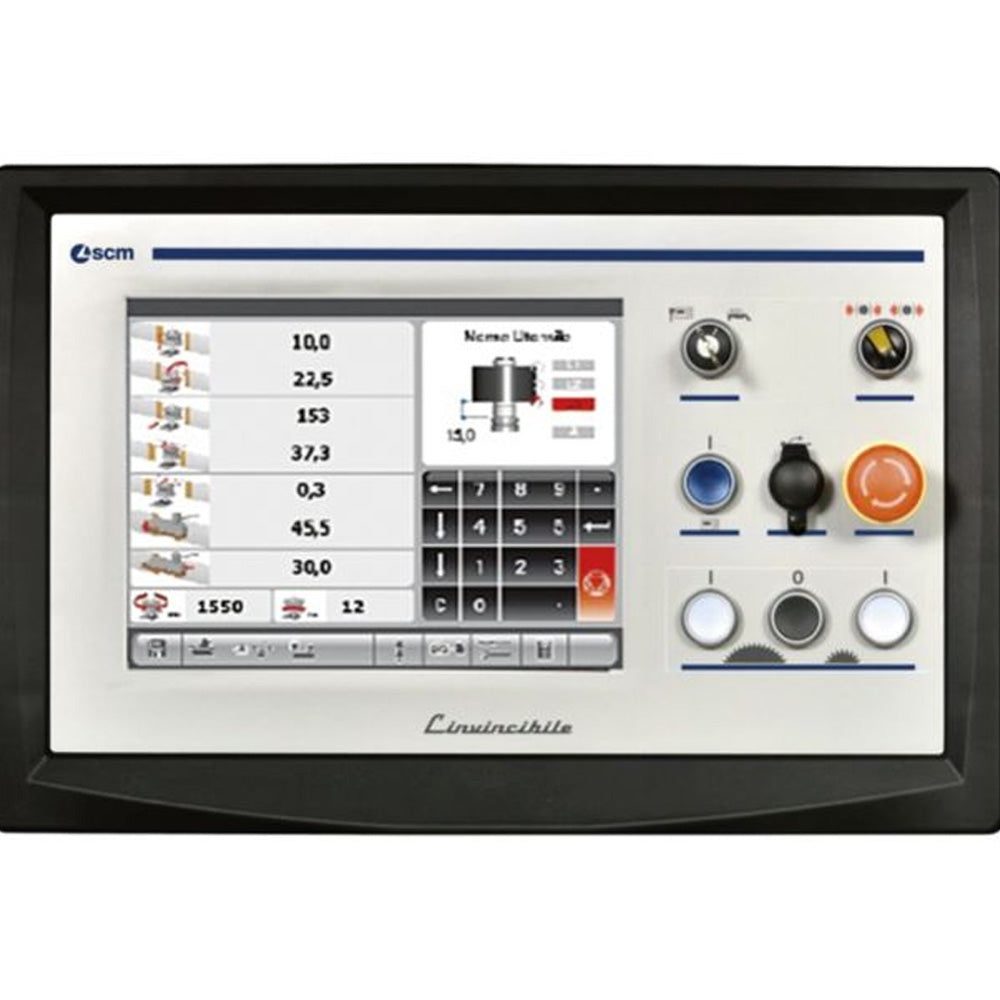

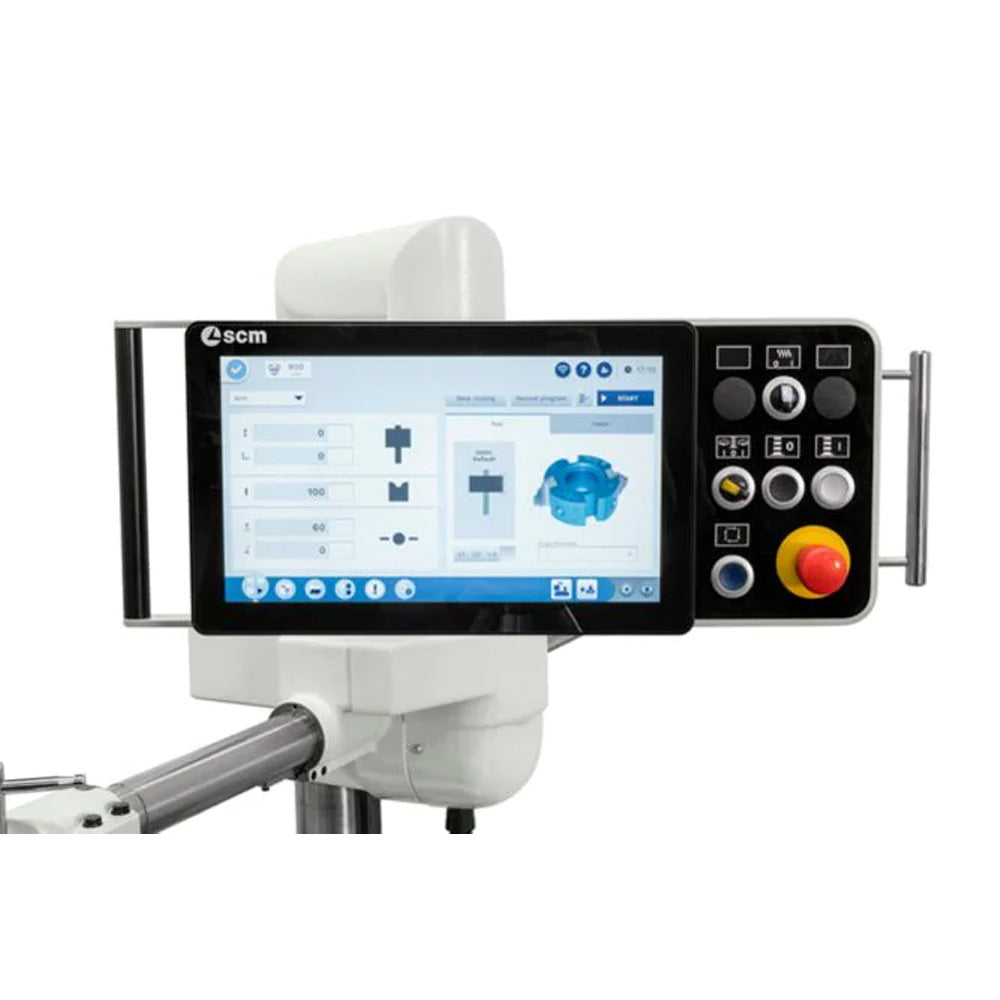

The “EASY” programmer controls four axes - the spindle height, the sectioned table, the entire fence position in relation to the tool diameter, and the position of the infeed fence in relation to how much material is being removed. With a memory capacity of 300 programs, it is easy to set up the L’invincibile TF 5 for those profiles you use frequently. Or, you can use the manual function for precise control of those one-off jobs. The “EASY” easy programmer provides a digital readout for the positioning of all axes in addition to the spindle speed, which is powered by an inverter with speed ranges from 900 to 12,000 RPM, and is also controlled through the programmer.

Monoblock technology is used in the design and fabrication of this base. The solid, welded base undergoes a treatment called normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point.

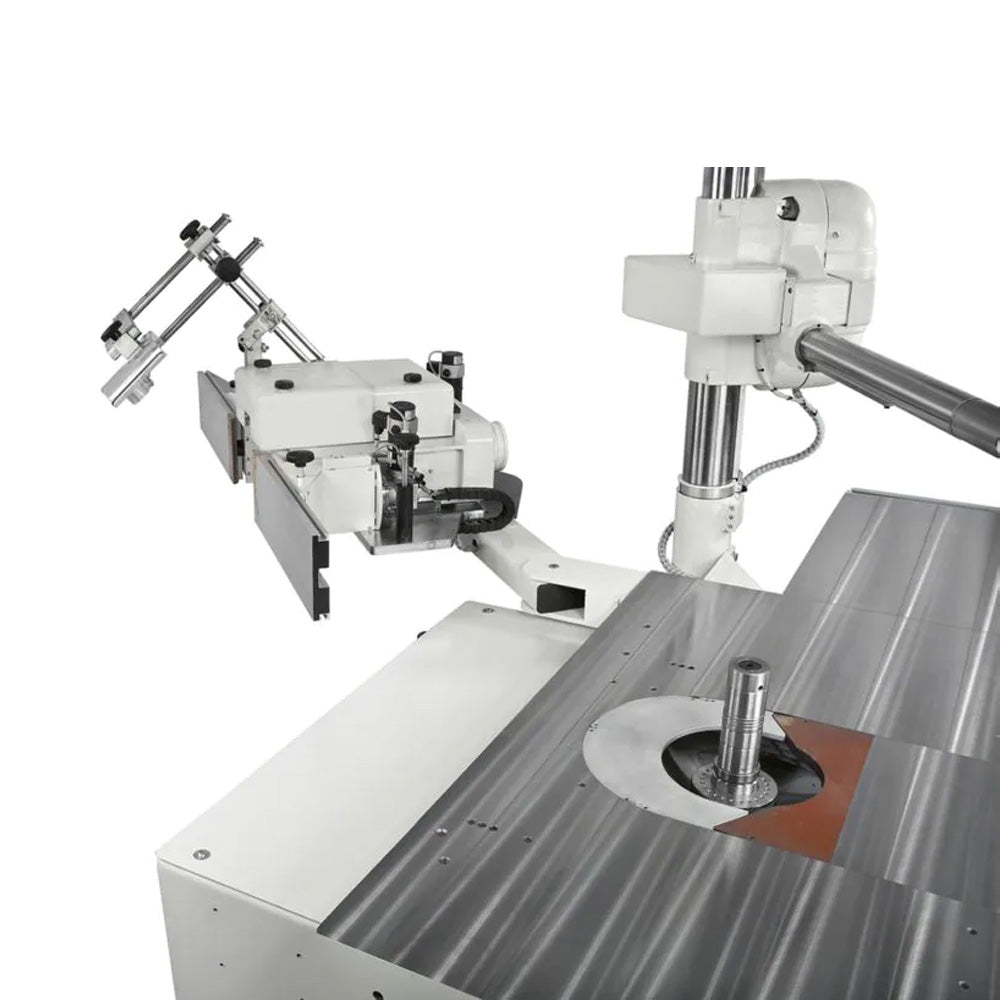

For quick change over and consistent tooling position, you can't beat the HSK 63 B automatic spindle release system in the SCM Class machines. Eliminate hassles with stacked tooling and just drop in the next profile. With a flip of a switch it locks permanently into place. These spindles are fully compatible with any HSK 63 receptacle including HSK 63 F. Likewise the TF 5 can easily accept existing HSK spindles that you may have on a CNC router or tenoner using the same HSK 63 technology. This is a versatile feature that makes this machine a pragmatic choice for any shop wishing to maximize their shop’s tooling in an efficient manner.

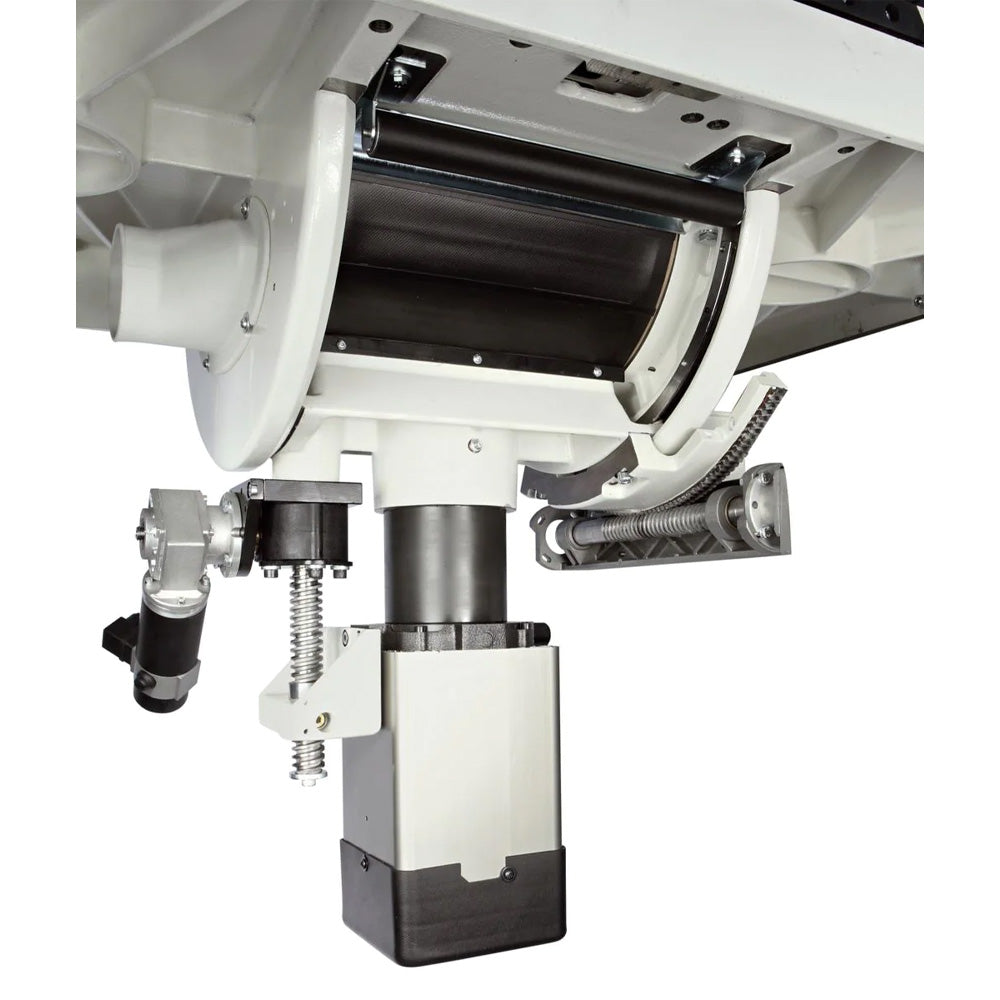

One thing that can degrade the quality of finish from a shaper is the vibration transmitted from the spindle to the cutter. SCM ensures maximum quality in its shapers by using very large spindle assemblies whereby the increased mass of the spindle absorbs vibrations and eliminates whipping action at the top of the spindle.

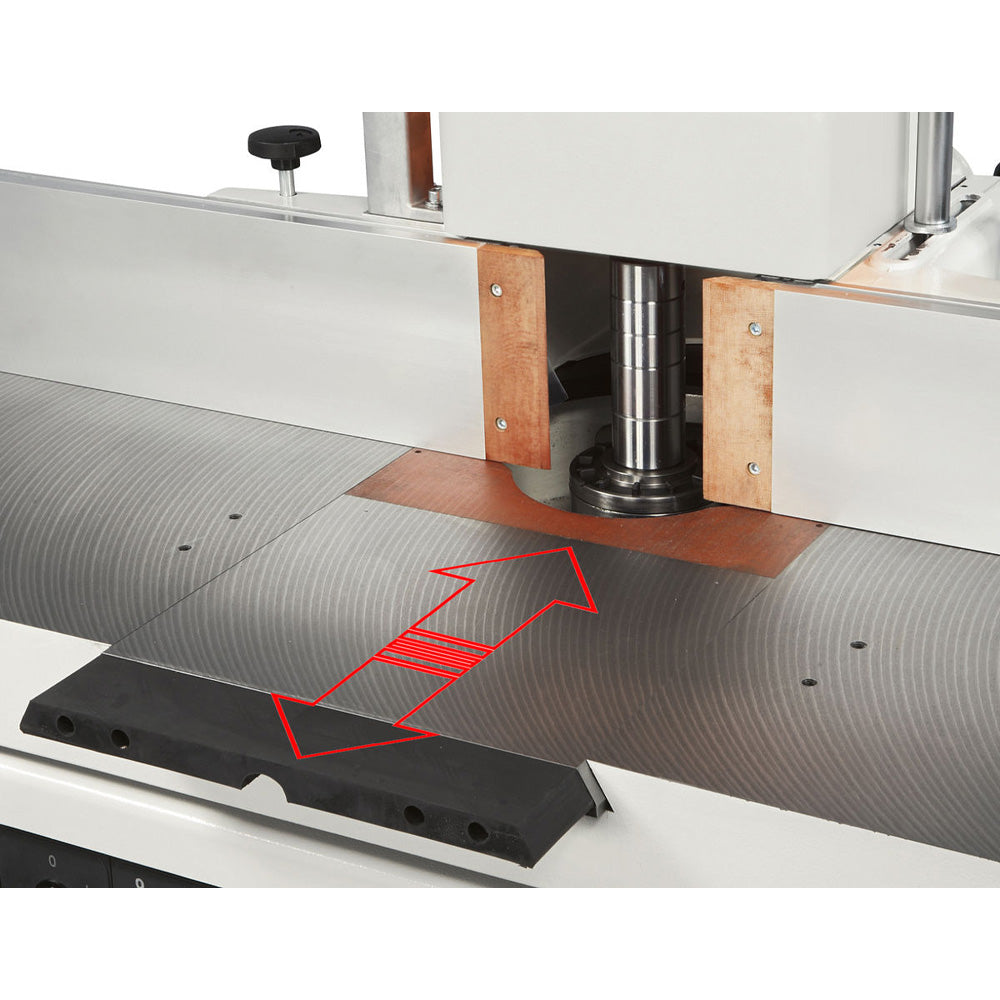

With a sectioned table, there is no longer any wasted time searching for that correct table ring to fit your cutterhead. This table design has been used on SCM Superset moulders and the technology has been transferred to their shapers. The table is simply moved into the best position to fit your cutter, and is electronic/programmable from the controller.

Features
  • 4 Axes “EASY” controller for infeed / outfeed fence, “FAST” sectioned table, and spindle height with the ability to store up to 300 independent programs
  • Electronic inverter control of spindle speed from controller with slow enough speed for sanding applications
  • Mechanical digital readout
  • 5 HSK 63B spindles 1 1/4 Inch diameter
  • Upper mobile control panel
  • Cope attachment with 500 mm stroke including miter gauge and clamp
  • Flex: swing support fence with electronic adjustment of fence
  • Fast: sectional table to adjust for tool diameter
  • Cross support mount for feeder with readout
  • Aluminum fences
  • Pneumatic device for release of HSK 63B spindle
  • Reverse rotation switch
  • LED digital readout of spindle height, infeed / outfeed fence, and “Fast” table position, & speed on controller
  • Automatic brake
  • Magnetic starter with overload protection
  • Low tension circuit (110 v by transformer)
  • Tool kit with spare V– belt
  • Y— Delta Soft Start
Specs
Motor Horsepower: 10hp electro spindle
Table Dimensions: 47.2” X 28.7” (1,200 x 730 mm)
Table Height: 36" (920 mm)

Working Height of Spindle (under the nut): 5.5” (140 mm)
Max. Insert Opening: 12.6” (320 mm)
Max. Tool Dia. w/Profile Fence: 10" (250 mm)
Max. Tool Dia. Retractable Under Table: 12" x 3.75" (320 mm x 85 mm)

Spindle Speeds (RPM): 900 to 12,000
Dust Outlet on Fence and Rear Base: 120 mm each
Shipping Weight: 2,185 lbs.
Net Weight: 1,700 lbs.
Electrical Requirements: 3-Phase @ 220V
Dust Extraction: 680 CFM x 2
