SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
Click image to open expanded view
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander
SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander

SCM DMC SD 30 RCS 95 37" Two Head Wide Belt Sander

$ 34,930

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Business Financing Available

Eligible for a Section 179 tax deduction. See how much you can save >

Made in Italy. Ships from the United States.

  • Dock to dock freight included in price*
  • Low stock as of 2.11.26 **

Designed for small- to medium-sized woodworking shops, the DMC SD 30 RCS 95 Wide Belt Sander is well suited for calibrating and sanding solid wood, as well as veneered panels. This sander can process workpieces up to 37" wide. It also handles a wide range of general sanding tasks with consistent, reliable results. The steel drum and combination sanding head provide an extremely smooth and high-quality finish on workpieces.

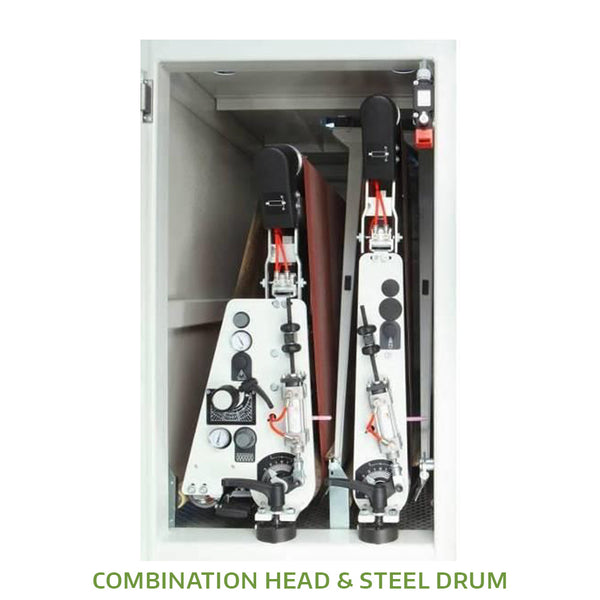

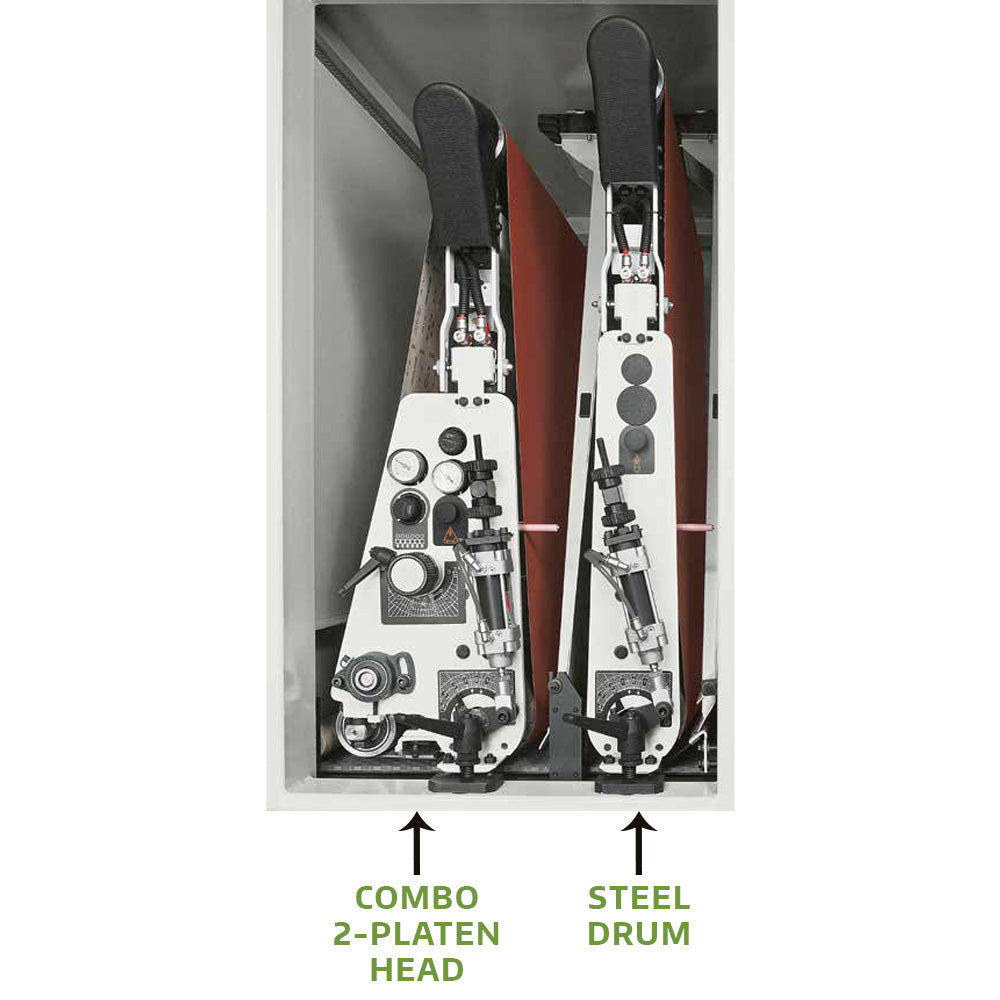

The rigid steel drum and the versatile combination sanding head working together give this wide belt sander the flexibility to handle a wide range of sanding tasks with confidence. The steel drum provides the firm, consistent pressure needed for accurate thickness calibration and efficient material removal, even on wood with uneven grain. The combination head refines the surface for a smoother, more uniform finish.

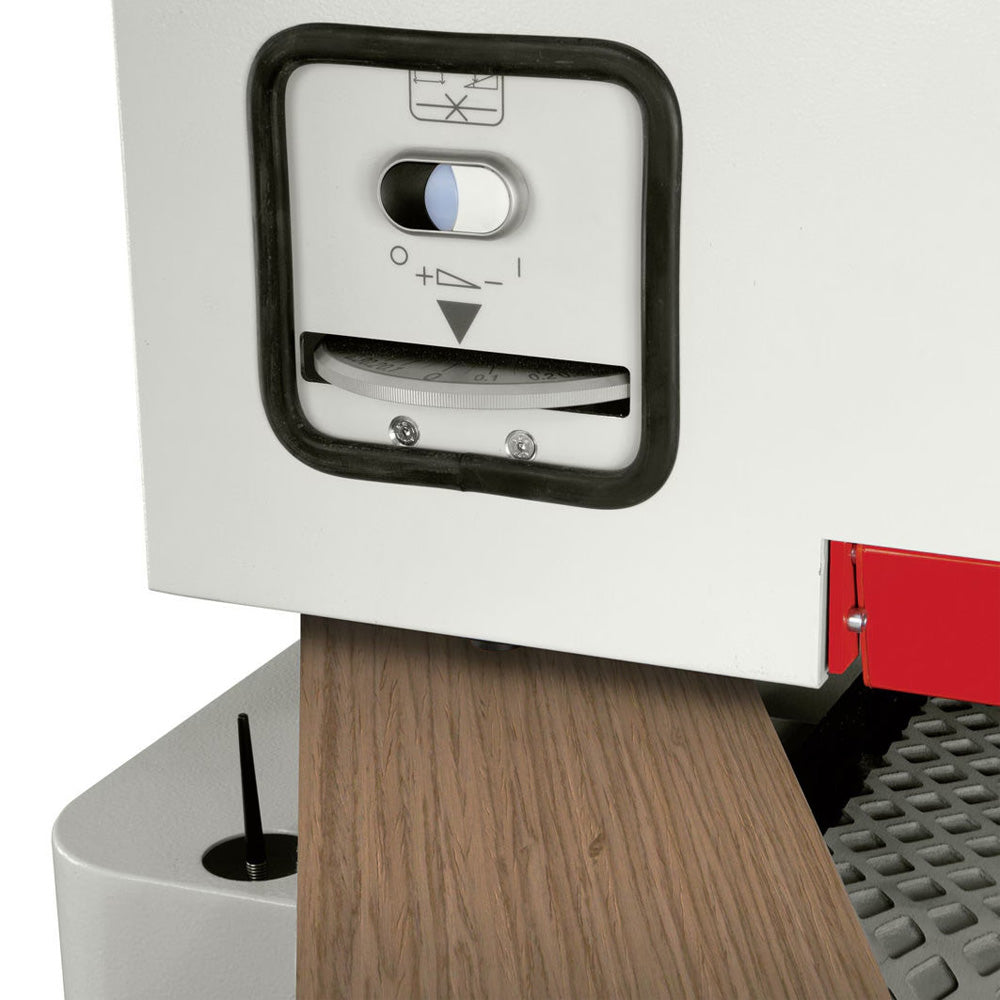

The DMC SD 30 can automatically detect the thickness of a workpiece and adjust the table height accordingly. This feature is particularly useful in furniture, door, and millwork production form consistent and precise results. This system also features a dial for decimal adjustment, giving you the option to manually set stock removal.

The "CS" combined unit is the key to the flexibility of the DMC SD 30. The ability to use the sanding roller and pad either independently or together allows the machine to deliver consistently high-quality results across a wide range of applications.

Features
  • Rubber-coated pressing rollers before and after sanding head for even feeding
  • 1HP feed unit inverter motor
  • Flexible, steel hold-down and anti-kickback plate on infeed table
  • Control panel allows operator to select desired working unit(s)

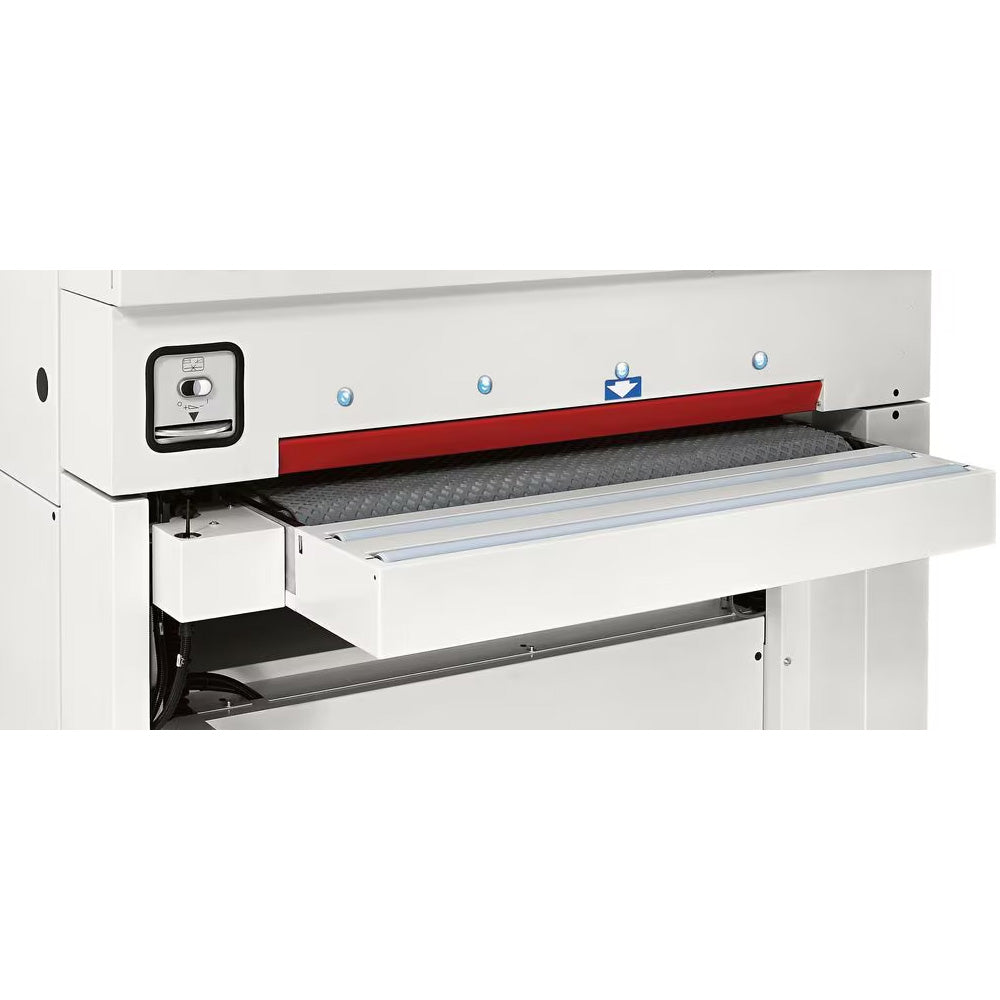

  • LED panel introduction indicator clearly shows the operator where and when to feed the panel, helping optimize abrasive belt wear
  • Automatic table thickness detection
  • Belt oscillation system ensures uniformity and reduces risk of breakage
  • Electronic table positioning allows quick, accurate height adjustments
  • Heavy-duty powered table lift uses four motors and rigid lifting columns secured at both the top and bottom for exceptional stability and parallelism
  • Pneumatic belt tensioning with a center fulcrum automatically compensates for abrasive belt taper, ensuring consistent tracking and sanding pressure

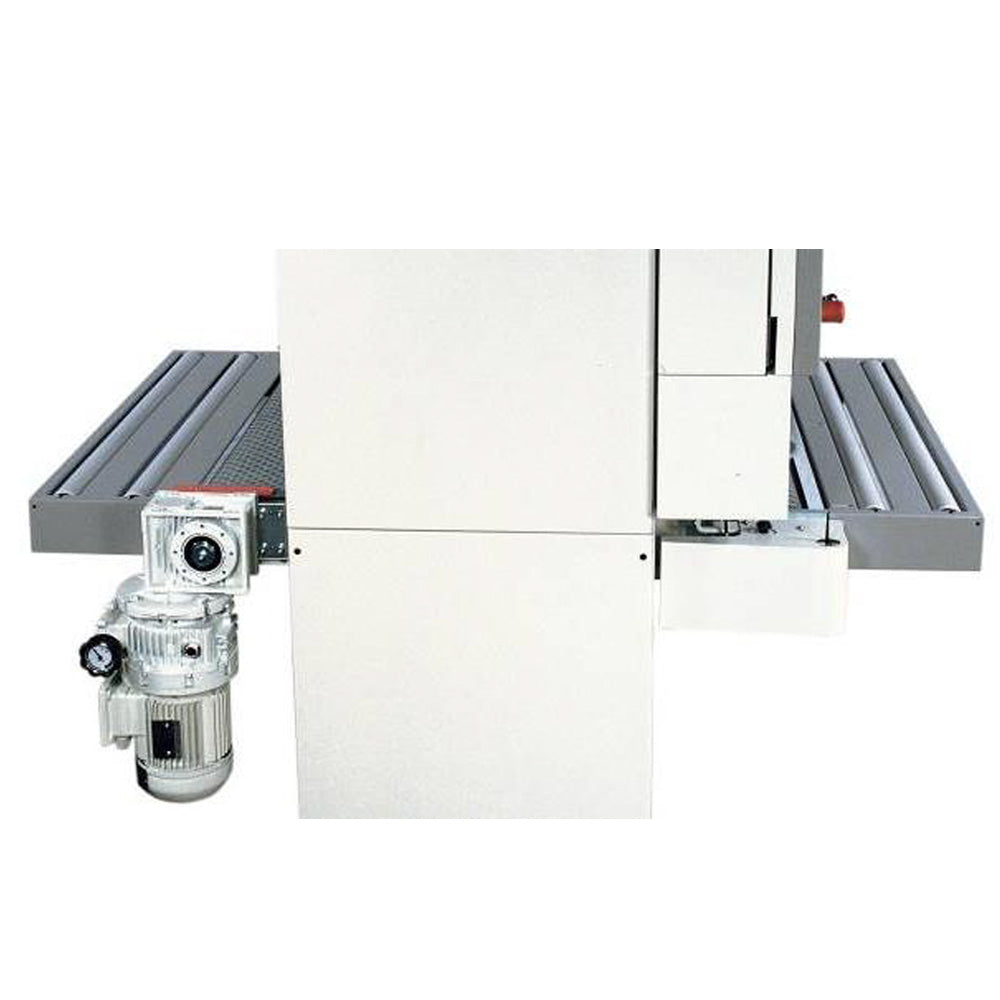

  • Infeed and outfeed roller tables

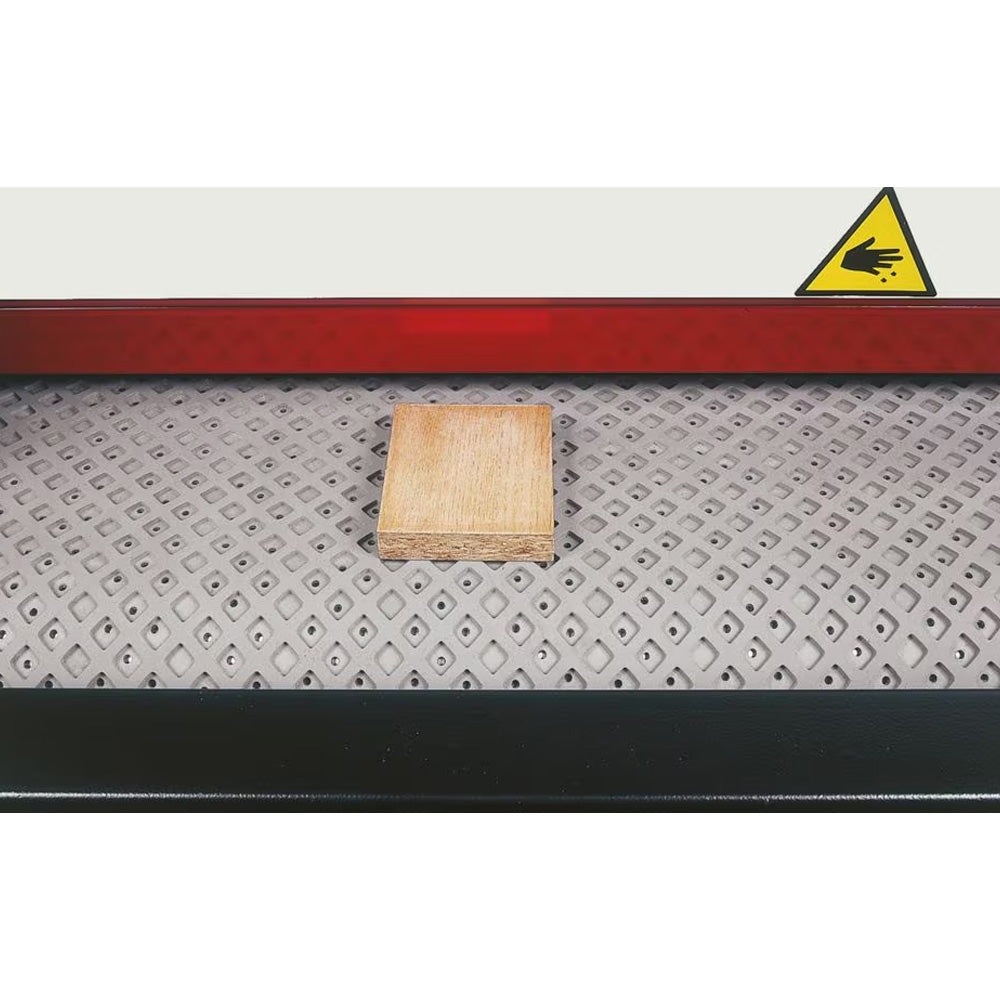

  • Natural rubber vacuum table with diamond-shaped belt provides the best traction
  • 50 shore, negative profile (waffle-style) rubber feed mat
  • LOGIC 50 K Electronic Programmer for timing/anti-dubbing the pad
  • Front and rear emergency stop buttons
Specs

Main motor: 30hp
Feed motor: 1hp Inverter
Feed speeds: 15 or 30 FPM
Working width: 37” (950mm)
Drum size: 4.75" (120mm)
Max. workpiece thickness: 6.69" (170mm)
Min. workpiece length: 12.5" (317.5mm)
Abrasive belt length: 75"
Abrasive belt size: 37" x 75"
Platen size: 2" (50mm)
Dust outlet size (x2): 5.5" (140mm)
Min. dust extraction: 1,800 CFM
Overall dimensions (L x W x H): 65.4" x 74" x 84.6"
Gross weight: 2,619 lbs.
*Electrical requirements: 230V, 3-phase, 80 A

*Subject to change; must be verified prior to installation.
