SCM DMC SD 30 CS 110 43" Single Head Wide Belt Sander
- Price
- $ 38,480
Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com
Made in Italy. Ships from the United States.
- Dock to dock freight included in price*
- Low stock as of 2.11.26**
Designed for small- to medium-sized woodworking shops, the DMC SD 30 CS 110 Wide Belt Sander is well suited for calibrating and sanding solid wood, as well as veneered panels. This sander can process workpieces up to 43" wide. With features like automatic thickness detection, a traction surface belt, and a sturdy steel main frame, the DMC SD 30 will optimize your workspace.

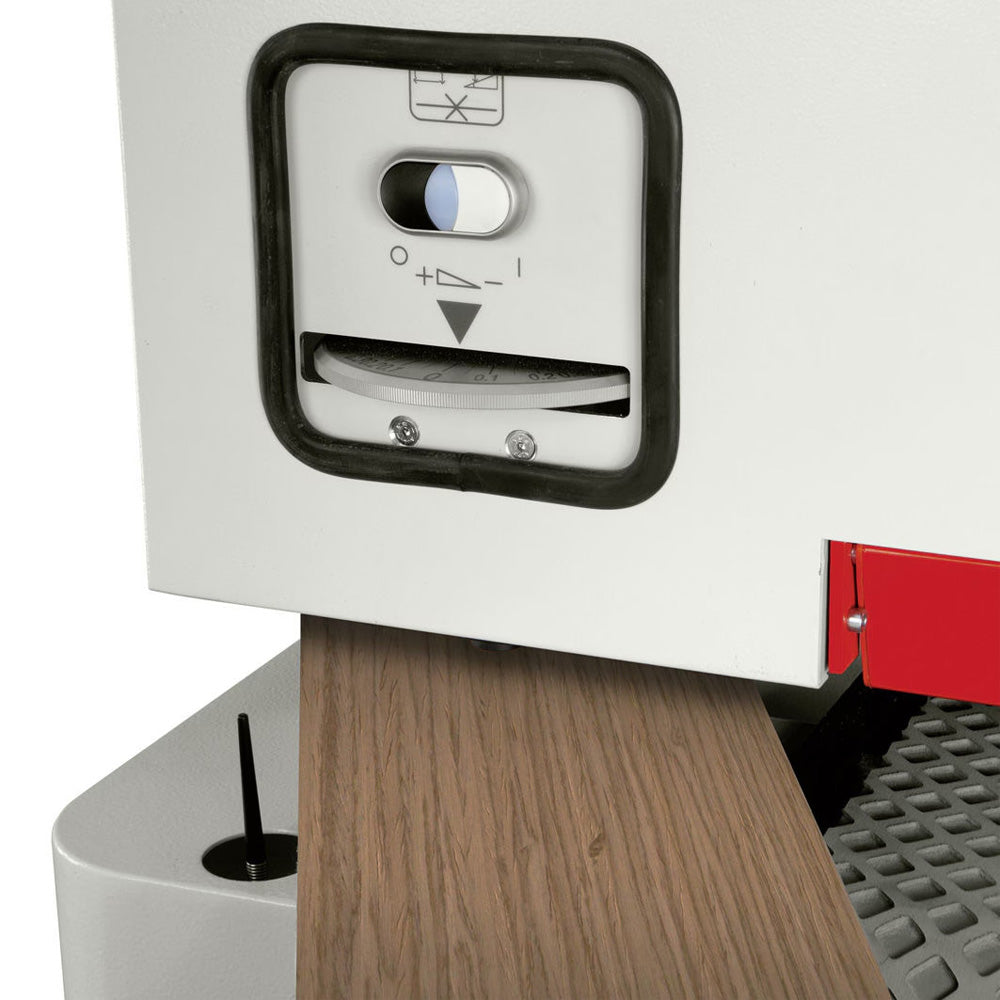

The DMC SD 30 can automatically detect the thickness of a workpiece and adjust the table height accordingly. This feature is particularly useful in furniture, door, and millwork production form consistent and precise results. This system also features a dial for decimal adjustment, giving you the option to manually set stock removal.

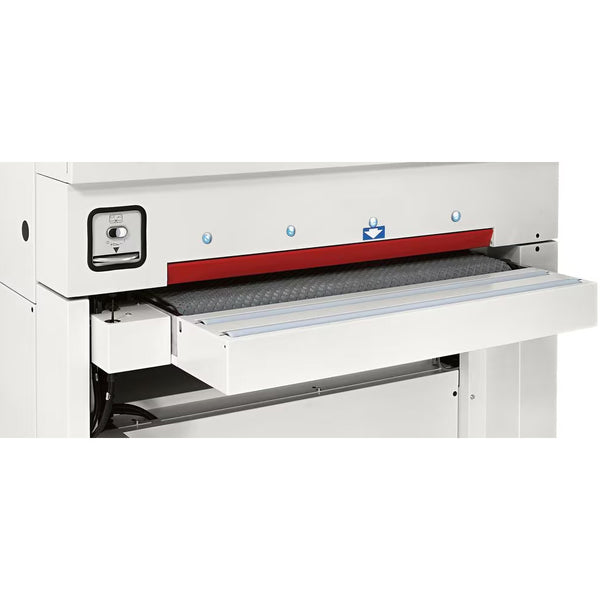

Workpiece feeding on the DMC SD 30 is stable and secure. Along with an idle infeed roller, this machine also features a diamond-shaped belt. The special geometry of this diamond-shaped profile provides the best traction surface to prevent the workpiece from slipping during feeding. The outfeed roller provides the perfect amount of pressure, especially for short and narrow workpieces.

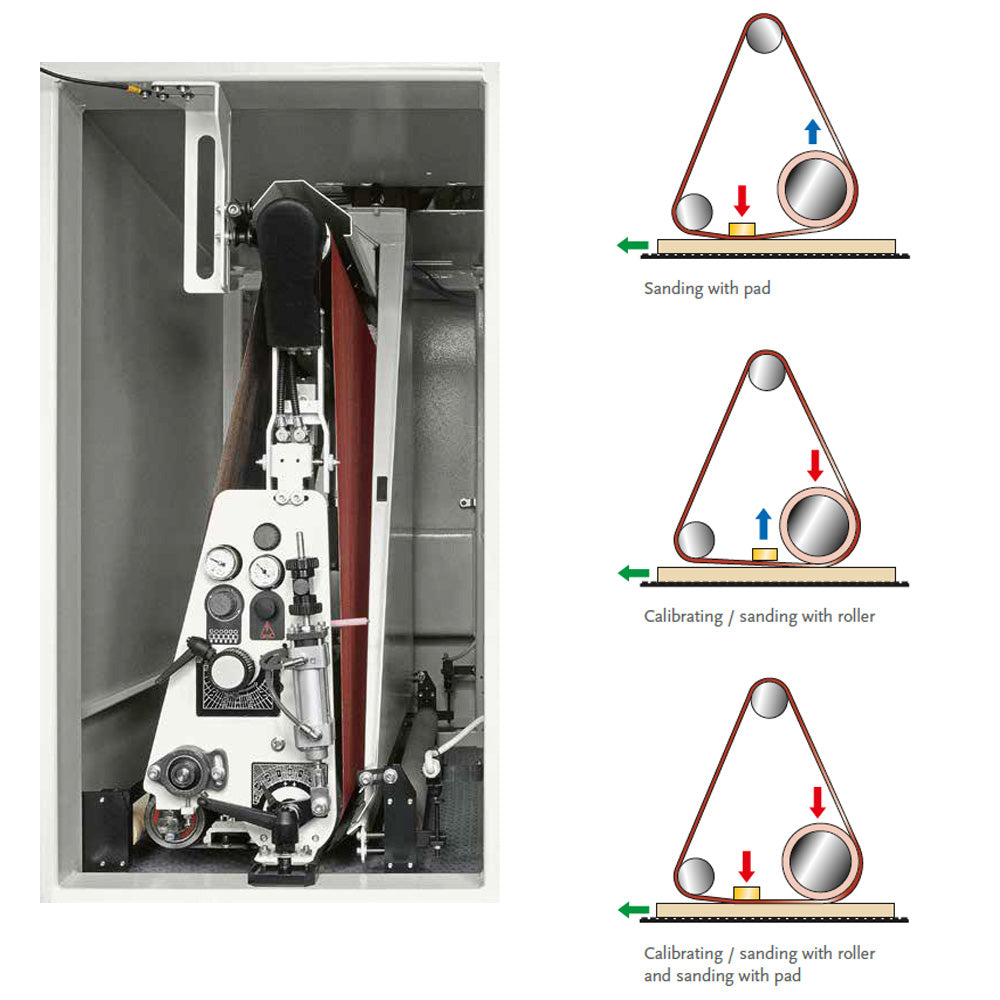

The "CS" combined unit is the key to the flexibility of the DMC SD 30. The ability to use the sanding roller and pad either independently or together allows the machine to deliver consistently high-quality results across a wide range of applications.
Features
- Rubber-coated pressing rollers before and after sanding head for even feeding
- 1HP feed unit inverter motor
- Flexible, steel hold-down and anti-kickback plate on infeed table
- Control panel allows operator to select desired working unit(s)
- LED panel introduction indicator clearly shows the operator where and when to feed the panel, helping optimize abrasive belt wear
- Automatic table thickness detection
- Belt oscillation system ensures uniformity and reduces risk of breakage
- Electronic table positioning allows quick, accurate height adjustments
- Heavy-duty powered table lift uses four motors and rigid lifting columns secured at both the top and bottom for exceptional stability and parallelism
- Pneumatic belt tensioning with a center fulcrum automatically compensates for abrasive belt taper, ensuring consistent tracking and sanding pressure
- Infeed and outfeed roller tables
- Natural rubber vacuum table with diamond-shaped belt provides the best traction
- 50 shore, negative profile (waffle-style) rubber feed mat
- LOGIC 50 K Electronic Programmer for timing/anti-dubbing the pad
- Front and rear emergency stop buttons
Specs
Main motor: 24hp
Feed motor: 1hp
Feed speeds: 15 or 30 FPM
Working width: 43” (1,100mm)
Drum size: 4.75" (120mm)
Max. workpiece thickness: 6.69" (170mm)
Min. workpiece length: 12.5" (317.5mm)
Abrasive belt length: 75"
Abrasive belt size: 43" x 75"
Platen size: 2" (50mm)
Dust outlet size: 5.5" (140mm)
Min. dust extraction: 900 CFM
Overall dimensions (L x W x H): 65.4" x 74" x 84.6"
Gross weight: 2,707 lbs.
*Electrical requirements: 230V, 3-phase, 87 A
*Subject to change; must be verified prior to installation.
