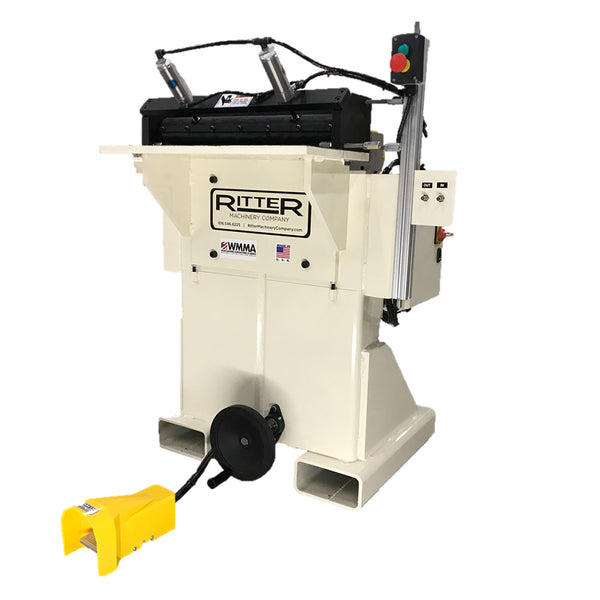

Ritter R853 13 Spindle Horizontal/Vertical Line-Dowel Drill/Drawer Drill

$ 16,390

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*

The Ritter R853 is a robust 13 spindle horizontal borer, designed to provide for fast and accurate horizontal and vertical boring for drawer boxes. The operation sequence helps eliminate costly mistakes and rejected parts, and it helps increase production and efficiency. Ideal for drawer assembly, and other functions for the clean and accurate drilling of wood components. The machine is equipped with a universal clamping system requiring no set-up change from horizontal to vertical boring. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.

  • Foot Actuated Drilling and Clamping Cycle
  • (13)-Spindle Gear Head
  • 32mm Spindle Centers on Gear Head
  • (7) Right Hand, (6) Left Hand
  • 10mm Bored Collets
  • 2 HP Spindle Drive Motor, TEFC
  • 0-2″ Adjustable Boring Depth Turret
  • 1/2″ – 3/4″ Thick Drawer Box Sides
  • 14″ Maximum Drawer Box Height
  • 12″ X 24″ Machined Steel Work Table
  • 34″ Work Height
  • Horizontal / Vertical Boring Fence System
  • Horizontal / Vertical Material Clamp System
  • Wired 3-Phase 230 Volt, 60 Hz.
  • Tooling Not Included
  • Designed and Manufactured in the USA


Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.


SKU: R853
