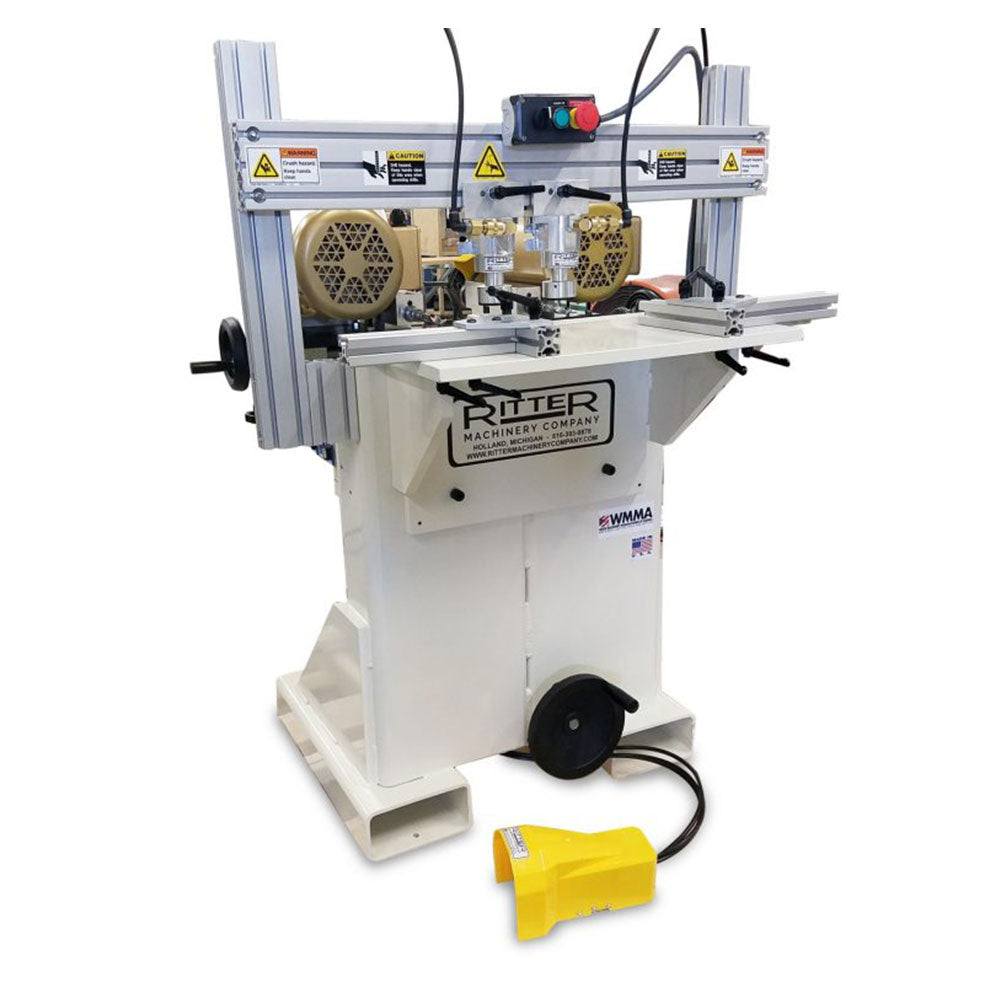

The Ritter R8023 is a robust, two-spindle, twin motor horizontal borer, known for being a workhorse in the shop. The many uses of this machine include stile and rail drilling, furniture doweling, line boring, table pin locating, and other functions for the clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.
[TABS]
Features
- (2) 1 HP Spindle Drive Motors, TEFC
- Right Angle Tee Fence Set
- (2)-Single Spindle Boring Head
- 2″-11″ Adjustable Spindle Centers
- 7/16-14 R/H Female Threaded Collets
- 0-3″ Adjustable Boring Depth
- 0-2″ Spindle Height Adjustment
- 36″ Fixed Work Table Height
- 12″ X 24″ Machined Steel Work Table
- (2) 2.00″ Bore Clamping Cylinder
- (2) End Boring T-Fences
- Manual Motor Controls
- Wired Single Phase 220, 60 Hz.
- Foot Pedal Actuated Boring Cycle
- Tooling Not Included
- Designed and Manufactured in the USA
[/TABS]
