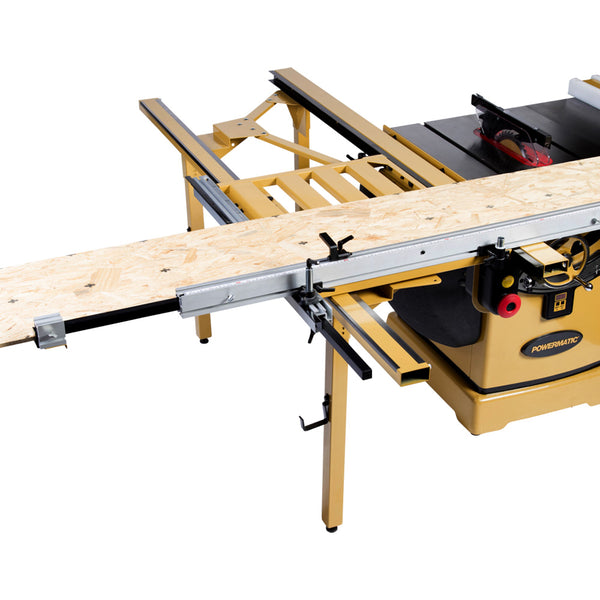

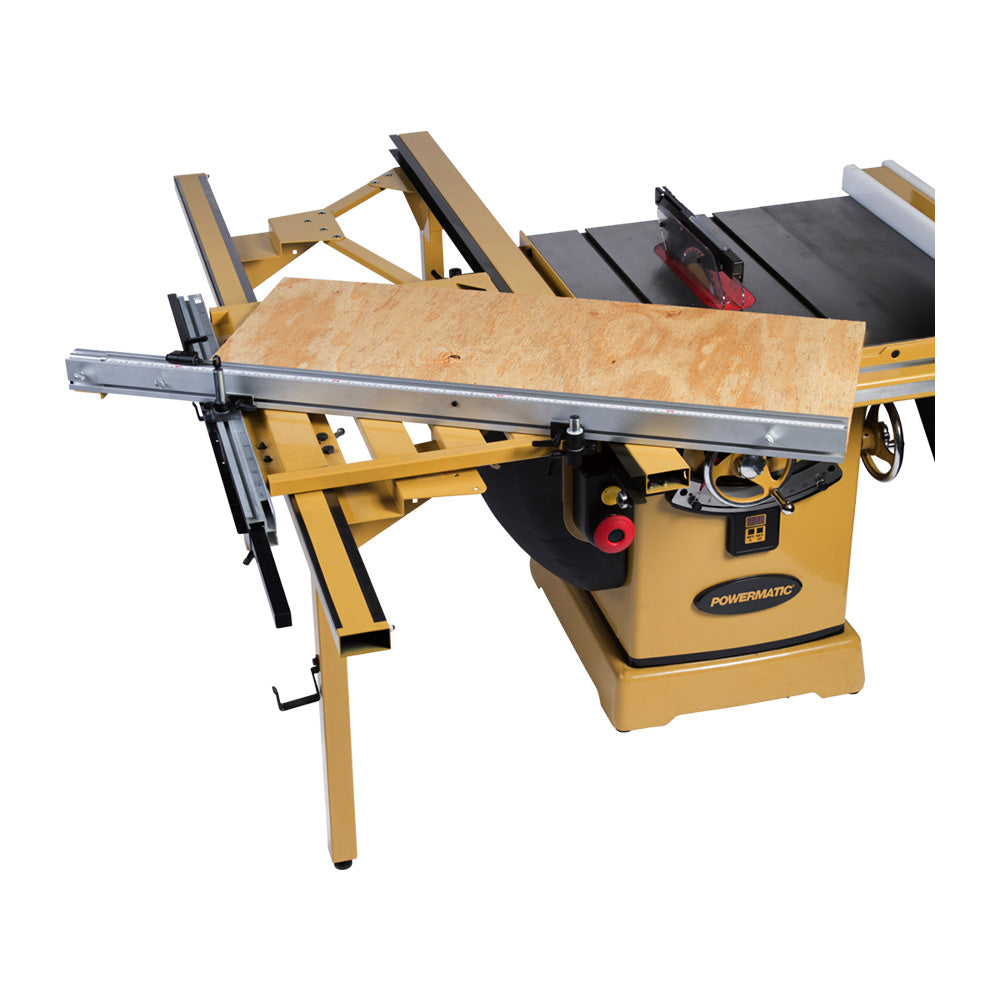

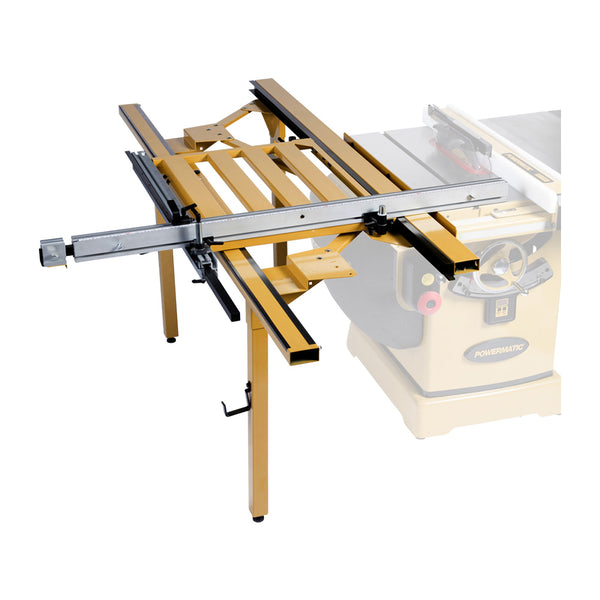

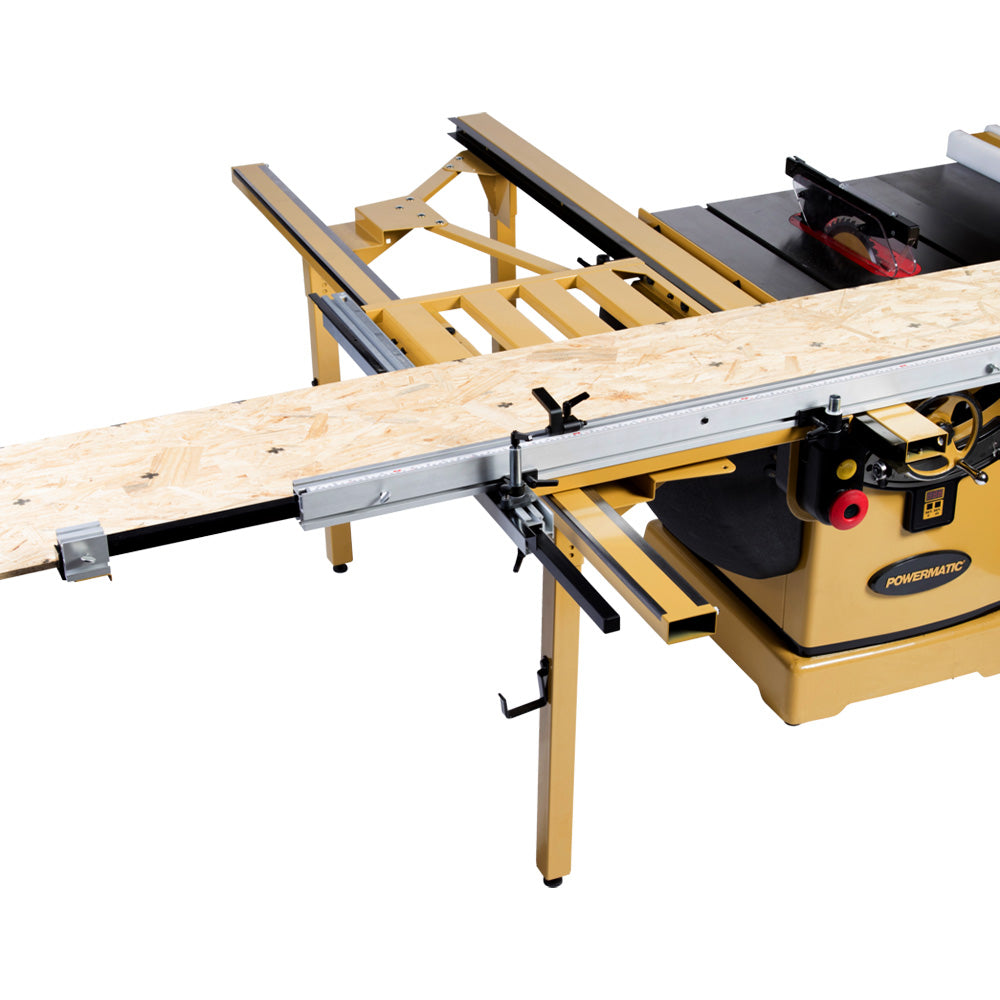

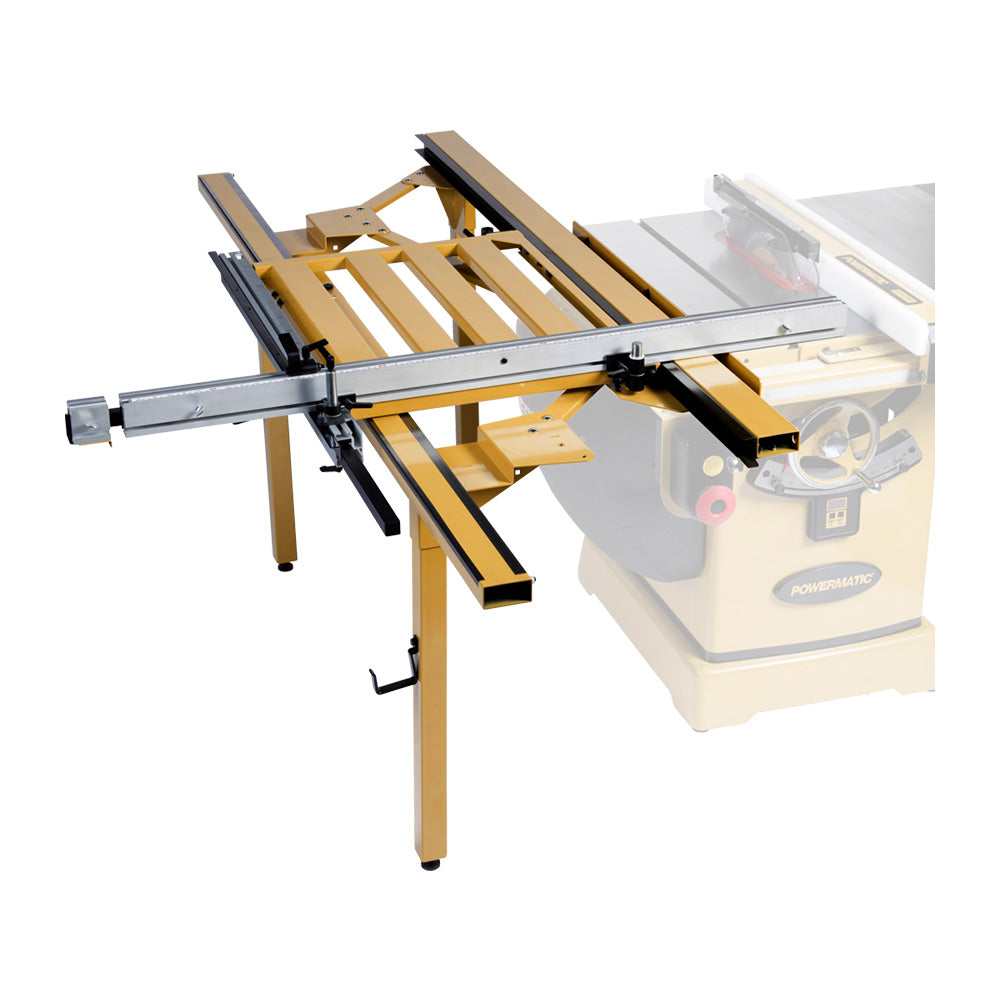

Powermatic PMST-48 Sliding Table Saw Attachment

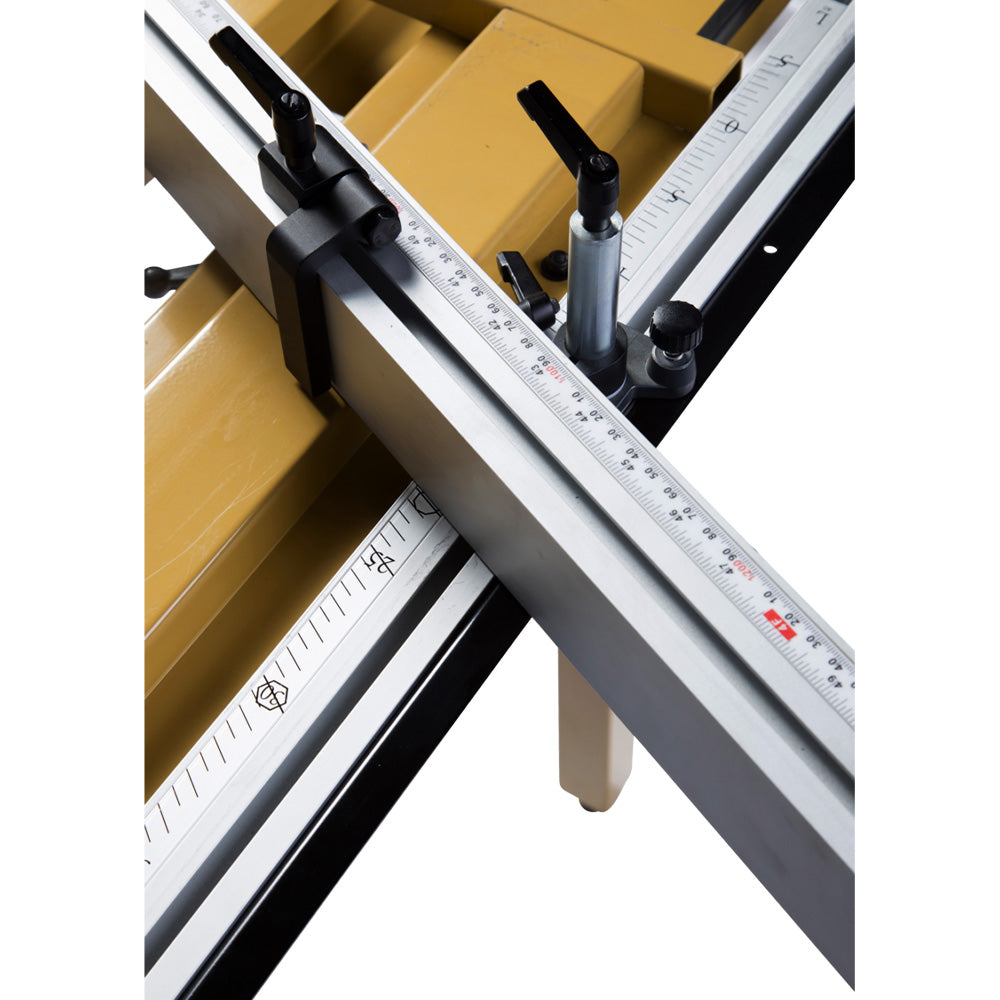

• Extruded aluminum crosscut fence slides on table and quickly adjusts to varying angles
• Fence holders on tube legs assist in storing fence when not in use
• Fits 2000B and 3000B Powermatic Table Saws
• Max rip capacity with fence in the front position is 39” and 41" to 49” with fence in the rear position
• Maximum table travel is 62-1/2" and miter angle adjusts from 0 to 50° with six hard stops
• Quick locking fence lever easily locks and secures fence

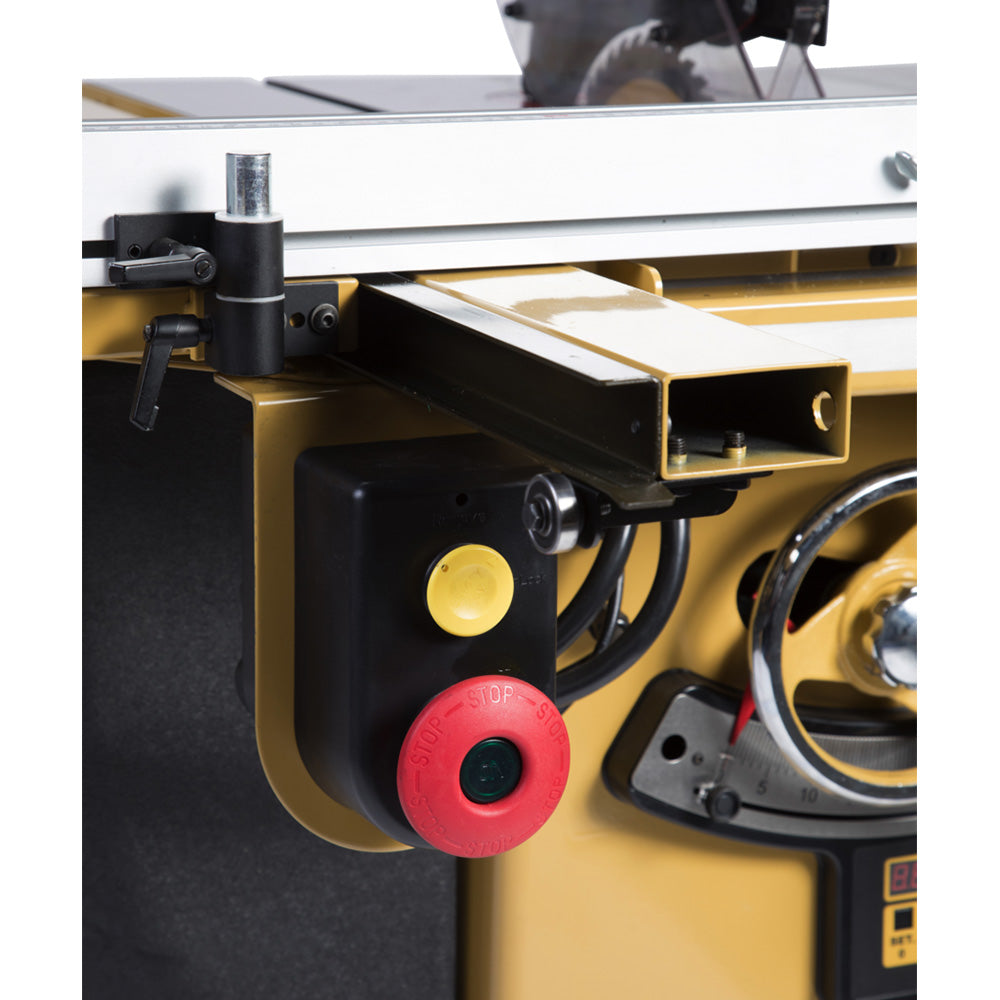

• Relocate the power switch box for better access with the added mounting plate and hardware
• Sealed Ball bearings roll in a precision bearing track system for controlled operation
• Steel constructed main frame, table mounting brackets and tube legs create a robust platform and supports large materials

Rip capacity (front): 39" (991 mm)
Rip capacity - panel clears blade (rear): 41" (1,041 mm)
Rip capacity - panel does not clear blade (rear): 49" (1,245 mm)
Crosscut fence length: 56-1/2" (1,435 mm)
Crosscut fence length with extension: 91" (2,314 mm)
Table travel: 62-1/2" (1,587 mm)
Miter angle range: 0-50°
Miter angle hard stops: 15°, 22.5°, 30°, 45°, 50°, 90°
Net weight (assembled): 143 lbs.
Shipping dimensions: 87" x 11" x 5"
