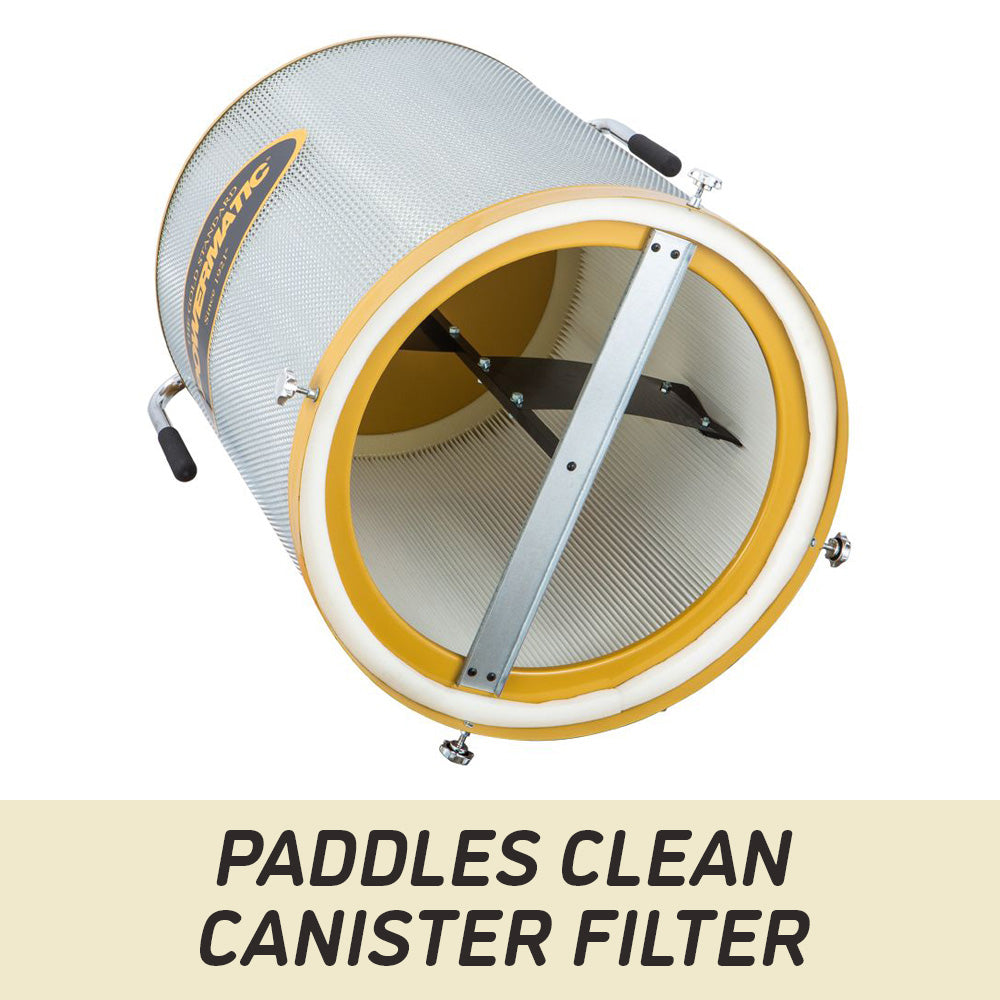

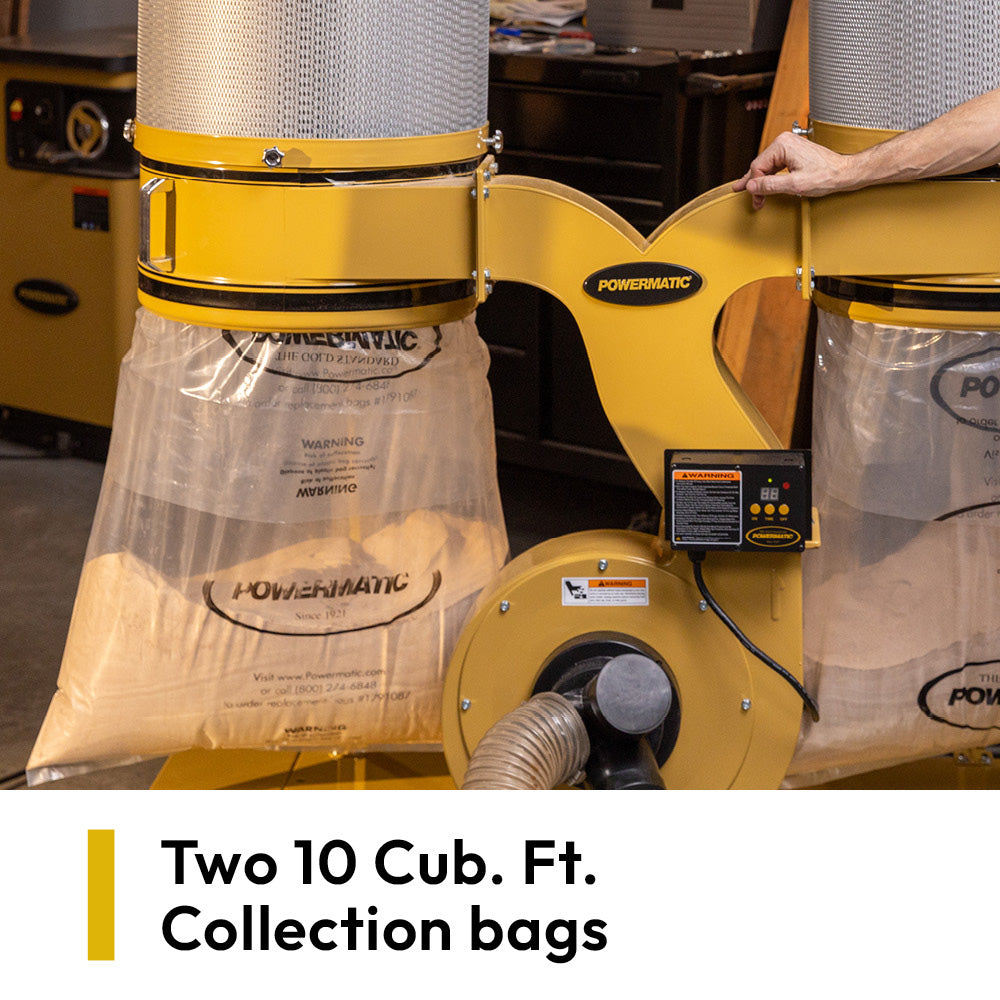

The PM1900 Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
[TABS]
Features
- 30-micron filter bags for improved capture of fine dust particles
- All-metal duct construction for rigidity and improved air flow
- Eliminates premature filter clogging for sustained performance

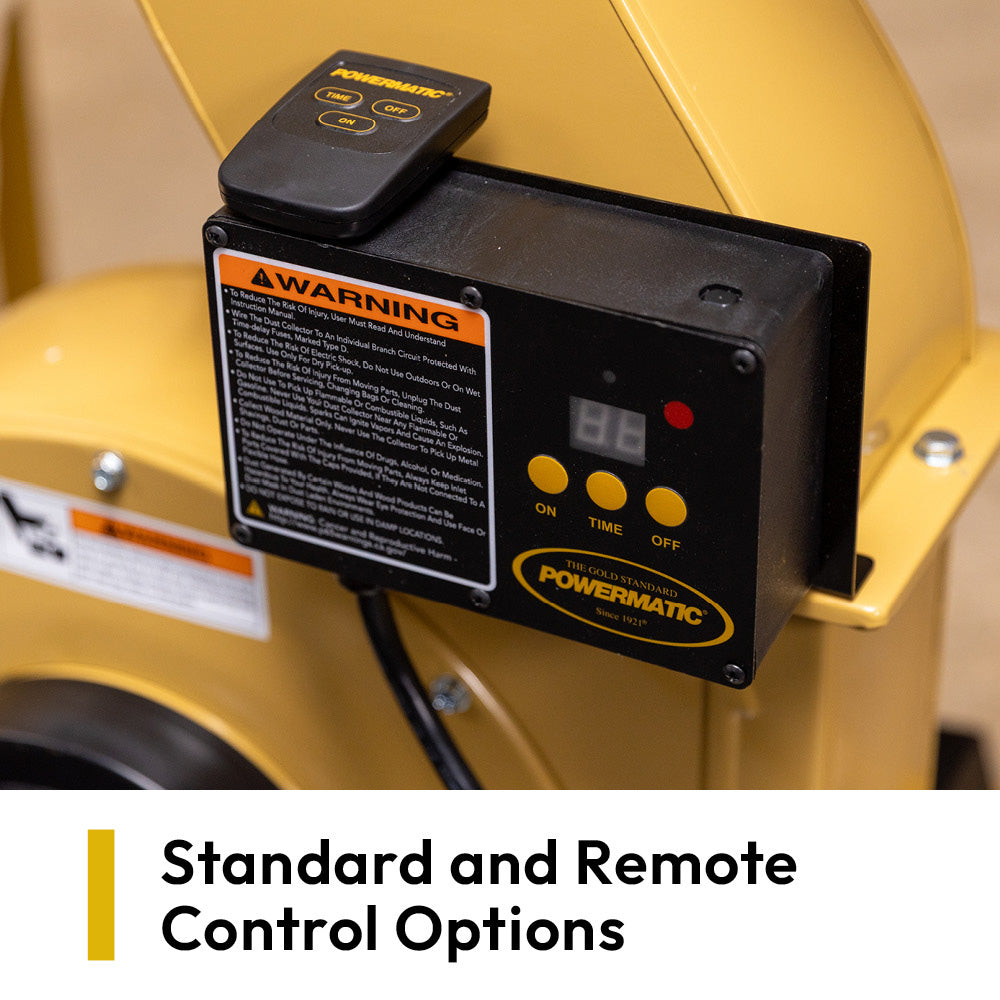

- Remote-controlled digital timer can be programmed for up to 99 minutes
- Cone eliminates premature filter clogging for sustained performance
- The steel impeller is powered by a 3HP motor for peak performance

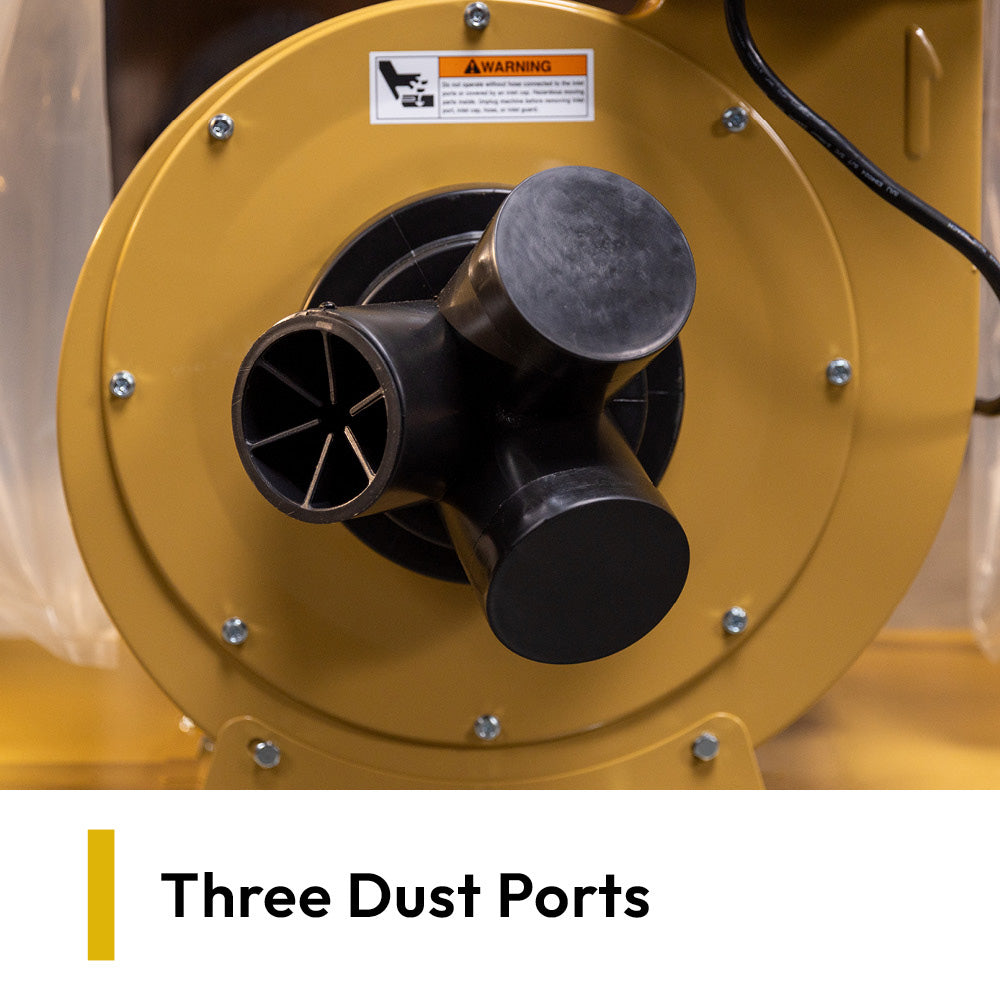

- Triple 4” dust ports allow for several hoses to be attached at the same time
- TurboCone™ improves chip separation and collector bag packing efficiency
Specs
1-Hose Connection Diameter (In.): 8
3-Hoses Connection Diameter (In.): 4
Bag Diameter (In.): 20
Collection Bag Length (In.): 30
Efficiency (Micron): 2
Filter Bag/Canister Length (In.): 26
Gross Weight (Lbs): 272
Impeller Diameter (In.): 14
Impeller Fins: 7
Impeller Material: Steel
Motor Amps: 15
Motor Phase: 1
Motor Power (HP): 3
Motor Voltage (V.): 230
Net Weight (Lbs.): 268
Overall Dimensions (L x W x H) (In.): 61 x 30 x 72
Prewired Voltage (V.): 230
Recommended Circuit Size (Amps.): 30
Sound Rating (Db.): 86-92
Static Pressure (Wc.): 12.15
Style (Type): Dust Collector
[/TABS]
