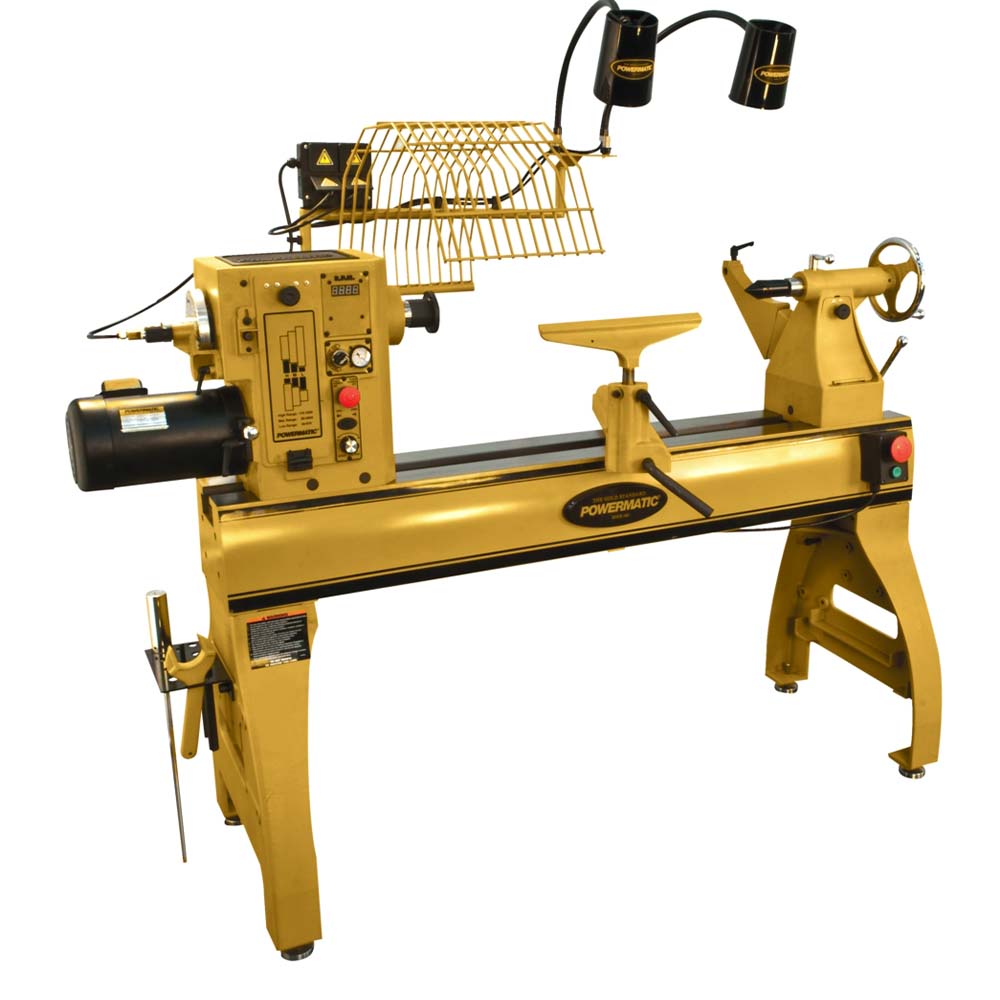

The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
| Style (Type) | Leg Stand |
| Swing Over Bed (In.) | 24 |
| Swing Over Tool Rest Base (In.) | 21 |
| Distance Between Centers (In.) | 42 |
| Headstock Movement | Full Length of Bed |
| Spindle Bore | 5/8 |

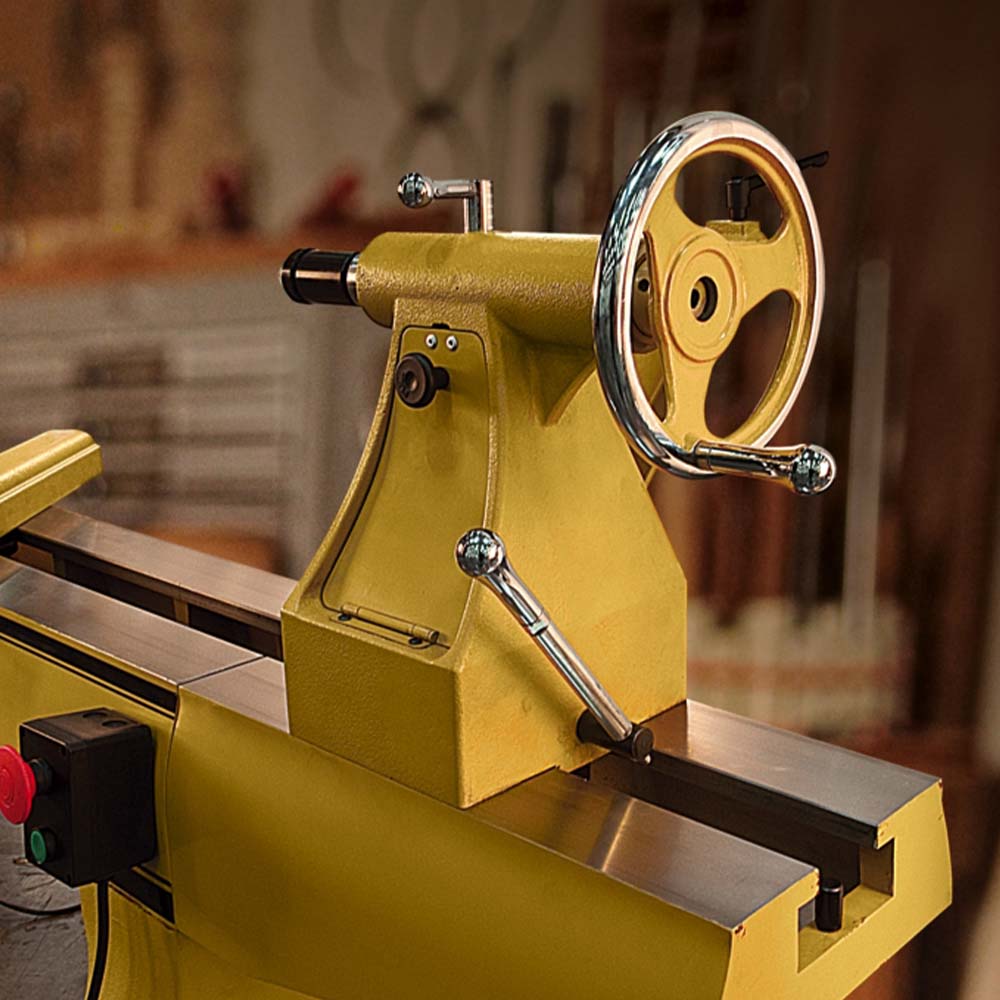

| Tailstock Bore | 3/8 |
| Spindle Taper | MT-2 |
| Quill Taper | MT-2 |
| Ram Travel Quill Travel | 4-1/2 |
| Spindle Threads (In. x TPI) | 1-1/4" x 8 TPI |

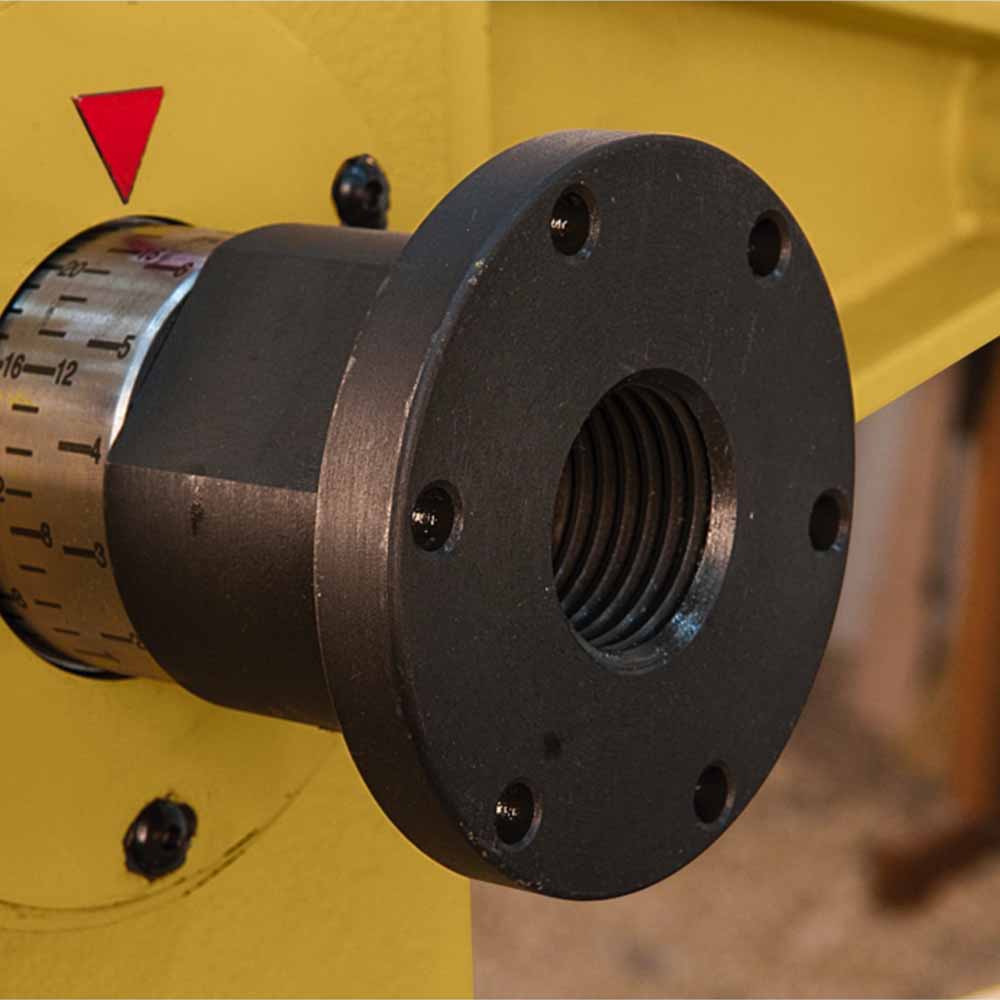

| Outboard External Threads (In. x TPI) | M35 x 1.5 UNF |

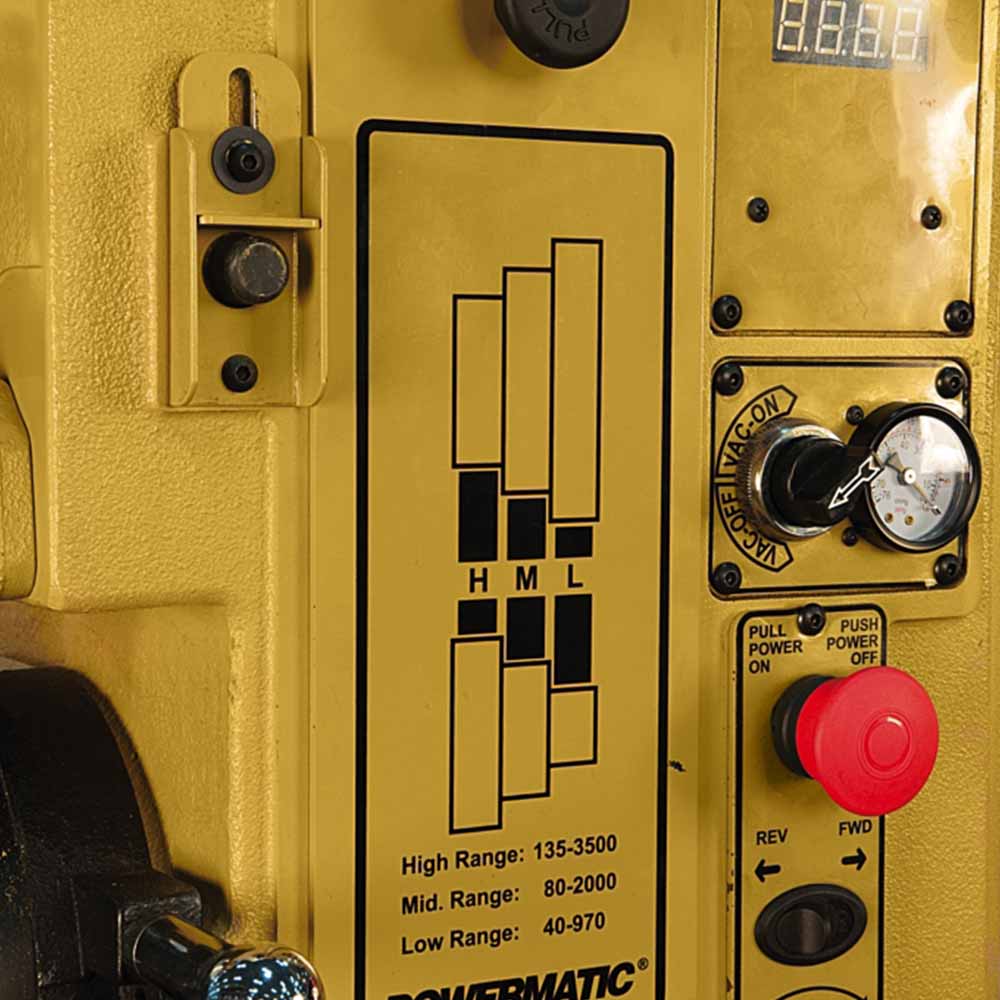

| Spindle Speeds | High 135-3500/Med 80-2000/Low 40-970 |
| Speed Range | 40-3500 |

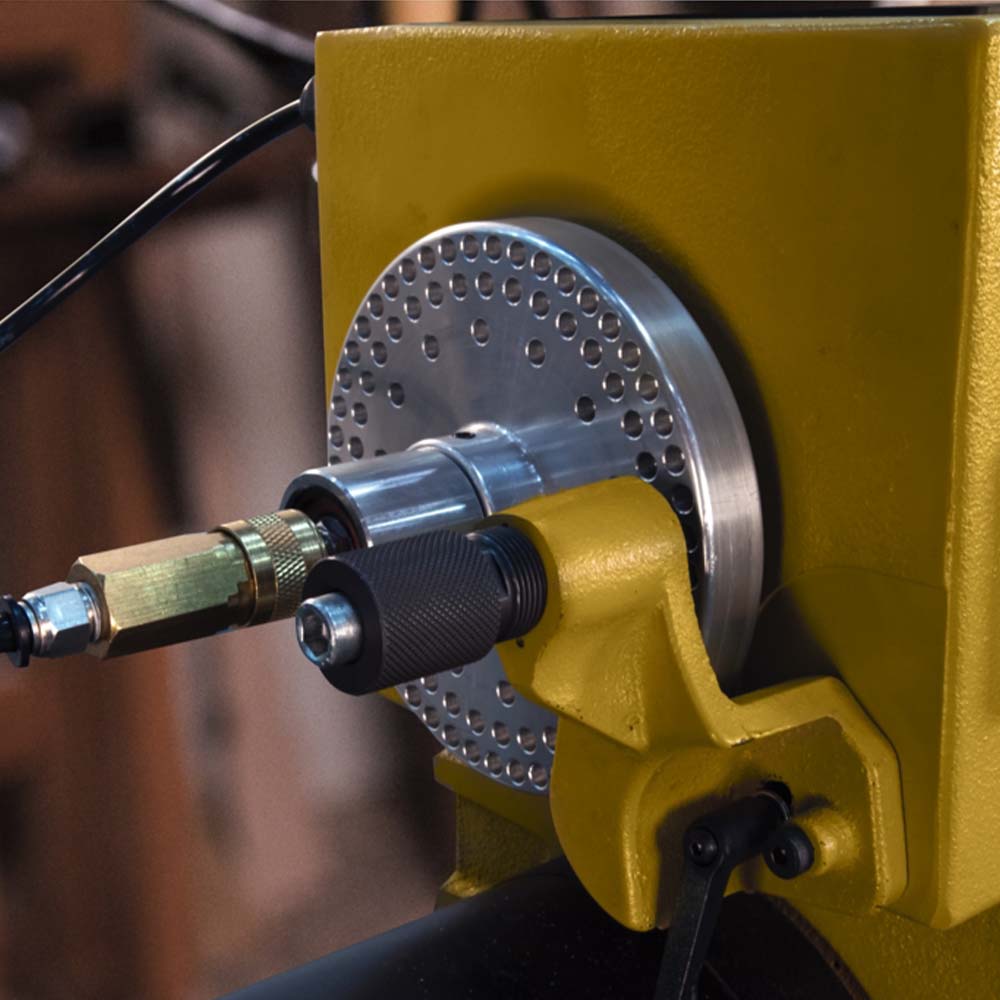

| Number of Indexing Positions | 98 |
| Centerline of Spindle to Floor (In.) | 44 |

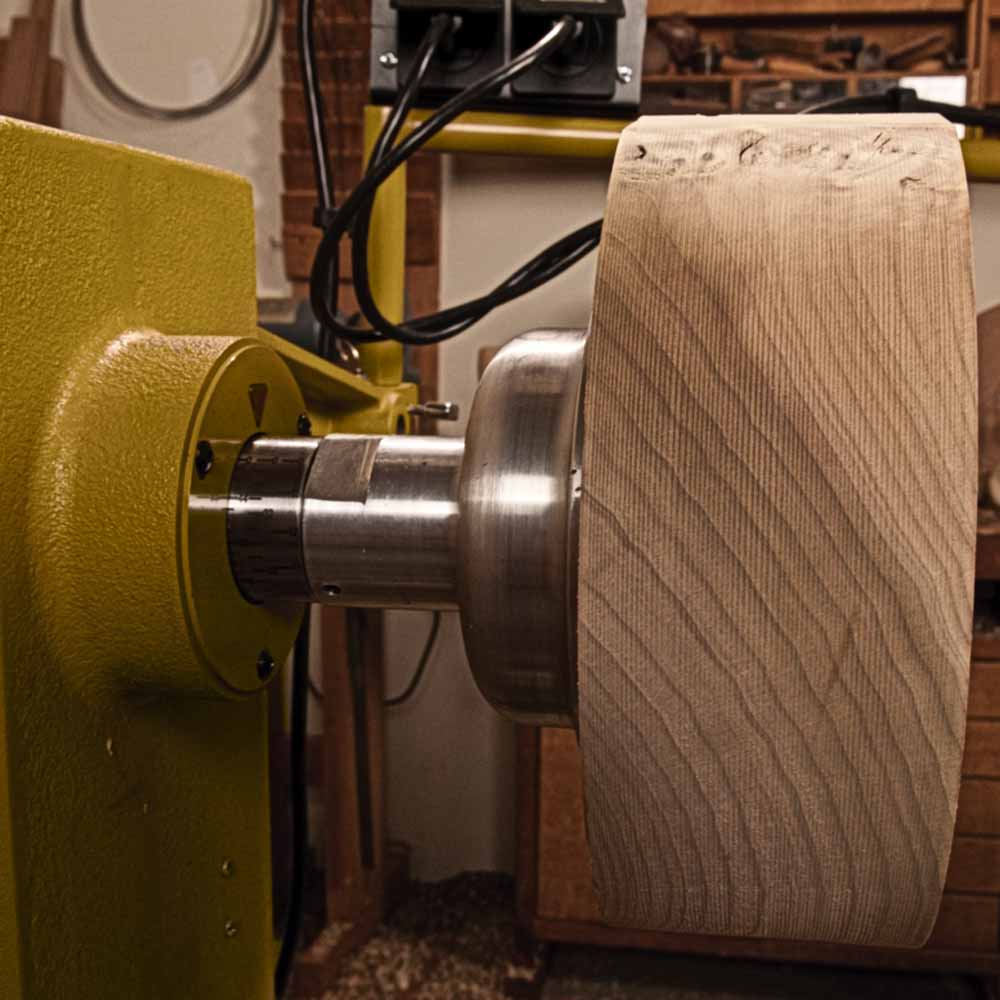

| Outboard Turning | 88 |
| Bed Construction | Cast Iron |
| Motor Power (HP) | 3 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 only |
| Wiring Remarks | VFD will accept 1 or 3 phase power |
| Motor Current (Amps) | 10 |
| Recommended Circuit Size (Amps.) | 30 |
