Powermatic 1632 Open End Belt Sander 5hp, 1ph, 230v

$ 8,899.99

Have questions? Give us a call at 260-637-0054.

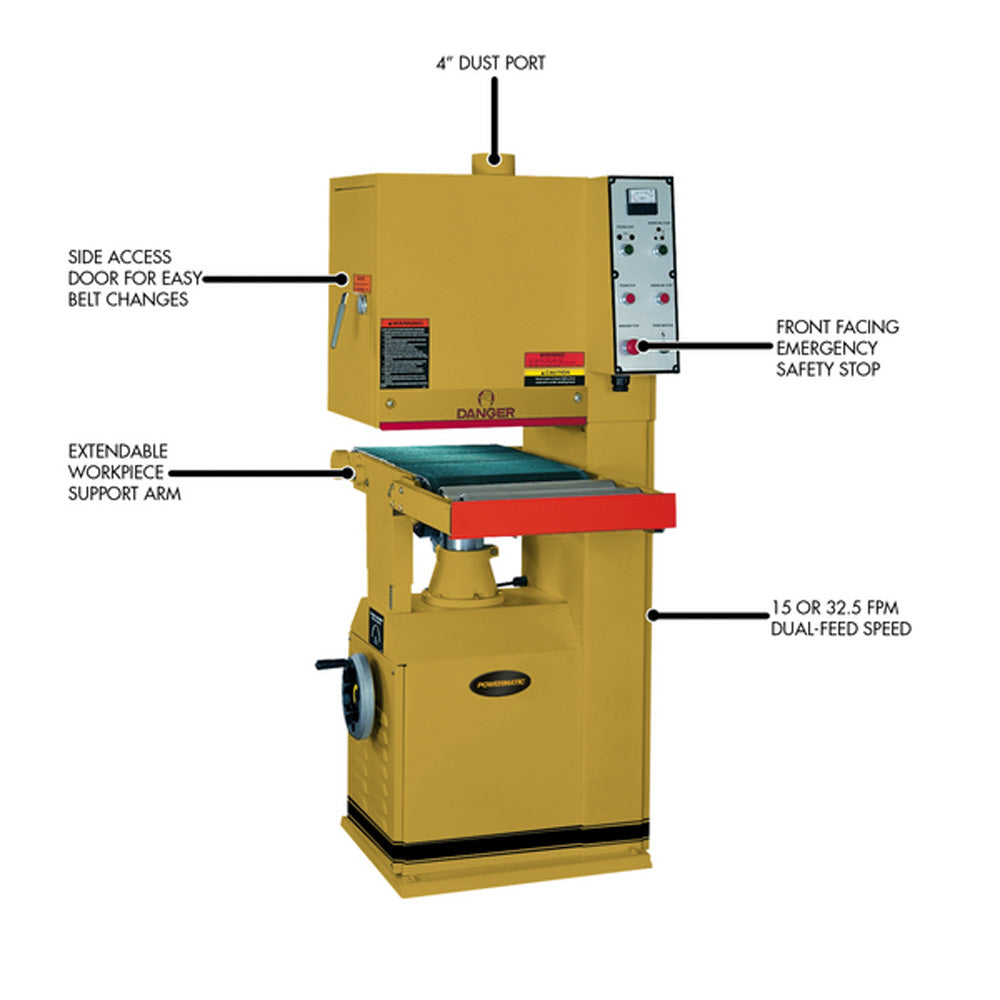

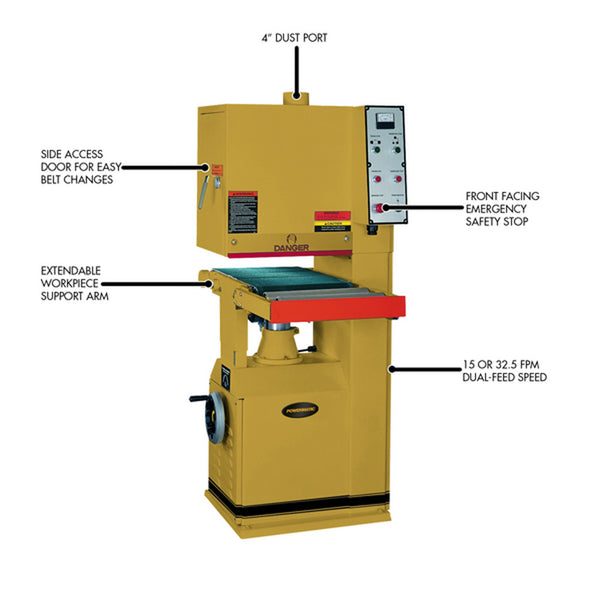

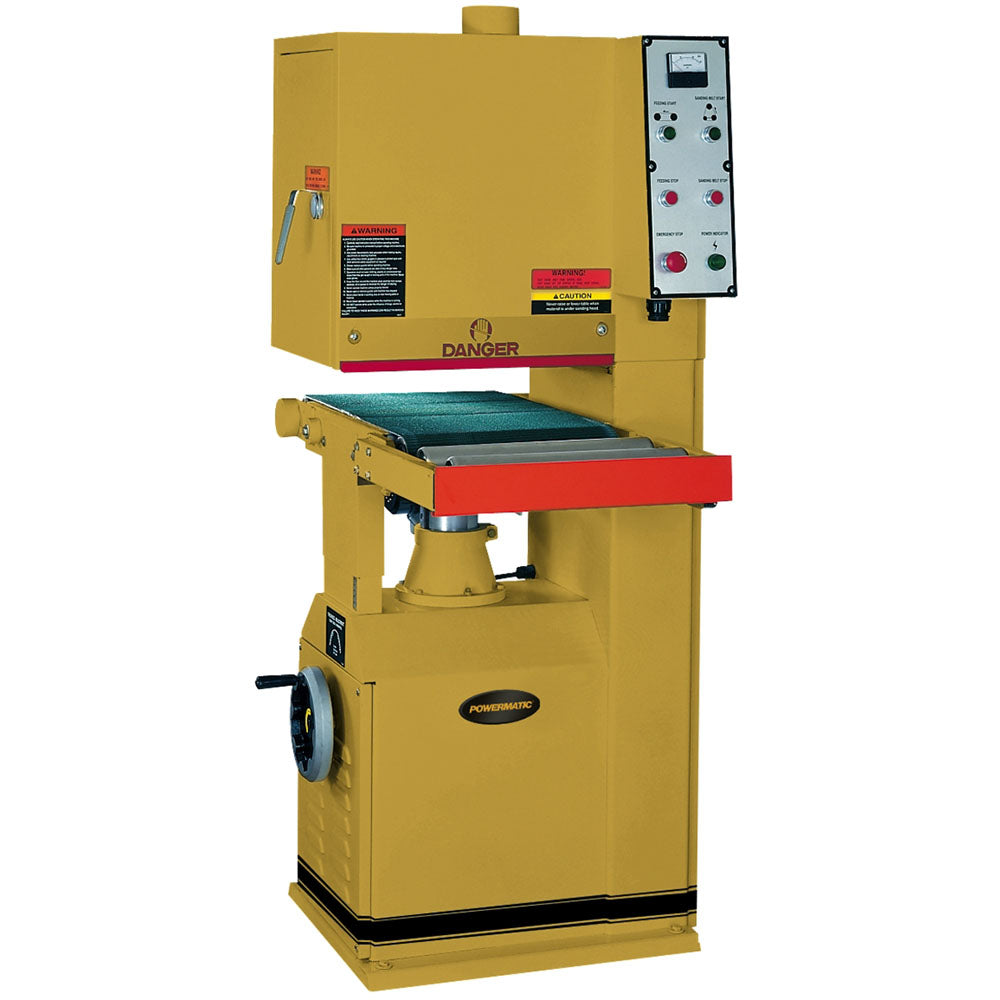

The 16" Open-End Belt Sander has front-mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

  • Air pressured oscillating movement for smoother surfaces
  • Choose from 15 or 32.5 FPM dual feed speed
  • Conveniently mounted load meter maintains constant check during operation
  • Extendable workpiece support arm
  • Front facing emergency safety stop
  • Limiters will stop sander instantly if belt breakage occurs
  • Pneumatic sanding belt tracking keeps belt centered
  • Side access door for easy belt changes
  • Combination head promotes a more consistent finish

Style (Type): Open End Belt
Max. Board Width: 32"
Max. Board Thickness: 5"
Min. Board Length: 13-3/4"
Feed Rate (FPM): 15/32.5
Sanding Belt Speed (FPM):  2,200
Sanding Belt Size: 17" x 54"
Air Required:  4 at 5 atm
Dust Collection Min. CFM Required (CFM):  800
Dust Port Outside Diameter: 4"
Feed Motor Power (HP): 1/4

SKU: PM9-1791250
