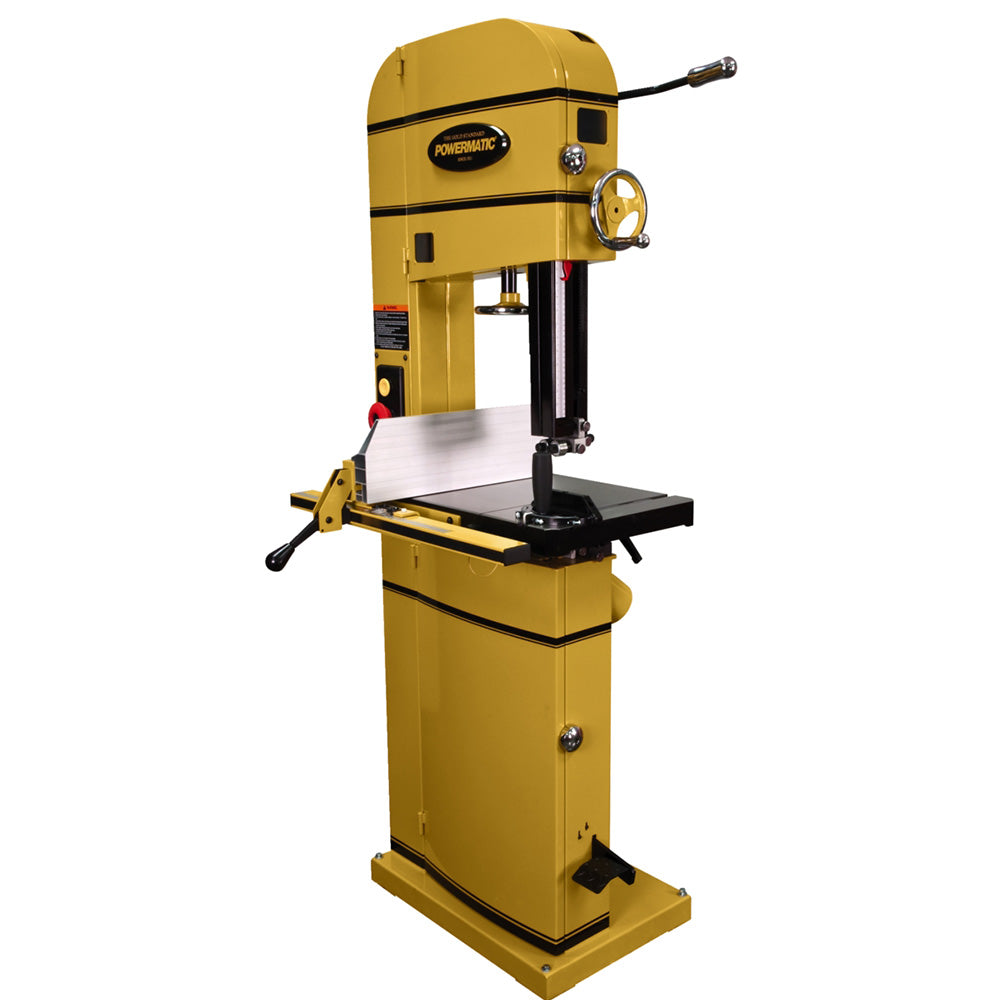

The Powermatic PM1500 packs many of the features traditionally only found on larger band saws and brings them to a new, category-redefining, 14’’ size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability. It truly is The Gold Standard.
[TABS]
Features
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned or released
- Fence features positive locking cam with pressure adjustment
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Oversized side plate can be used in the horizontal or vertical position
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Specs
Blade Length (In.): 153
Blade Speed (SFPM): 3100
Cutting Capacity Height (In.): 14
Dust Collection Minimum CFM Required (CFM): 600
Dust Port Outside Diameter (In.): 4
Minimum Saw Blade Width (In.): 1/8
Motor Phase: 1
Motor Power (HP): 3
Motor Voltage (V.): 230
Prewired Voltage (V.): 230
Recommended Circuit Size (Amps.:) 20
Style (Type): Floor
Table Height from Floor (In.): 40
Table Size (L x W) (In.): 21-1/2 x 16
Table T-Slot (In.): 3/4
Table Tilt (Deg.): 45 Right / 10 Left
