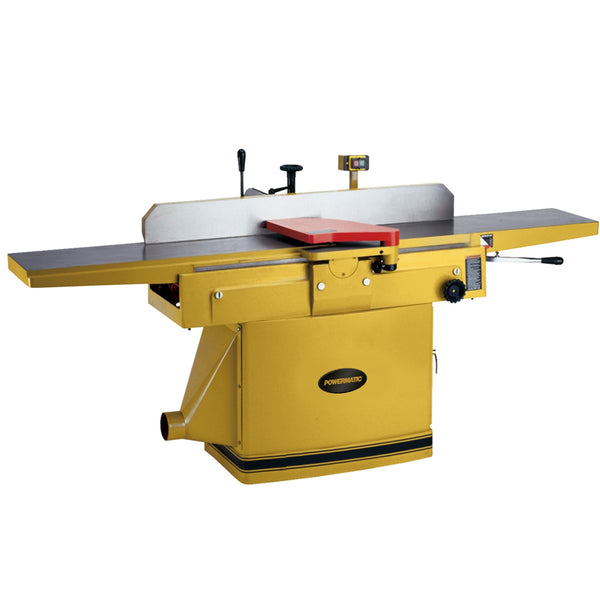

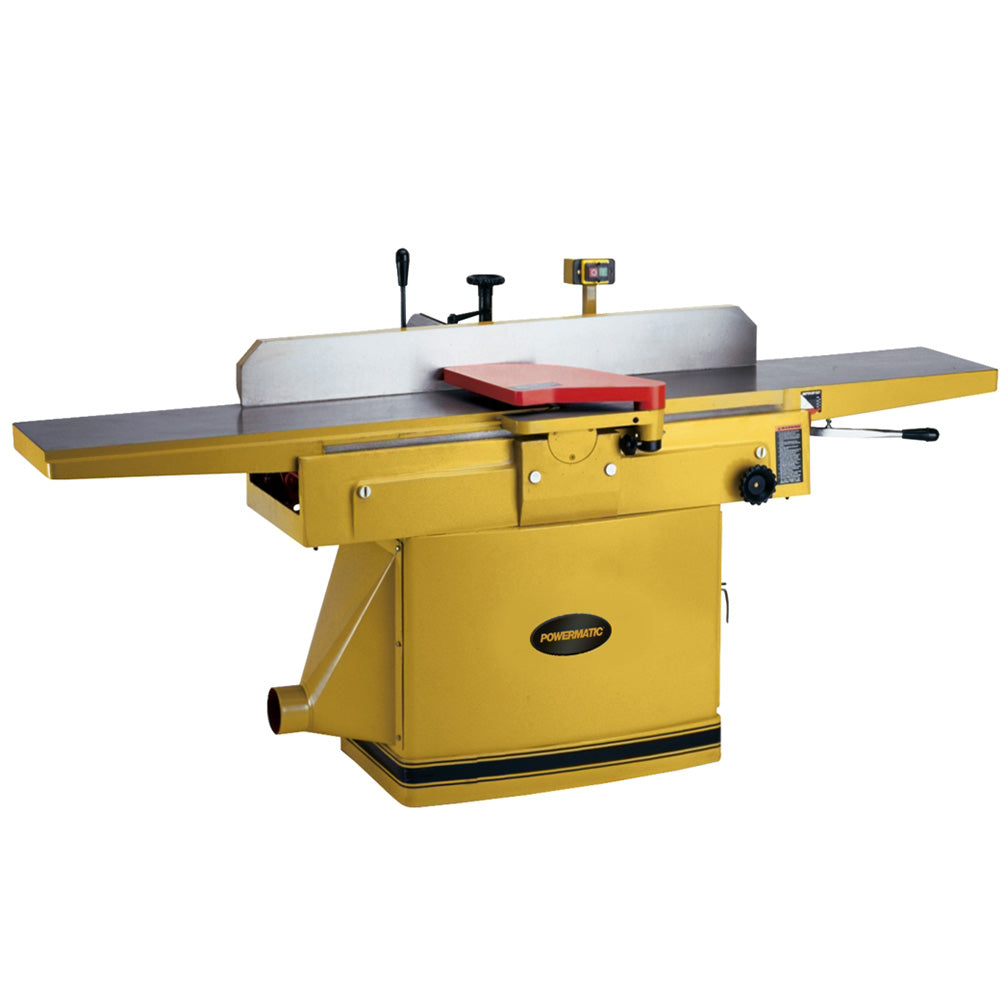

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.
| Number of Knives |
3 |
|
| Standard Knife Size (L x W x T) (In.) |
12 x 1-3/16 x 1/8 |
| Cuts Per Minute |
15,000 |
|
| Cutterhead Speed (RPM) |
5,000 |
| Cutting Capacity (W x D) (In.) |
11-3/4 x 3/4 |
| Table Size (L x W) (In.) |
84 x 12 |
| Table Height from Floor (In.) |
31-1/2 |
|
|
| Rabbeting Capacity (In.) |
3/4 |
|
| Fence Size (L x H) (In.) |
47 x 5-1/2 |
| Fence Tilt (Deg.) |
45 Forward, 45 Backward |
| Fence Positive Stops (Deg.) |
45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) |
800 |
| Dust Port Outside Diameter (In.) |
4 |
| Motor Power (HP) |
3 |
| Motor Phase |
1 |
| Motor Voltage (V.) |
230 only |
|
|
|
| Recommended Circuit Size (Amps.) |
30 |
