SCM Minimax FS 41E - Xylent 16" Jointer/Planer

Price
$ 10,995

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Low stock as of 1.30.24 - Please call before placing order

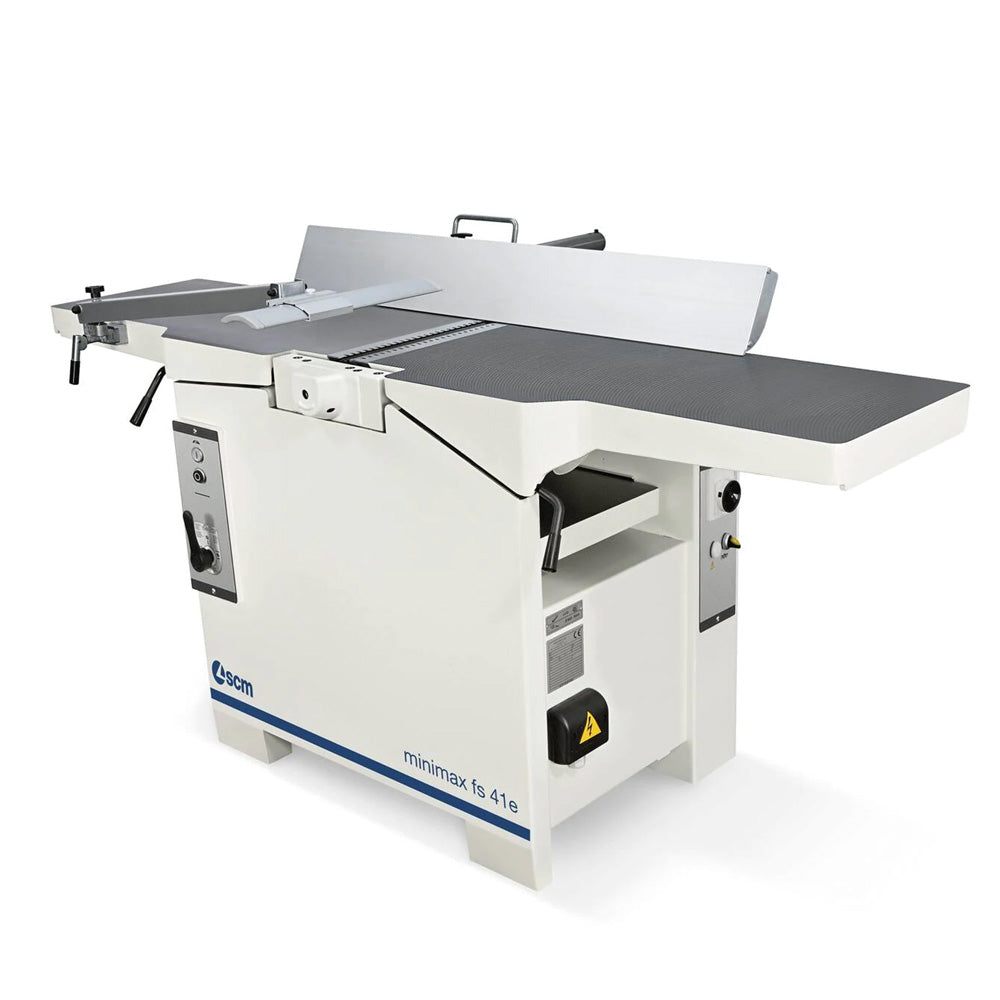

The Minimax FS 41E X is a professional grade, heavy duty, long bed jointer/planer combination machine designed to meet the needs of the most demanding environments. It features cast iron tables, tilting fence and breakthrough “XYLENT” technology. This technology gives an exacting finish while reducing ambient noise decibel output significantly.

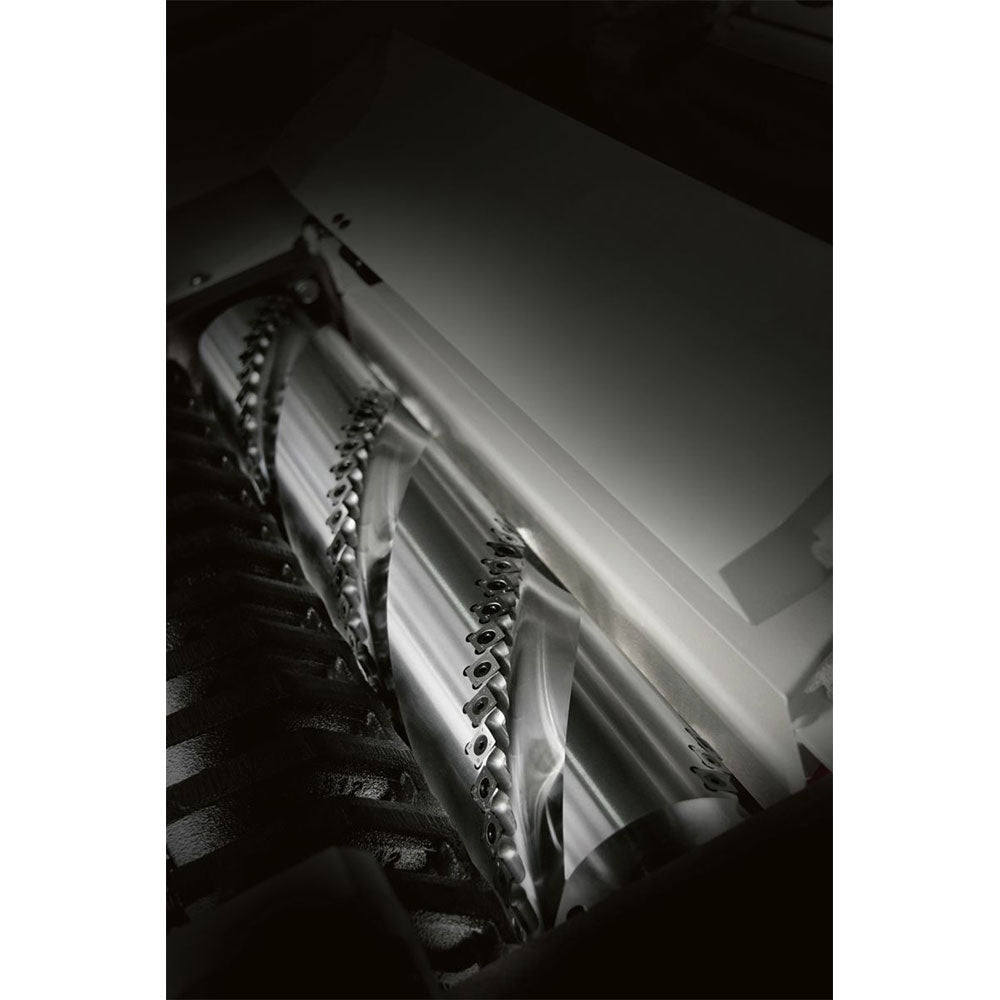

This 16” cutterhead version comes with a spiral knife cutterblock with 3 series of 22 knives, totaling 66 knives. These knives are 4 self-locking and self-centering screw knives. The Xylent cutterhead is the quietest and most durable knife option, making it suitable for heavier cuts. It also improves dust extraction since it produces very small chips. With each cutterhead you will also receive 1 dynamometric key for the correct and safe use of the locking mechanism (think of a mini torque wrench), as well as two inserts for the dynamometric key.

The standard guard offered on the Minimax jointer/planer combination machine is a spring type guard which always covers the unused portion of the knife. Other European style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

The C and E Minimax Jointer/Planer Models have one of the quickest changeover times in the industry. This is because there are two separate dust collection outlets on the same side, so they always stay in the same place regardless of whether you are joining or planing. It is also not required to drop the planer table all the way down in order to change over to the joiner like it is on many other models. The entire changeover process can be done in under a minute.

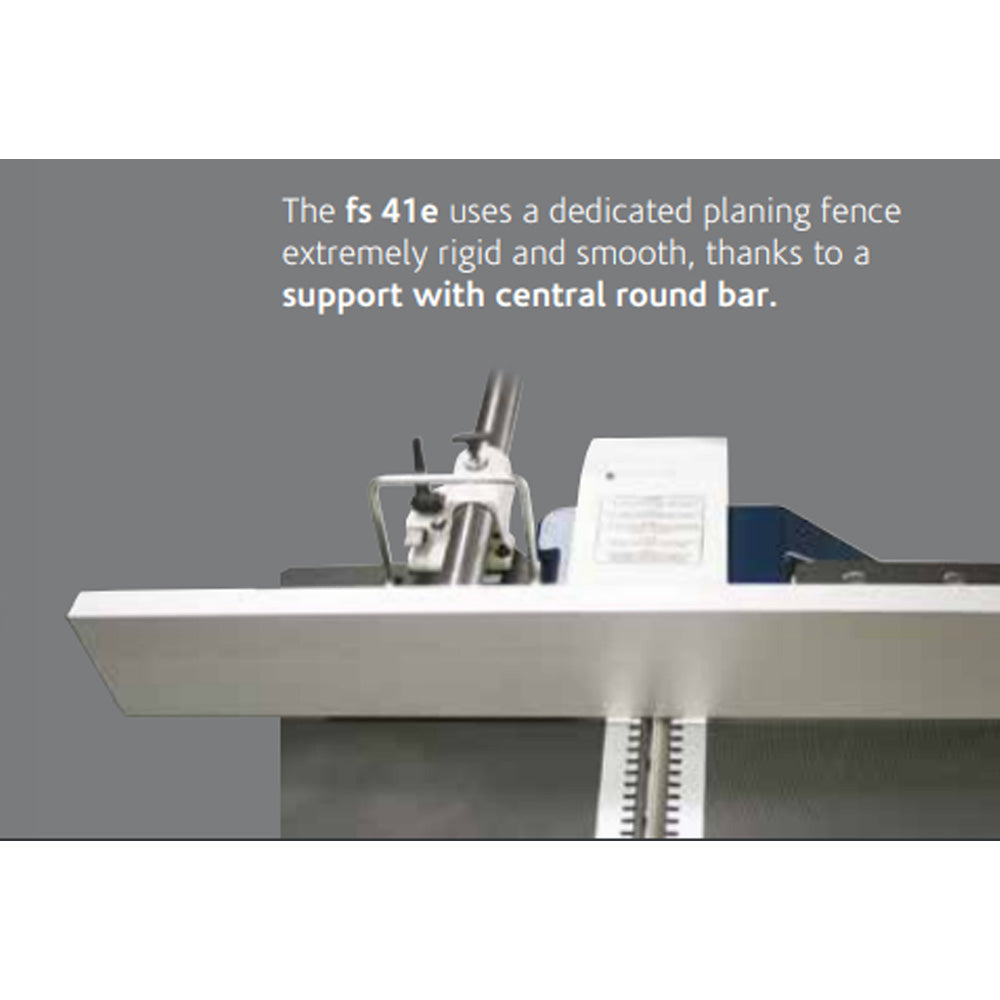

For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected. The FS 41E X uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

Features
  • Thickness is adjusted via the manual handwheel
  • Jointer fence mounts on the outfeed table via a round bar
  • Each jointer table swings away separately during changeover without needing to remove the fence
  • Dual dust extraction ports, both exit toward planer outfeed side
  • Improves dust extraction due to the production of very small chips
  • 4-tip cutters can be rotated into the cutting position when worn

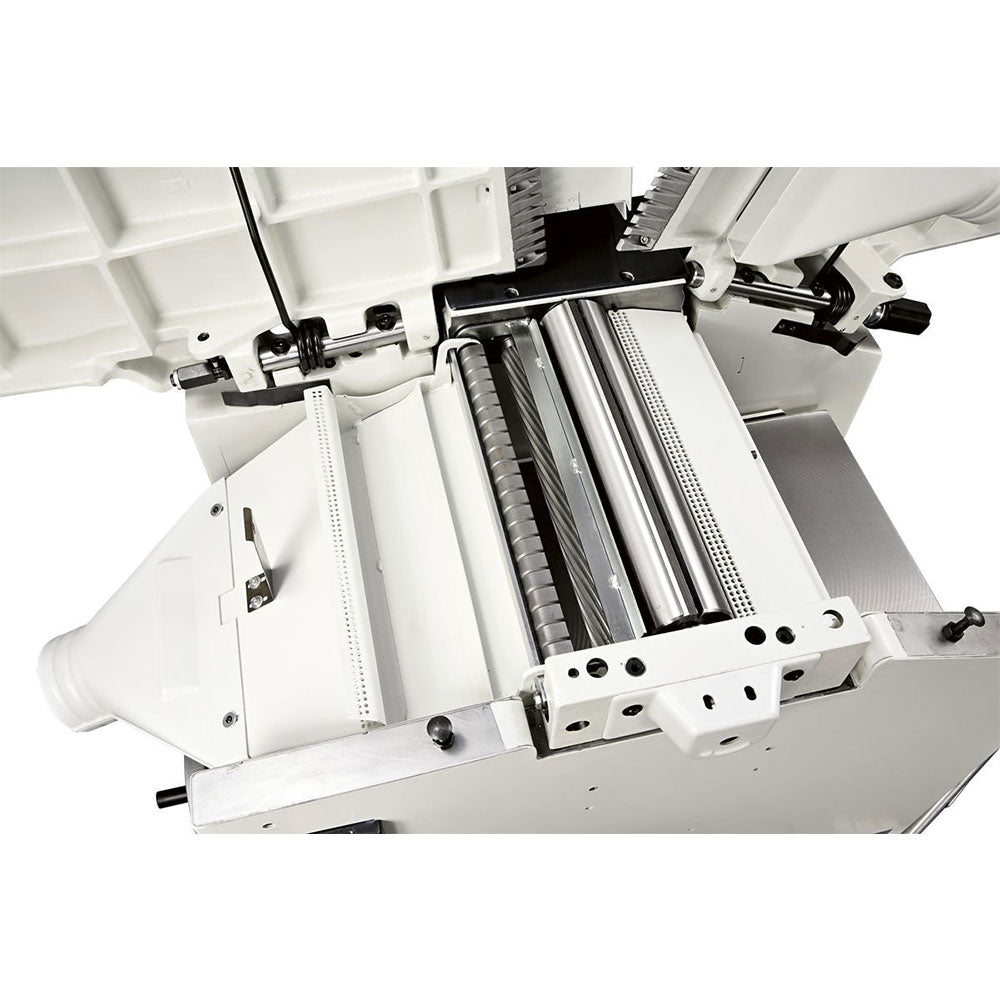

  • The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined
  • Thicknesser infeed roller has helical toothing to guarantee strong, constant workpiece feed
  • Sandblasted steel outfeed roller maintains the perfect post-machining finish

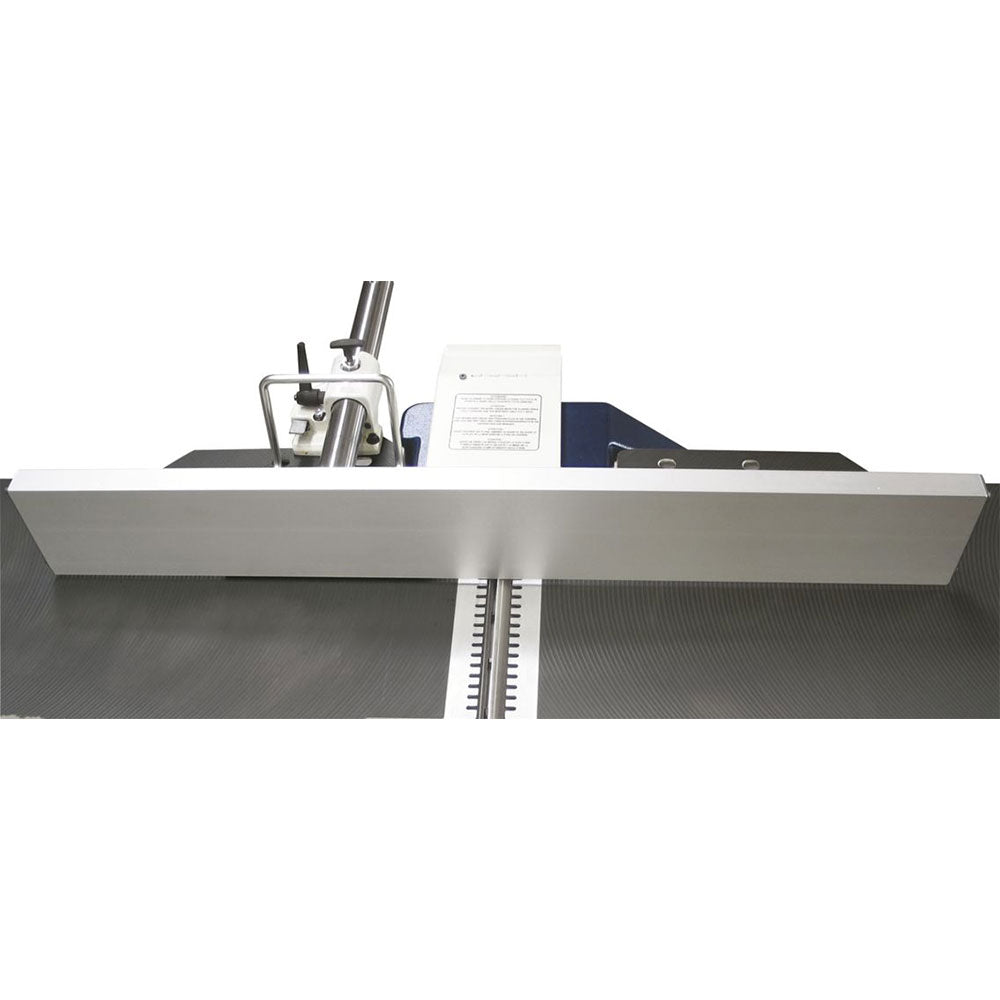

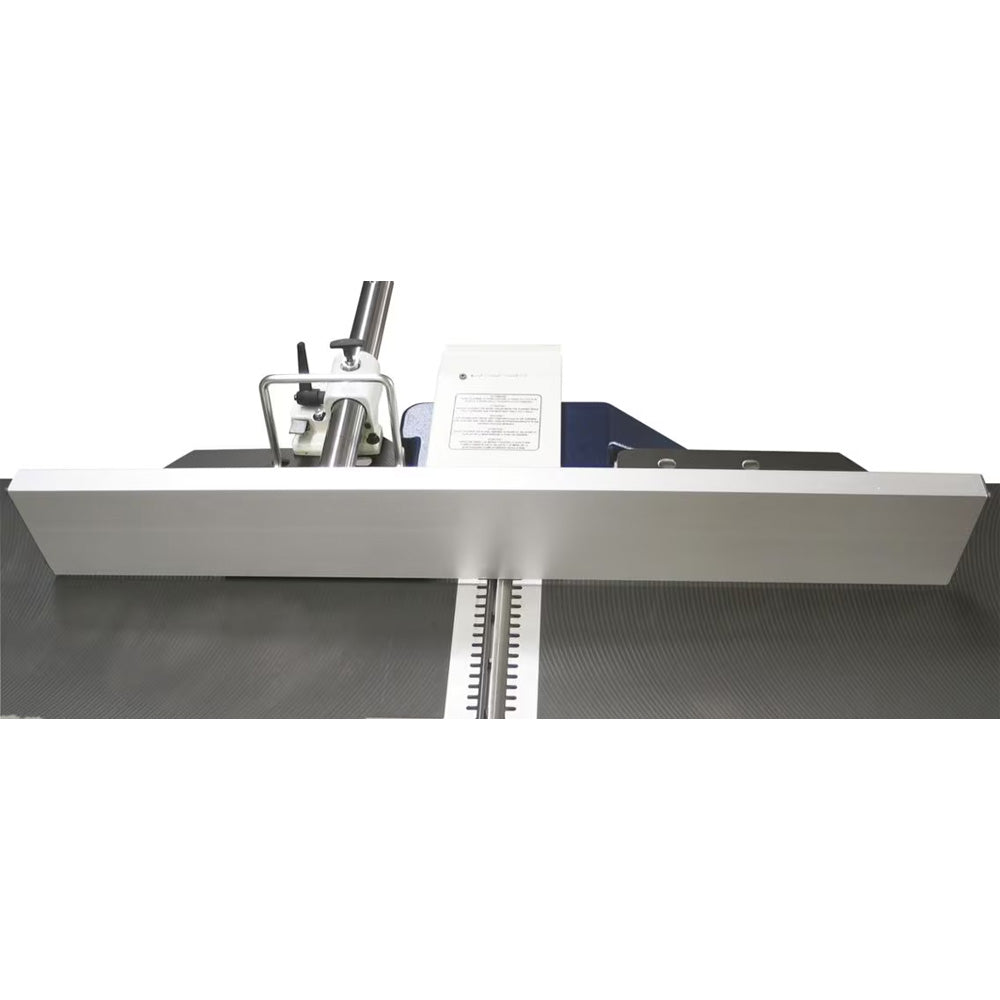

  • Very high rigidity of the surfacing fences made of extruded aluminum
Specs

Motor: Single-phase, 230 V
Horsepower: 4.8hp
Weight: 937 lbs.

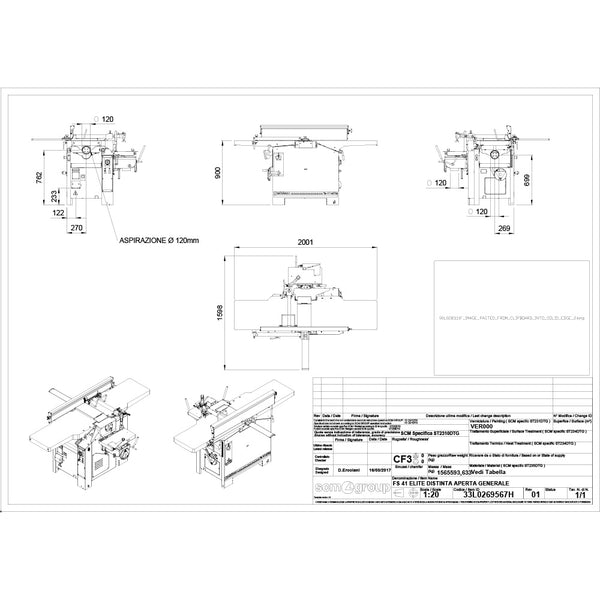

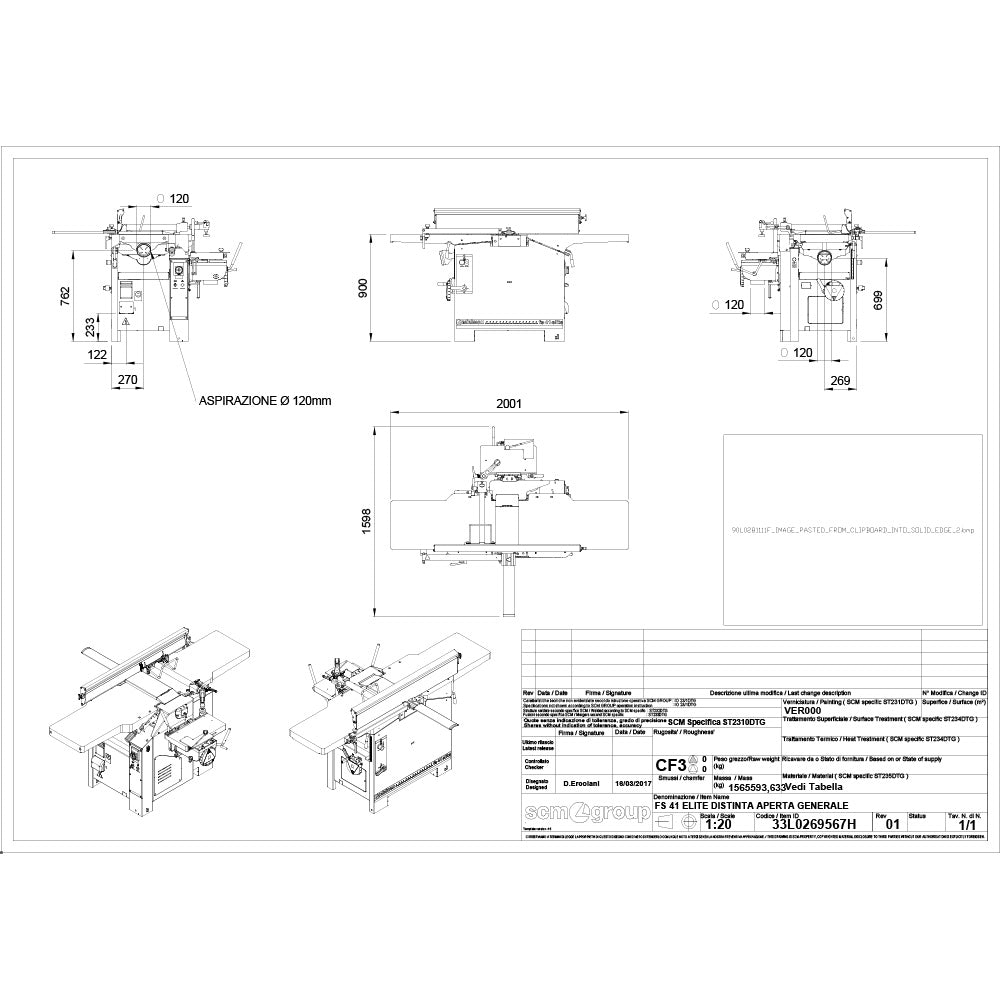

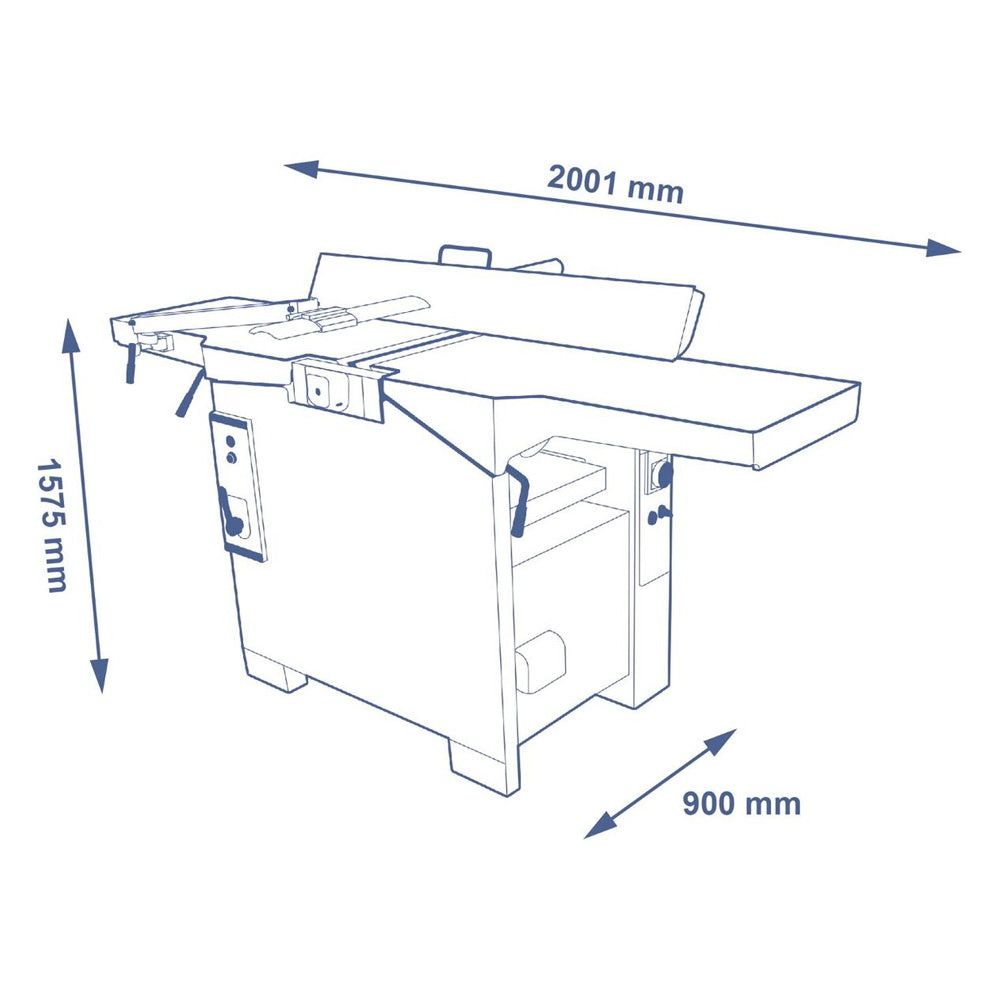

Overall dimensions: 34" x 28" x 79"
Min. dust collection: 600 cfm
Dust extraction outlet dia.: 4.75"

Jointer
Working width: 16” (410 mm)
Jointer tables total length: 79” (2,200 mm)
Max. depth of cut: 0.12" (5 mm)
Fence dimensions: 6" x 43"
Fence tilt: 0° - 45°

Planer
Table dimensions: 16” x 27.5” (410 mm x 775 mm)
Min./Max. working thickness: 0.125”/9” (3 mm/240 mm)
Max. stock removal: 1/8” (5 mm)
Feed speed: 23 & 46 fpm
Exhaust outlet dia.: 4.72" (120 mm)

Includes
  • Precision-ground cast iron tables with spring assist
  • XYLENT Technology Silent Cutterhead with 6 knives
  • (10) Additional knife inserts
  • Heavy-duty push stick
  • Tool set & operator's manual
  • American-style jointer guard
*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: FS 41E-X
