This 16” Jointer/Planer combo machine offers power and precision in a compact size for any shop. With long jointer tables and a sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why this machine may be perfect for you.
The Minimax FS 41C X includes robust features, from the heavy duty 16” jointer to cast-iron tables and the breakthrough “XYLENT” cutterblock technology. The Xylent cutterhead is the quietest and most durable knife option, making it suitable for heavier cuts. It also improves dust extraction since it produces very small chips.
This machine comes with a kit designed to help you get the most out of your new Xylent cutterhead. With this kit you get one cleaning/degreasing liquid bottle for helping reduce resinous wood coatings. You will also get one dynamometric key set to 5.7 mm, two bit Torx T20, ten inserts of 15 x 15 x 2.5 mm, five M6x15 T20 screws, one brass bristle brush to clean the spindle with the mounted inserts and one steel bristle brush to help clean out the insert housings. All in a beautiful and functional hardback case.
Changing between jointer and planer is much quicker on this machine than other models. This is because there are two separate same-side dust collection outlets for the jointer and the planer. Also, it is not required to drop the planer table all the way down in order to change back to a jointer, saving you additional time. Lastly, when going back to using the planer function, you don’t have as much distance to travel to get to your planning thickness. The entire changeover process can be done in under a minute.

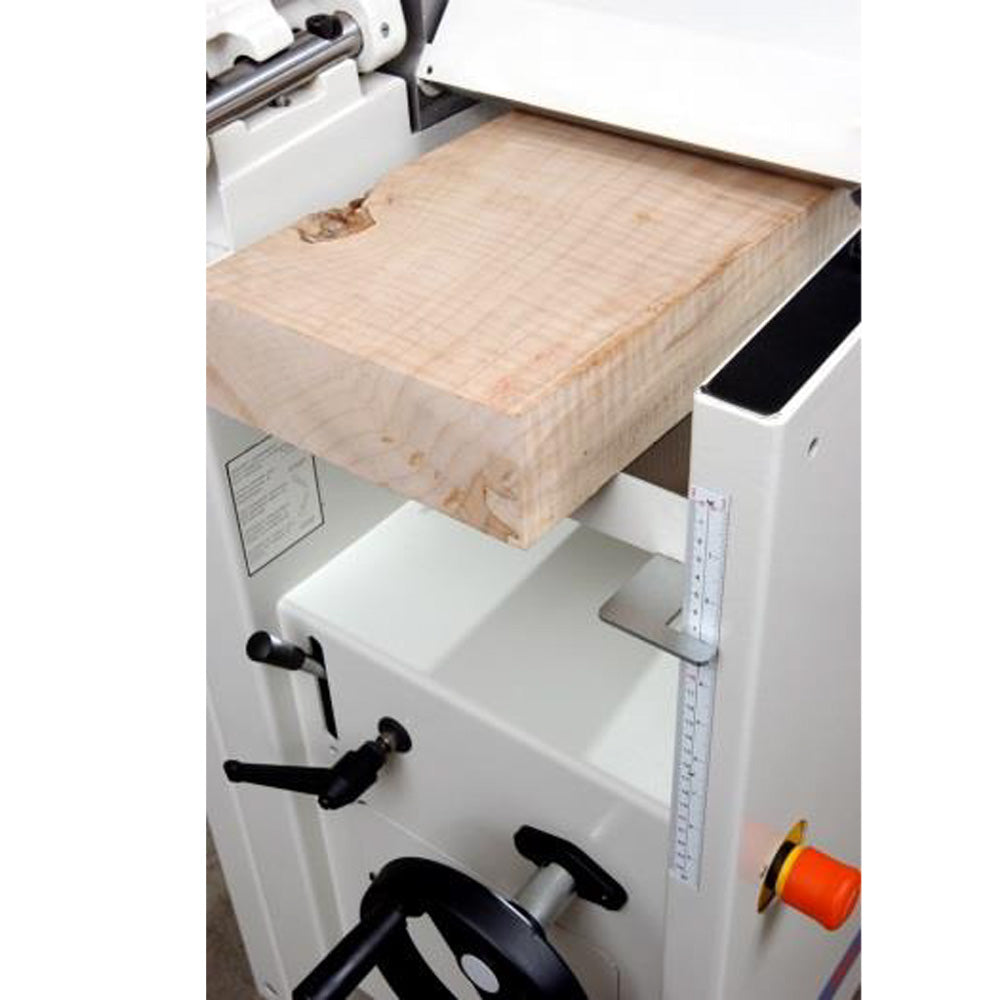

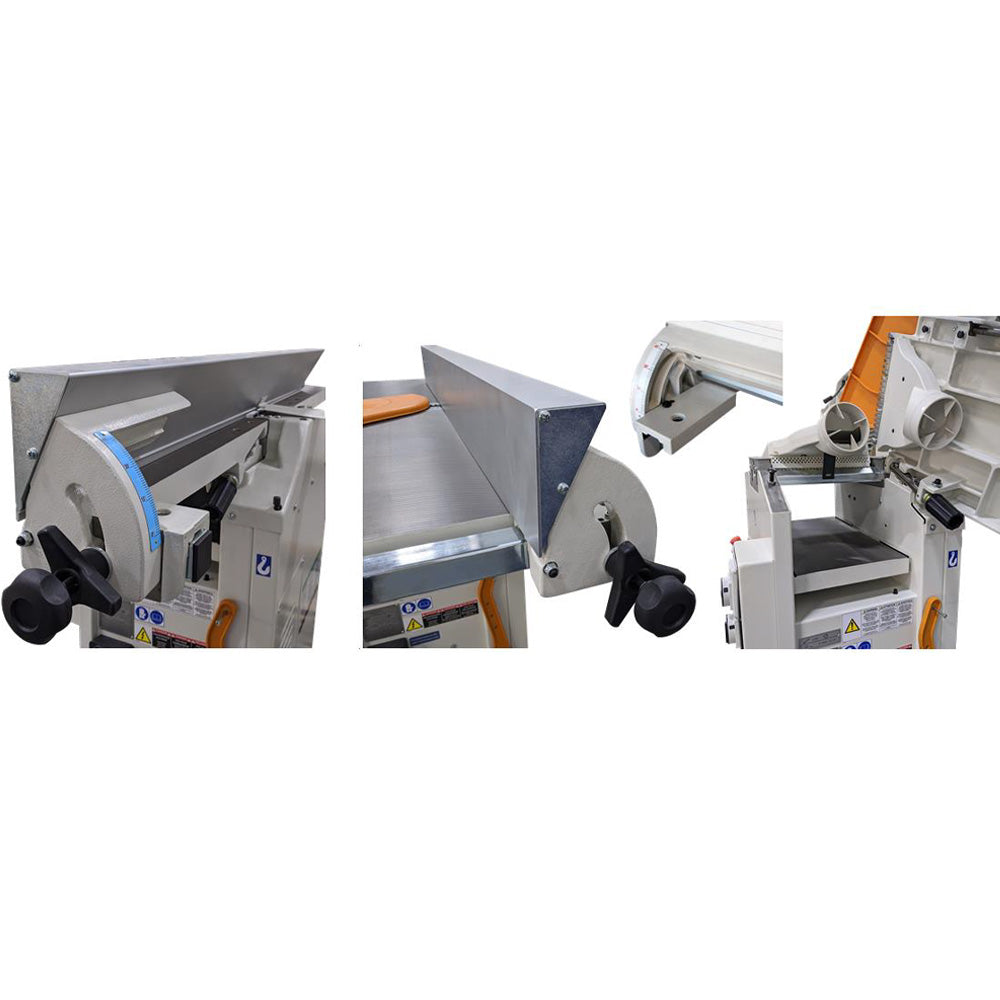

The FS 41C X has a separate jointer fence which rides on a rail mounted to the jointer table. The fence has a castiron knuckle and is tiltable to 45°. It also features a Jointer bed over 70”, a 16” width cutterhead, and comes with an USA OSHA-approved American guard. The planer is able to process up to 9” thick material.
[TABS]
Features
72 mm diameter cutter block with 3 spiral knives in standard planer version
Hand wheel with gravitational numerical readout for accurate positioning of the planer table
Two dust collection outlets
Improves dust extraction due to the production of very small chips
4-tip cutters can be rotated into the cutting position when worn
The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined
Thicknesser infeed roller has helical toothing to guarantee strong, constant workpiece feed
Sandblasted steel outfeed roller maintains the perfect post-machining finish
Very high rigidity of the surfacing fences made of extruded aluminum
Jointer tables open away from operator
Specs
Motor: Single-phase, 230v Circuit Breaker: 30 Amps Horsepower: 4.8 hp Weight: 775 lbs. Dust extraction port diameter: 4.75” (120 mm) Min. recommended dust extraction volume: 600 cfm Jointer Overall table length: 70.8” (1800 mm) Maximum jointing width: 16” (410 mm) Cutterhead speed: 5,200 RPM Max. depth of cut: 0.125” (4 mm) Fence tilt: 0° - 45° Planer Table size: 16” x 23.8” (410 mm x 605 mm) Min./Max. working thickness: 0.12”/9” (3 mm/230 mm) Max. stock removal per pass: 1/8” (4 mm) Feed speed: 23 fpm
Includes
Precision-milled cast iron tables
Xylent Technology Silent Cutterhead with 66 knives
Xylent Maintenance Kit with 10 additional knife inserts
Side Mounted Jointer fence
American-style jointer guard
Tool set and operator’s manual
Mobility Kit
Wheels for machine movement
