SCM Minimax FS 30C - Xylent 12" Jointer/Planer

Price
$ 6,895

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Low stock as of 1.30.24 - Please call before ordering

Fine Woodworking named this award-winning 12" jointer/planer as "Best Overall" in its category. The Minimax FS 30C X offers premium power and precision in a compact size for any shop. With long jointer tables, and sturdy fence, this machine is a quality product, made in Italy, for a value price. Find out why one of our best-selling units may be perfect for you.

Your Minimax FS 30C X includes robust features, from the heavy duty 12” jointer to cast-iron tables and the breakthrough “XYLENT” cutterblock technology. The Xylent cutterhead is the quietest and most durable knife option, making it suitable for heavier cuts. It also improves dust extraction since it produces very small chips.

Changing between jointer and planer is much quicker on this machine than other models. This is because there are two separate same-side dust collection outlets for the jointer and the planer. Also, it is not required to drop the planer table all the way down in order to change back to a jointer, saving you additional time. Lastly, when going back to using the planer function, you don’t have as much distance to travel to get to your planning thickness. The entire changeover process can be done in under a minute.

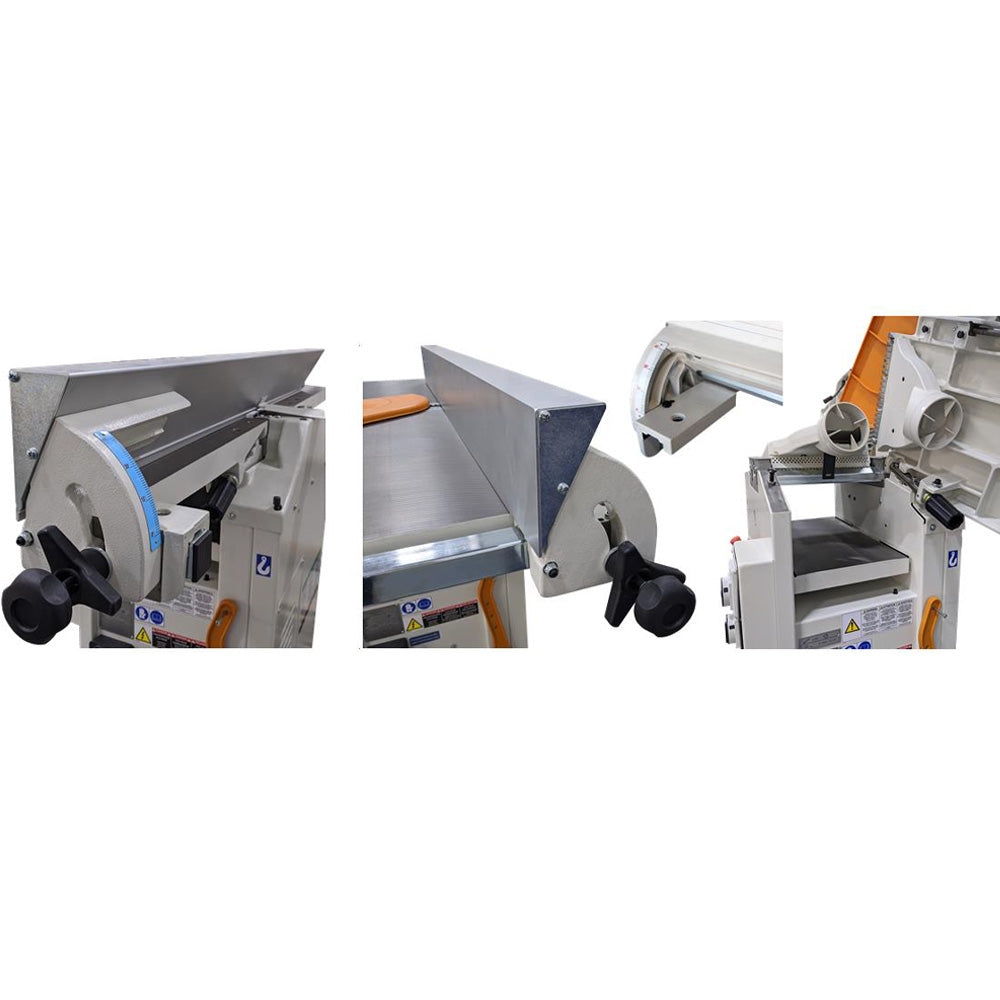

The FS 30C X has a separate jointer fence which rides on a rail mounted to the jointer table. The rigid fence is made of extruded aluminum that is 1,670 mm in length, has a cast-iron knuckle, and can tilt up to 45°. This machine also includes a handwheel with gravitational numerical readout for accurate positioning of the planer table.

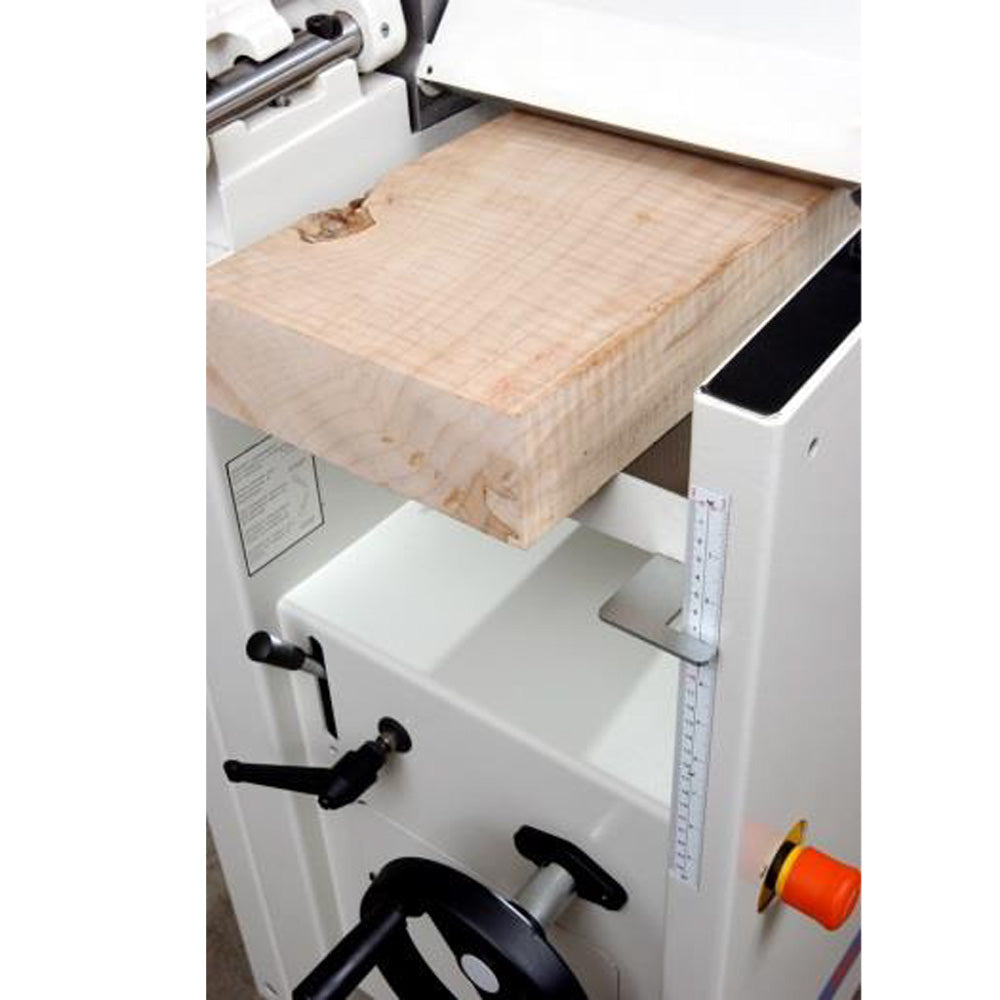

This machine features a 12” Jointer and a 12” Planer with a 59” long cast-iron table. The planer is able to process up to 9” thick material. The Jointer/Planer head also comes standard with a “Xylent” head that has helical knives to guarantee a strong, constant work piece feed.

Also featured is an American-style, OSHA-approved standard guard. American safety standards state that when the guard is moved out of the way and let go, it must automatically recover the cutterhead, which is why the American “pork chop” guard is standard. It is spring loaded to comply with American safety standards.

Features
  • 72 mm diameter cutter block with 3 spiral knives in standard planer version
  • Hand wheel with gravitational numerical readout for accurate positioning of the planer table
  • Two dust collection outlets
  • Improves dust extraction due to the production of very small chips
  • 4-tip cutters can be rotated into the cutting position when worn
  • The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined
  • Thicknesser infeed roller has helical toothing to guarantee strong, constant workpiece feed
  • Sandblasted steel outfeed roller maintains the perfect post-machining finish
  • Very high rigidity of the surfacing fences made of extruded aluminum
  • Jointer tables open away from operator
Specs

Motor: Single-phase, 230v
Circuit Breaker: 30 Amps
Horsepower: 4.8hp
Weight: 595 lbs.
Dust extraction port diameter: 4.75” (120 mm)
Min. recommended dust extraction volume: 600 cfm

Jointer
Overall table length: 59.75” (1510 mm)
Max. jointing width: 12” (300 mm)
Cutterhead speed: 5,200 RPM
Max. stock removal: 0.16” (4 mm)
Fence tilt: 0° - 45°

Planer
Table size: 12” x 22” (300 mm x 585 mm)
Min./Max. working thickness: 0.12”/9” (3 mm/230 mm)
Max. stock removal: 0.16” (4 mm)
Feed speed: 23 fpm

Includes
  • 4.8hp Single-phase (230v) motor
  • Precision-ground cast iron tables
  • 3 rows of quarter turn (15x15x2.5mm) knives for Xylent cutterhead
  • American-style jointer guard
  • Quick-tilting jointer fence
  • (2) Independent dust collection ports
  • Tool set & owner’s manual
  • Planer handwheel with gravitational numerical readout
Video

*Shipping

*Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: FS 30C-X
