SCM Minimax CU 410E - Tersa Full Combination Machine - 8.5' Slider

Price
$ 28,985

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Low stock as of 6.30.24 - Please call before ordering

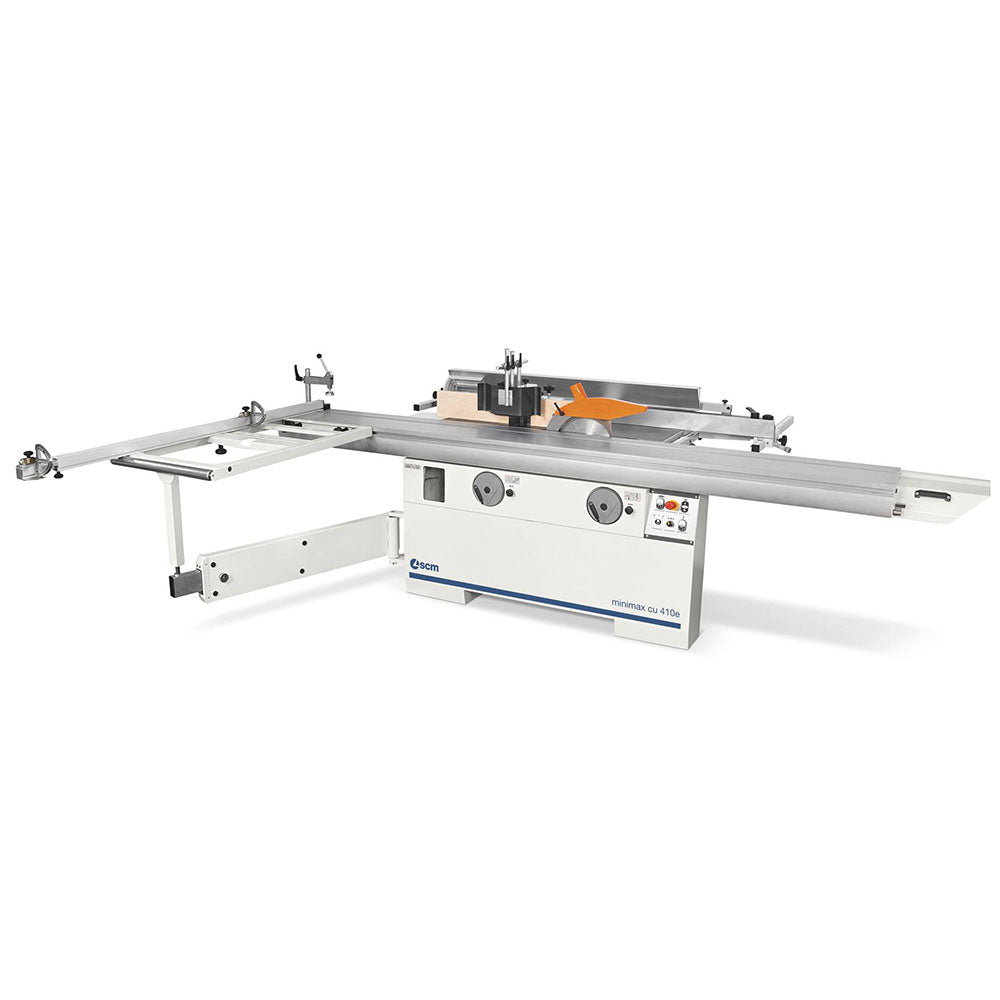

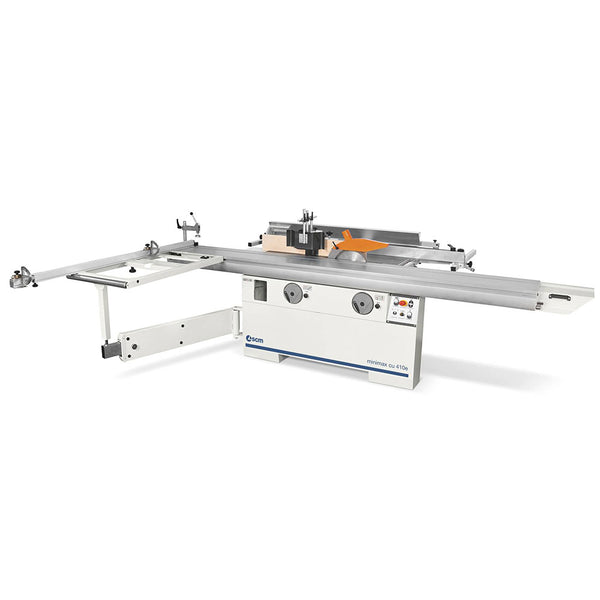

The Minimax CU 410E T is the go-to machine for woodworkers wanting a wider jointer to process larger pieces. This full combination machine has a 16” Jointer/Planer incorporated into it. A large sliding table to process longer sheet goods is standard, and a tilting arbor shaper is also included. This Italian-made machine is heavy duty but is still able to be broken down to save space in a small shop.

The CU 410E T has a massive cast iron blade group. This large design lends extra stability to the main blade and scoring blade. The cast iron blade group tilts on two trunnions to lessen degradation over time, and the main blade and scoring blade raise independently of each other. Scoring is belt driven from the main motor.

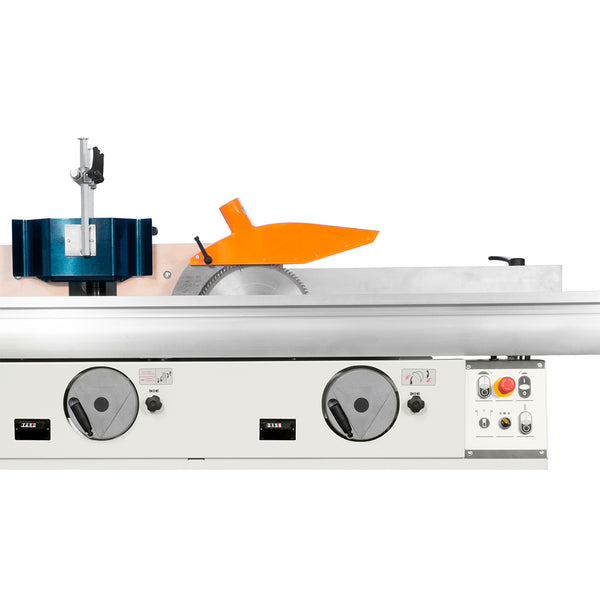

A tilting arbor shaper makes this machine even more versatile over the long term. The shaper tilts backwards making it possible to use a powerfeeder more effectively while tilting. The CU 410E T also features a shaper hood that has three controlled axes. The shaper hood has memory pins so that it easily goes right back to the same position if removed from the table. This makes changeover much quicker.

An extra wide sliding table assists in supporting larger panels. Also featured is the sliding table lock which allows the slider to be locked when pulled away from the blade. This makes loading panels much easier.

The CU 410E T comes standard with scoring capability. This allows you to not only accurately cut panels, but cleanly cut them too. This is important when cutting particle board, melamine, laminated panels, or anything else in which you want to apply some sort of edge banding. If you are cutting solid wood, simply drop it below the table surface independently of the main blade. A 12” main blade capacity is featured without having to remove the scoring blade.

The CU 410E T has a 16” Jointer and a 16” Planer. The planer is able to process up to 9” thick material. The Jointer/Planer head also comes standard with a “Tersa” head. The most versatile cutterhead, Tersa has the fastest changeover time thanks to its disposable knife design. The knives are double-sided and lock into place by centrifugal force - no special tools or knife setting required! Just start the machine and the knives automatically index themselves.

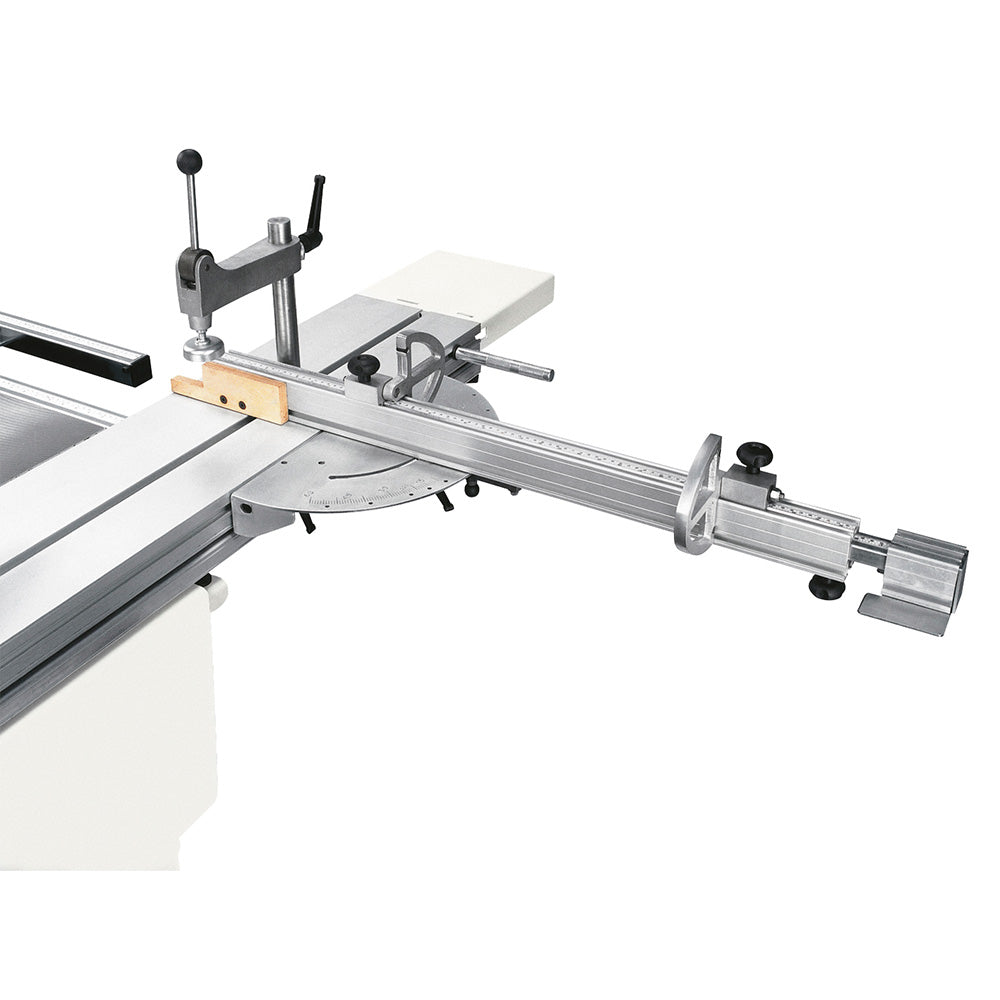

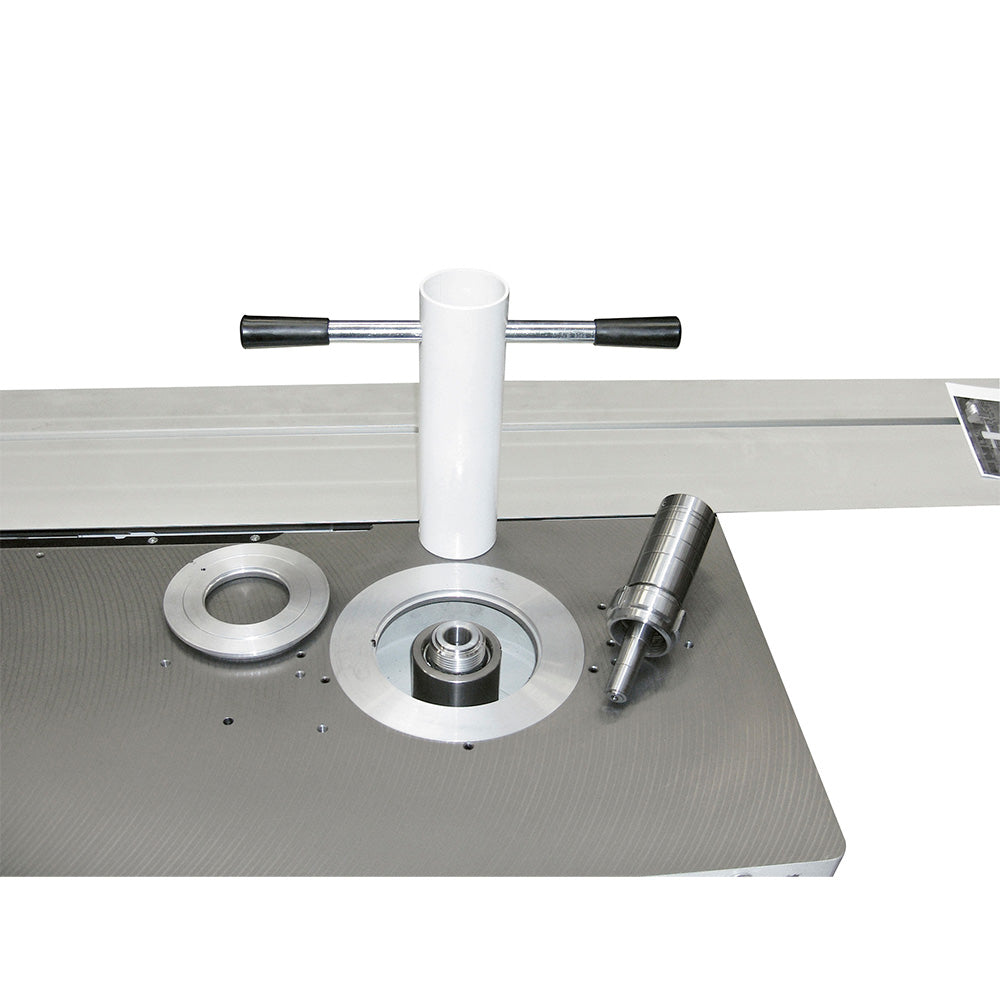

This machine comes with a separate miter gauge. This way, for miter cuts, the operator can keep the main crosscut fence at 90° and use the separate miter gauge to do the angled cuts, saving time when mitering small panels. It also comes standard with an interchangeable 1.25” diameter spindle that can be swapped out for spindles of varying diameters to accommodate existing or future tooling.

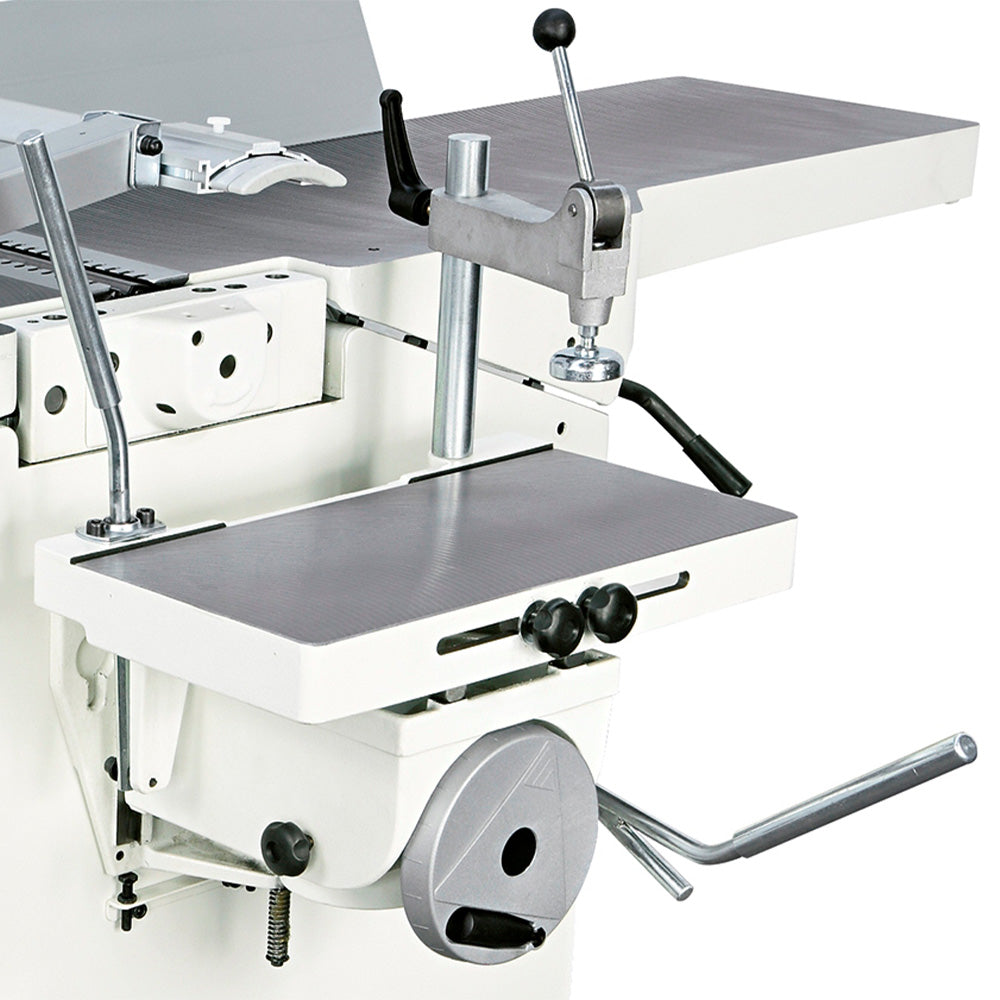

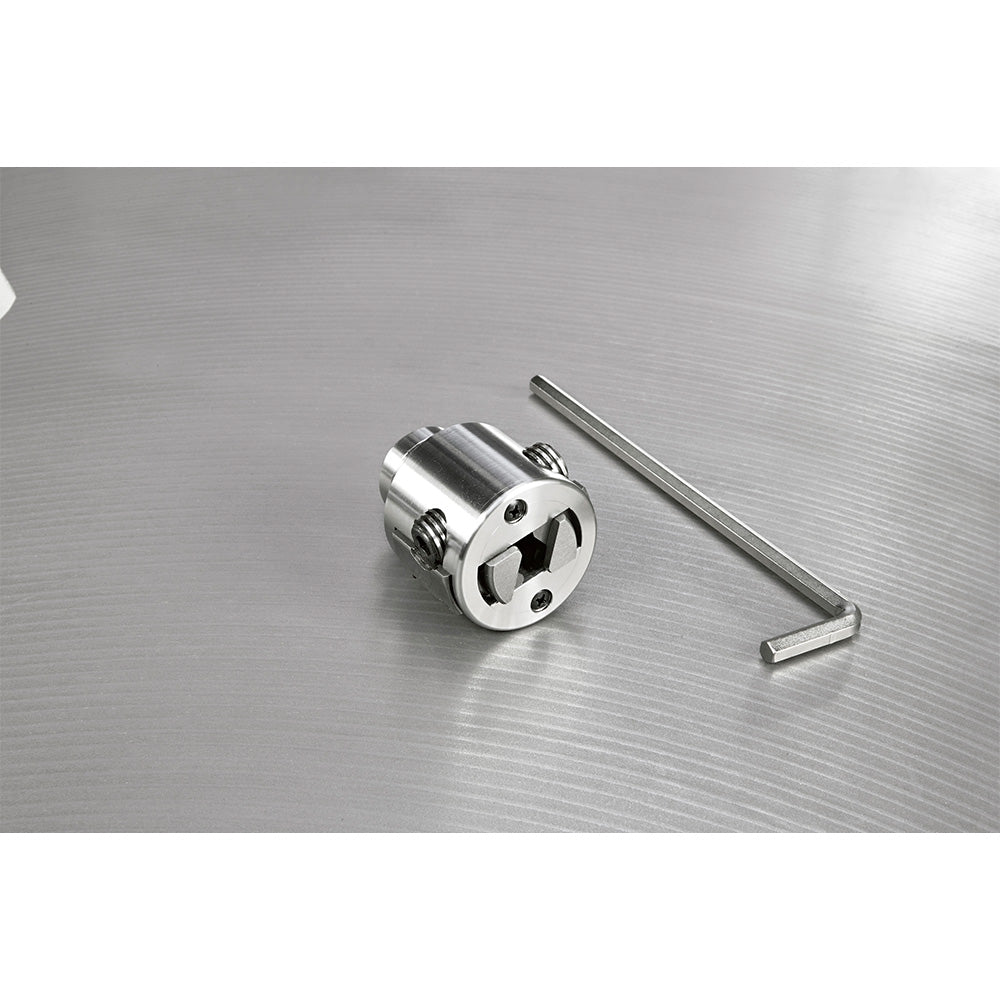

The CU 410E comes with a cast iron mortiser that adds versatility to this powerful machine. This mortiser is complete with a 120 mm exhaust hood and a 16 mm chuck. The table dimensions for this feature are 470 mm x 230 mm with an X-axis movement of 160 mm, a Y-axis movement of 120 mm and a Z-axis movement of 110 mm stroke.

Note: Does not include main saw blade.

Need replacement knives? Find them here.

Features
  • The saw unit closed loop structure is made of heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape
  • Saw unit can be equipped, on request, with a scoring blade for perfect cutting even on veneered panels
  • Maximum diameter allowed for the main saw is 315 mm with a scoring blade mounted
  • The 4 standard speeds are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 275 mm in diameter

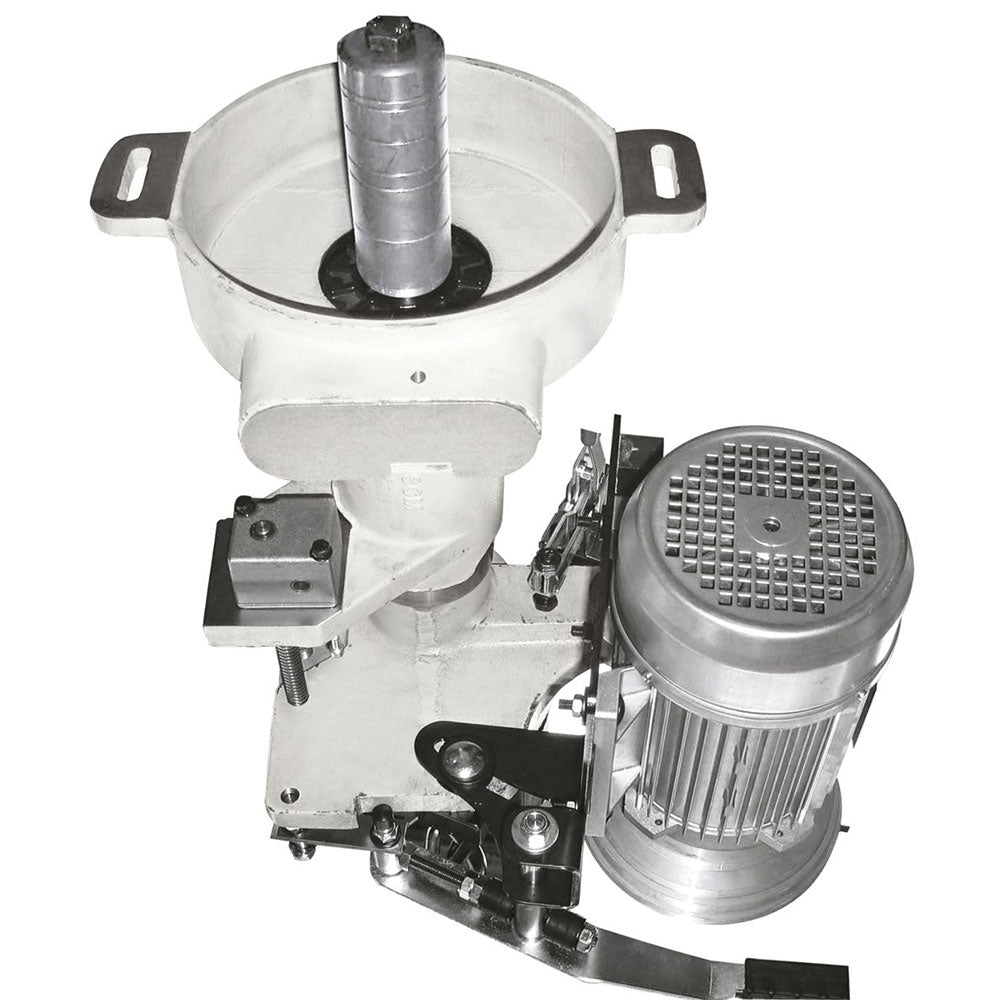

  • Spindle is surrounded by a cast-iron “cup” to protect the internal mechanical components from shavings and sawdust
  • Memory pins in shaper hood allow it to go back to the same position if removed from the table
  • Table lock allows the slider to be locked when pulled away from the blade
  • Tersa knives automatically lock into position when the machine is turned on
  • Double-sided knives can be flipped over, reinserted, and used again
  • Cutterhead eliminates the necessity of gauging the knives each time to ensure proper height positioning
  • The planer unit stands on cast iron supports and the standard version has an 87 mm diameter cutter block with 3 knives
  • The infeed roller has a helicoidal profile to guarantee firm and constant workpiece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing
  • Two feed speeds for the standard thicknesser (6 - 12 m/min.)

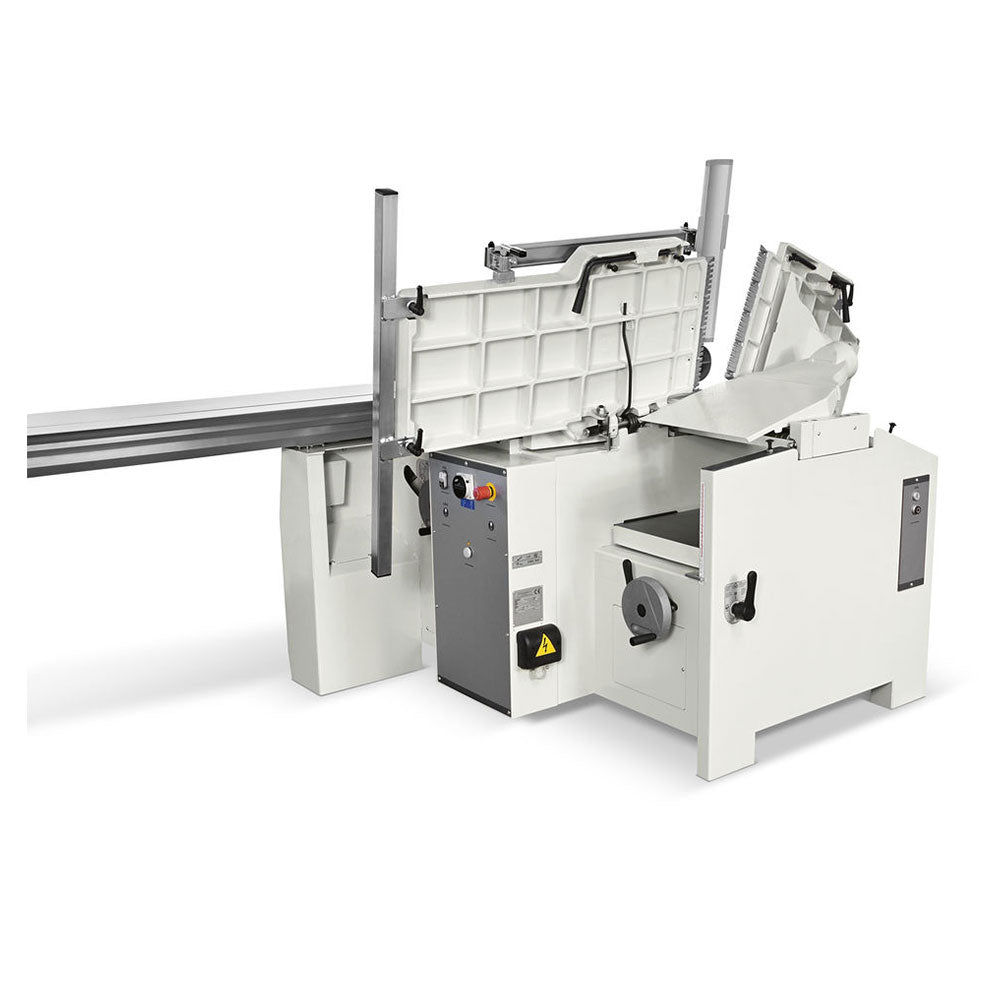

  • The planers open towards the circular saw spindle molder side: an ergonomic solution with the minimum amount of space
  • Made in Italy
Specs

Electrical: Single-phase, 230V
Dust hood diameter: 4.72” (120 mm)
Dust collection: 600 CFM
Shipping weight: 2,456 lbs.

Table Saw
Max. main blade diameter / arbor size: 12.4” (315 mm) / 5/8”
Scoring blade diameter / arbor size: 100 mm / 20 mm
Max. depth of cut at 90°: 3.93” (100 mm)
Max. depth of cut at 45°: 2.75” (70 mm)
Max. rip capacity, right of saw blade: 41” (1050 mm)
Sliding table saw stroke length: 102” (2600 mm)

Jointer
Working width: 16” (410 mm)
Jointer table total length: 78.7” (2000 mm)
Cutterhead speed: 5,300 RPM
Maximum depth of cut: 0.19” (5 mm)
Fence tilt: 90° - 45°

Planer
Worktable dimensions: 16.65” x 30.5” (423 mm x 775 mm)
Max. working thickness: 9” (230 mm)
Min. working thickness: 0.11” (3 mm)
Max. stock removal: 0.19” (5 mm)
Feed speeds (single phase): 20 & 40 fpm

Shaper
Spindle diameter: 1.25”
Capacity, under-the-nut: 4” (100 mm)
Speeds: 3,600 / 6,500 / 8,000 / 10,000 RPM
Max. tooling dia. when profiling: 8.26” – 9.44” (210 mm – 240 mm)
Max. dia. of tool lowered under the table at 90°: 9.44” (240 mm)
Max. tool dia. when tenoning: 10.8” (275 mm)
Spindle tilt: 90° - 45°

Mortiser
Worktable dimensions: 18.5" x 9.1" (470 x 230 mm)
Exhaust hood dia.: 4.7" (120 mm)
Chuck: 0.6" (16 mm)
X stroke: 6.3" (160 mm)
Y stroke: 4.7" (120 mm)
Z stroke: 4.3" (110 mm)

Includes
  • (3) Independent 4.8 horsepower motors, single-phase 230v
  • Double trunnions on both saw and shaper assemblies
  • Interchangeable spindle shaper: 1.25” standard
  • Three-axis, micro-adjustable shaper fence system
  • Interchangeable spindle
  • Digital-mechanical (NON-LED) readout on planer height, shaper spindle tilt and height, saw tilt.
  • Automatic self-braking motor
  • 8.5ft aluminum sliding table with precision guideways
  • Cast-iron horizontal mortiser
  • Short crosscut fence with miter gauge, eccentric workpiece clamp and trimming shoe
  • 4-knife “Tersa” jointer/planer cutterhead
  • American-style OSHA-approved jointer guard
  • Mobility kit, wheels for machine movement
Video

*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: CU 410E-T
