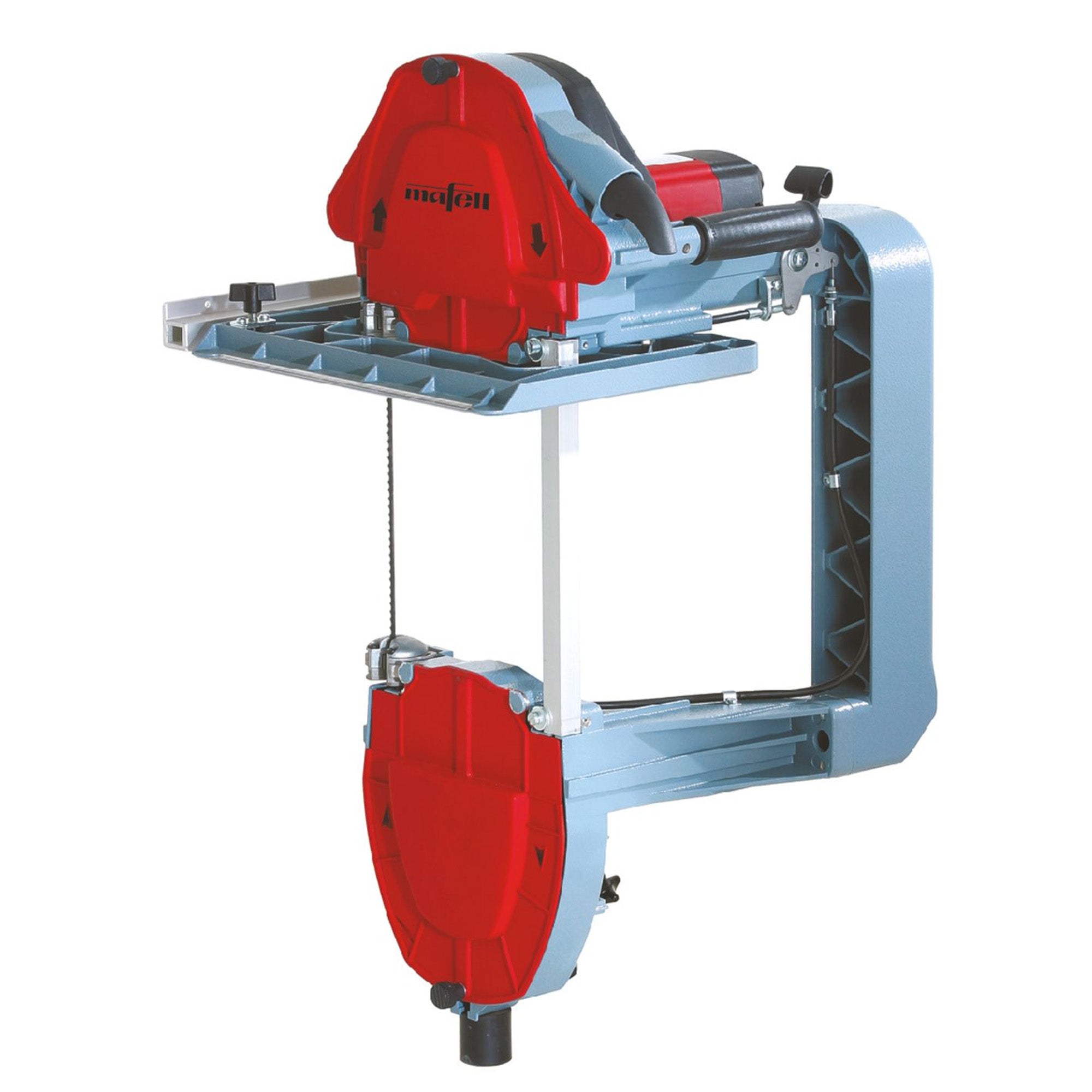

Mafell Z5Ec 12" Portable Band Saw 120V
- Price
- $ 8,650
Have questions? Give us a call at 260-637-0054.

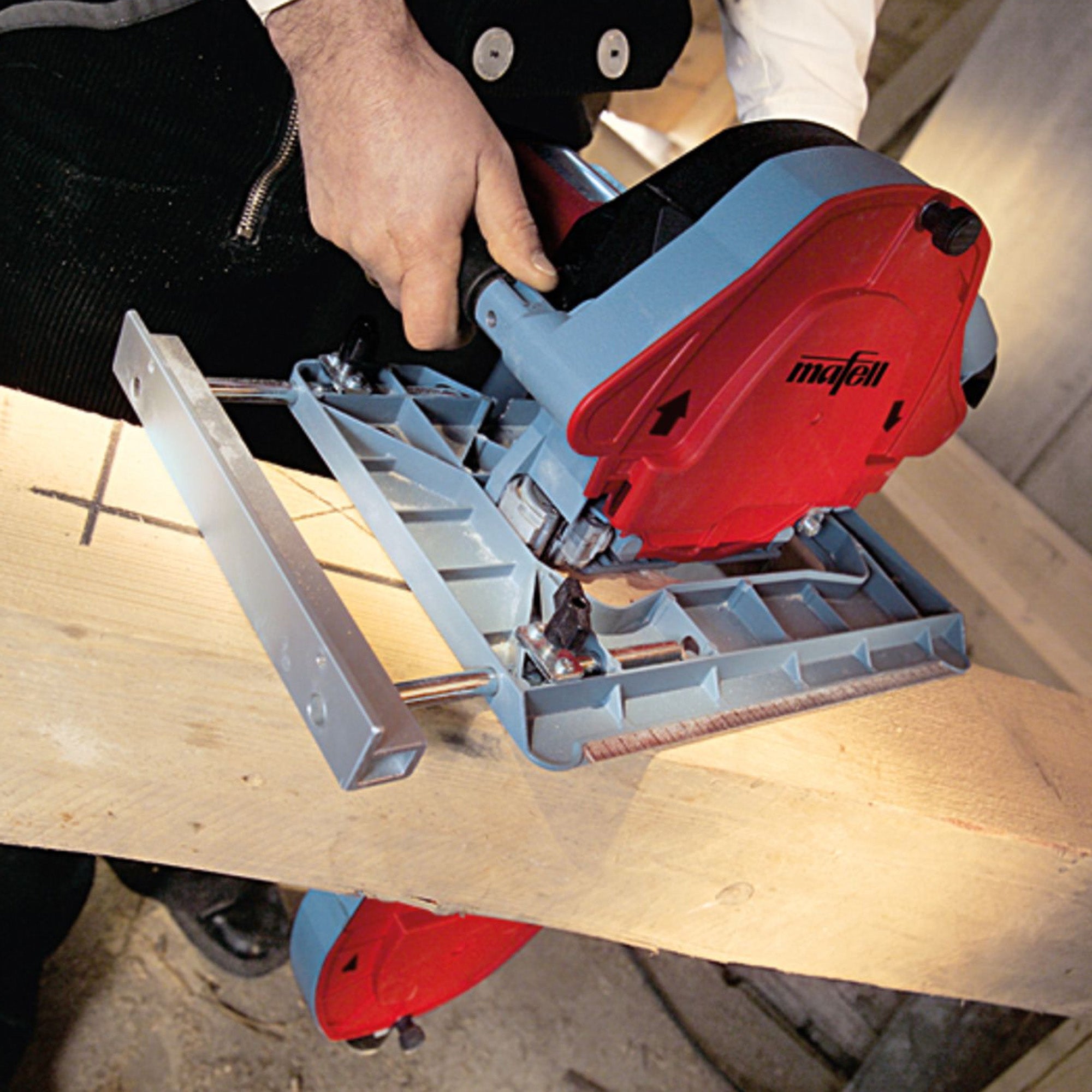

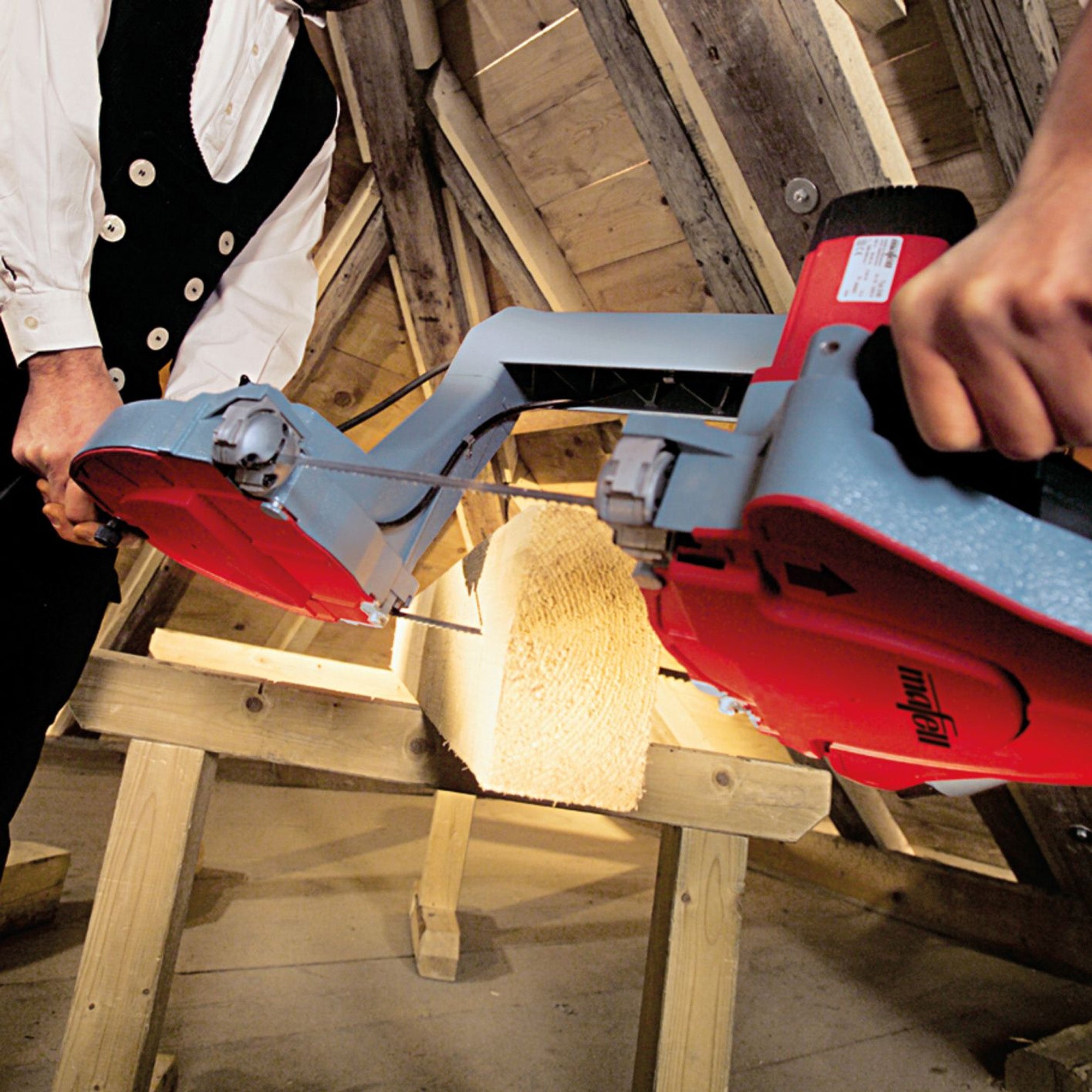

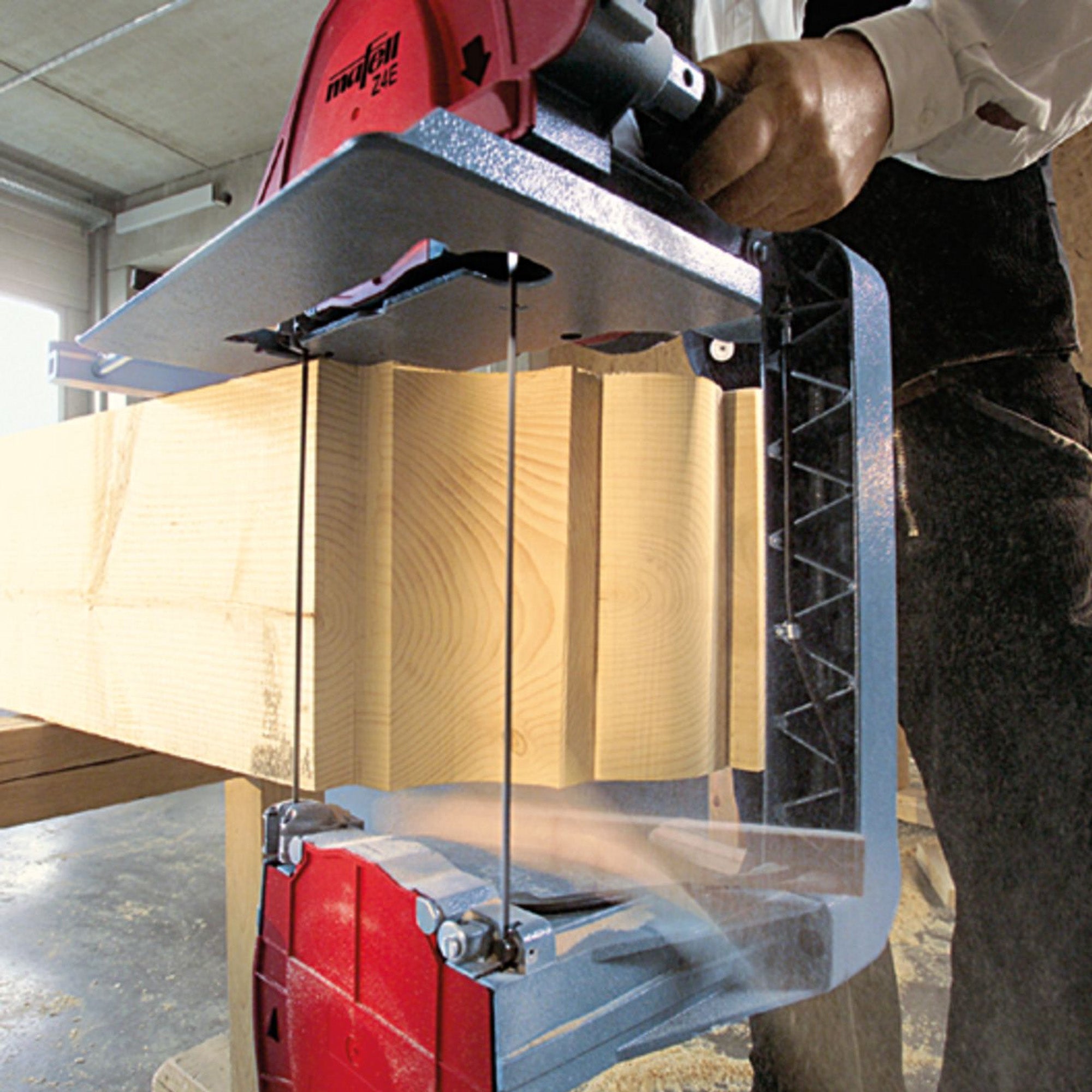

The Mafell Z5Ec Portable Band Saw is in a class of its own. It boasts an impressive 12" (305mm) cutting capacity thanks to its high-performance CUprex motor and magnesium die-cast components. With features like front and rear-cutting blades, a tilting blade guide, and a lightweight yet robust design, the Z5Ec is designed to handle a variety of applications from professional timber work to renovation and contract work.
Using unique Mafell Front & Rear-Cutting Blades and a 30° blade tilting mechanism, the Z5Ec can cut deep into timbers and be easily retracted. Blades are precisely navigated with a ball bearing guide system, which ensures the blade will run smoothly and guarantees the finest cutting results.
At the heart of the Z5Ec Band Saw is the high-performance CUprex motor. It provides significantly high torque and efficient power for continuous heavy-duty use. The motor also features a cool air system designed to blow dust off of your project as you work. This not only allows you to clearly see your cutting line, but also keeps chips safely away from your face.
Features
- Rips and cross-cuts large timbers up to 12" thick
- Ideal for tenon rip cuts, resawing, notches, curved trusses, scarf joints, and decorative ends
- Front & Rear-Cutting Blades ideal for backing out of cuts often (tenons, dovetails, etc.)
- Highly portable at only 30 lbs.
- High-power CUprex motor
- Cool air system keeps chips out of your line of cut and away from your face
- Mechanical safety brake
Specs
Cut capacity: 12" (305mm)
Max. blade length: 68.98" (1,752mm)
Max. blade width: 0.24" to 0.32" (6 to 8mm)
Max. blade thickness: 0.03" (0.65mm)
One band side swivel: 0 to 30°
No load speed: 650 to 1,550 RPM
Motor: 120V / 60 Hz
Current: 15 A
Weight: 30 lbs.
Includes
- Front & Rear-Cutting Blade
- Softwood-Cutting Blade
- Tight Radius-Cutting Blade
- Parallel Guide Fence
- Handle (for two-man operation)
- Cord (32.8 ft)
