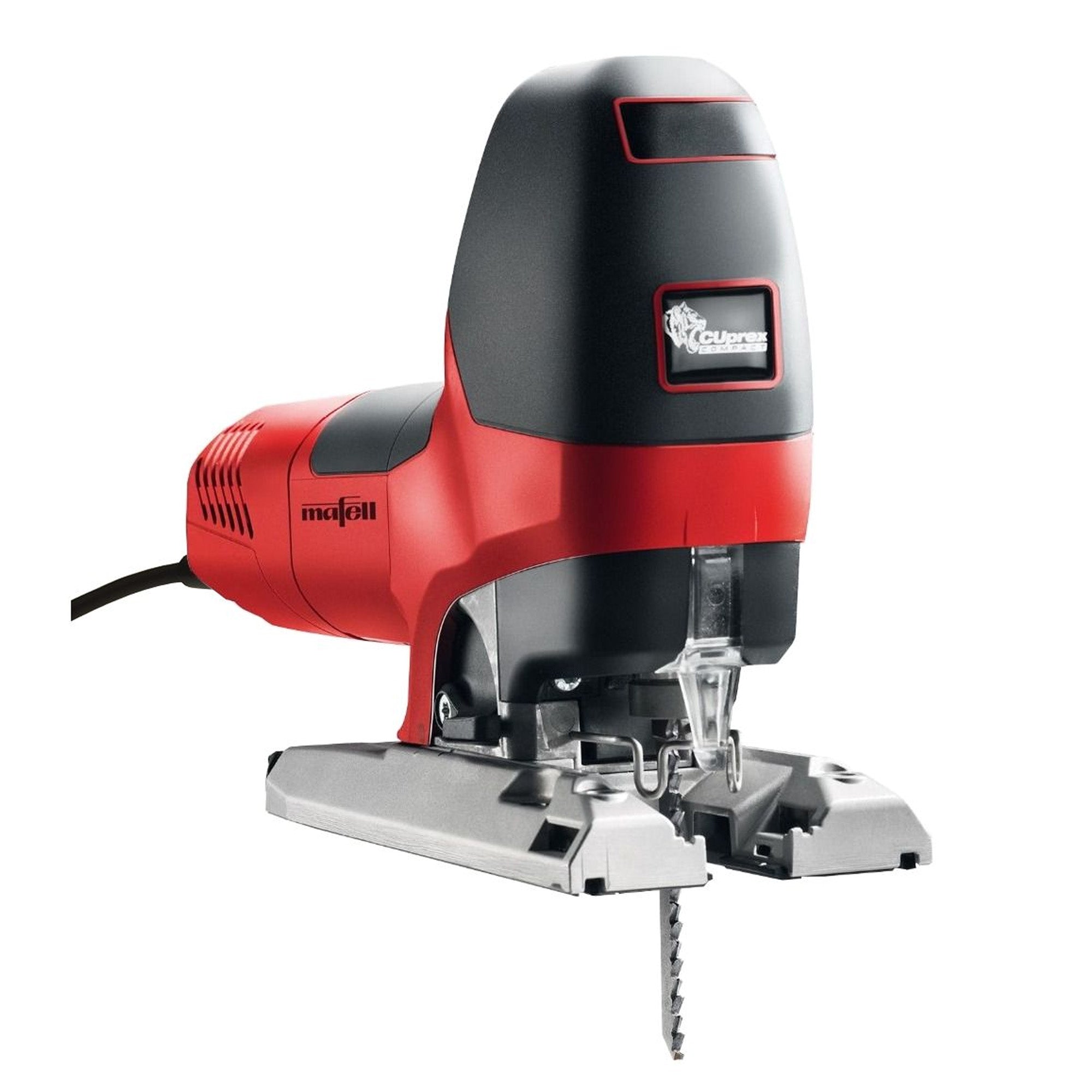

Mafell P1cc Jigsaw (120V)
- Price
- $ 799
Have questions? Give us a call at 260-637-0054.

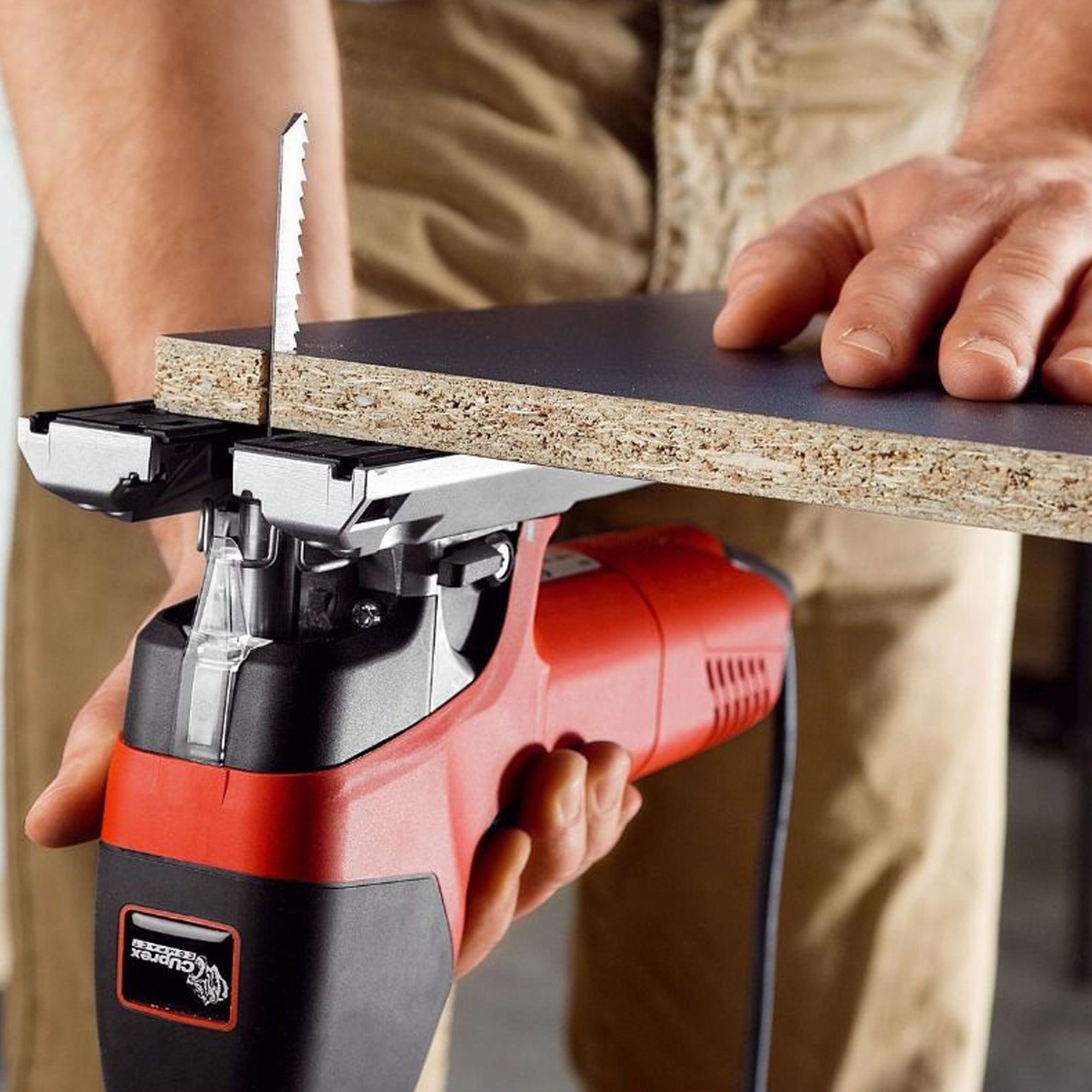

The Mafell P1cc combines innovation with versatility you won't find in any other jigsaw. This ergonomic jigsaw can handle material up to 7-13/16" thick and gives you the cleanest results in plunge cuts, radius cuts, and even bevel cuts (+/- 45°). The P1cc also features the CUmax, an exclusive blade clamping system that makes blades immovable for absolute precision. With an array of blades to choose from, the P1cc is capable of cutting wood laminates, plastic, metal, timber containing metal, gypsum, melamine resin panels, and fiber-center board.

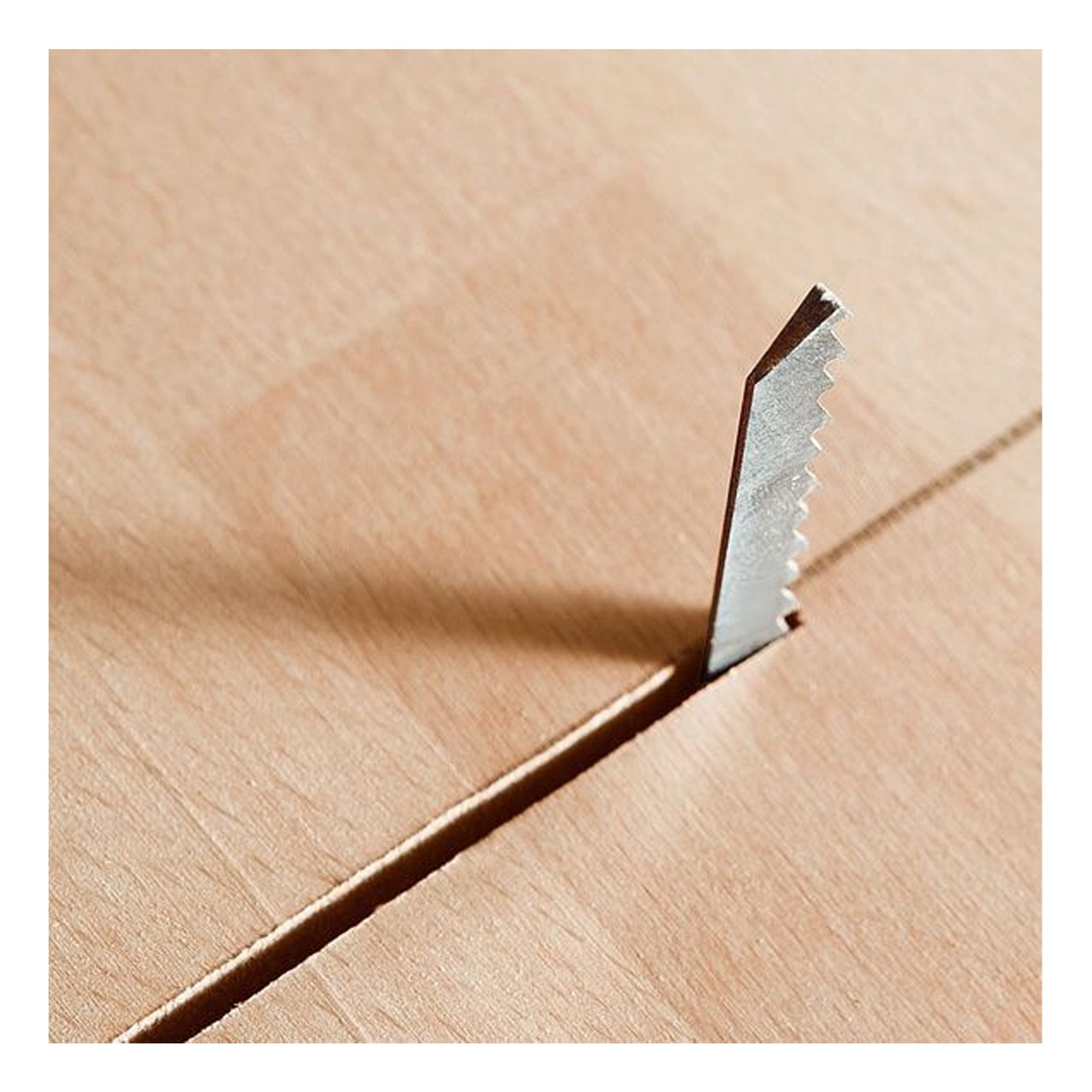

The heart of the P1cc Jigsaw is the patented CUmax saw blade clamping system. It holds the saw blade immovably in place for an unmatched degree of precision. The oscillating system, integrated in the gearbox, works without guide jaws and pressure rollers on the saw blade. This eliminates frictional heat damage to blades!

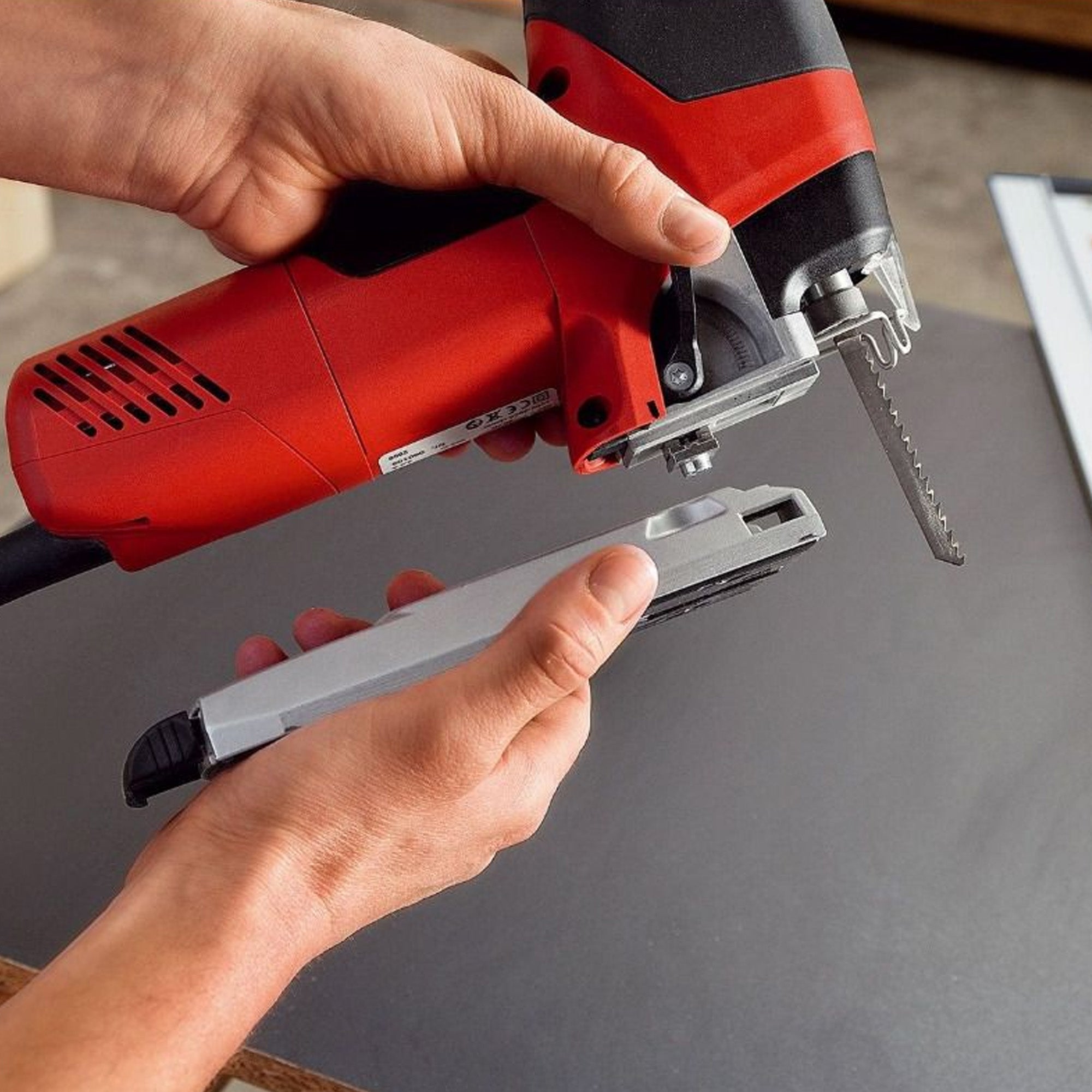

Easily make precise bevel cuts up to 45° with the Tilting Base (sold separately). Changing the base plate is extremely easy—just unlock the quick clamping system, remove base plate, insert the tilting plate, and clamp it. Then, select the angle setting and lock it into position. No tools or hardware needed.

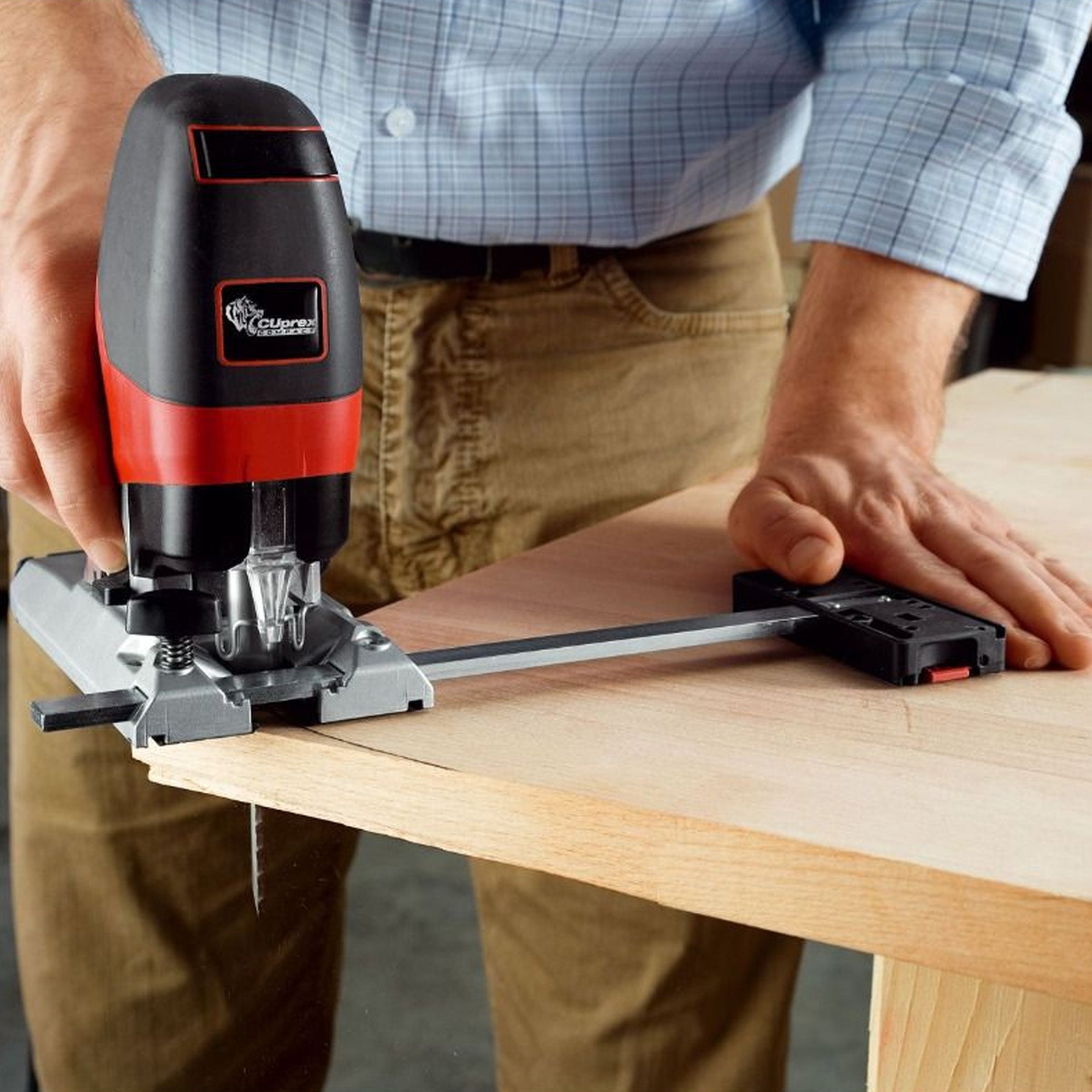

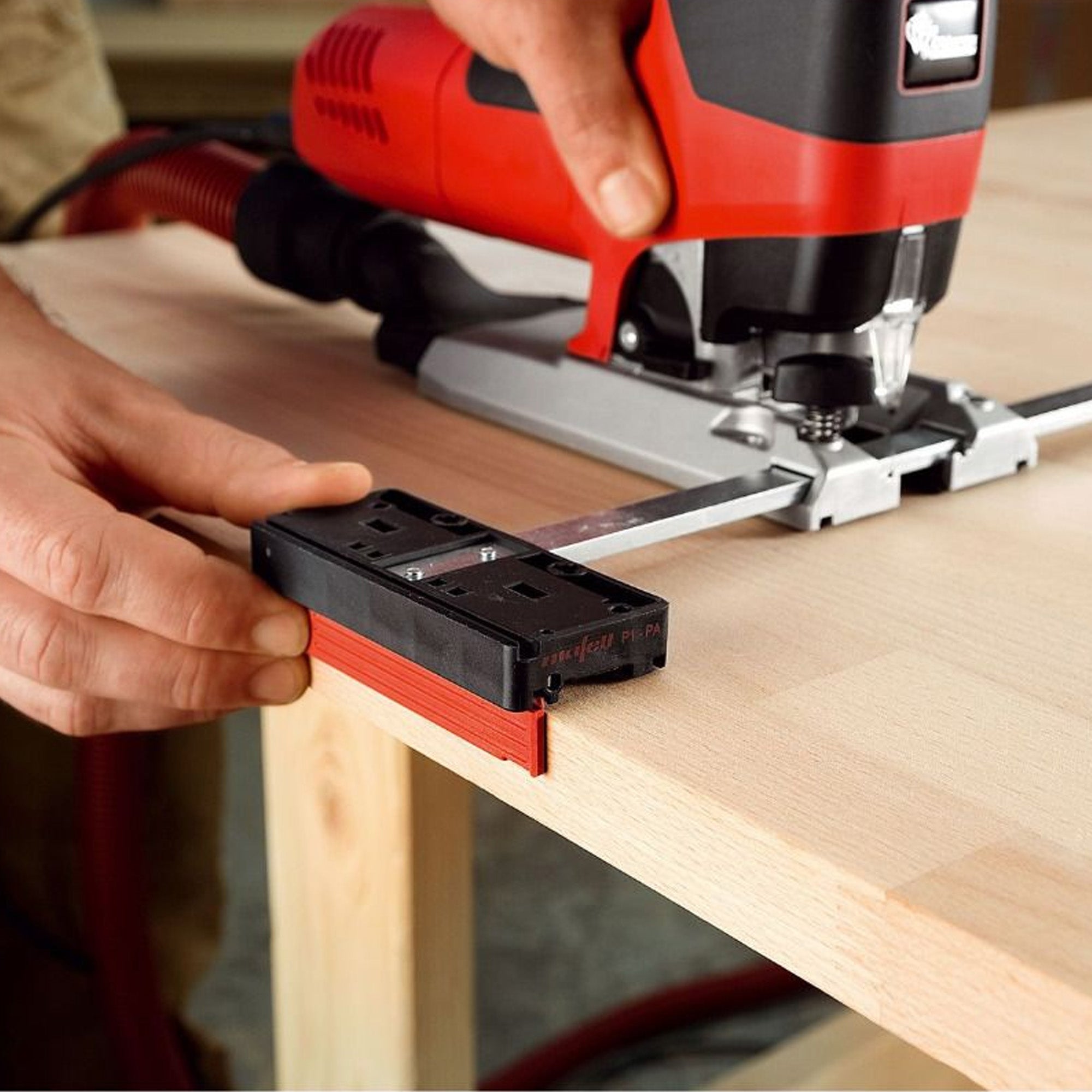

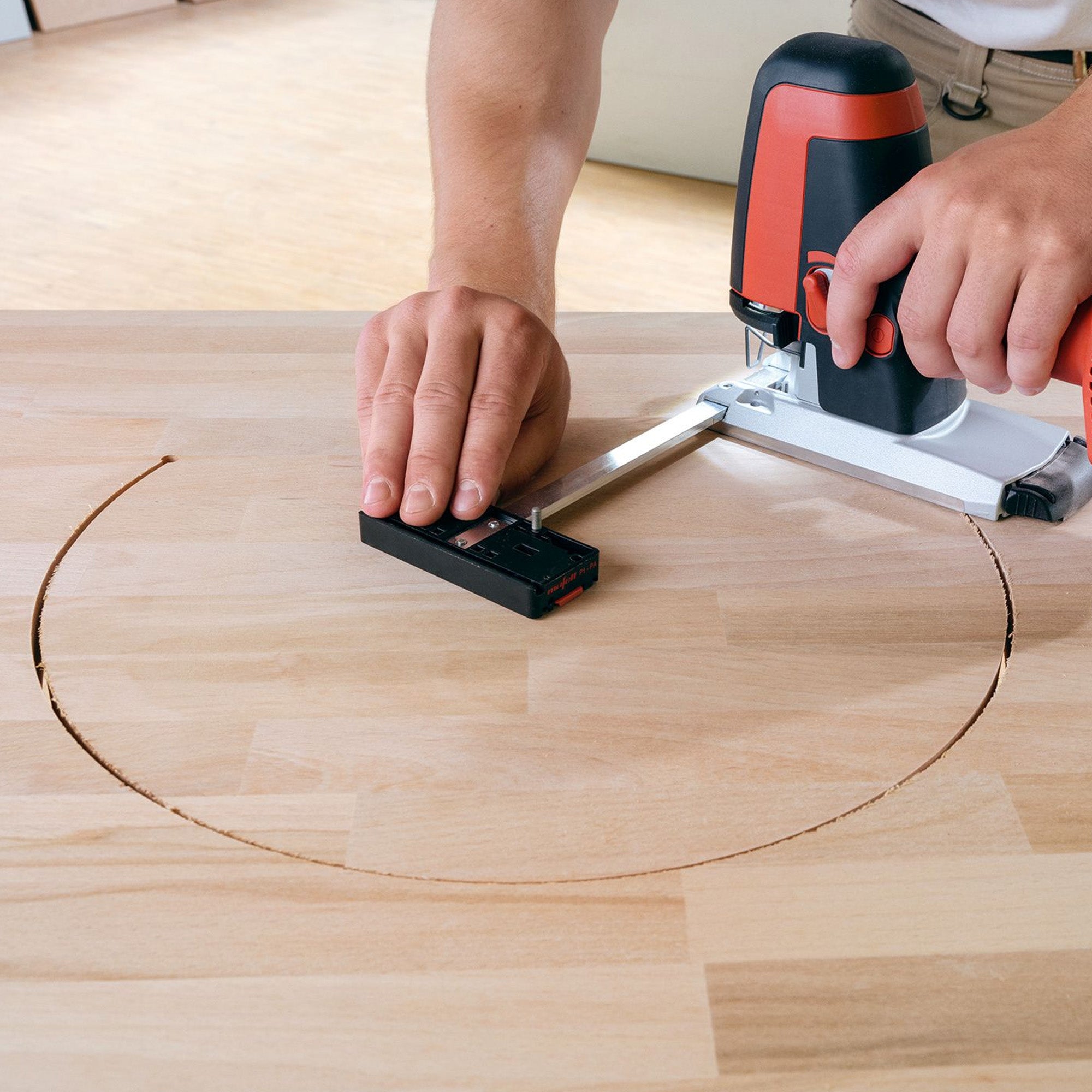

You can also make radius cuts when pairing the P1cc with the included Parallel Guide Fence. This accessory is like four products in one—it acts as a guide fence for straight cuts, supplementary support plate, guide rail adapter, and a circle cutter.

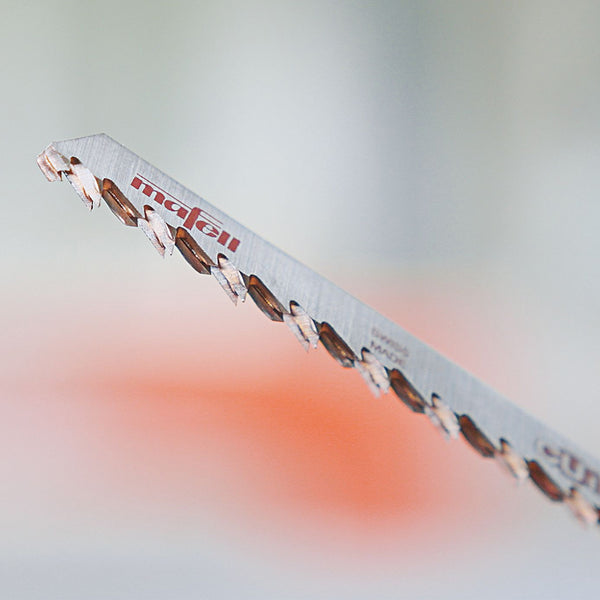

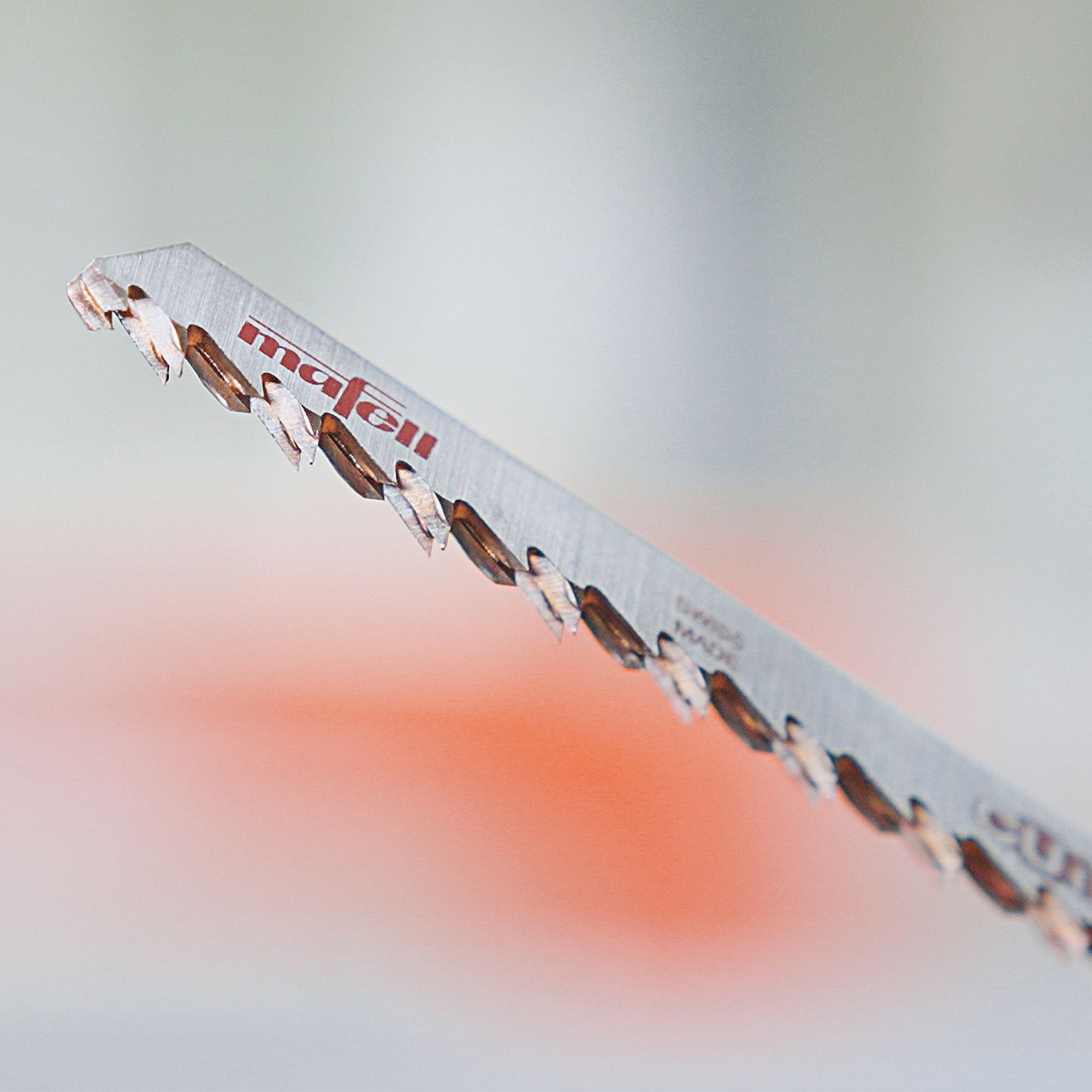

The P1cc comes with the CUnex W1 Jigsaw Blade. Two blades fused together for a double-layer configuration and tapered toward the back, the W1 is the best blade for materials less than 1-1/4" thick and for tight curves. The W1 will cut a wider groove in the supplied splinter guard, so an extra pack is recommended. A W+P2 and a W2 blade are also included for thicker material.
Looking for cordless? Check out the PS 2-18!
Features
- Cuts materials up to 7-13/16" thick
- CUmax blade tensioning system prevents heat damage
- Tool-less blade changes
- Powerful 900W CUPrex compact motor
- Blows air on the blade as it floats frictionless in space, preventing burning

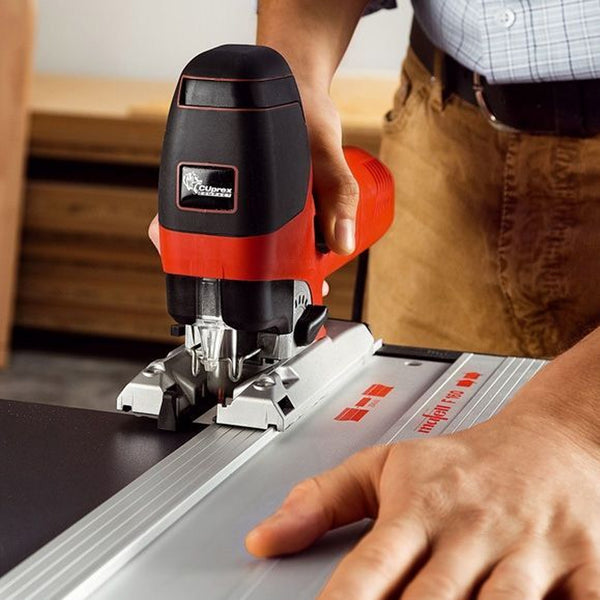

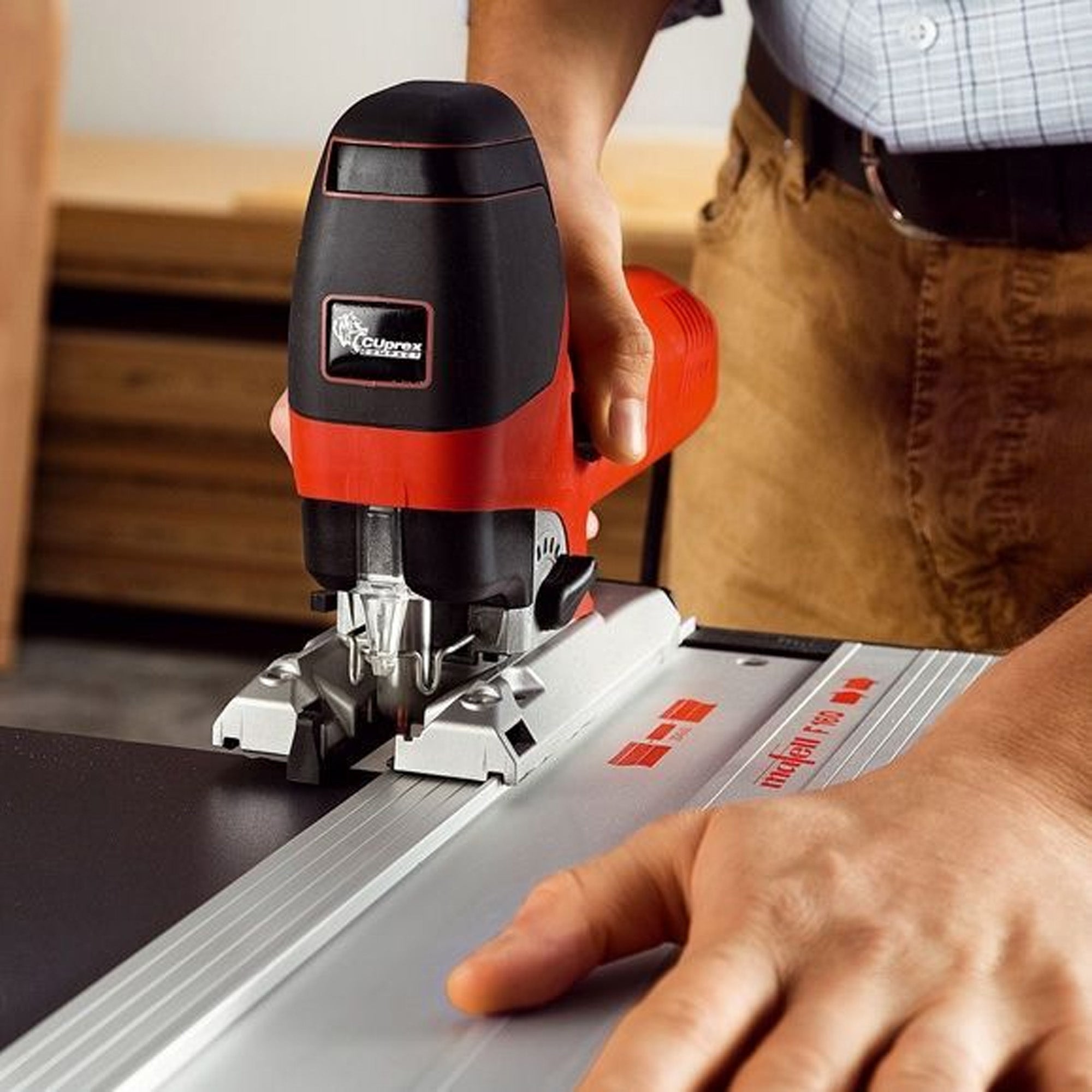

- Compatible with Mafell Guide Rail System, as well as T-Shank jigsaw blades
Specs
Cutting depth with W1 blade off track: 1-1/4"
Cutting depth with W+P2 blade on track: 2-1/4"
Cutting depth with M3 blade off track: 7-13/16"
Tilt range (with P1-SP Tilting Base): 0-45°
Stroke length: 1"
No load speed: 800 to 3,000 RPM
Motor: 120V, 7 A
Weight: 5.4 lbs.

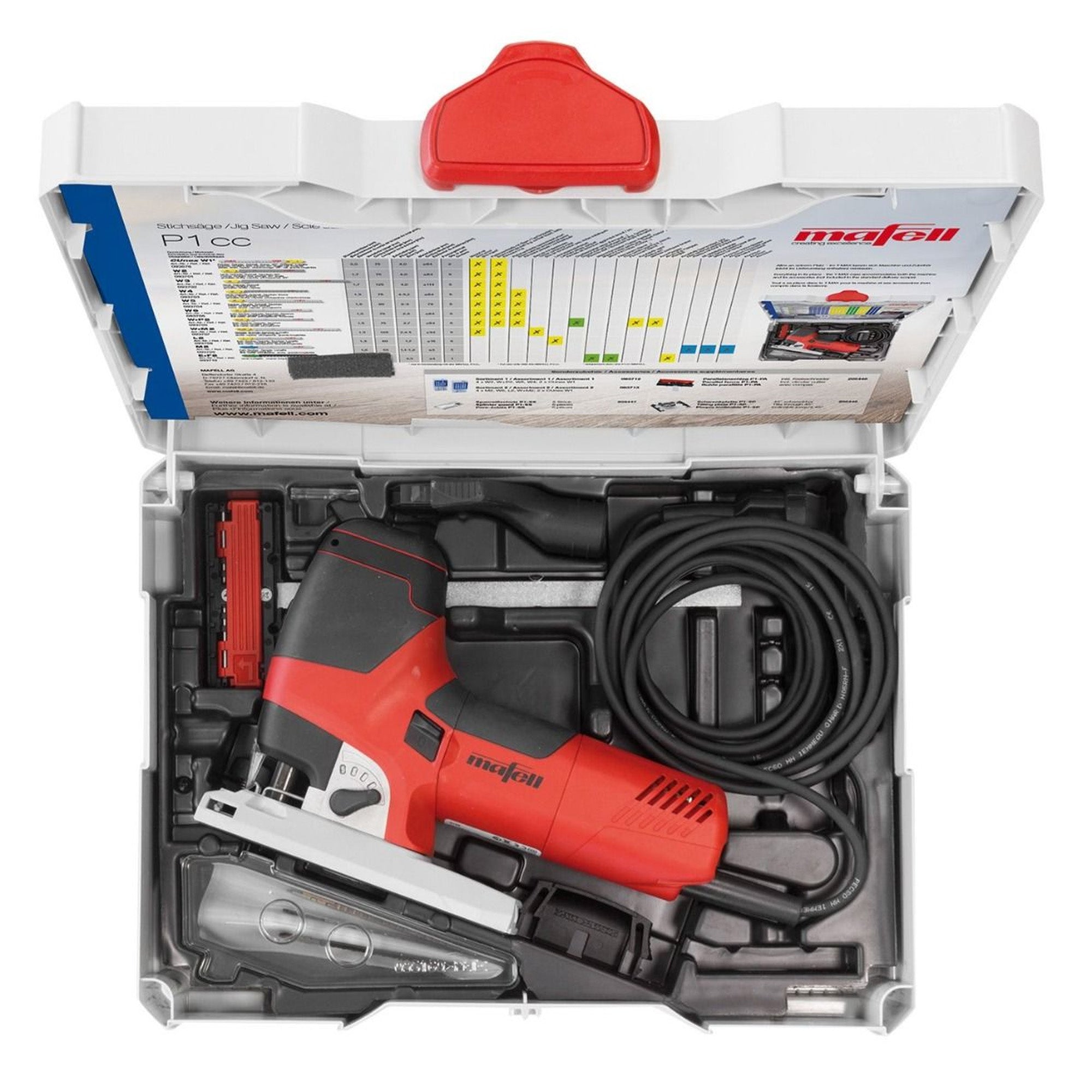

Includes
- CUnex W1 Blade
- CUnex W2 Blade
- CUnex W+P2 Blade
- Parallel Guide Fence
- Hose connector
- Chip deflector
- Splinter guard
- Glider
- 13.1 ft. cord

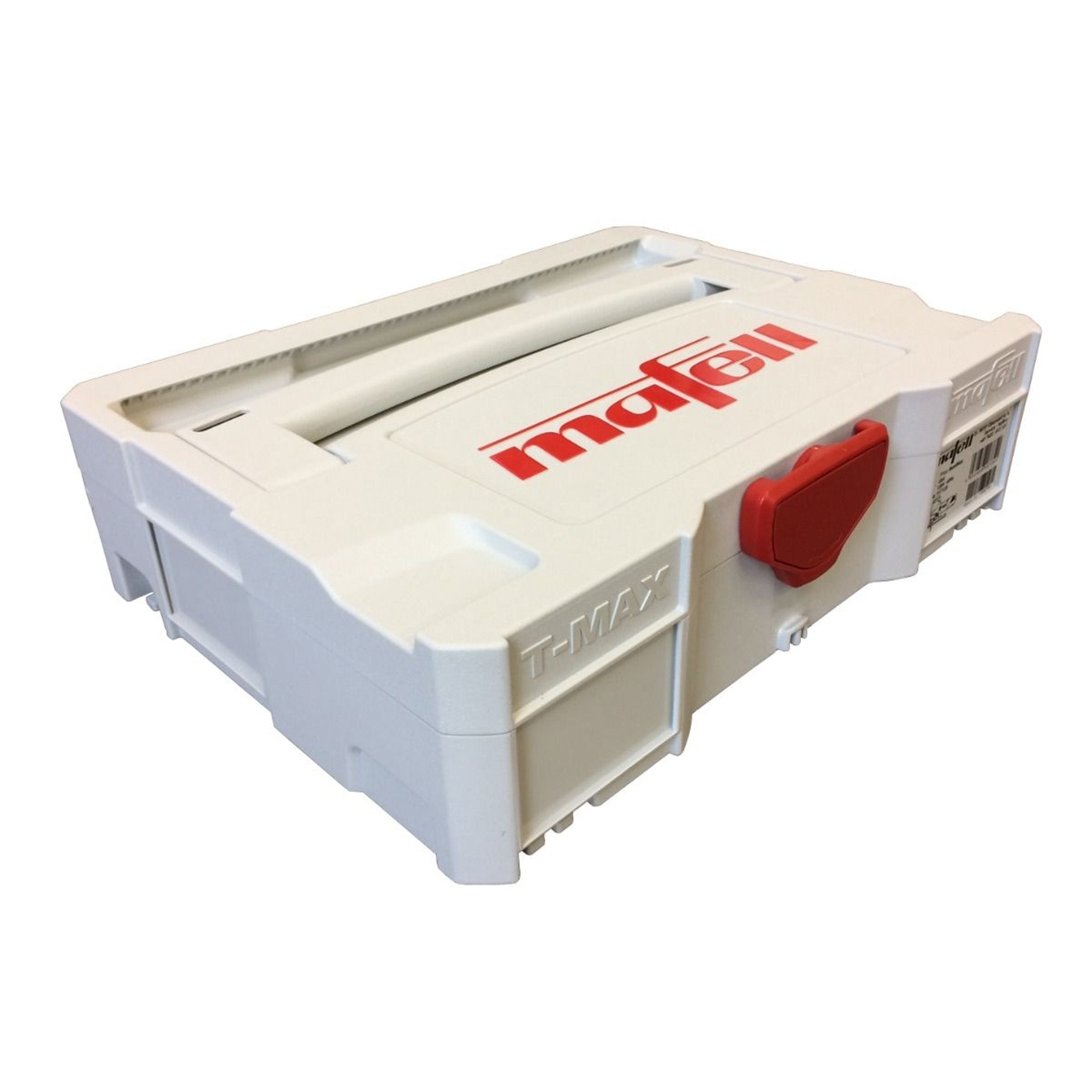

- T-MAX carrying case
