Mafell KSS 80Ec/370 Cross-Cutting System 120V

Price
$ 1,898

Have questions? Give us a call at 260-637-0054.

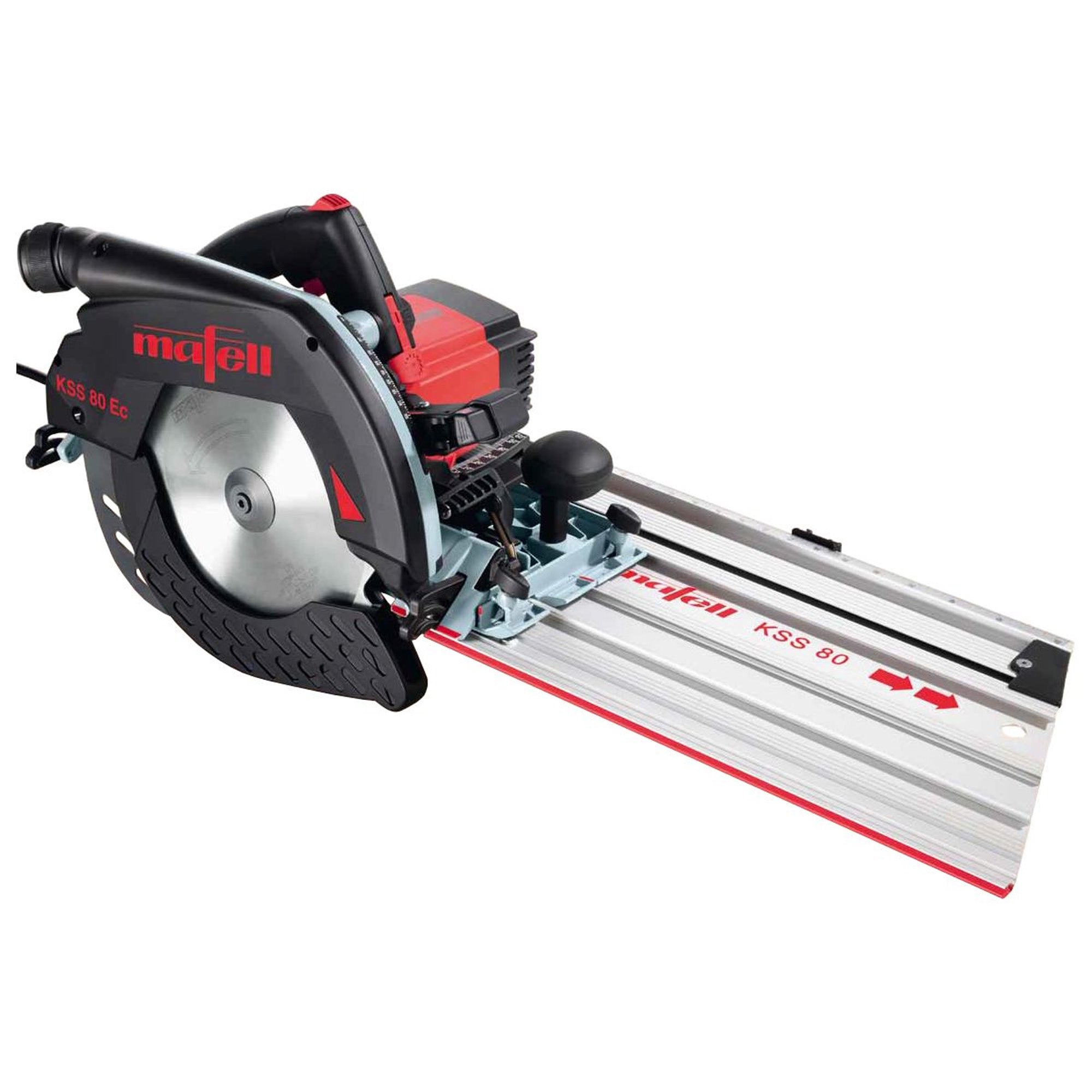

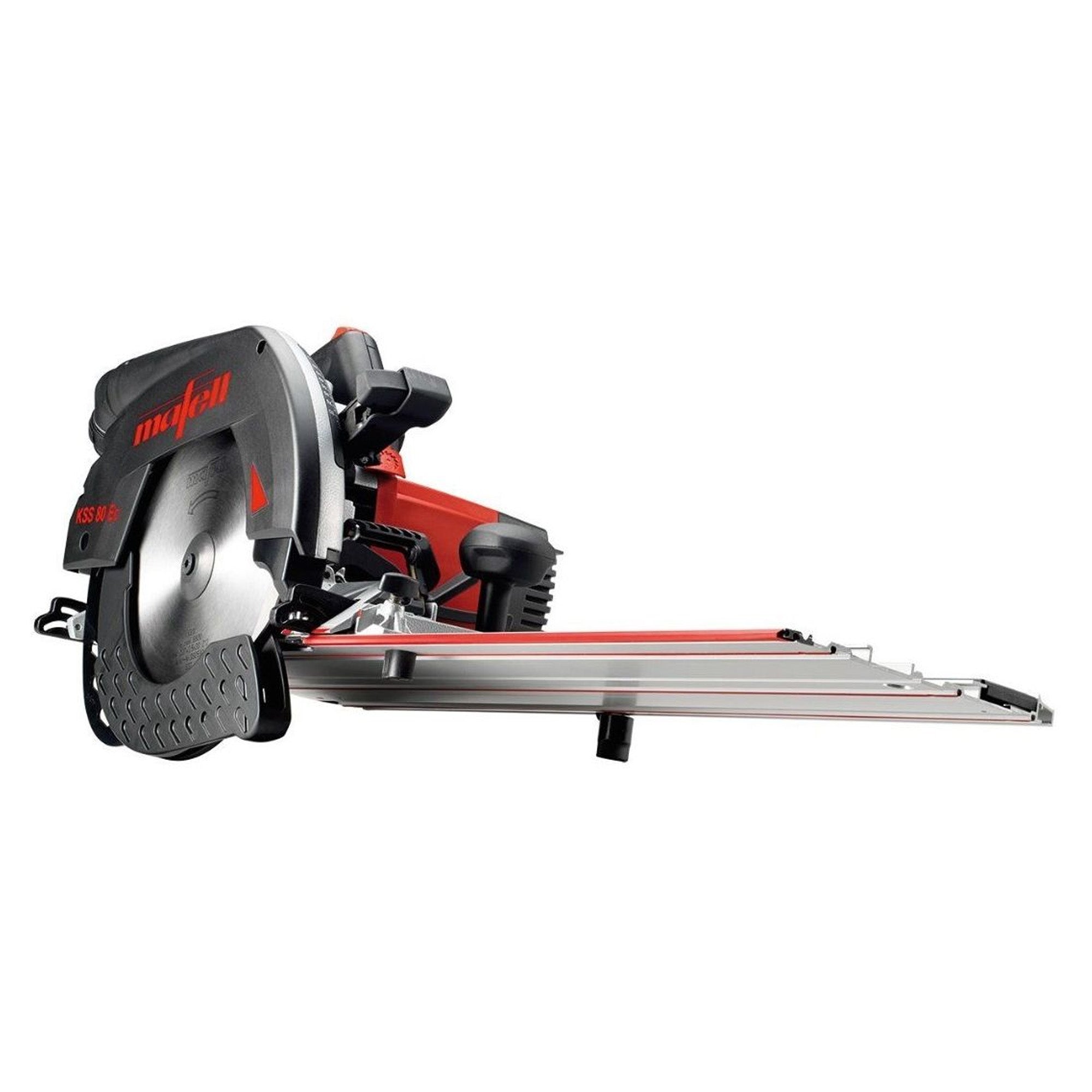

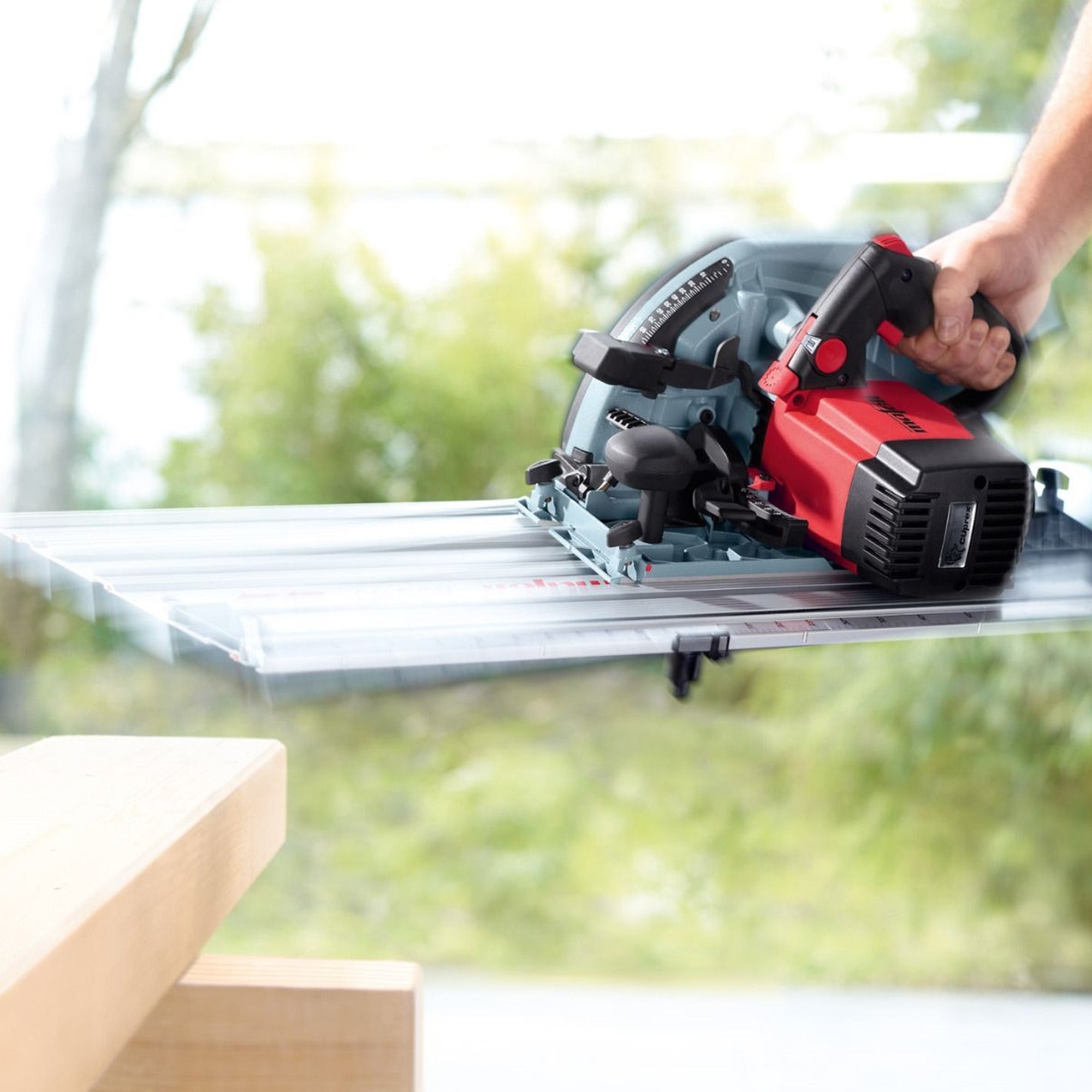

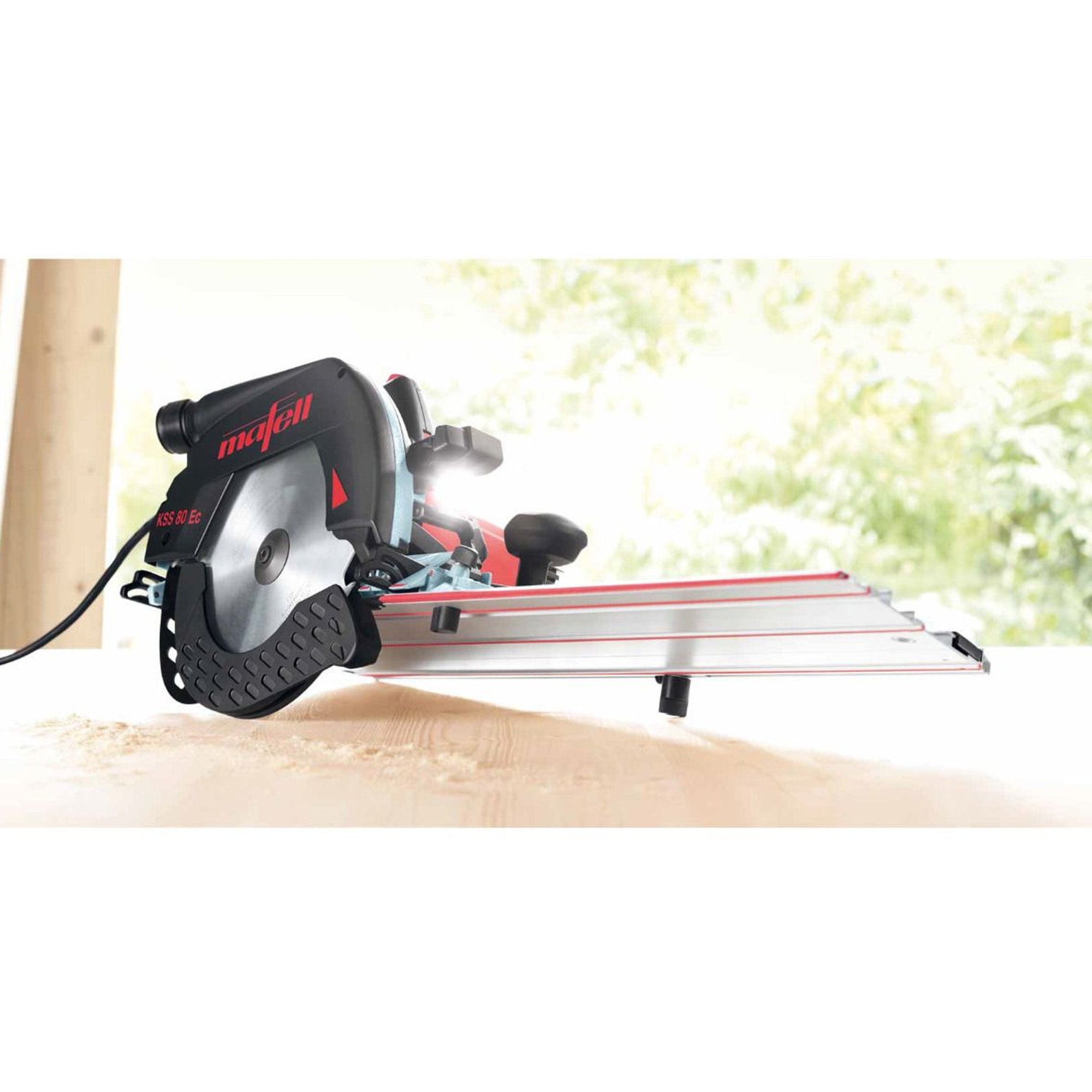

The Mafell KSS 80Ec/370 Cross-Cutting System combines the power of a full-size circular saw with the precision of a guided cross-cut system, giving professional carpenters one versatile tool for cross-cutting, ripping, and miter cutting. Built around Mafell's high-performance CUprex motor and paired with the integrated 370mm guide track, it delivers clean, accurate cuts up to 3-3/16" deep while remaining portable enough for use directly at the jobsite. Instead of carrying material back and forth to a stationary saw, you can bring precision cutting to the workpiece, saving valuable time and reducing fatigue.

The KSS 80Ec/370's innovative guide system makes repeatable accuracy effortless. Simply register the guide against the edge of your material and push the saw through the cut—no need to carefully follow a pencil line by eye. The adjustable Smart Stop allows for perfectly square 90° cuts as well as precise miters up to 60°, making it ideal for framing, timber construction, stair building, and finish carpentry.

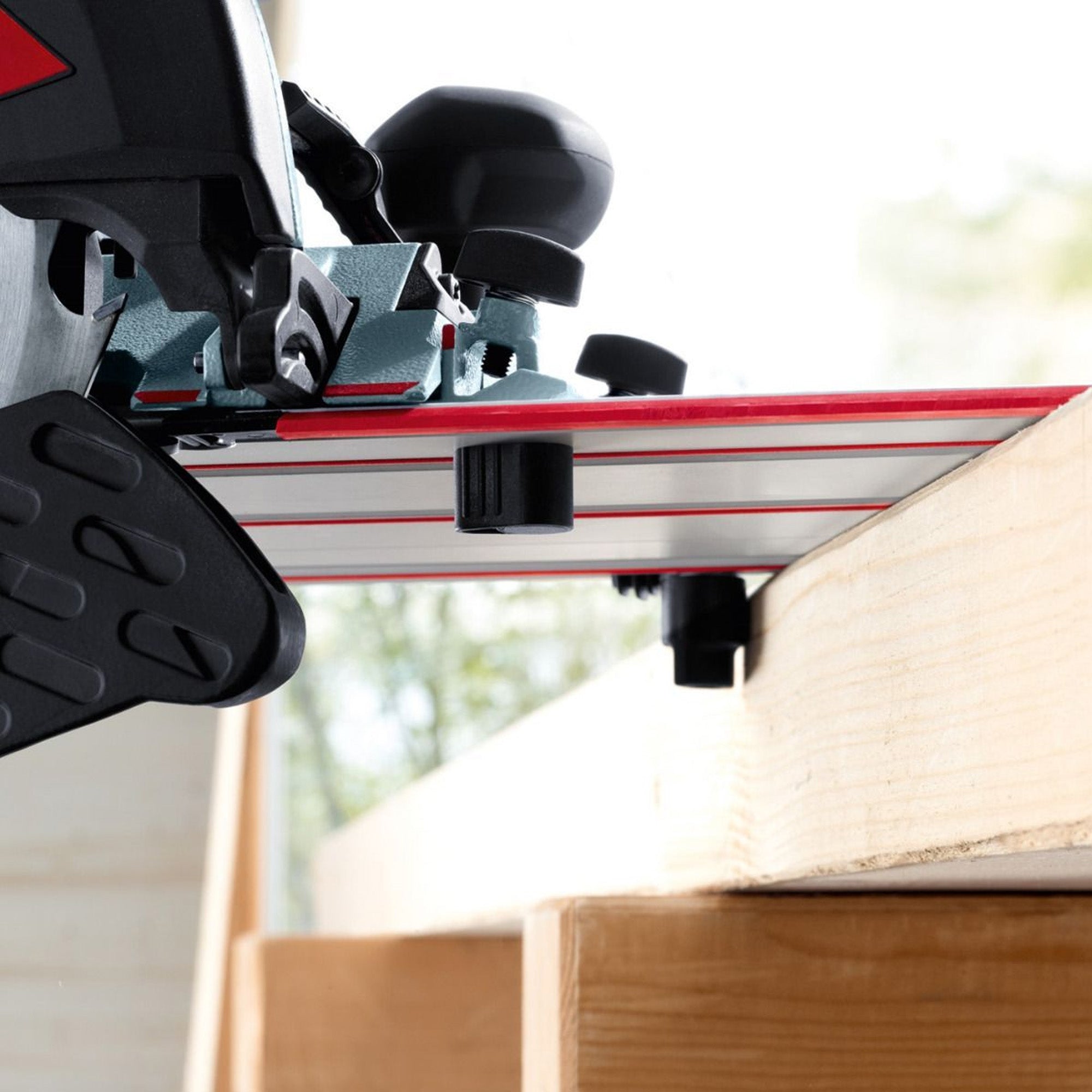

A non-slip friction pad keeps the guide securely in place without clamps for many applications, while the splinter guard produces clean, tear-out-free cuts, even when making repeated angled cuts in plywood, hardwood, or finished panels.

Whether you're cutting heavy structural lumber, sizing sheet goods, or producing accurate finish cuts on-site, the KSS 80Ec/370 delivers the portability of a handheld circular saw with the confidence and consistency of a dedicated cross-cut station. The result is faster setup, exceptional cut quality, and the flexibility to tackle everything from rough construction to fine woodworking with a single tool.

Features
  • Up to 3-3/16" cutting depth on 14-9/16" length track (excellent for tenon shoulder cuts)
  • Powerful 17 amp motor

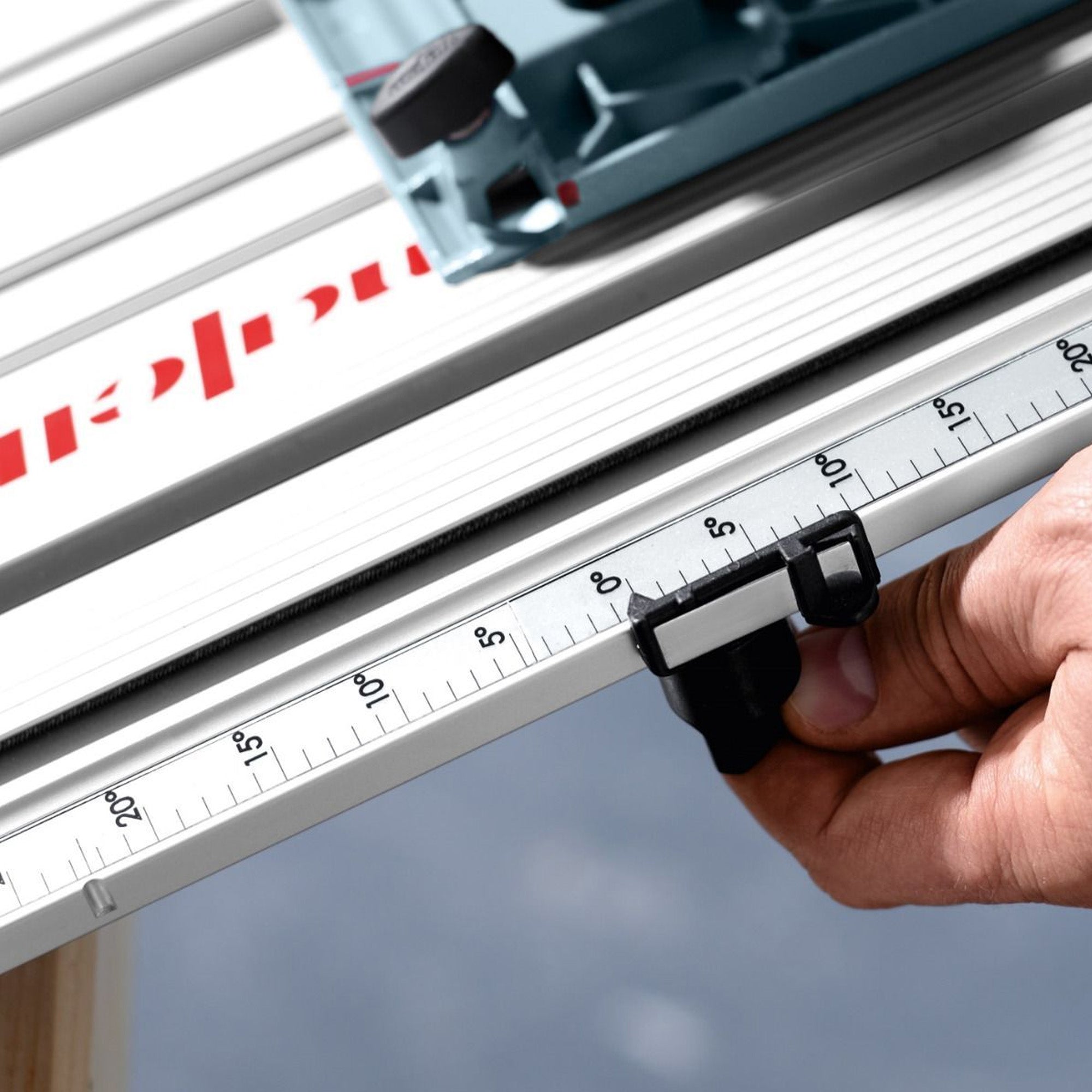

  • Clearly graduated scale for easy angle adjustments
  • Tilts up to 60°
  • FLIPPKEIL Riving Knife is spring-loaded and retracts during plunge cuts for improved safety
Specs

Cutting depth at 0° (on track): 0 to 3-3/16"
Cutting depth at 45° (on track): 0 to 2-3/16"
Cutting depth at 60° (on track): 0 to 1-1/2"
Cutting depth at 0° (off track): 0 to 3-7/16"
Tilt range: 0 to 60°
Blade diameter: 9-5/16"
No load speed: 2,250 to 4,400 RPM
Motor: 120V / 60 Hz
Current: 17 A
Weight with track: 19.8 lbs.

Includes
  • Guide Rail (370mm)
  • 12T Ripping Carbide Blade
  • Parallel Guide Fence
  • Hose Connector
  • Allen Key
  • 13.1 ft. Cord

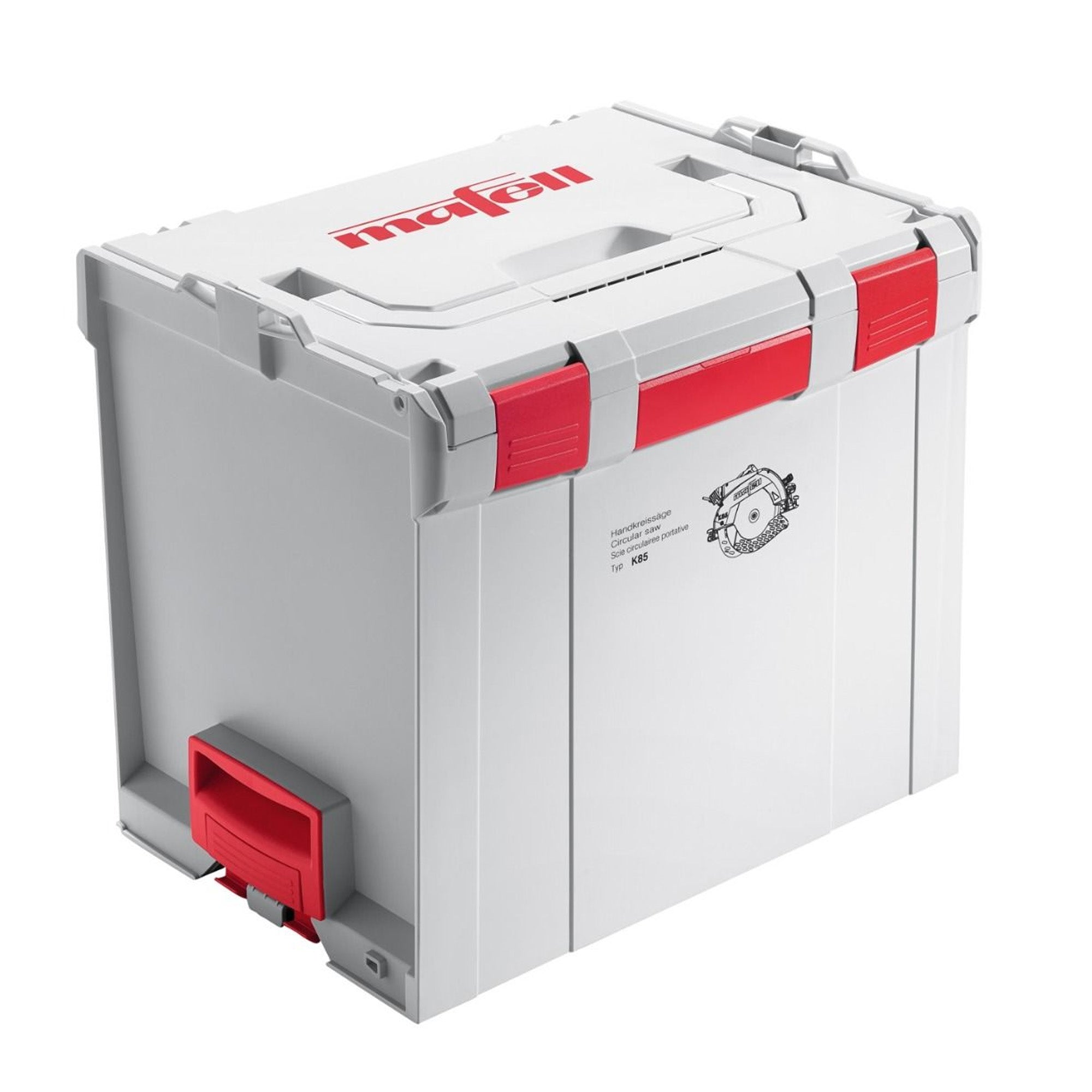

  • L-MAX Carrying Case
Video

SKU: 918523
