$ 1,599

Have questions? Give us a call at 260-637-0054.

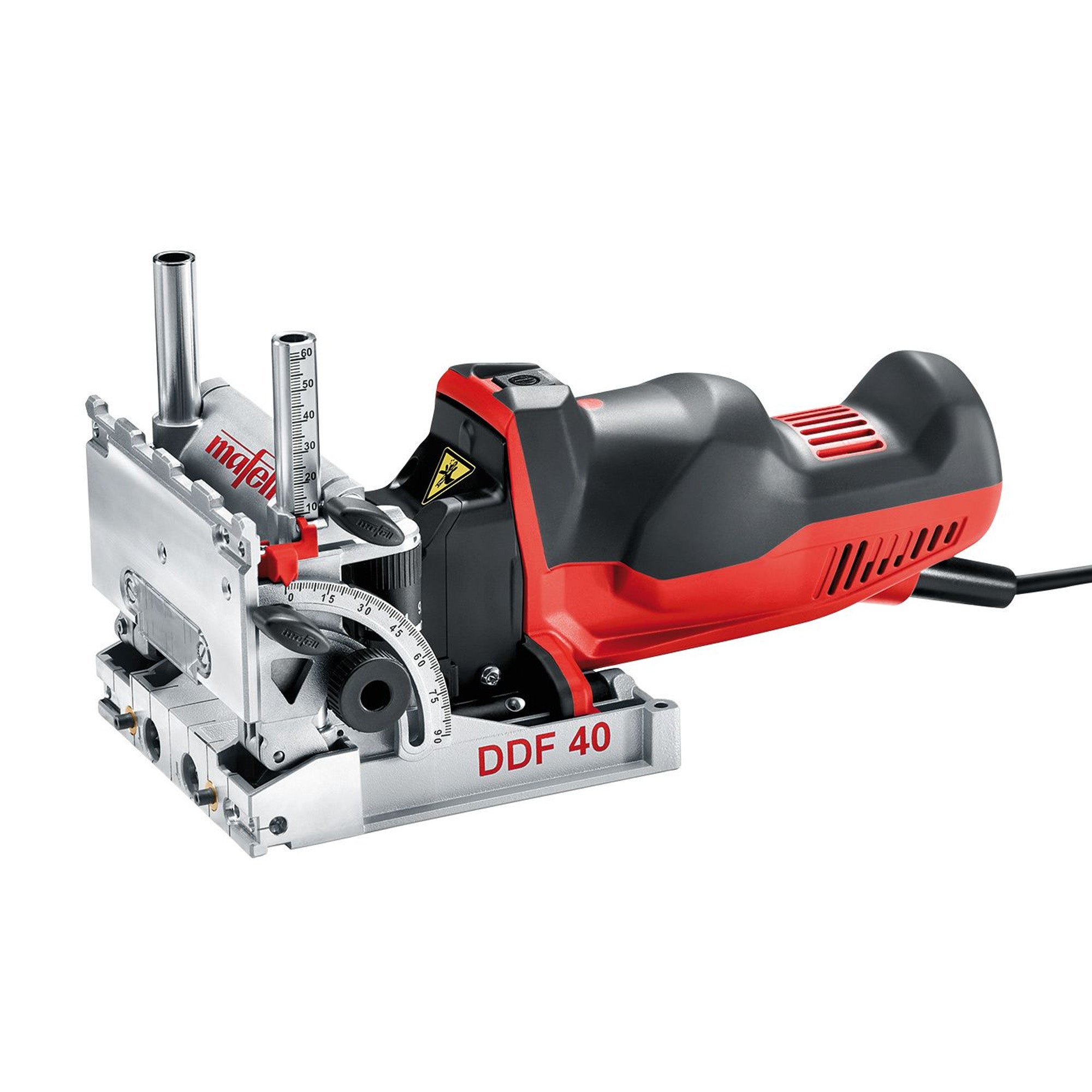

Obtain greater ease and efficiency when drilling accurate dowel holes with the Mafell DDF 40 Duo Dowel System. Designed for both shop and on-site work, it combines the precision of a stationary machine with the flexibility of a handheld tool, making it easy to produce perfectly aligned joints every time. The DDF 40 is the top choice for Euro-style cabinetry (32mm system) because its dual-bit spacing is exactly 32mm apart, allowing it to drill shelf pin holes and construction joints without extra jigs.

Built around efficiency and ease of use, the DDF 40 features a robust design and a low-profile base plate that keeps handling stable and controlled, even during repetitive tasks. Its ability to drill paired dowel holes in a single operation with the included SA 320 Side Fence Set not only speeds up workflow, but also creates exceptionally strong joints with outstanding stability, even during dry assembly.

From cabinet corners and partitions to long rows of holes, the DDF 40 adapts to a wide range of applications. Integrated stops and fences eliminate the need for templates or layout in most cases, saving time while maintaining precision. Complete with an ergonomic handle for maximum user comfort, the DDF 40 will increase and ease your joinery production.

Features
  • Drills two dowel holes simultaneously
  • Standard 32mm spacing allows users to drill shelf pin holes without extra jigs

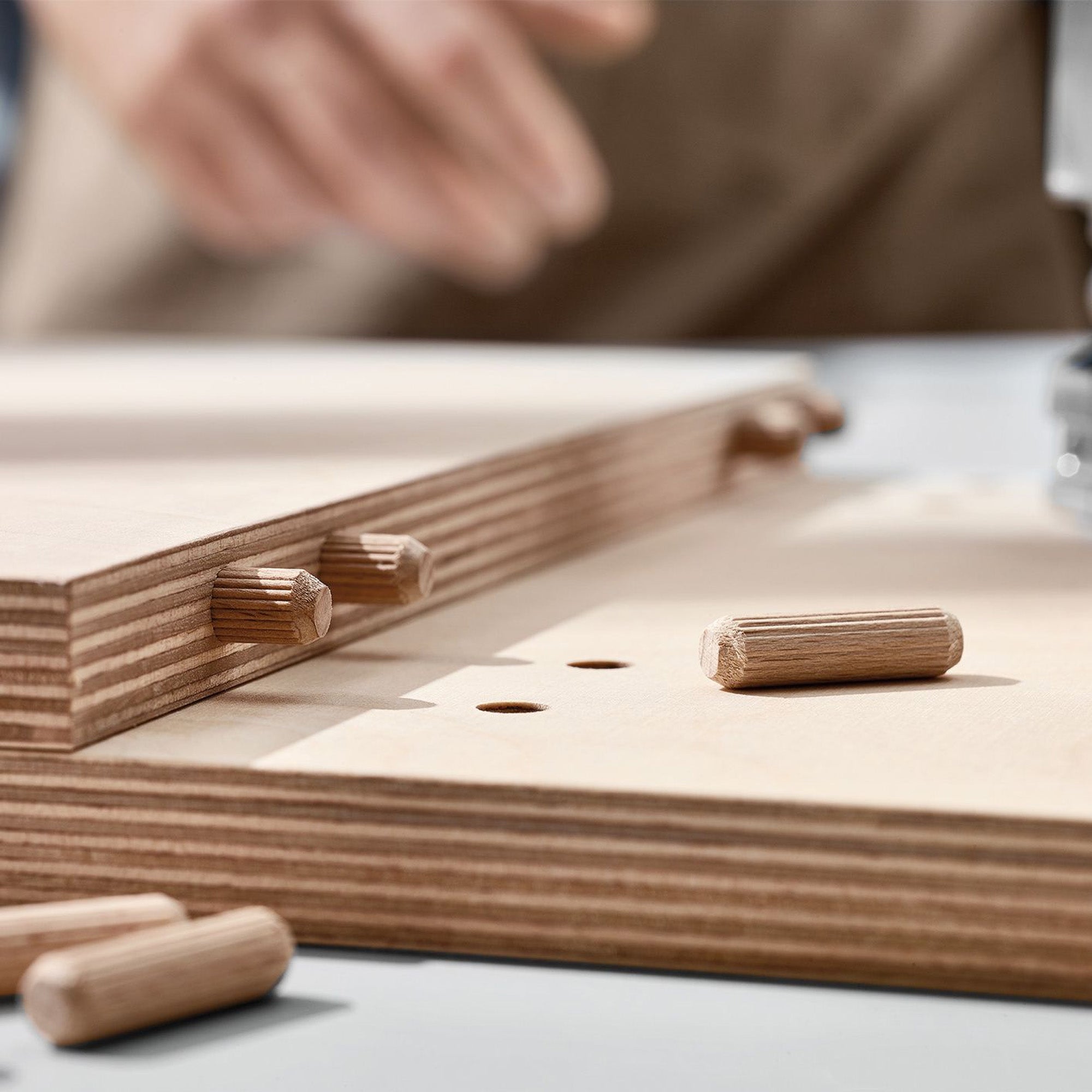

  • Using dowels in pairs eliminates risk of any twisting or movement between the two workpieces once they are joined

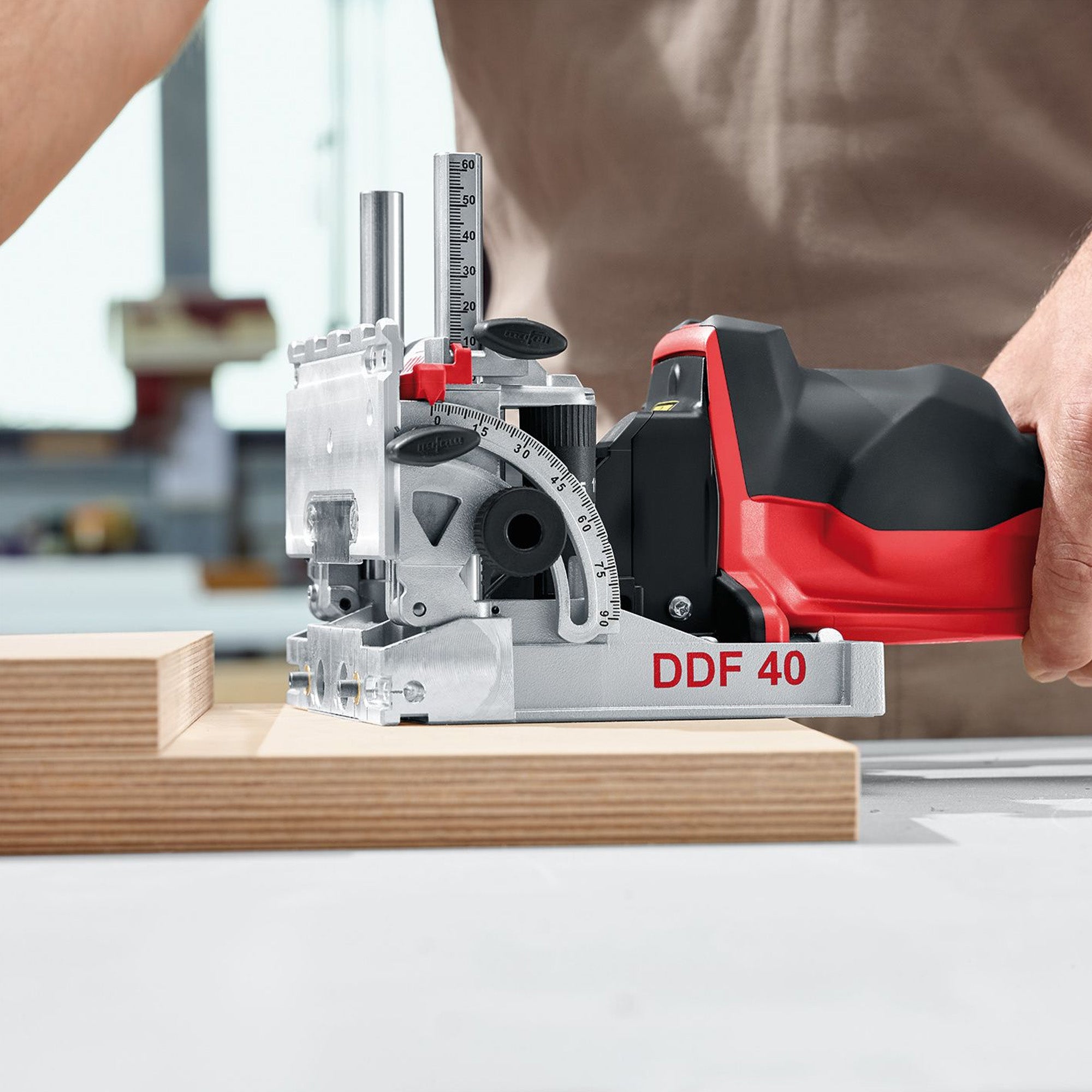

  • Tilting fence can be repositioned up to a height of 2-7/16" (62mm) and tilts continuously from 0 - 90° for miter joints

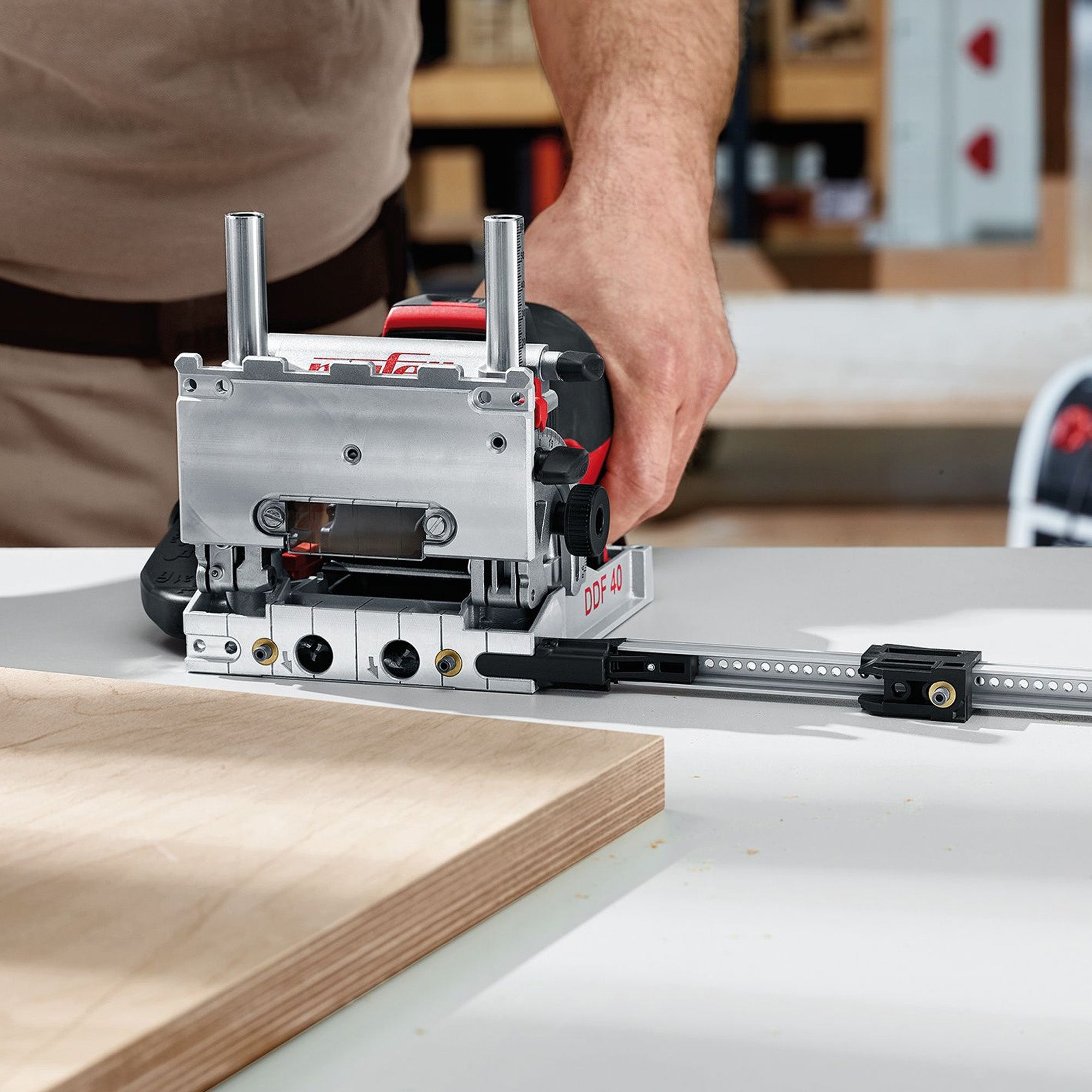

  • Molded side stops on the baseplate allow holes to be drilled at a repeatable, fixed distance of 1-15/16" (49mm) from the edge. Additionally, two spring-loaded pins in the baseplate provide a 5/8" (15.5mm) offset from the edge, enabling fast, repetitive drilling across multiple workpieces without any measuring or marking.
  • Features a rotary knob that clicks into place to instantly adjust the fence height for different wood thicknesses, making switching material sizes completely foolproof.
  • Low-profile housing ensures drilling pressure is perfectly aligned with the bits, eliminating tool rock and ensuring perfectly straight holes every time.
  • Ergonomic motor housing and molded grip
Specs

Drilling depth: 0 to 1-9/16"
Drill bit spacing: 1-1/4" (32mm)
Tilt range: 0 to 90°
Chuck diameter: 5/16"
Max. bit diameter: 1/2"
Min. bit diameter: 1/8"
No load speed: 9,500 RPM
Motor: 120V / 60 Hz
Current: 7.8 A
Hose connector outside diameter: 1-1/8"
Weight: 6.4 lbs.

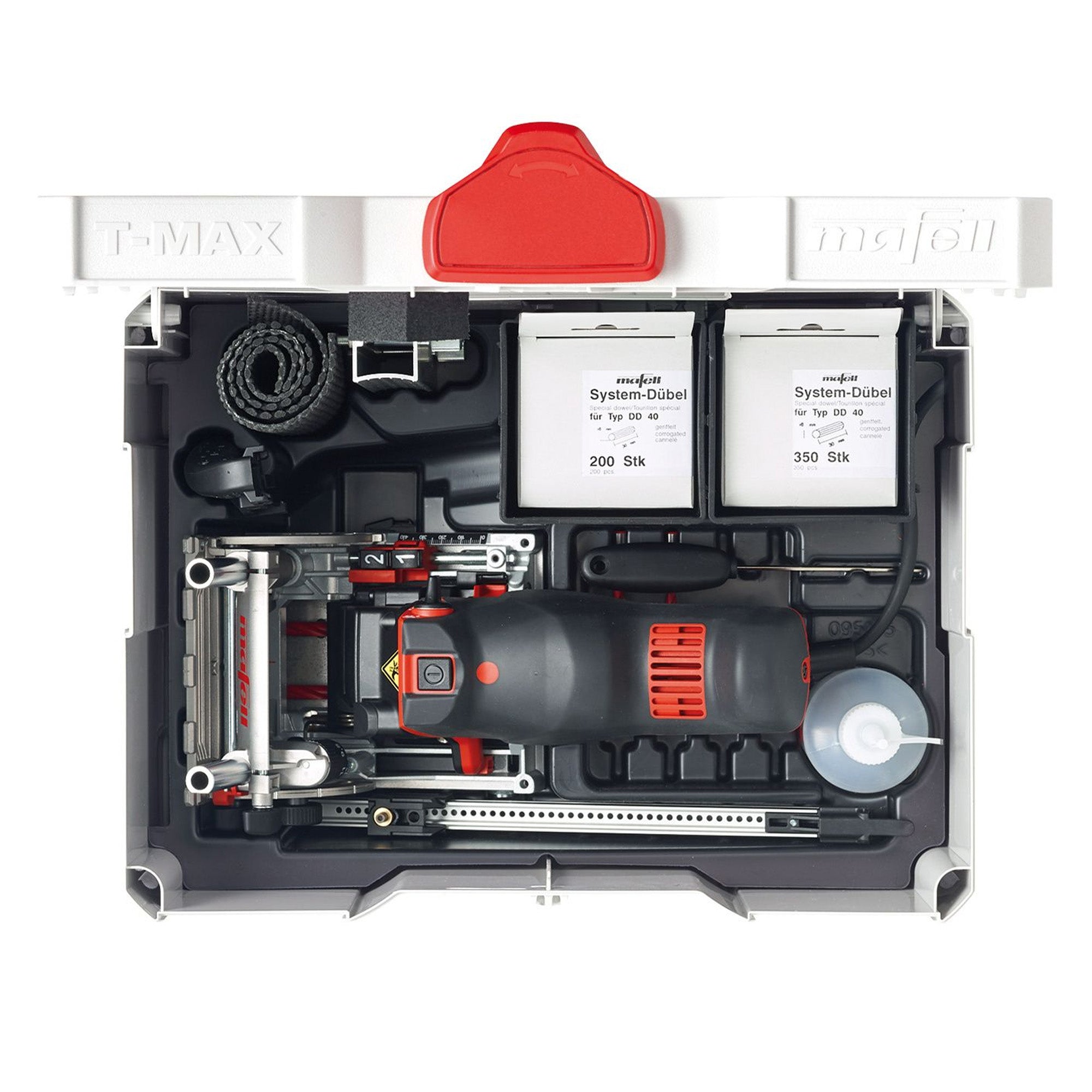

Includes
  • (2) Hardened steel bits, 6mm
  • (2) Hardened steel bits, 8mm
  • (200) Dowels, 8 x 30mm
  • (350) Dowels, 6 x 30mm
  • (2) Anti-slip mats
  • Empty glue bottle, 8.4 fl. oz.
  • Dowel nozzle, 5/16"
  • Hose connector
  • Allen key
  • ZA auxiliary rest
  • ZAG additional stop set
  • PAZ position indicator
  • SA 320 Side Fence Set
  • LA stop pin insert for battens
  • Cord, 13.1 ft.

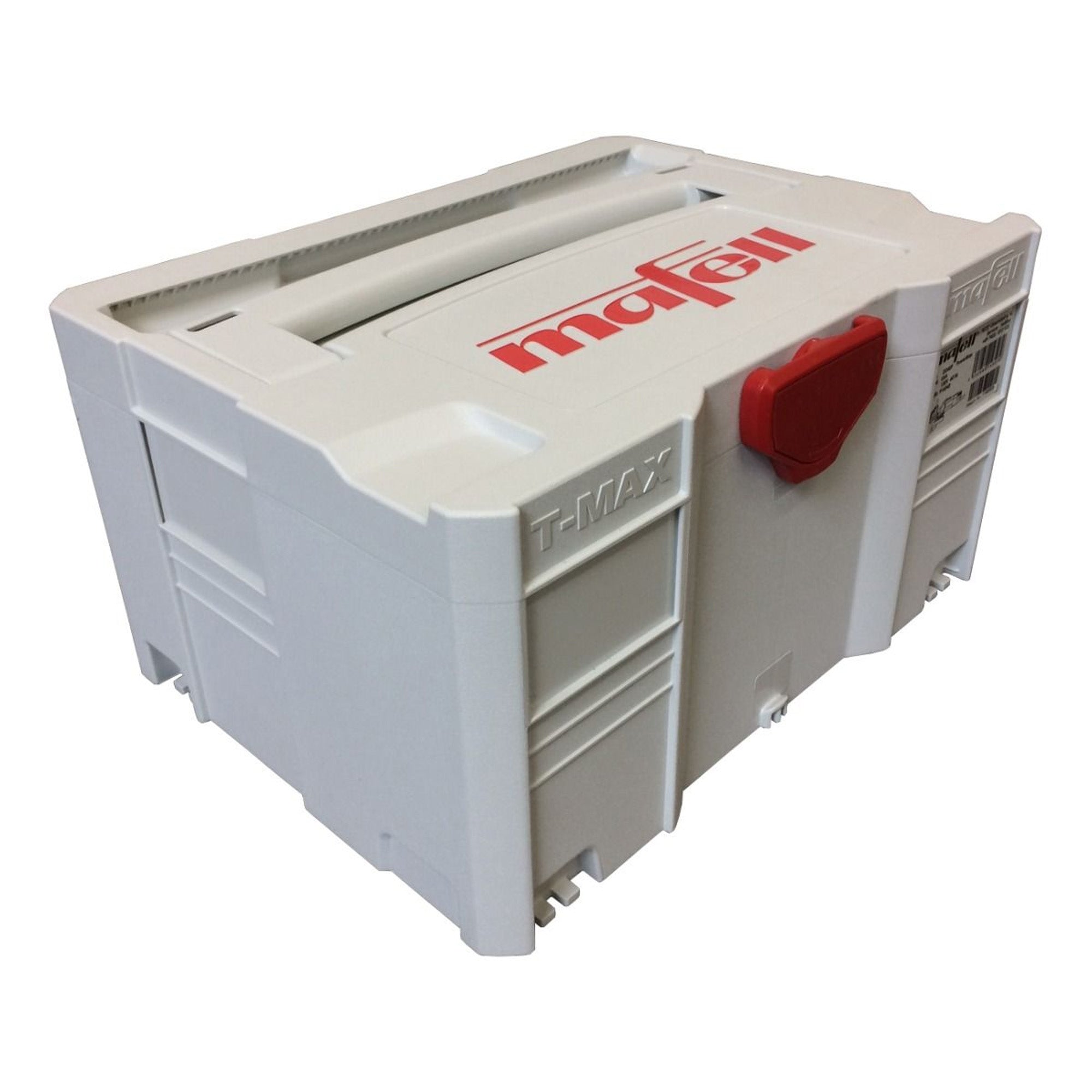

  • T-Max Carrying Case
Video

SKU: 918623
