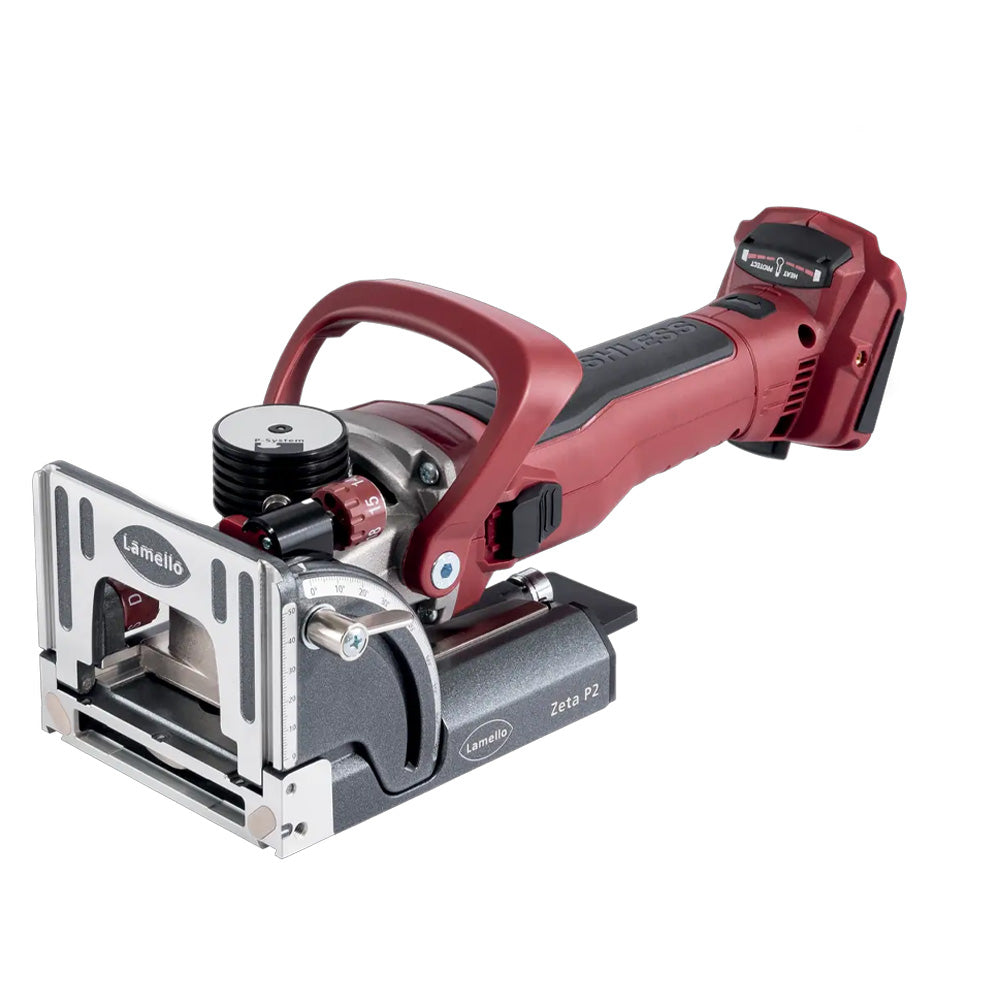

Lamello Zeta P2 Cordless With Diamond Cutter - Bare Tool
- Price
- $ 2,250
Have questions? Give us a call at 260-637-0054.
- The tool that creates the grooves needed for all Lamello P-System Connectors
- Cordless version of the Zeta P2 Biscuit Joiner
- Depth adjuster for different sized connectors — no need to change cutters

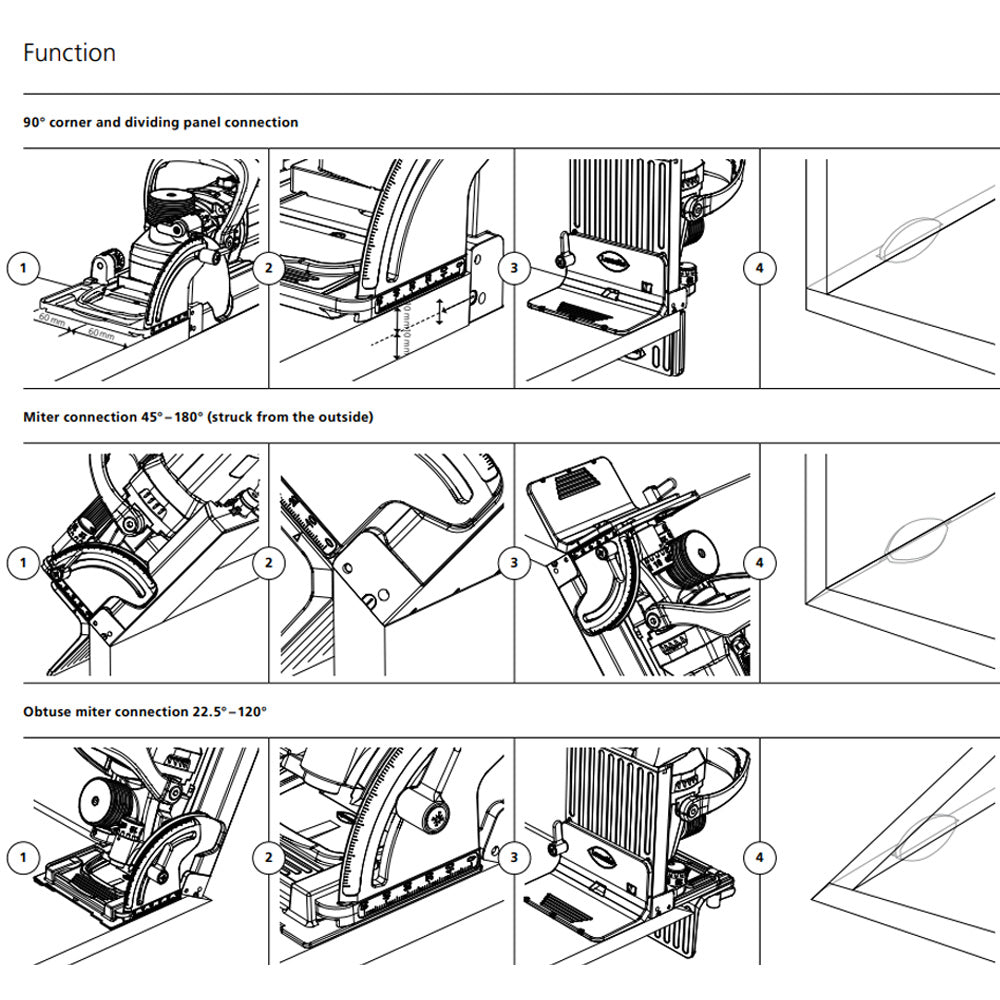

- Adjustable flip stop allows you to make miter cuts between 22.5° - 120°
- Stop square accessory for precise cuts
- Connections in seconds without the need for glue, screws, clamps, etc.
- Also compatible with biscuits and other 4mm fittings
- Includes diamond cutter, highly recommended for most materials, including abrasive ones like MDF, particle board, and plywood (resharpen-able carbide cutter also available)
- 2-Year Warranty

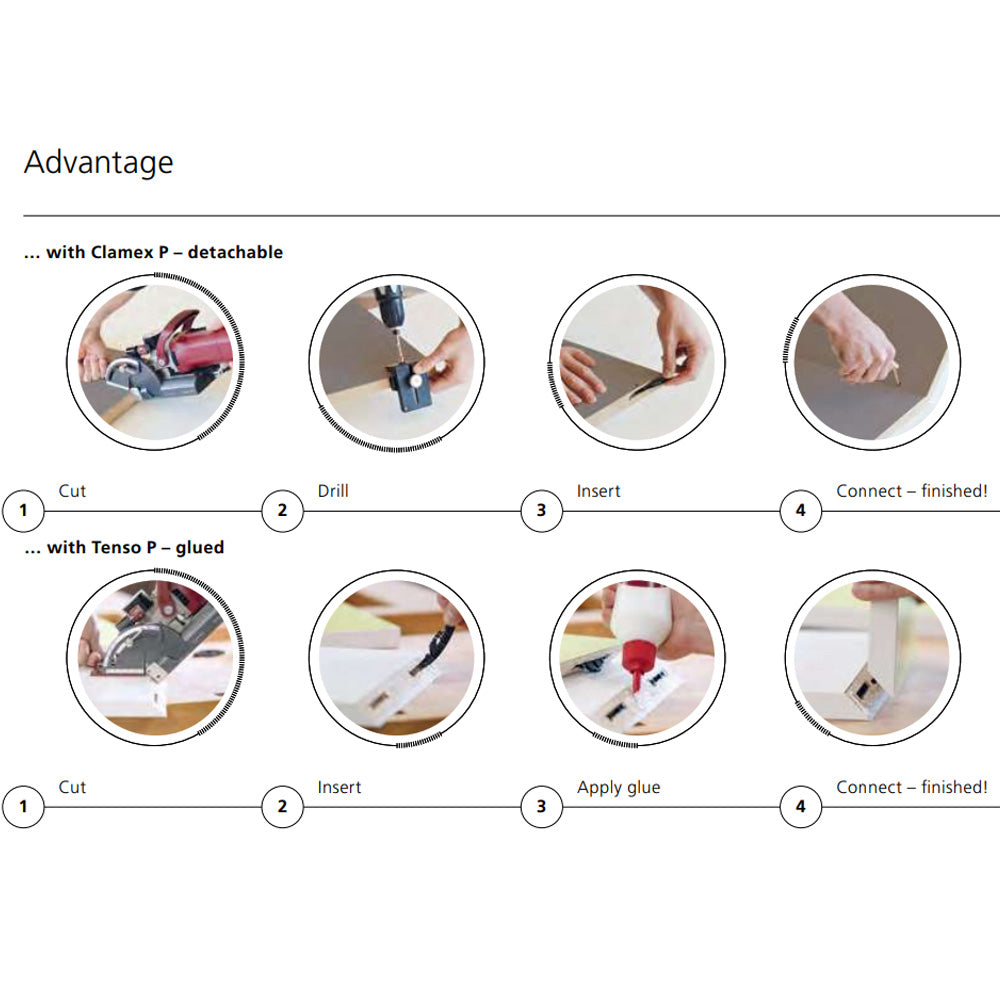

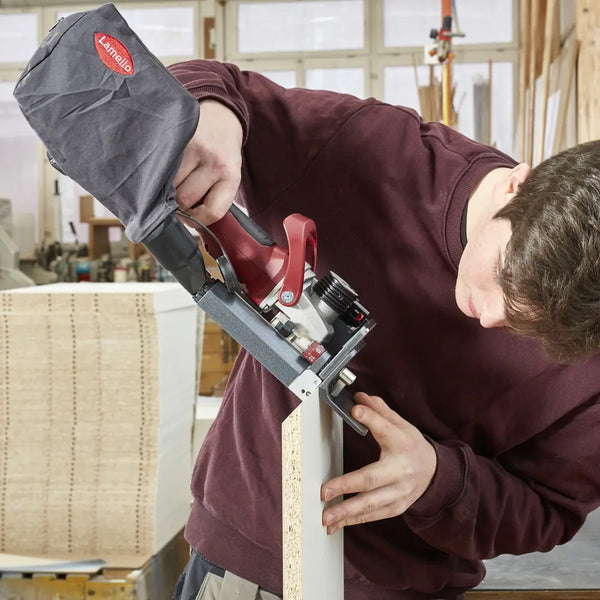

The Zeta P2 is the handheld joiner for P-System Connectors. The innovative profile groove coupled with Lamello's connector system greatly reduces labor time while also negating the need for additional fastening materials like glue or screws. This cordless 18V version gives you the convenience of working anywhere without needing a power outlet.
The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters. The Zeta P2 can also be used as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process security and reliability with a low-wear, fully mechanical construction.
Note: Bare tool only! Also available in a set with batteries and a charger.
Features
- Trademark P-System Vertical Mechanical Drive creates the unique P-System groove
- Tool-free anchoring of connectors, without adhesive or screws
- P-System Depth Adjuster
- Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15, or 18
- Can be used with standard wooden biscuits by rotating the P-System depth adjuster to OFF, and replacing the 7mm P-System cutter with the 4mm groove cutter
- Swiveling Front Stop with Fixed Pivot Point
- Multifunctional Stop Square
- In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm
- Identical grooves on both workpieces saves time by removing the need for depth adjustments and minimizing the risk of errors
- Connector system with innovative profile groove technology greatly reduces labor time while also negating the need for additional fastening materials
- 5 different cutting depths for various connecting fittings
- Also compatible with biscuits and other 4mm fittings
Specs
Power: 800W Cordless Version
Battery Voltage: 18V
Speed: 9,000 RPM
Cutter: Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Max. cutting depth: 20 mm
Weight: 8.15 lbs. incl. 4.0 Ah battery / 9.03 lbs. incl. 5.5 Ah battery*
*Battery not included.

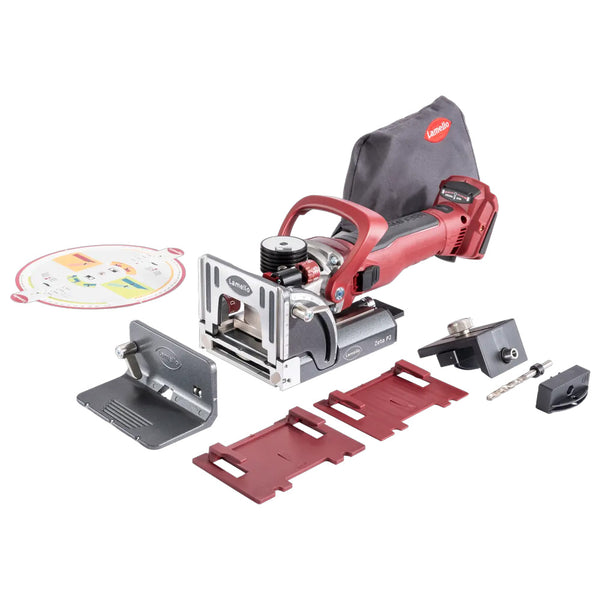

Includes
- Zeta P2 Cordless Biscuit Joiner
- Diamond P-System Cutter
- P-System drill jig
- Spacer- 2 and 4mm
- Dust Bag
- Tool Set
- Stop Square
