Lamello Top 21 Premium Biscuit Joiner

Price
$ 1,875

Have questions? Give us a call at 260-637-0054.

  • Biscuit joiner with cutter height adjustment via dial knob
  • Cutter height can be micro-adjusted between 0.1mm - 4mm
  • Allows you to position the groove in the middle of your material
  • Makes 4mm grooves
  • Multifunctional stop square for vertical stability as well as perfect miters
  • Fixed, self-clamping, and detachable connecting fittings
  • Ideal for furniture and kitchen manufacturing, panels (especially in thin workpieces), cutting expansion gaps, and milling out resin pockets

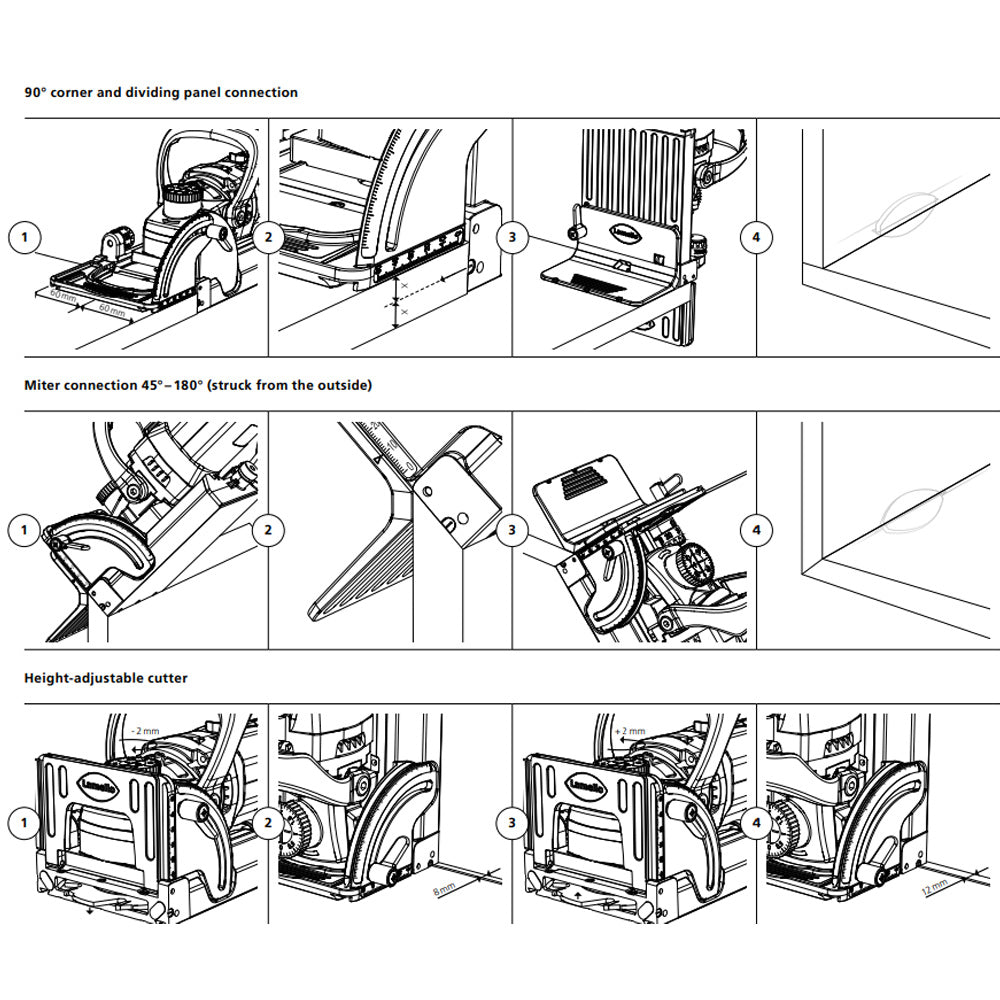

The Top 21 Biscuit Joiner features a height-adjustable cutter. The height can be micro-adjusted via a dial knob by 0.1mm all the way up to 4mm. This function allows you to make a groove in the exact center of your material, for example, in a 19mm thick panel (9.5mm on both sides) instead of positioning it off-center (8mm or 11mm). The Top 21 also has the ability to do any angles or miters at 22.5° - 180° with the unique stop square and swiveling stop.

Another application the Top 21 can easily perform is cutting joints with protruding or recessed edges. If a corner connection is made of coated chipboard, the side is recessed around the rounded edge so that the chipboard layer on the edge is not visible. This recess is possible in an instant with the Top 21 by adjusting the groove position. Groove adjustment is also an advantage when cutting expansion gaps on wooden paneling for ceilings or laminate floors.

Features
  • Unique rotating height adjustment to set the cutting position in 0.1 mm intervals
  • Powerful, electronically controlled 1,050W motor with soft start, constant speed, restart and overload protection
  • Base plate generation with improved visibility of the angle scale and height adjustment as well as application surfaces left and right for efficient positioning on the work piece
  • Precision-machined guide and application surfaces for perfect fit of work pieces
  • Multifunctional stop square for vertical stability as well as perfect miters due to the application on the outer surface for 22.5 and 45° angles
Specs

Power: 1,050W
Voltage: 120V
Speed: 9,000 RPM
Cutter: Carbide-tipped cutter with groove, 100 x 4 x 22mm
Teeth: 6, with scoring teeth
Max. cutting depth: 20mm
Weight: 7.7 lbs.

Includes
  • Top 21
  • Groove cutter
  • Suction stub 23mm
  • Suction stub 36mm
  • Dust bag
  • Stop square
  • Spacer 4mm
  • Tool set
Video

SKU: 101500S
