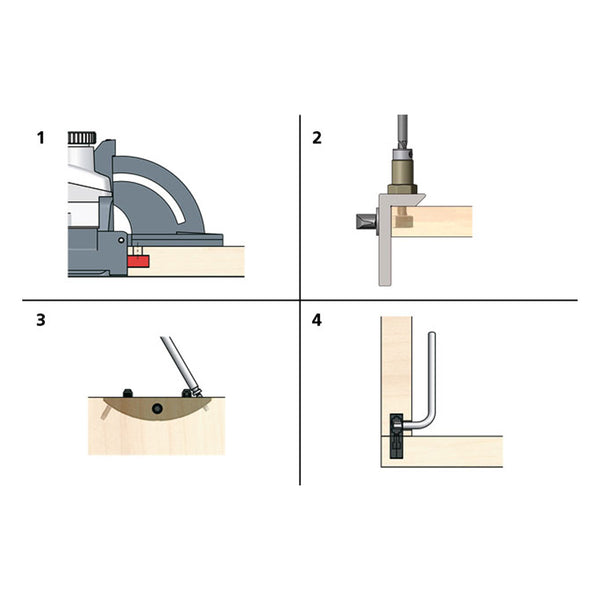

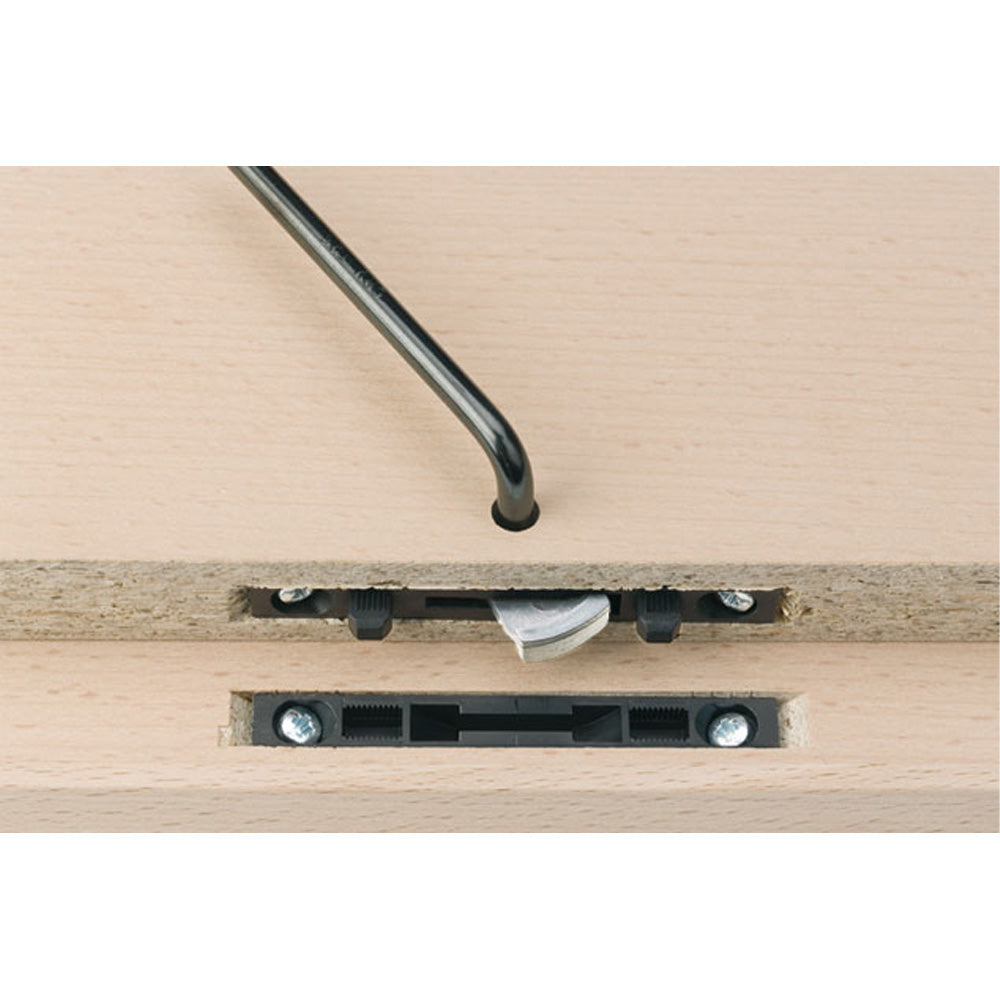

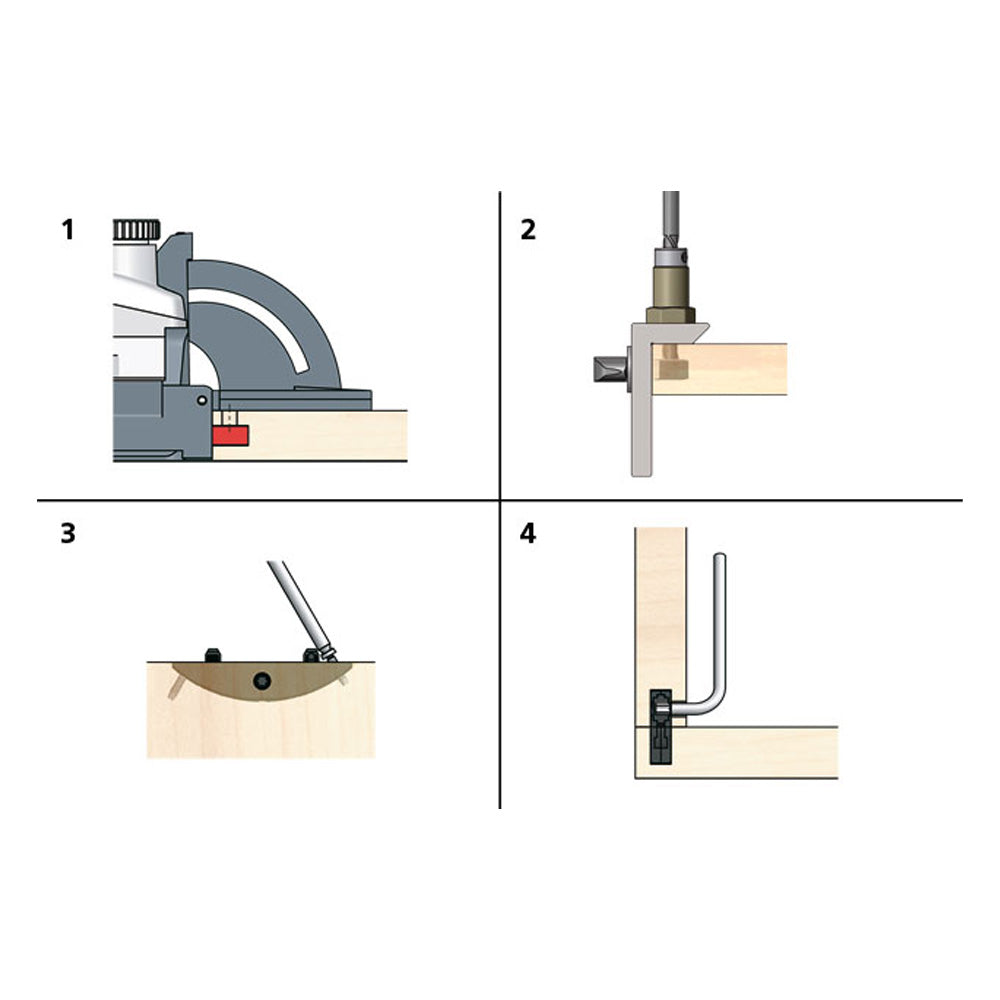

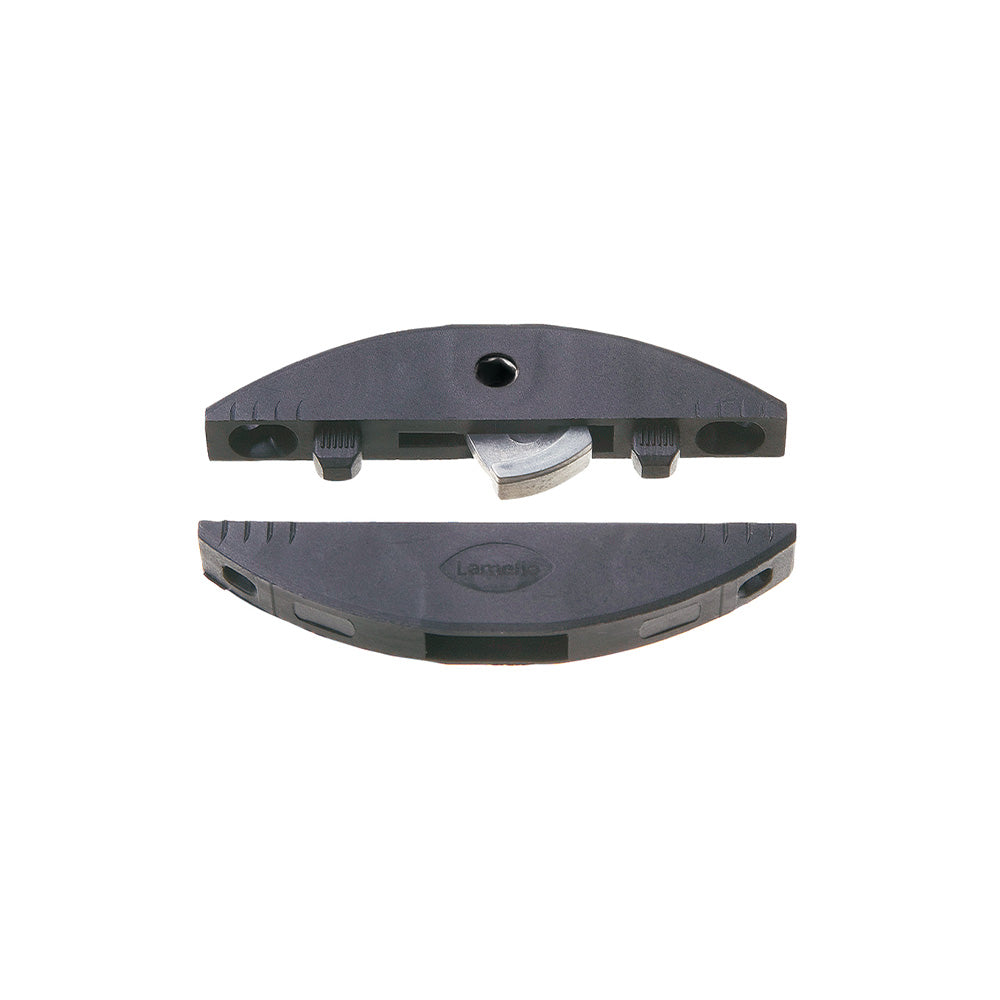

Clamex S is a knockdown connector that is screwed into an 8 mm groove and connected via a lever. The 8 mm groove cutter for Clamex S can be used with any Lamello biscuit joiner. Clamex S possesses a minimal installation depth of 14.7 mm and can therefore be used in all wood materials from 16 mm.
[TABS]
Features
Practically wear-free knock-down connector

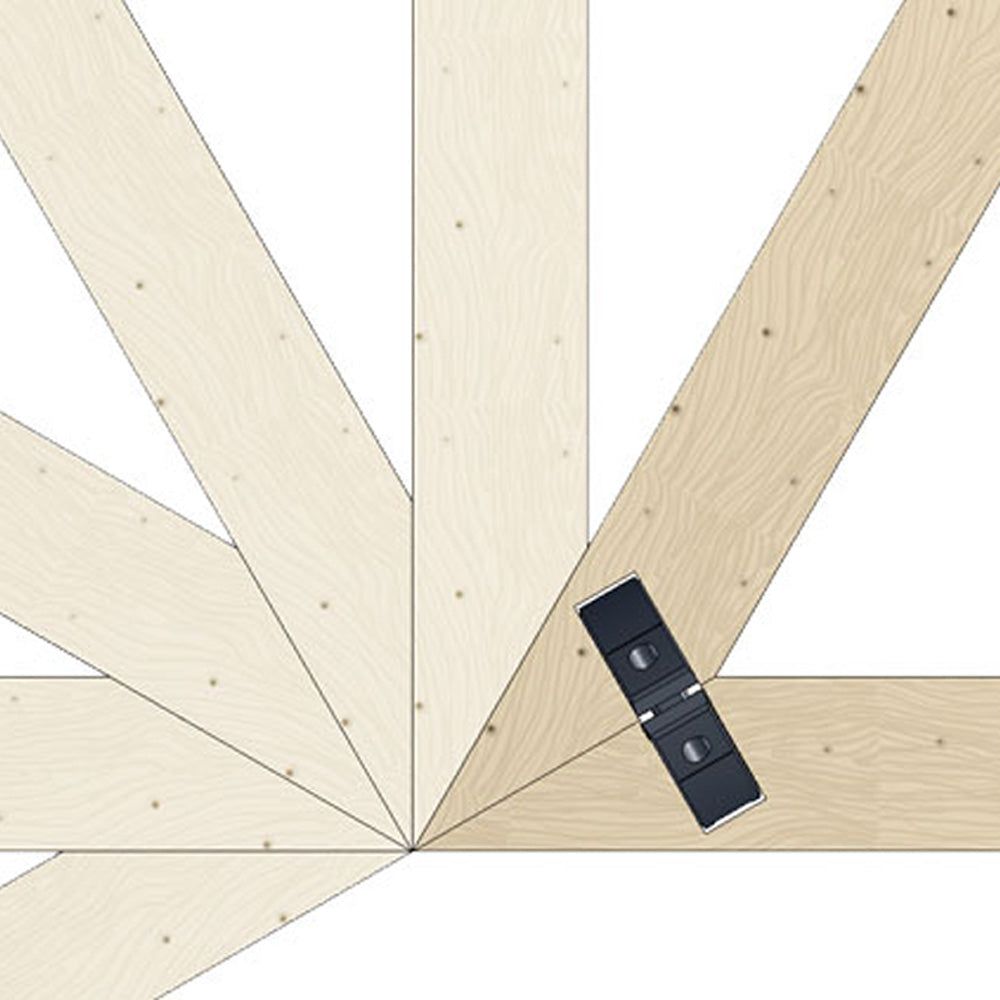

Detachable miter connector for 30-180° angles and all butt joints
Minimal tool opening of just 6 mm
Can be installed with any Lamello biscuit joiner
Stackable for transport, despite pre-installed connectors
High clamping force of 100 kg for gluing furniture at all angles
Lateral tolerance for efficient installation using Classic X and Top 21 biscuit joiners
Specs
Size: 66 × 29 × 8 mm Cutter: Ø 100 x 8 x 22 Shell Material: Fiberglass reinforced plastic Lever Material: Zinc die-cast Installation Tolerance: Longitudinal ± 1 mm Tensile Strength: Particle board ~ 800 N ≈ 180 lbf. Tensile Strength: Beech ~ 1300 N ≈ 292 lbf.
