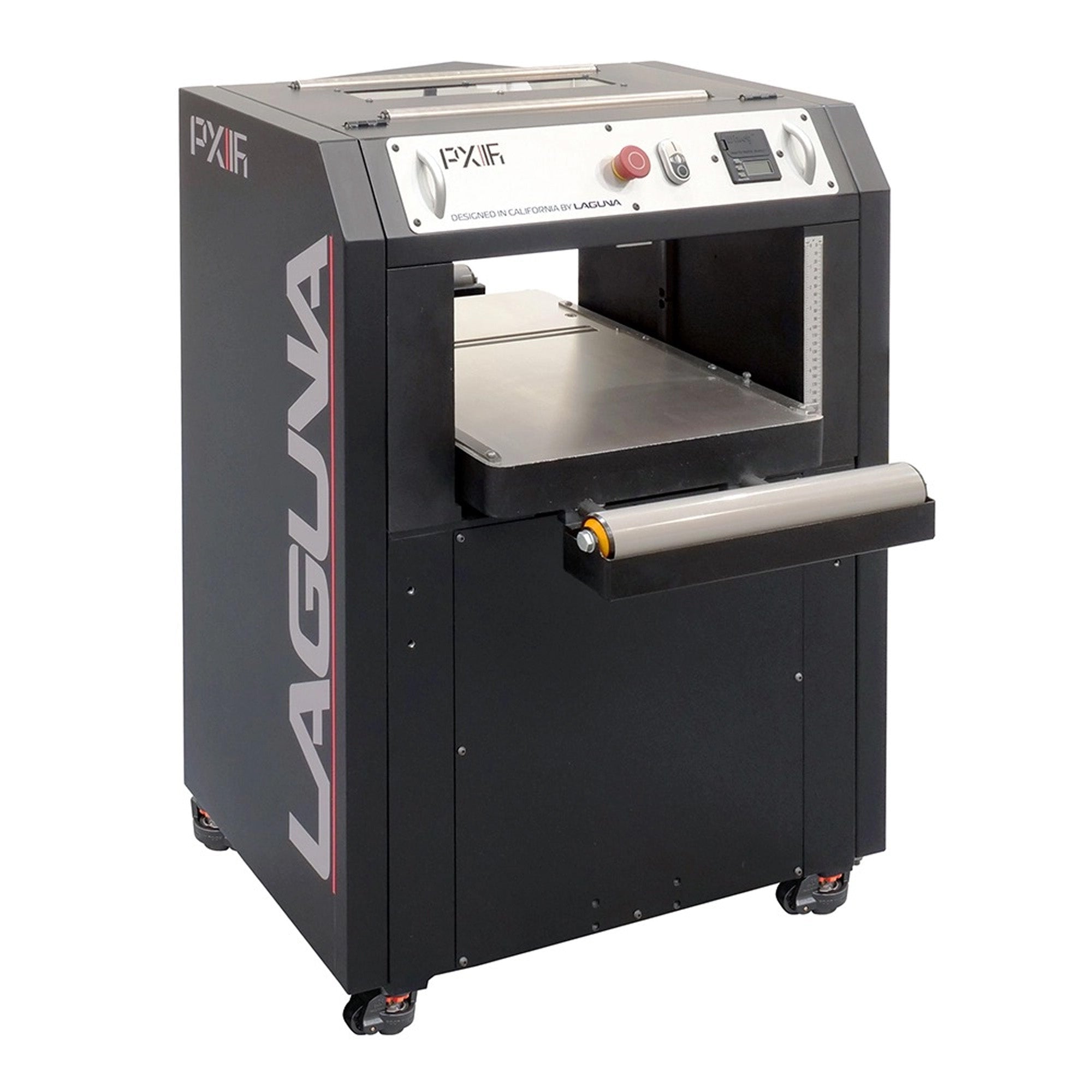

Laguna PX|16 ShearTec: II Planer

Sale price
$ 4,139.10
List price
$ 4,599

Have questions? Give us a call at 260-637-0054.

The  PX|16 Planer signals an innovative design for Laguna planers. The Laguna PX|16 is loaded with ergonomic features to make woodworking safer and more enjoyable.

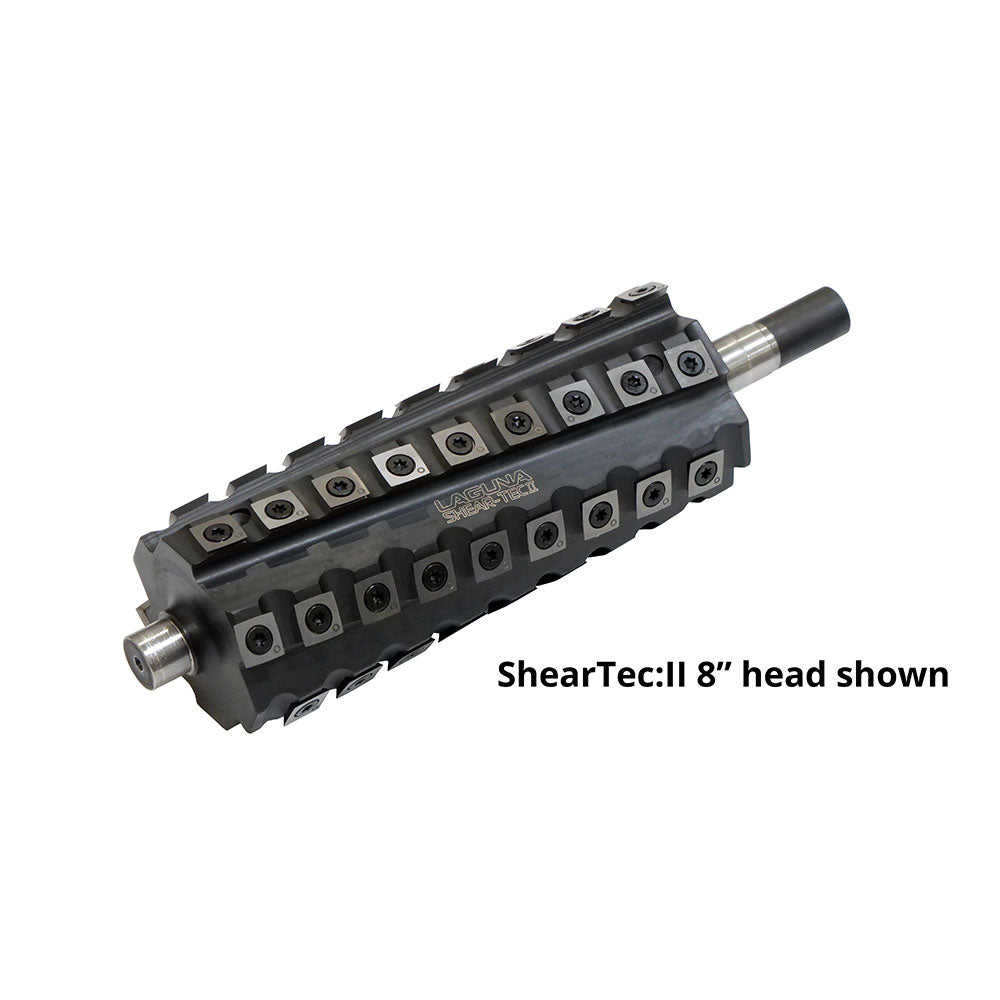

The ShearTec II cuttherhead comes as standard equipment on PX|16 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter.

The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Compare PX Series Planers here.

Features

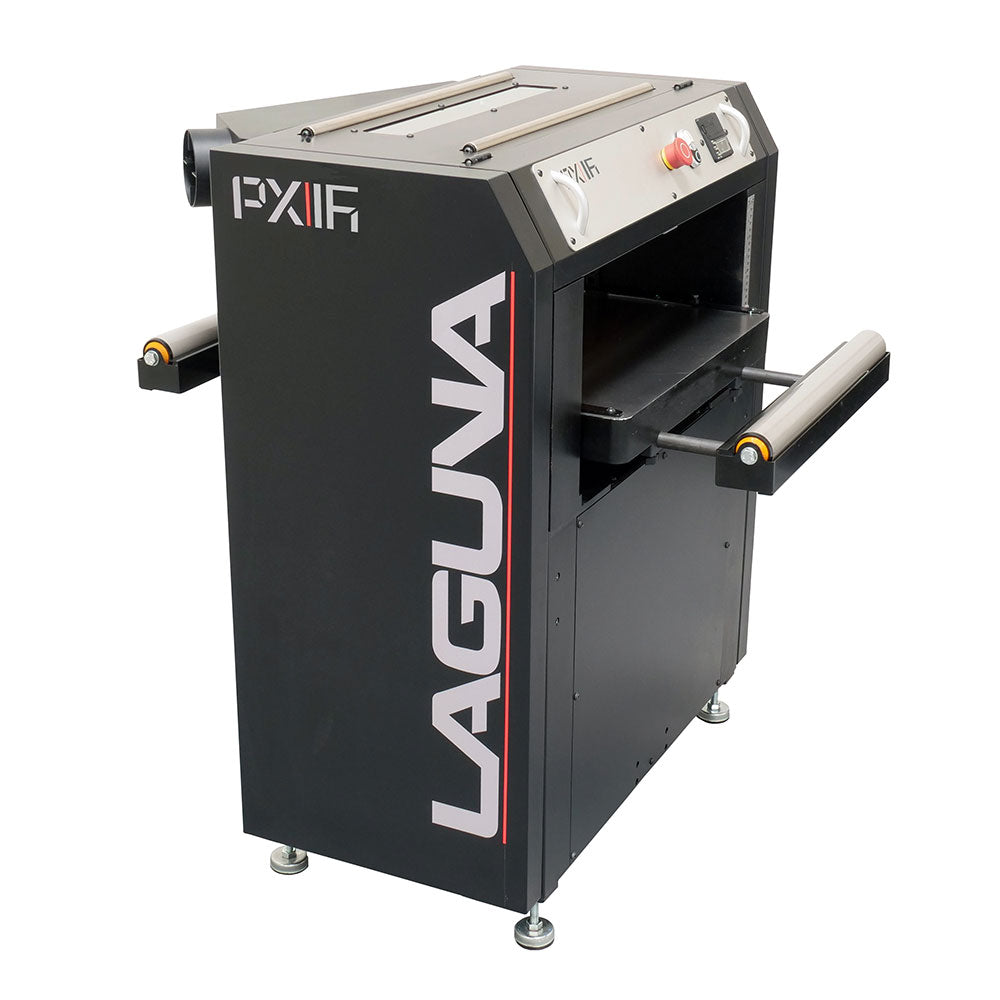

  • Infeed and Outfeed Rollers - The PX|16 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
  • Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier

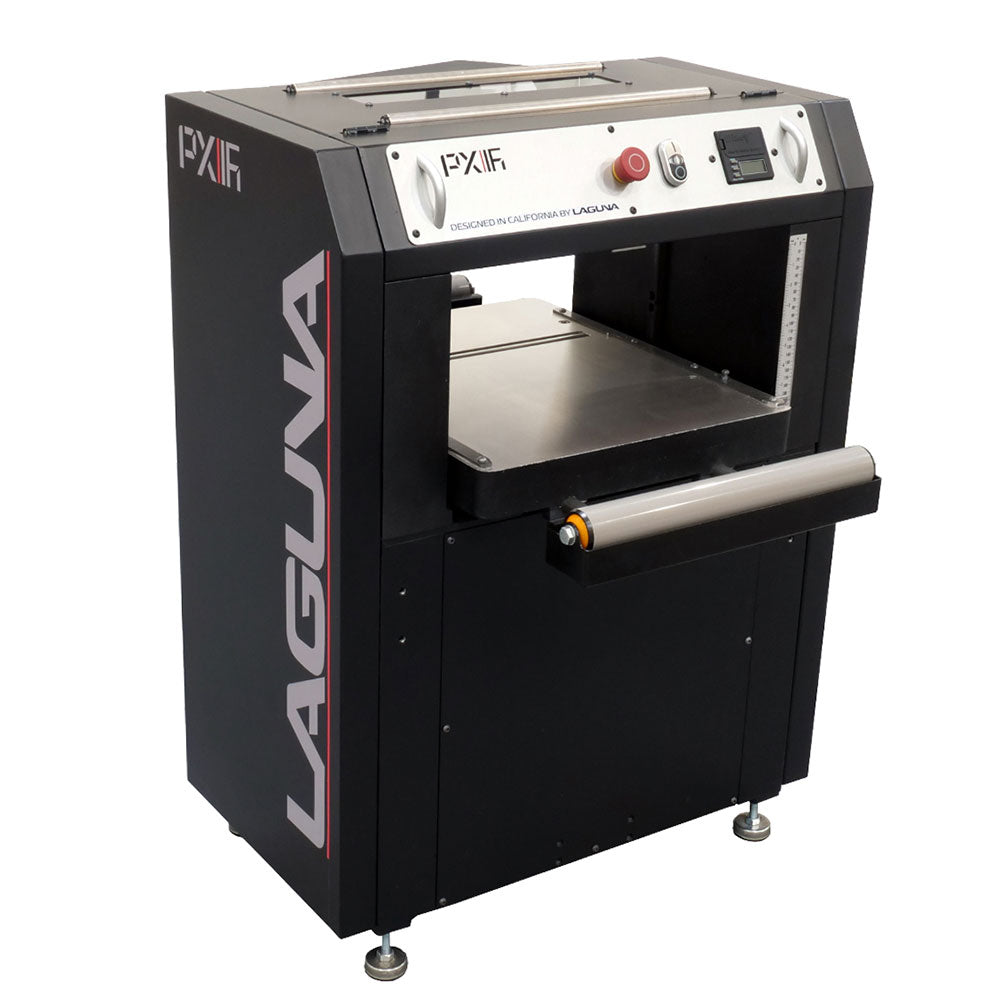

  • Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the cabinet, the PX|16 sports a sleek, modern design

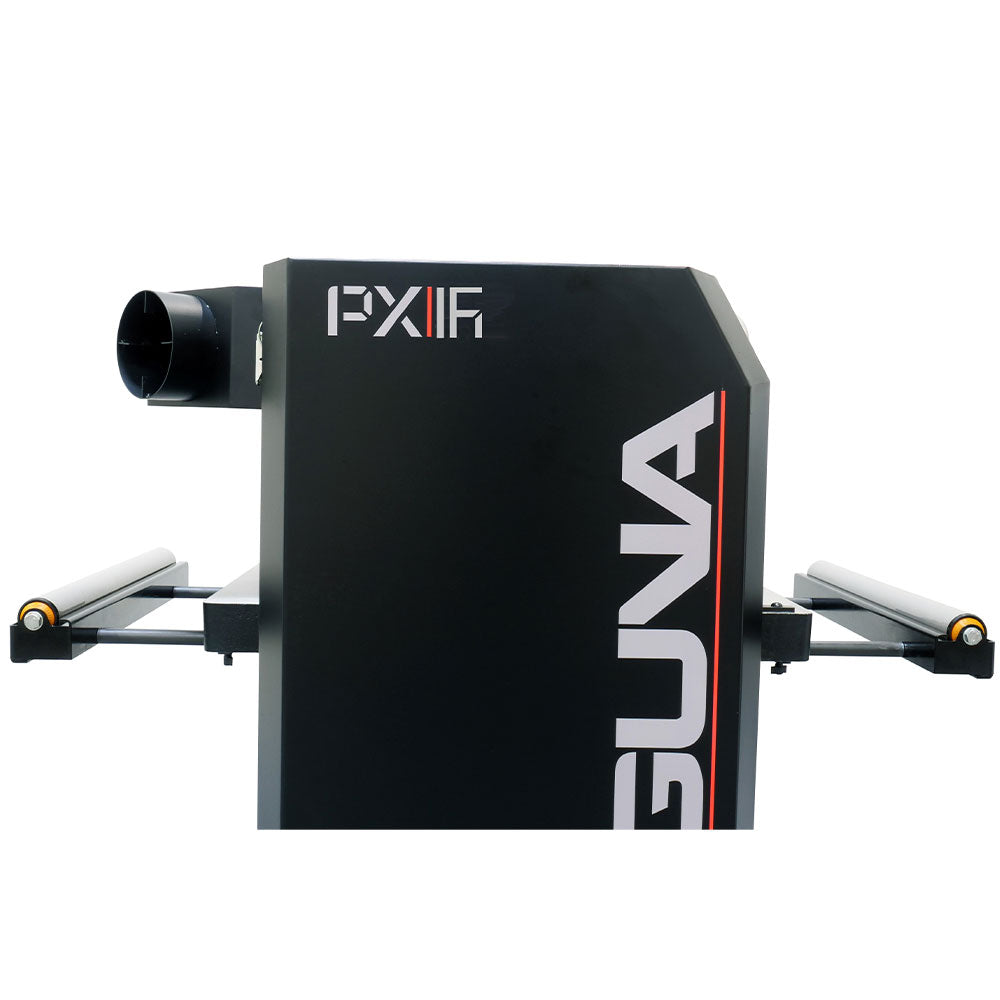

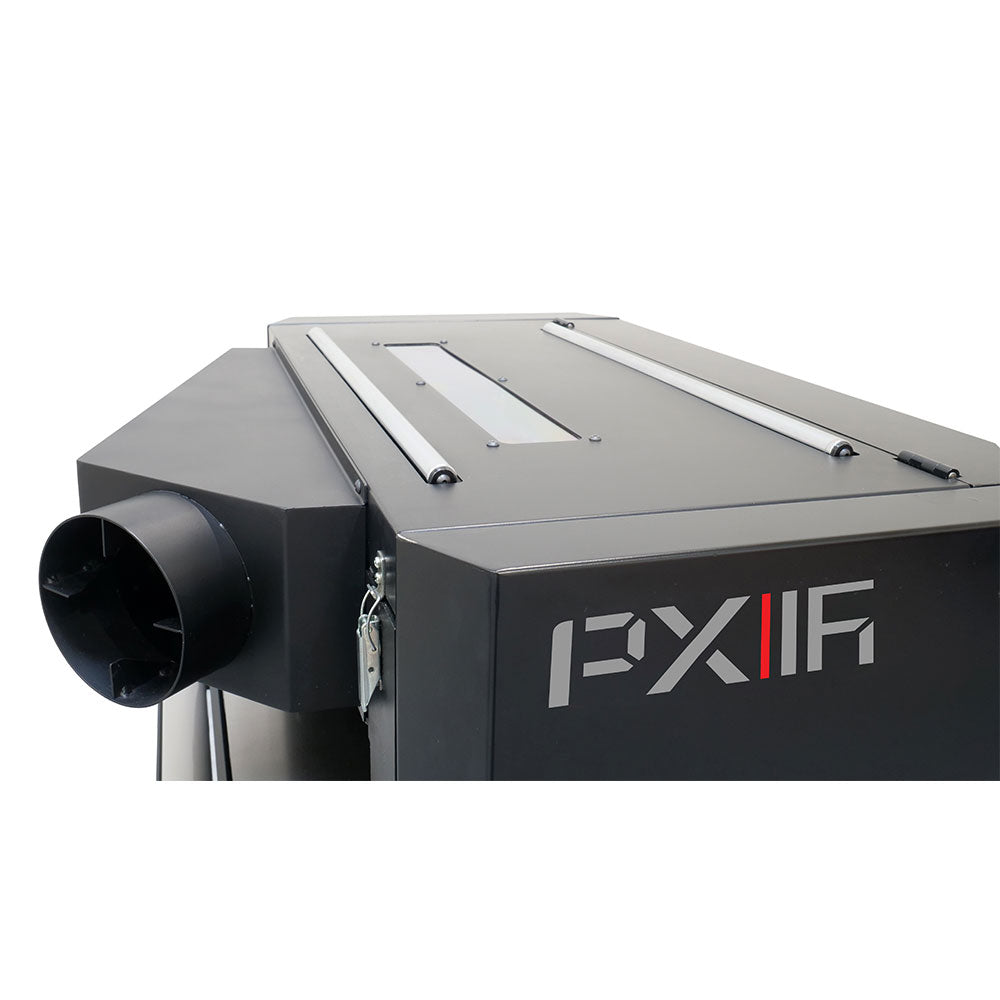

  • Improved Dust Collection - The 4" diameter dust chute offers the option to point to right or left to optimize dust collection system layout
  • 4-Post Bed Support - Provides precise and consistent performance with every cut

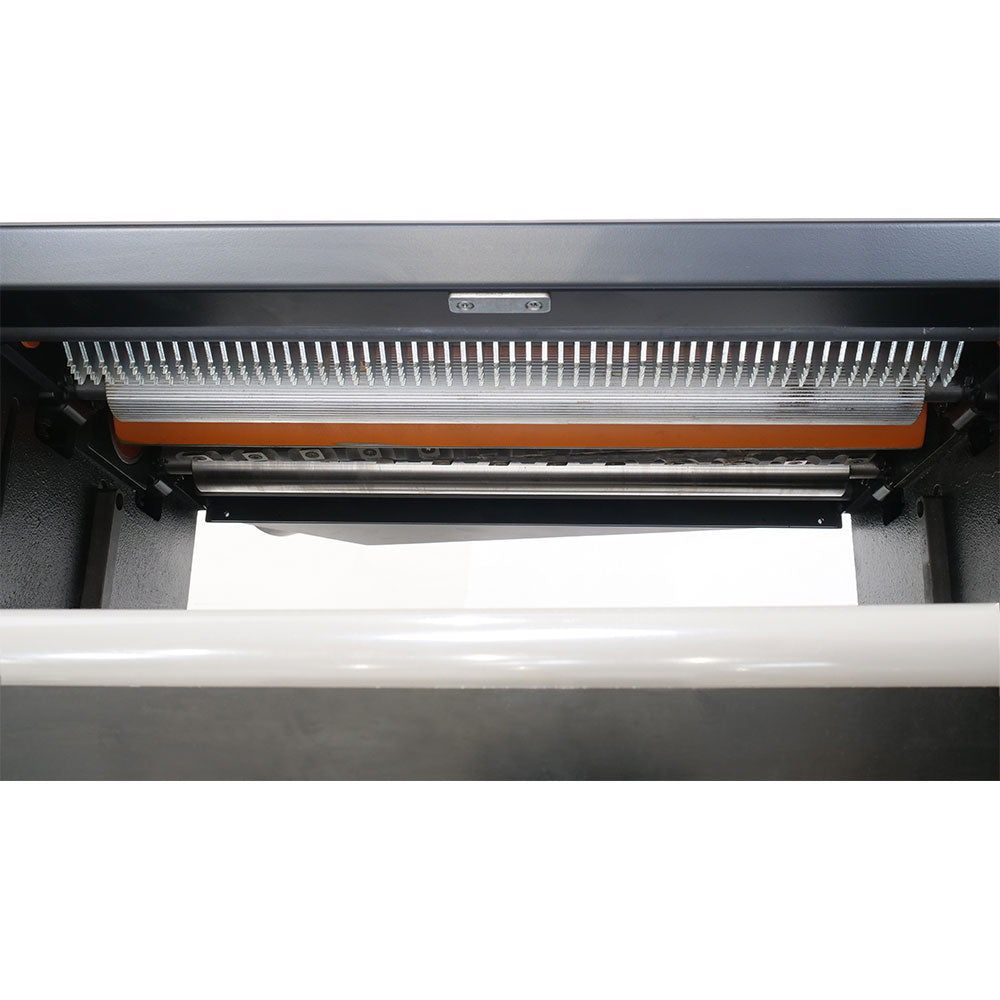

  • Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe
Specs

Motor 220v 5HP 1phase 60hz/23Amp.
CSA Yes
Bed Size 16 x 21-1/2"
Pull-Out Extension 4"
Wheels Built-in Optional
Max. Depth of cut 1/4"
Max. Stock Thickness 8"
Min. Stock Thickness 1/4"
Min. Stock Length 8"
Max. Stock Width 16"

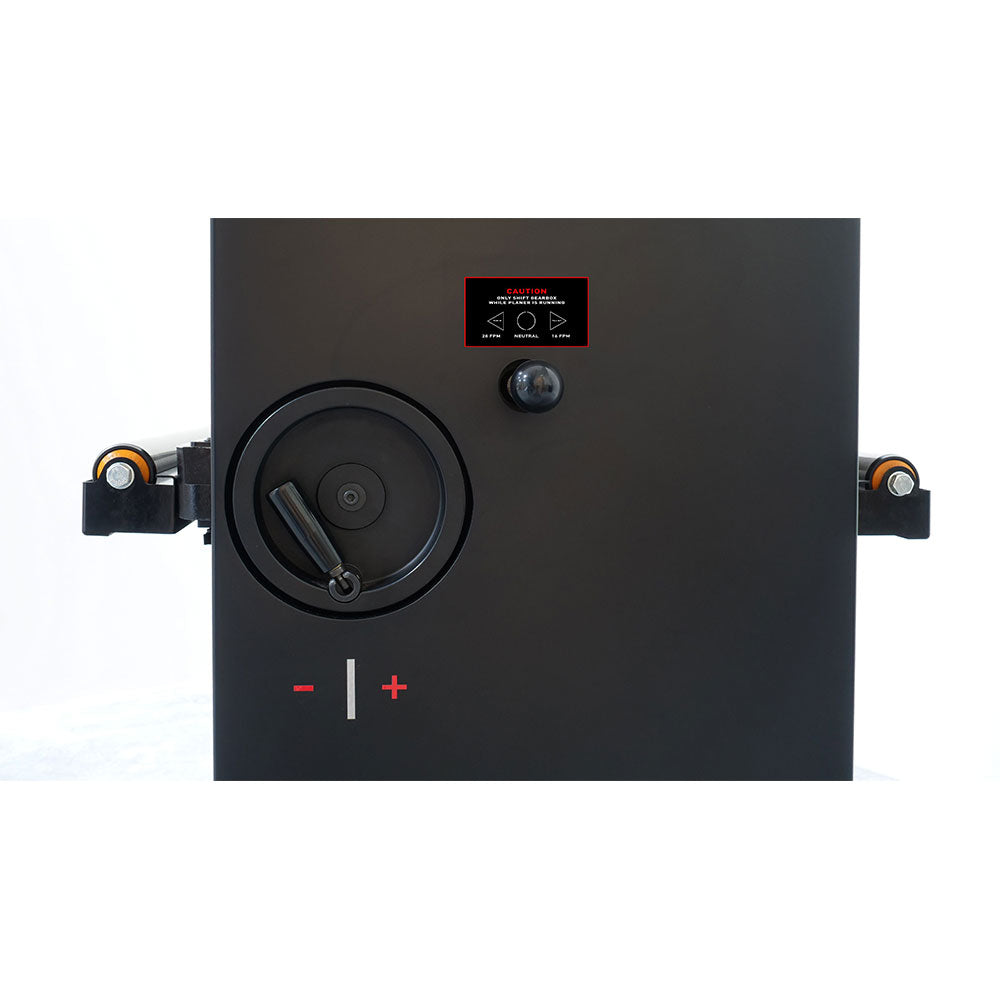

Feed Speed 16 & 28 FPM
Dust Port Diameter: 4" LEFT and RIGHT
Cutterhead RPM 5000
Cutterhead Diameter 3"
Cutterhead Insert # 108 x 4-sided Carbide, 6 Row
Thickness Readout Wixey DRO
Dimensions set up approx. 33"x 36"

Video

SKU: MPLANPX16-0130

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Peter Low
Amazing macine

Most notably it is quiet,while producing a glass smooth cut . Putting all the controls where they are easily readable is great -finally someone figured out placing them where they should be I keep the feed rate at 16 rpm and the results are terrific almost doesn’t need any sanding . Only thing I noticed is to access the cutter heads you have to remove the dust hood -strange but hardly a deal breaker. Footprint is great if space is an issue. Highly recommend
